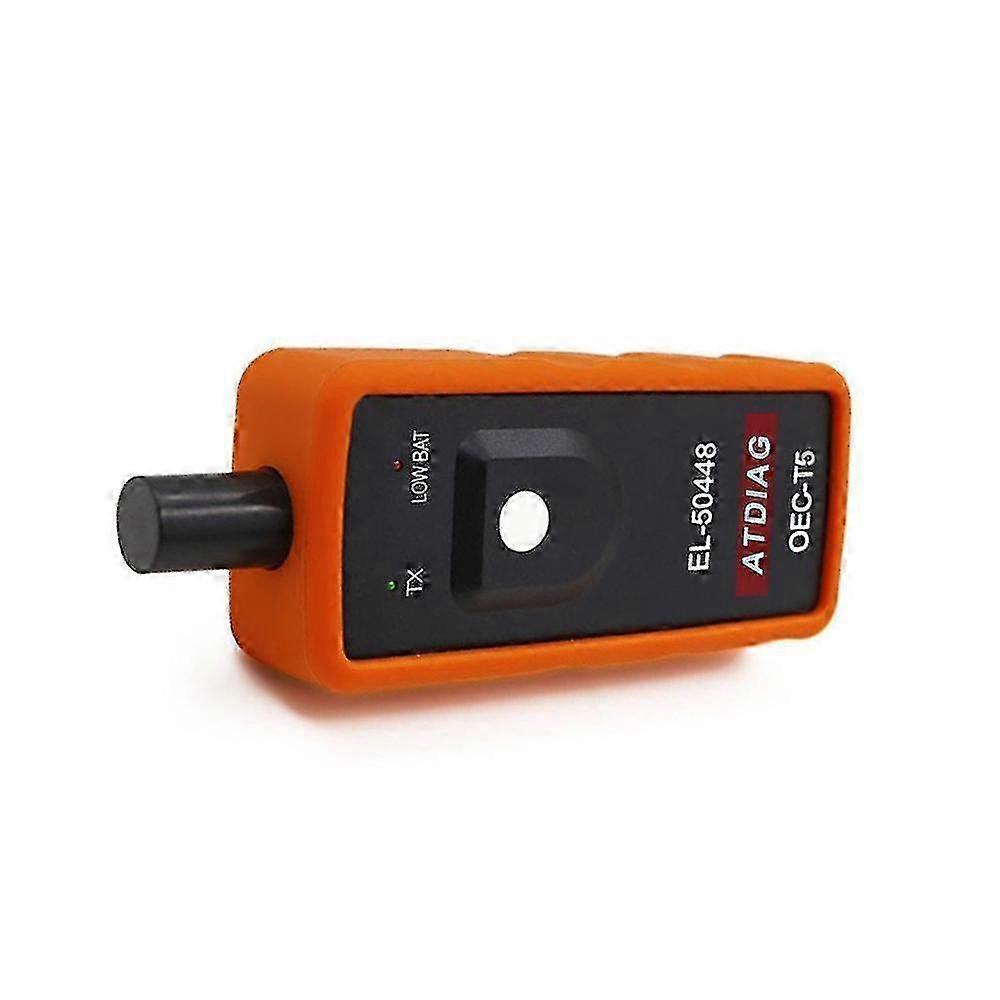

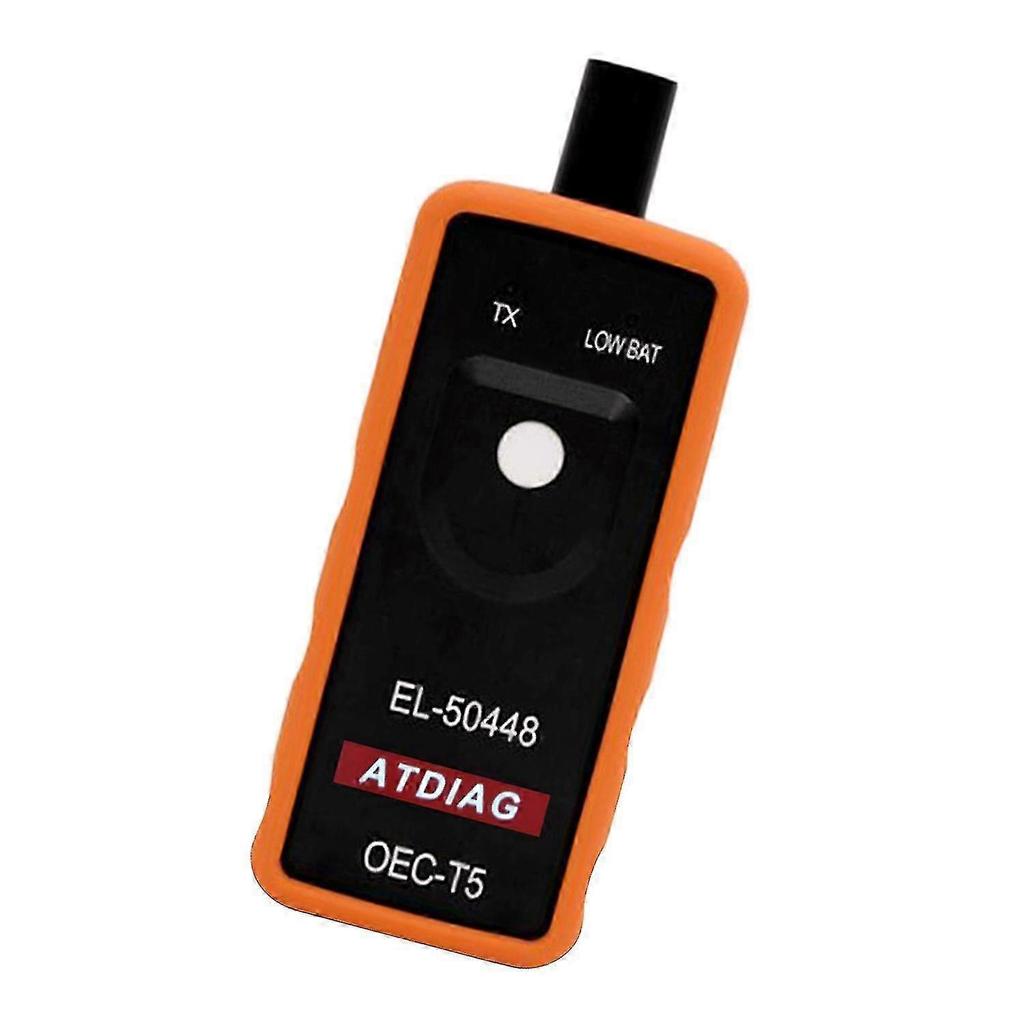

TPMS Activation Tool for Tire Pressure Monitor Sensor EL-50448 OEC-T5 Replacement

For GM vehicles equipped with a 315 or 433 MHz Tire Pressure Monitoring (TPM) system, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement, or Tire Pressure Sensor replacement. This re-learn procedure can be performed using the EL-50448 tool. Also compatible with select 2014 GM models.

Features: - EL-50448 Tire Pressure Monitor System reset tool simplifies reprogramming all tires. - Ensure the vehicle is in Tire Pressure Monitor System Learn Mode and follow the service procedure. - Hold the tool against the tire sidewall near the valve stem. Press and hold the Learn button while positioning the tool. - Simple, fast, and easy to use — activates individual TPM sensors with one button press. - Designed for GM and Opel vehicles manufactured after 2010.

Specifications: - Model Name: EL-50448 - Material: High-quality plastic and metal - Power: 9W - Voltage: 12V - Battery: Not included - Function: Automatic Tire Pressure Monitor Sensor Reset Tool - Compatible Vehicles: GM and Opel models - Dimensions: 9 x 6 x 3 cm (3.54 x 2.36 x 1.18 in) - Weight: 150 g (5.29 oz)

Step 1 – Enter Learn Mode - Set gearshift lever to “P” - Turn ignition switch to “ON” - Access tire pressure display via Driver Information Center (DIC) - DIC displays “Press Set / Ctrl to re-learn” - Press “Set / Ctrl” - Turn signal lights for 3 seconds and horn beeps twice to confirm entry into Learn Mode

Step 2 – Read Tire Pressure Sensor Information - Begin with front-left wheel - Position the EL-50448 antenna near the valve core, close to the tire sidewall - Activate the tool using the start switch - A single horn beep confirms successful sensor reading

Step 3 – Repeat for Remaining Wheels - Follow the same process for front-right, rear-right, and rear-left wheels - Upon completion, turn signals light for 3 seconds and horn beeps twice

Compatible Vehicle List (select models): 2010–2011 Buick, Cadillac, Chevrolet, GMC, Opel, and Saturn models including but not limited to: - 9-5, Enclave, Outlook, Traverse - Allure, LaCrosse, Antara, Captiva, Terrain, Winstorm - Avalanche, Suburban, Tahoe, Yukon - Aveo, G3, Barina, Excelle, Regal, Camaro, Canyon, Colorado, Cobalt, G5, Corvette, Cruze, Equinox, Express, Savana, G6, H3, H3T, HHR, Impala, Insignia, Lucerne, Malibu, Astra, Sierra, Silverado, SKY, Solstice, SRX, STS, VE/WM series, VUE, Captiva Sport
