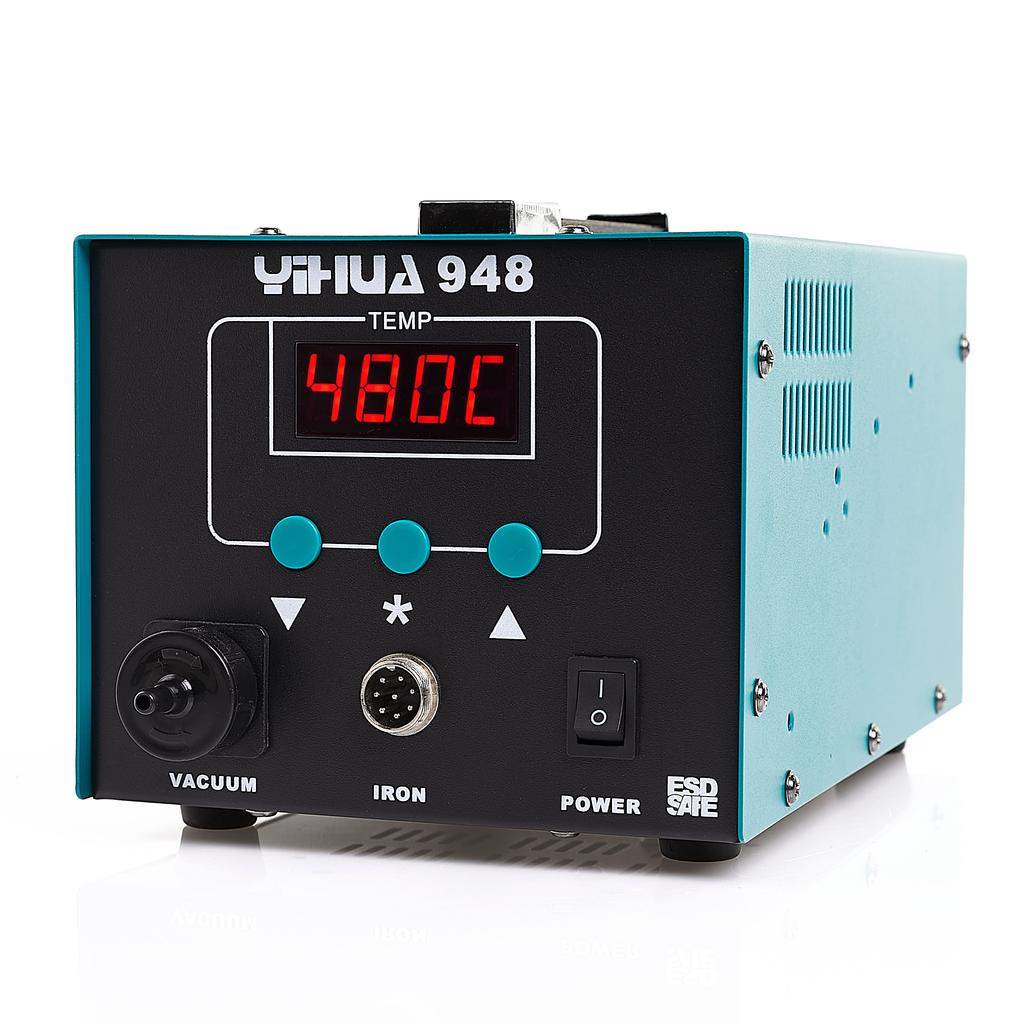

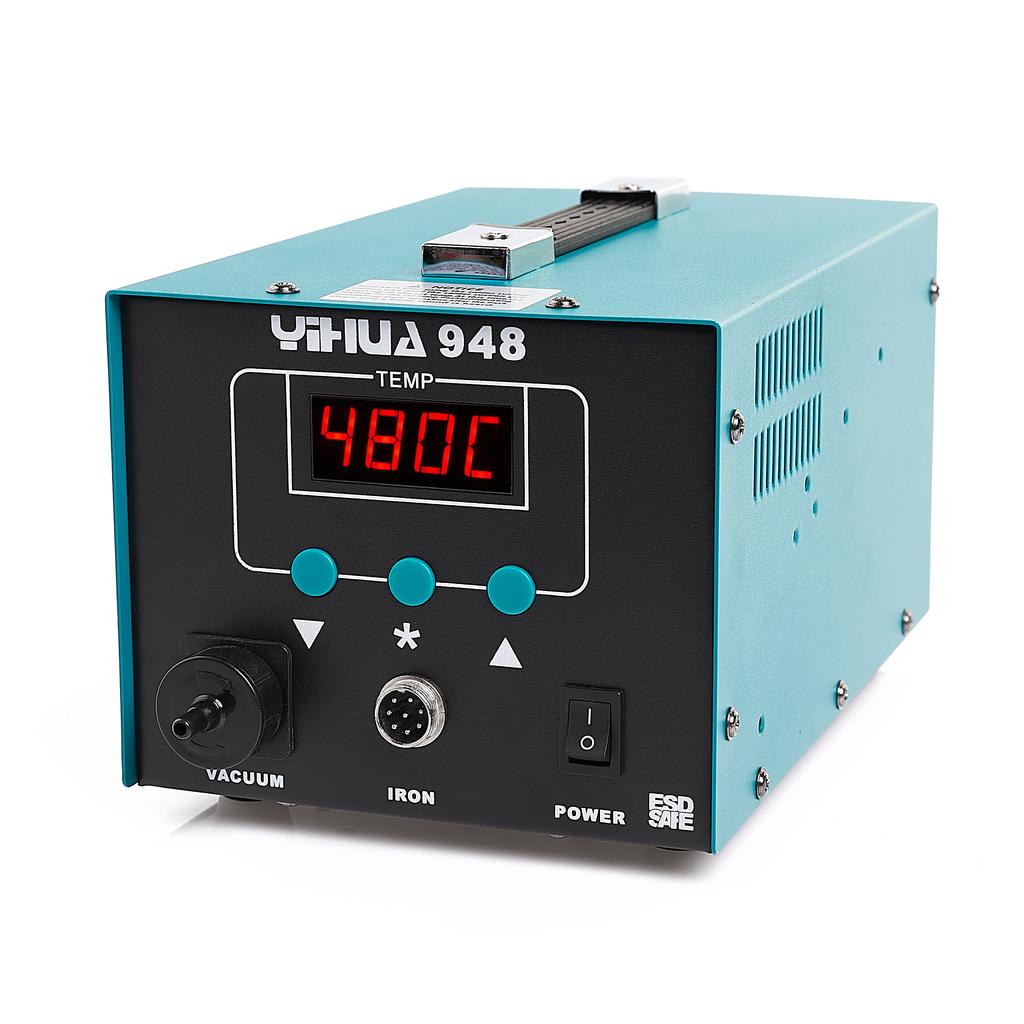

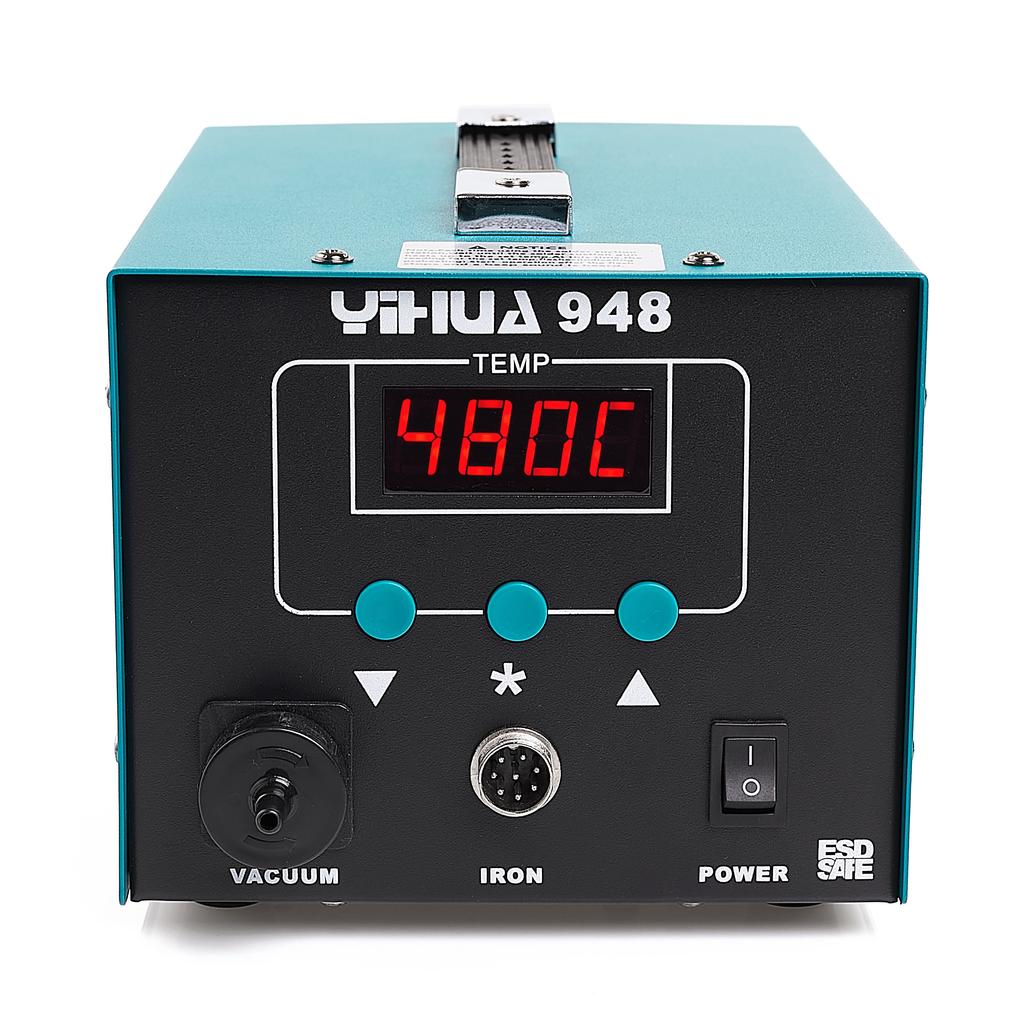

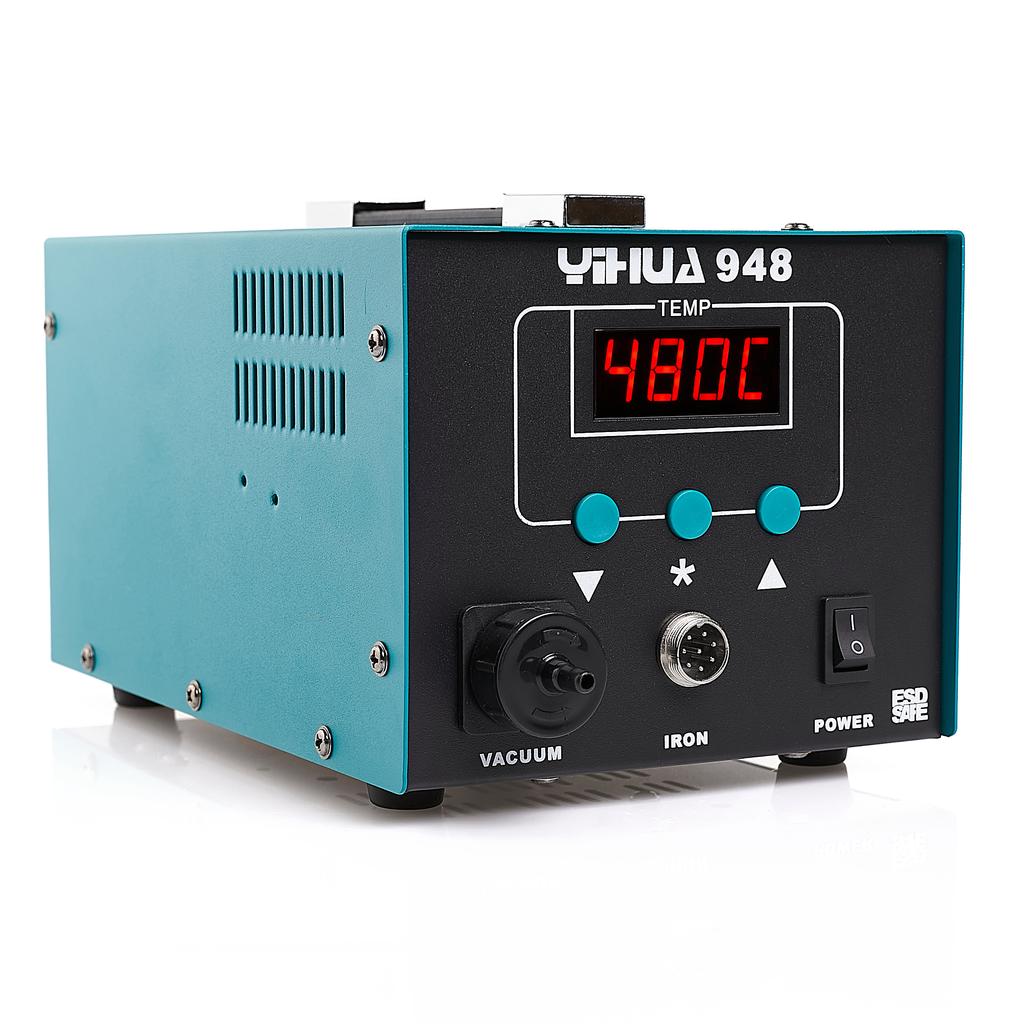

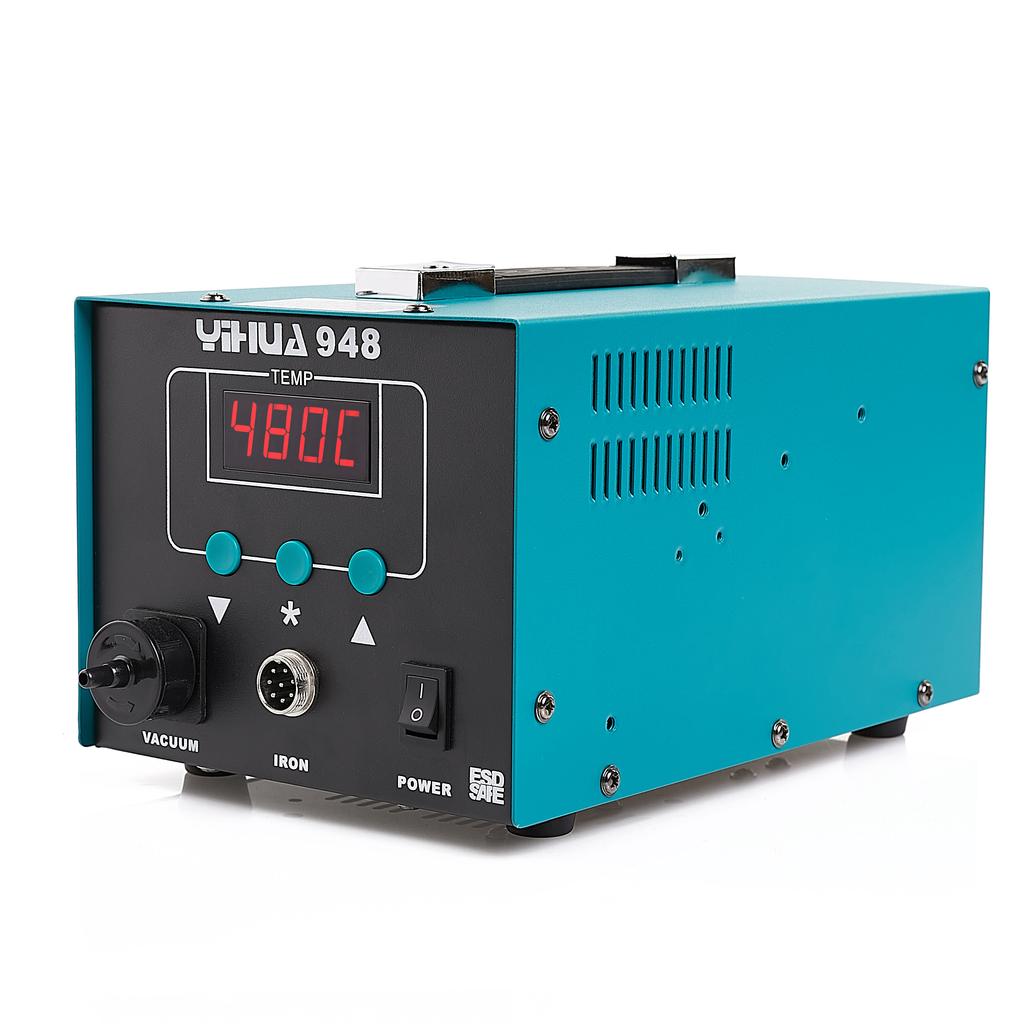

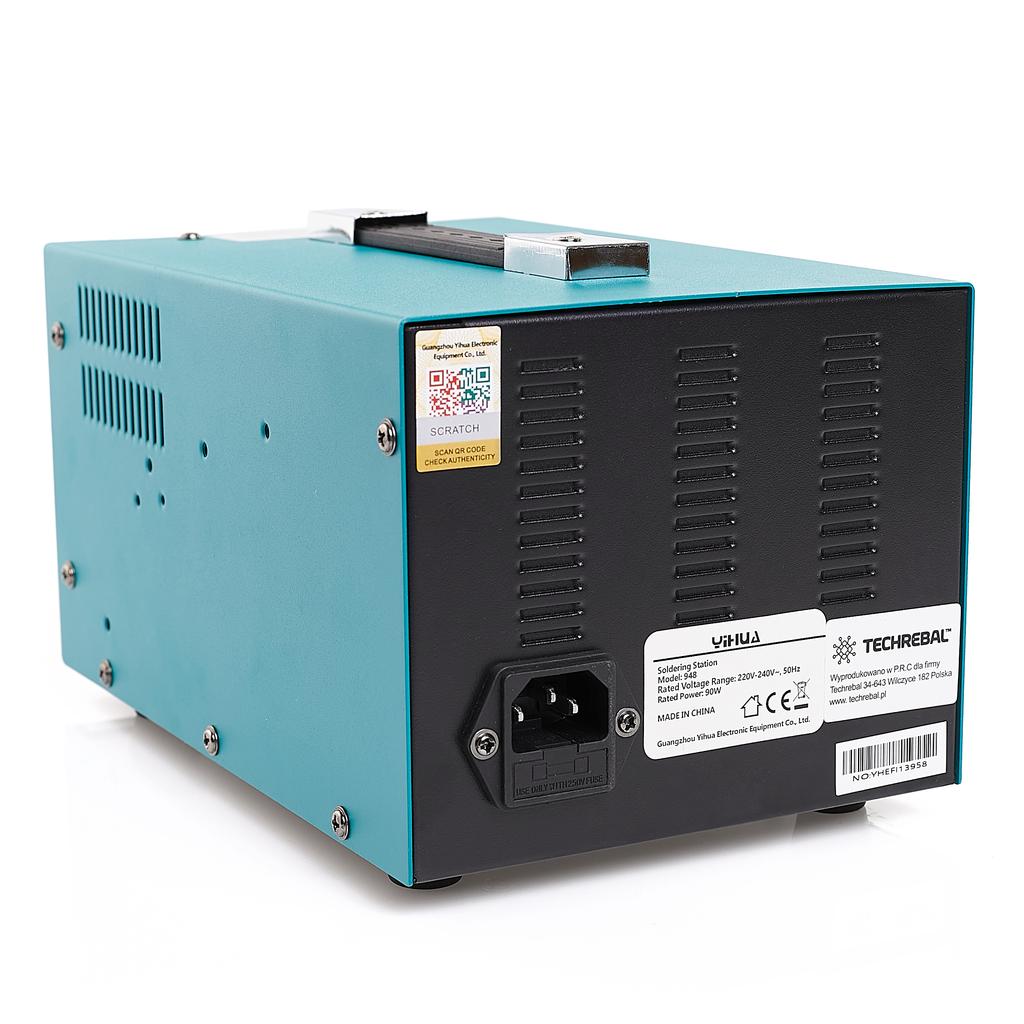

Yihua 948 75W Desoldering Station

Yihua 948 Desoldering StationThanks to its efficient heating elements, it allows you to quickly and conveniently desolder all electronic components.

The desoldering iron is built to ESD standards, ensuring no damage to electronic components during service.

The Yihua 948 desoldering station adjusts the set temperature in real time thanks to a precise PID controller, ensuring high temperature stability, even with large heat fluctuations.The station's power supply is based on a transformer with well-insulated heating elements, ensuring high reliability and operational safety.

The device has the following features:Operation in C/F mode. Temperature units can be set on the display.

Sleep function: The portafilter takes a long time to heat up, and each heating and cooling cycle would be time-consuming. Therefore, a sleep function has been added to the station. Thanks to this, when the portafilter (not included) is placed on the stand, it will enter sleep mode after a pre-set time (60 seconds to up to 99 minutes), and the temperature will drop to 200 degrees Celsius. When you raise the iron again, it will take significantly less time to heat it up to the previous temperature. This reduces power consumption and reduces tip wear. This function can be disabled by setting the time to 0. Automatic shutdown function: The soldering station enters sleep mode to save energy. If it is not woken up, it can automatically shut off. Time setting range: 1 to 99 minutes in 1-minute increments.

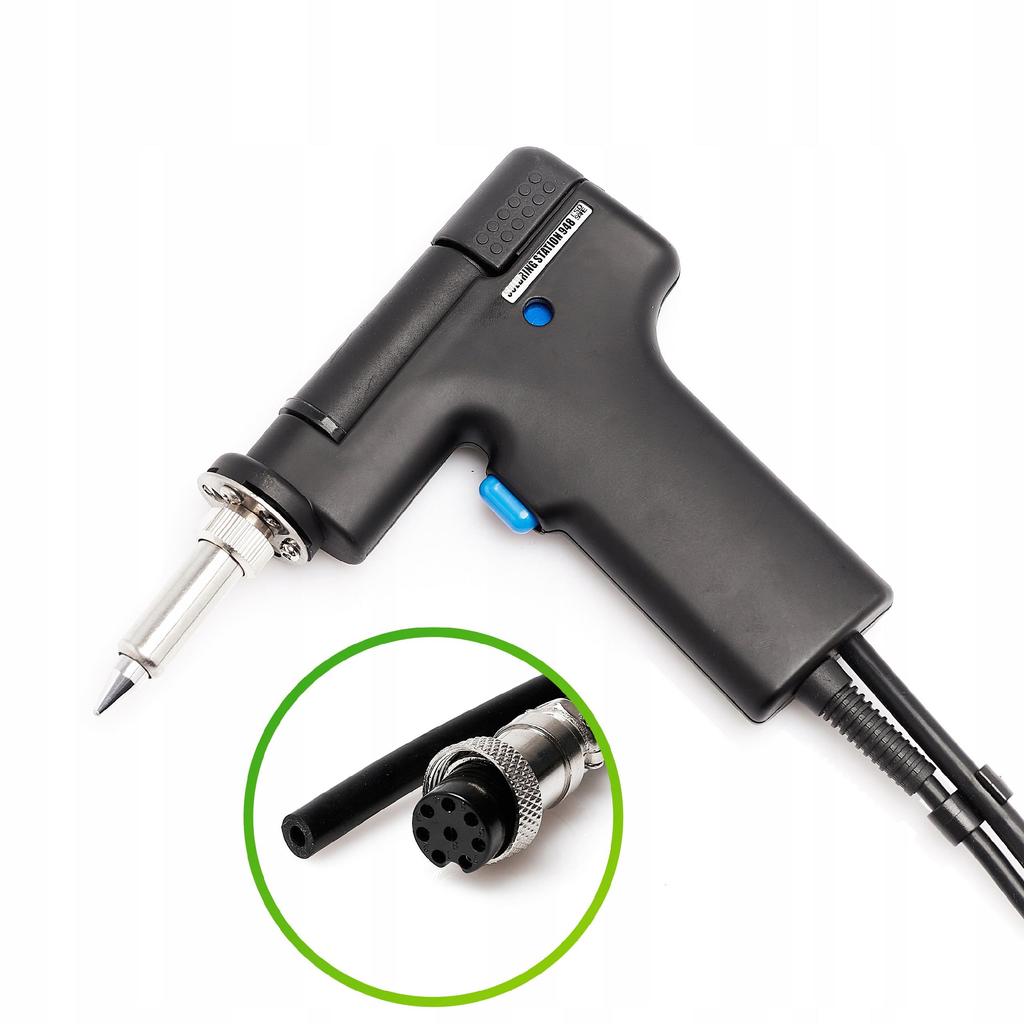

Temperature compensation function: There are different types of soldering tips; some are long and thin, others short and thick, which leads to different thermal conductivity of these tips, and therefore different temperatures at their tips. This is where the temperature compensation function comes in handy, allowing you to correct excess or undertemperature within a range of +/- 50 degrees. This function is especially useful in professional applications.The desoldering iron has a special design that allows the solder to flow into the solder container in a molten state, increasing work efficiency and reducing the frequency of regular maintenance.     Specifications:Power supply: 230VSuction gun: 75WTemperature range: 200°C-480°CDisplay: LEDTemperature stability: +/- 1CHeating element voltage: AC 26V -/+ 10%Compressor power: 12WVacuum power: Max .12MpaGround resistance at the tip: less than 2 ohm DCDimensions: 234x202x134 (LxWxH) Desoldering iron:Heating power: 75WTemperature range: 200-480°CTemperature stability: +/-1°CDisplay type: LCDResistance to ground below 2 ohmsHeating element voltage: AC 26V +/- 10%Cable length: up to 120cmSystem: ESD safeSoldering iron: 8 PinsCompressor power: 12WVacuum power: Max .12MpaHandpiece cable length: up to 120cm INCLUDED:Yihua 948 stationPistol holder with spongeDesoldering gun 8-pin2 extra desoldering tips (including 1 attached to the gun)Spare filters2 pcs. whiteSpare spring filters (2 pcs.)PinSet of cleaning brushes for tips of various thicknessesPower cordSilicone mash
