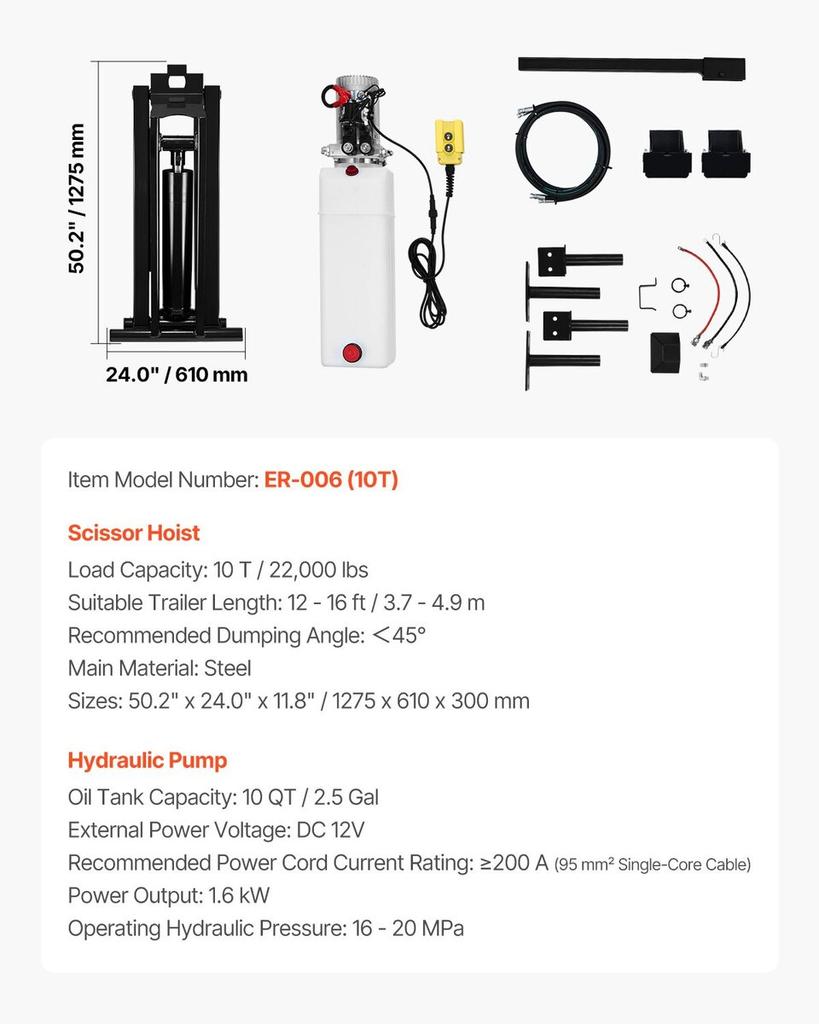

Hydraulic Scissor Hoist Kit 10 T Hydraulic Dump Lift Kit for Dump Trailers

Hydraulic Dump Lift Kit, 22,000 lb/10 T Dump Trailer Hydraulic Scissor Hoist Kit Standard Kit, Hydraulic Dump Bed Kit with 12V Hydraulic Pump Unit Suitable for Scissor Lift Dump Trailers Trucks Custom for Large Dump Trailers Double-Acting Pump Avoid the Dangers of Unloaded Lifting Sturdy and Durable Versatile Applications Easy Maintenance Recommended Dumping Angle: 45°,Oil Tank Material: PP Plastic,Maximum Body Tilt Angle: 127°,Hydraulic Oil Tank Capacity: 10 QT/9.5 L,Maximum Release Pressure: 3200 PSI/22 MPa,Suitable Trailer Length: 12 - 16 ft/3.7 - 4.9 m,Product Dimensions: 50.2" x 24.0" x 11.8"/1275 x 610 x 300 mm,Power Output: 1.6 kW,Flow Rate: 1.45 GPM,Lifting Plate Thickness: 0.3"/8 mm,Load Capacity: 10 T/22,000 lbs,External Power Voltage: DC 12V,Item Model Number: ER-006 (10T),User-Provided Power Cable Capacity: 200 A (Single-core Cable of 95 mm²),Net Weight: 383.6 lbs/174 kg,Main Material: Steel (Q355B),Operating Hydraulic Pressure: 16 - 20 MPa
