Features:
Ideal for replacing defective or broken touch screen LCD screens.
This is a true LOCA (Liquid Optical Clear Glue) gel. The syringe will protect it from the hardening of conventional lights.
UV light curing UV glue must be cured using UV light. It will harden in about 30 seconds, but it is recommended to cure for about 3 minutes. Sunlight can also be used, but it takes more time to cure.

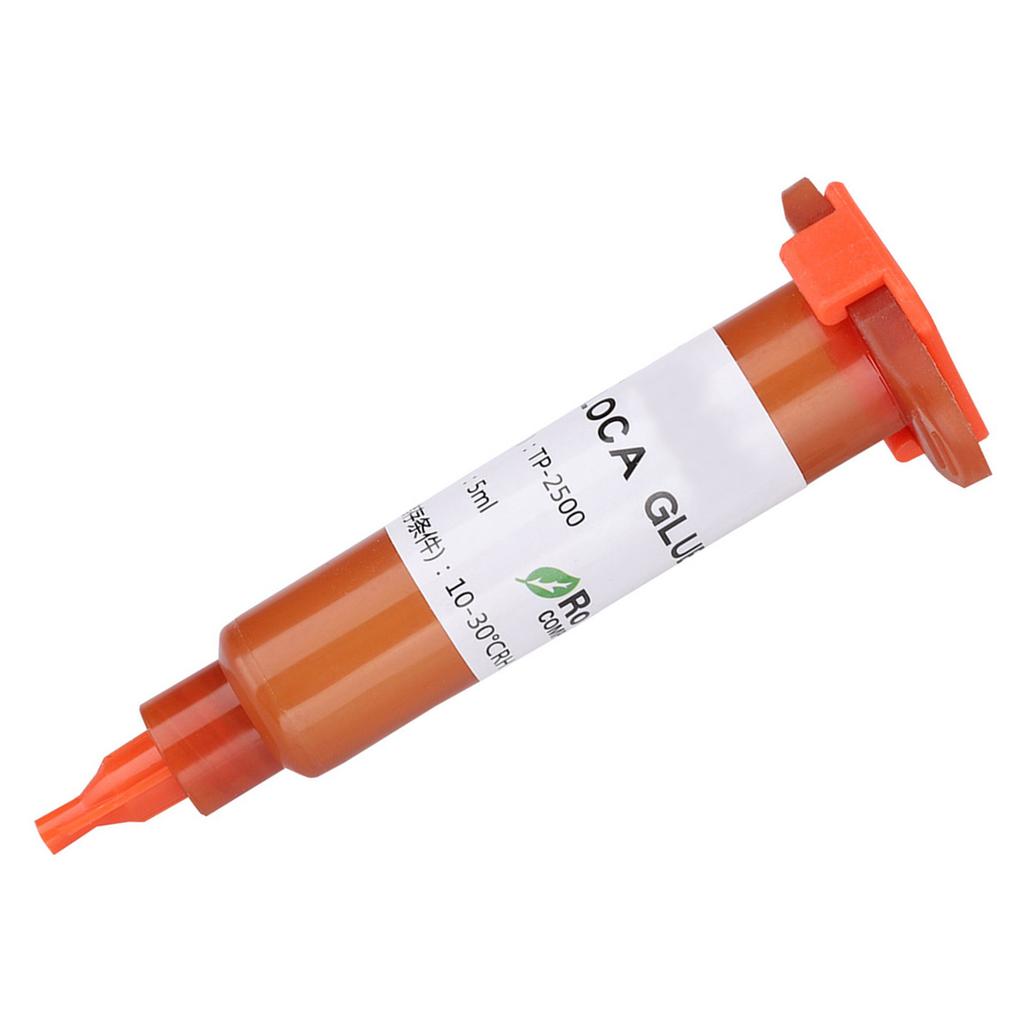

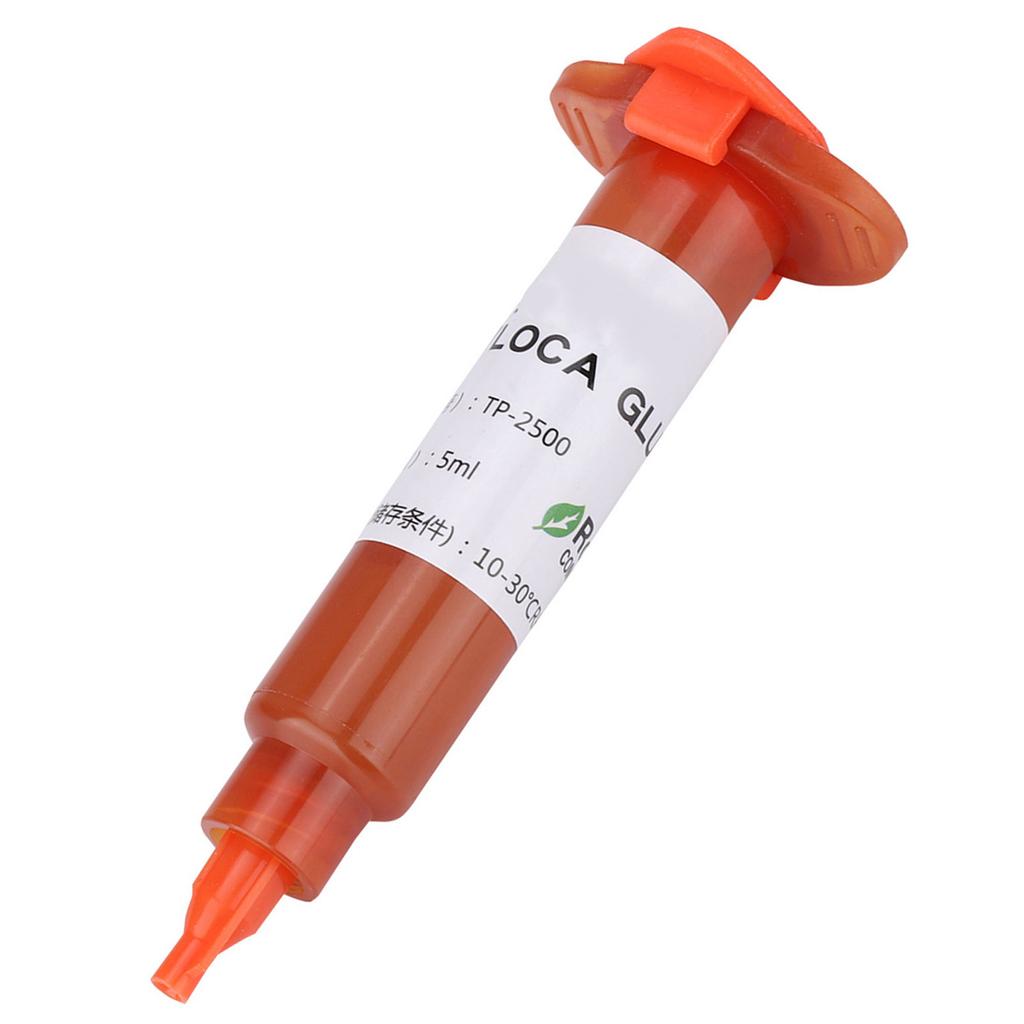

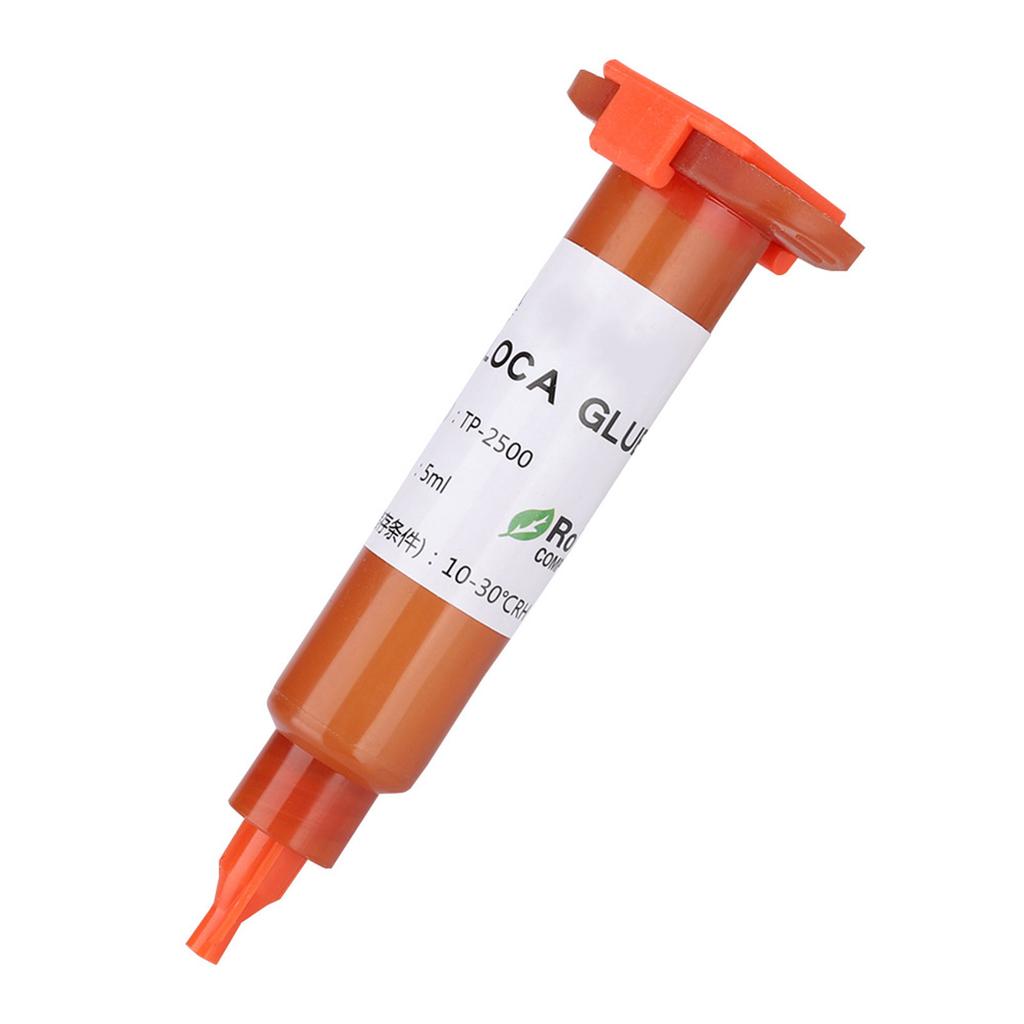

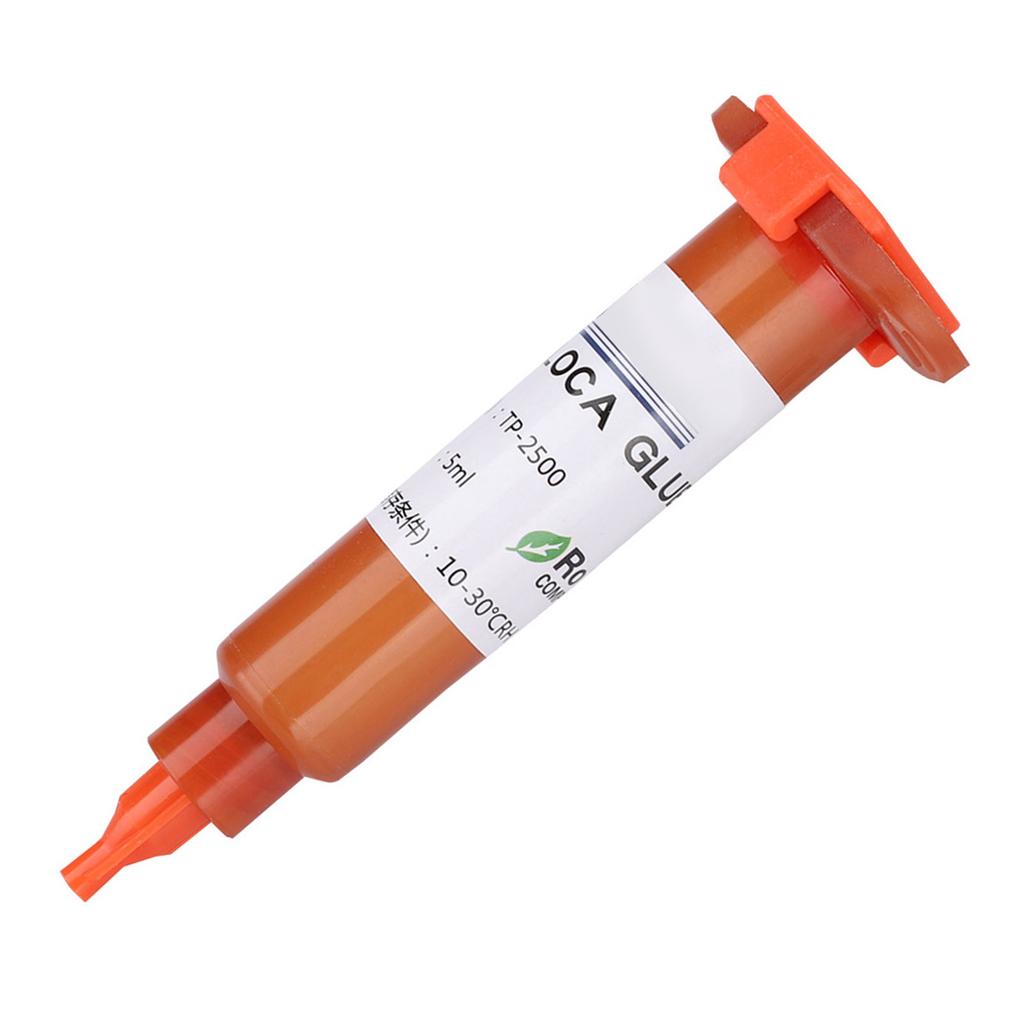

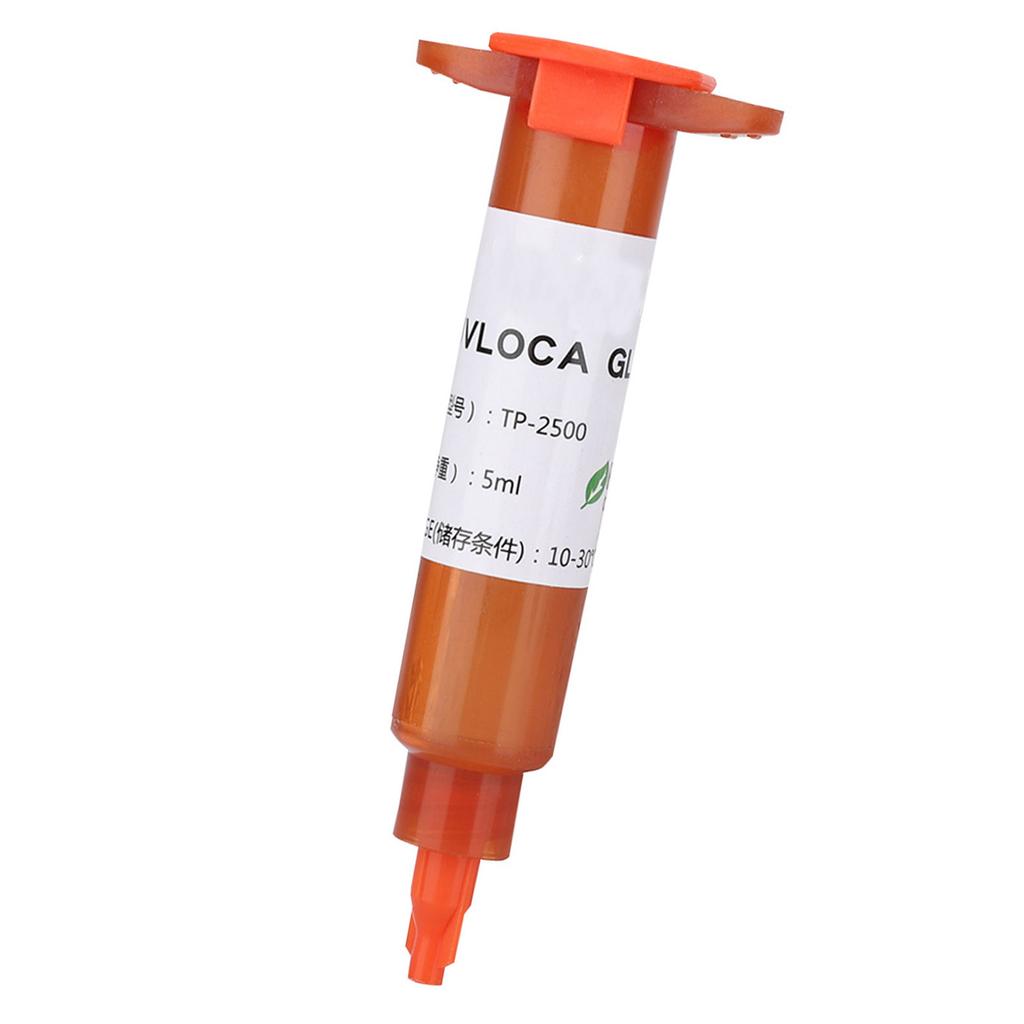

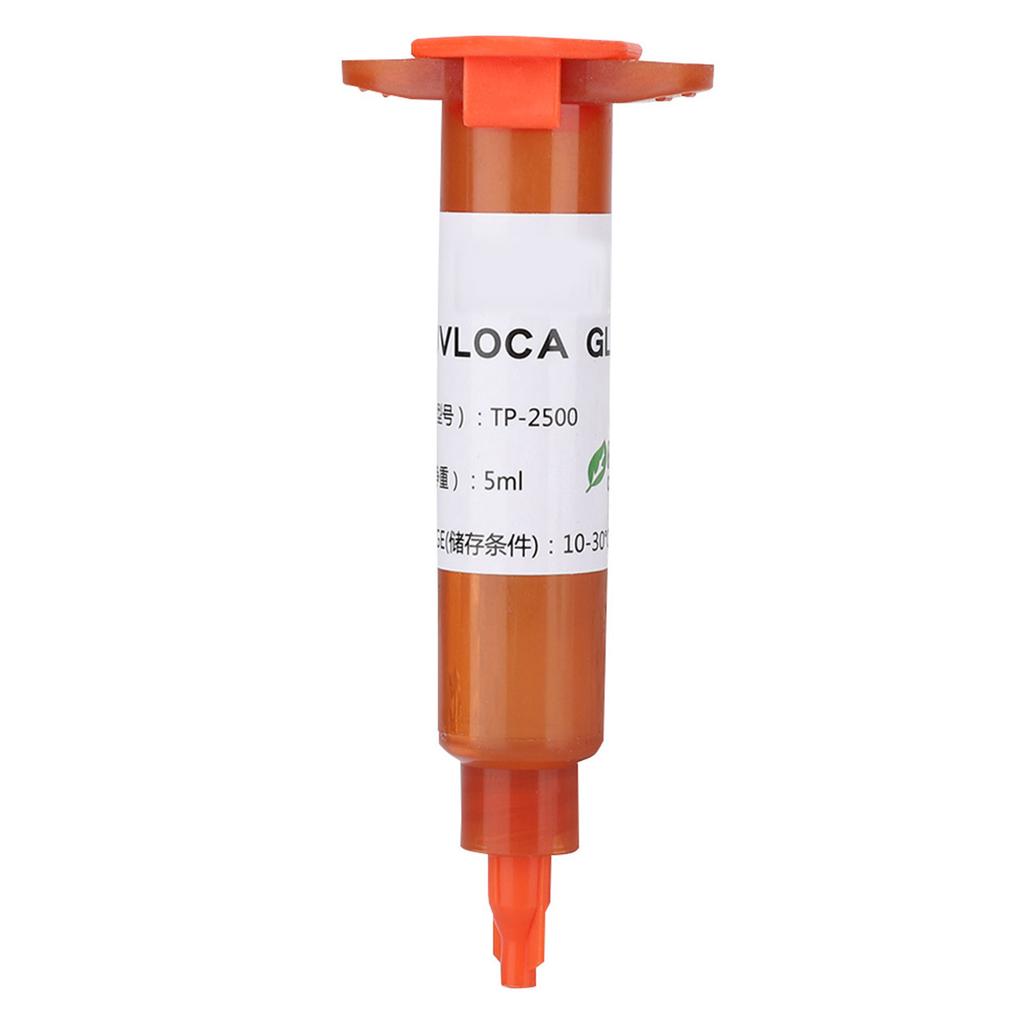

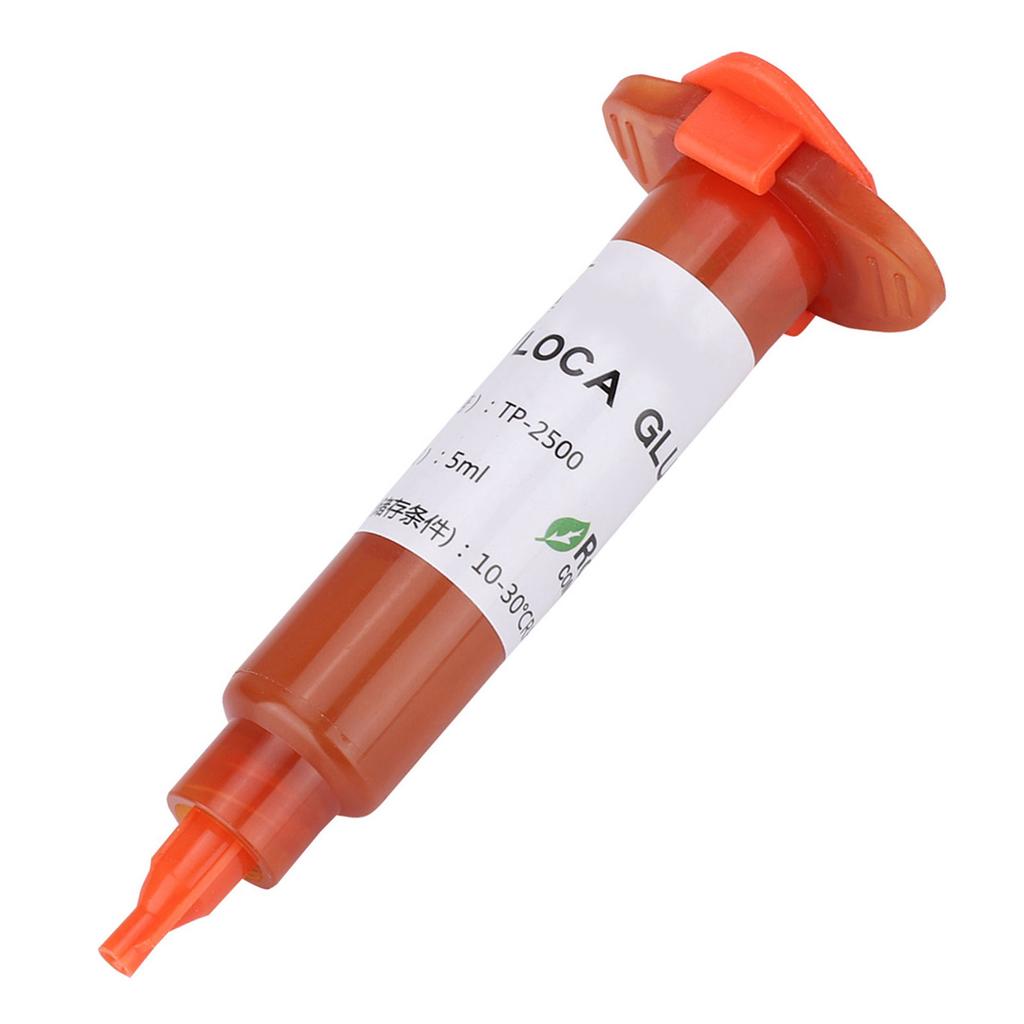

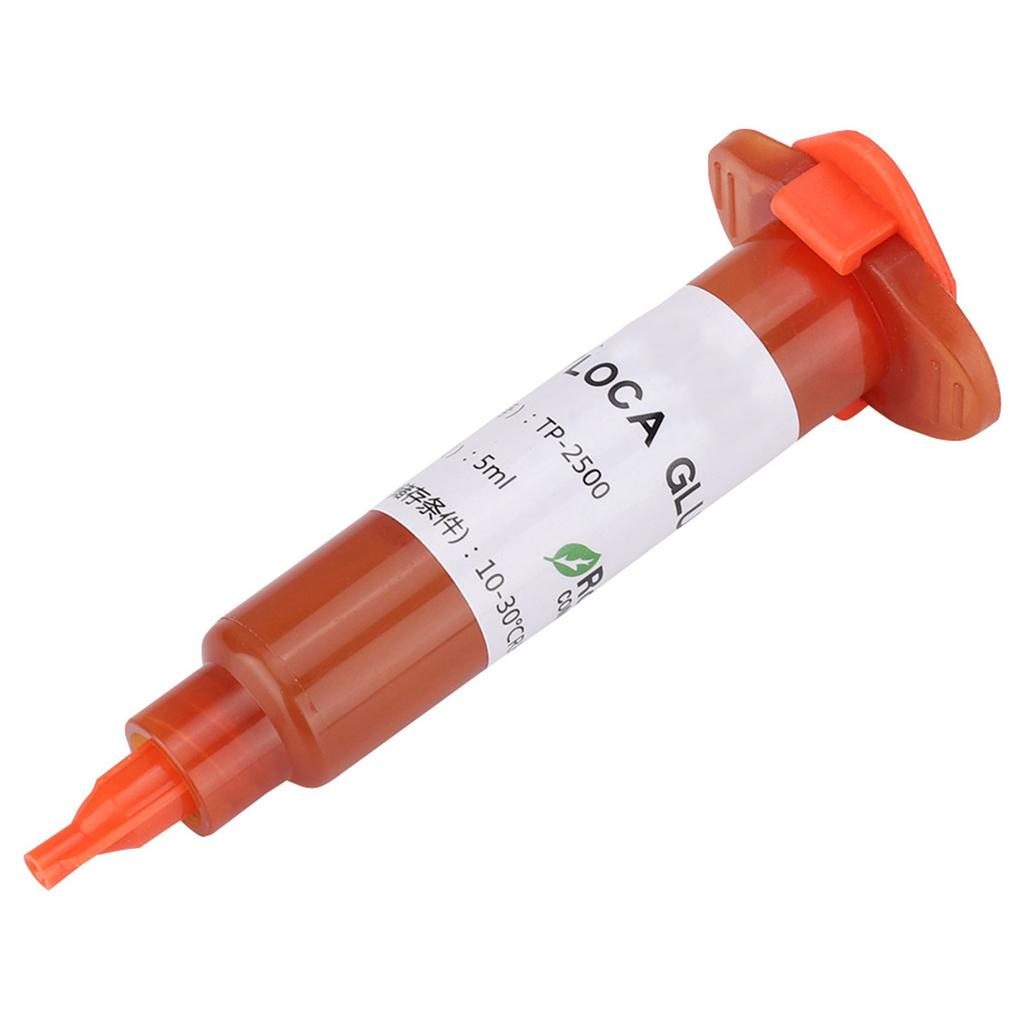

Original UV glue LOCA liquid optical transparent adhesive for mobile phone cover glass LCD screen repair.

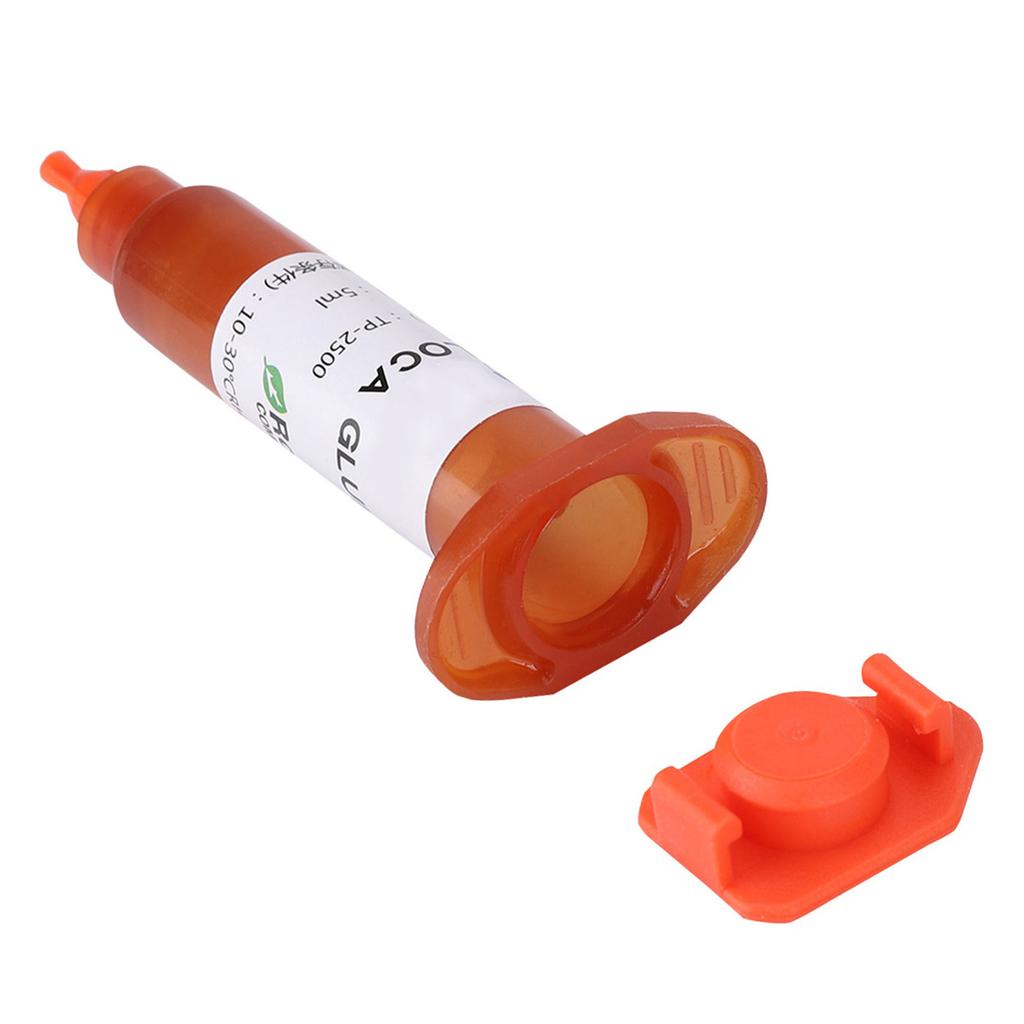

Installed in an syringe, which protects glue from normal light and hardens it.
Specification:
Capacity: 5ML, 10ML (optional)
Validity: 5 months
PhysicalProperties
Test method
Specification
Appearance
Visual Inspection
Clear
Viscosity
Brookfield RVT, 25 degrees
C
, 20 rpm, spindle #3
2,300 2,800 mPa.s
Density
Uncured Adhesive at 25
degrees
C
0.93 g cm3
Cure Condition
UVA: 250 to 420 nm,
2500 mJ cm2
Hardness
ASTM D2240
E type 18 30
UV Curing Depth
Cured @100 mW cm
2
for 30s
>3.0mm
Volume Shrinkage
Density Meter
<2percent
UV Fixture Time
Cured @100 mW cm
2
<30 s
Tensile Strength
Glass Glass Cross Bonding
0.30 N mm2
Dielectric Constant
1MHz
2.3
3.0
Refractive index Liquid
Abbe at 25
degrees
C
1.5
Refractive index Solid
Abbe at 25
degrees
C
1.51
Transmittance
percent
At 550 nm
99.8percent (>99percent )
Haze
percent
ASTM D1003
0.13percent (<0.3percent )
Yellow Index b*
ASTM D1925 C2
0.2 (<1.0)
Package list:
1 * UV Glue
Application Note:
Take for iPhone 4 as an example
1. Clean the LCD screen area.
2. Apply about 1.5g of UV glue to the middle of the LCD screen.
3. Make sure the area of the LCD screen is clean, except for the area where you use UV glue and prepare the front glass for glue.
4. Glue the front glass correctly.
5. After the UV glue is applied, the entire screen is exposed to ultraviolet light, and the UV glue cures for 3 5 minutes.
Note:
1. If you are not a technician, please do not buy.
2. Do not use fluorescent lamps when soldering. Fluorescence emits ultraviolet light, which is sufficient to slowly cure the glue. For longer working hours, work under normal light bulb or LED lighting. You can even put the lights far away if needed. Also, if you don t have UV light, don t forget that sunny days can also cure this glue. Just 3 minutes. Cloudy cloudy days may take longer.
3. The accessory phone is not included, this installation does not include installation instructions.
4. Please note that we are not responsible for any damages caused by the installation of this project.
.
