Feature:
1. Stable and Time Saving: Easily locate buried cables and pipes up to 0 2m deep with underground cable locator tracker. This portable device includes transmitter, receiver, and accessories, utilizing digital circuit technology for stable and reliable electrical performance. Save time and avoid damaging walls or floors by diagnosing fault locations without excavating the entire cable way.
2. Accurate and Efficient: Wire tracker can precisely detect single core and multi core cables, as well as metal pipes buried in walls or underground. Suitable for checking safety circuits, covered sockets, and junction box issues, can swiftly locate short circuit faults in underfloor heating lines.
3. Integrated Multimeter: Underground cable locator includes a 60,000 count digital multimeter with built in network cable mapping function, capable of measuring DC Voltage 600.00mV 1000V, AC Voltage 600.00mV 750V, DC Current 600.00mA 10A, AC Current 600.00mA 10A, Resistor 600.00 Ohm 60M Ohm , Capacitance 6.0000nF 60MF, Continuity Test, Diode Test.
4. High Sensitivity: Underground cable locator offers manual (8 level sensitivity adjustment) or automatic adjustment, along with Non Contact Voltage detection function. This circuit tracker can operate in silent mode, featuring automatic frequency scanning, flashlight, backlight, and auto power off after no operation.
5. Practical and Versatile: This circuit breaker finder transmitter equipped with a self checking function, which can detect its own working status and display on the LCD screen. This line tracker transmitter can also linearly measure AC DC voltages ranging from 12 to 400V, making it an important tool for the installation and maintenance of weak current systems, communication lines, computer networks, and other metal line circuits.
6. Reliable Performance: The cable locator is equipped with a 1500mAh li ion battery, providing a battery life of up to 6 10 hours. Easy to charge and comes with a storage bag. Suitable for various application scenarios, such as circuit wiring, telephone systems,, and is a nice choice for both professionals and enthusiasts.
Specification:

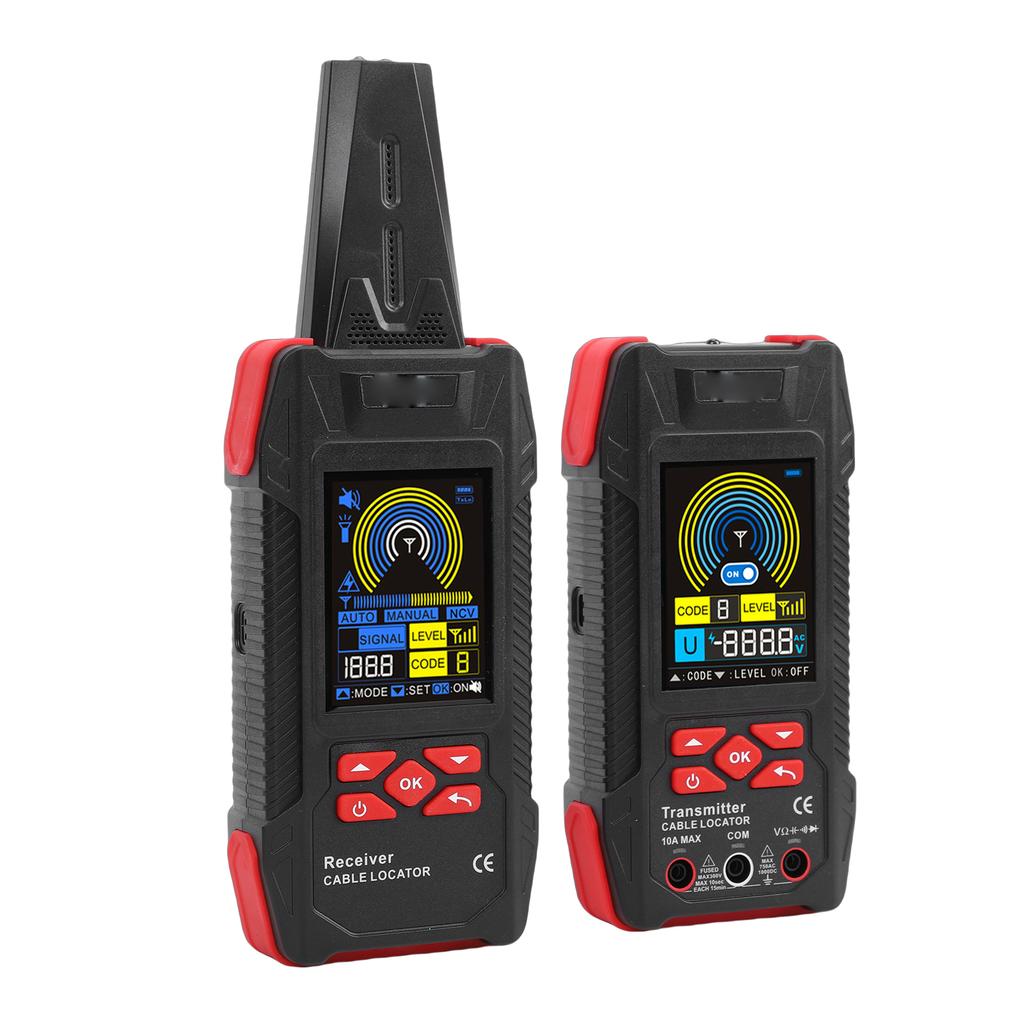

Item Type: Underground Cable Locator Multimeter
Cable Locator Specification:
Output Signal: 125kHz 35V
Signal Encoding: A C E F H L
Signal Strength: 4
Tracking Depth: Depending on medium and application
Cable Locator Mode: Approx. 0 2 meters (single pole application); approx. 0 0.5 meters (dual pole application)
LCD Screen: 3.2in, 320x240
Non Contact Voltage: Approx. 0 0.4 meters
Battery: 2 x 1500mAh rechargeable li ion battery (built in one each for main unit or receiver)
Power: 2A 10W or higher charger (not included)
Fusing: 2A 300V
Multimeter Specification:
Display: 60000 Counts
DC Voltage: 600.00mV 1000V (+ 0.5percent +0.3)
AC Voltage: 600.00mV 750V (+ 0.8percent +0.5)
DC Current: 600.00mA 10A (+ 1percent +0.4)
AC Current: 600.00mA 10A (+ 1percent +0.5)
Resistor: 600.00 Ohm 60M Ohm (+ 1.0percent +0.6)
Capacitance: 6.0000nF 60MF (+ 2percent +0.6)
Continuity Test: <10 Ohm buzzing
Diode Test: Supported.

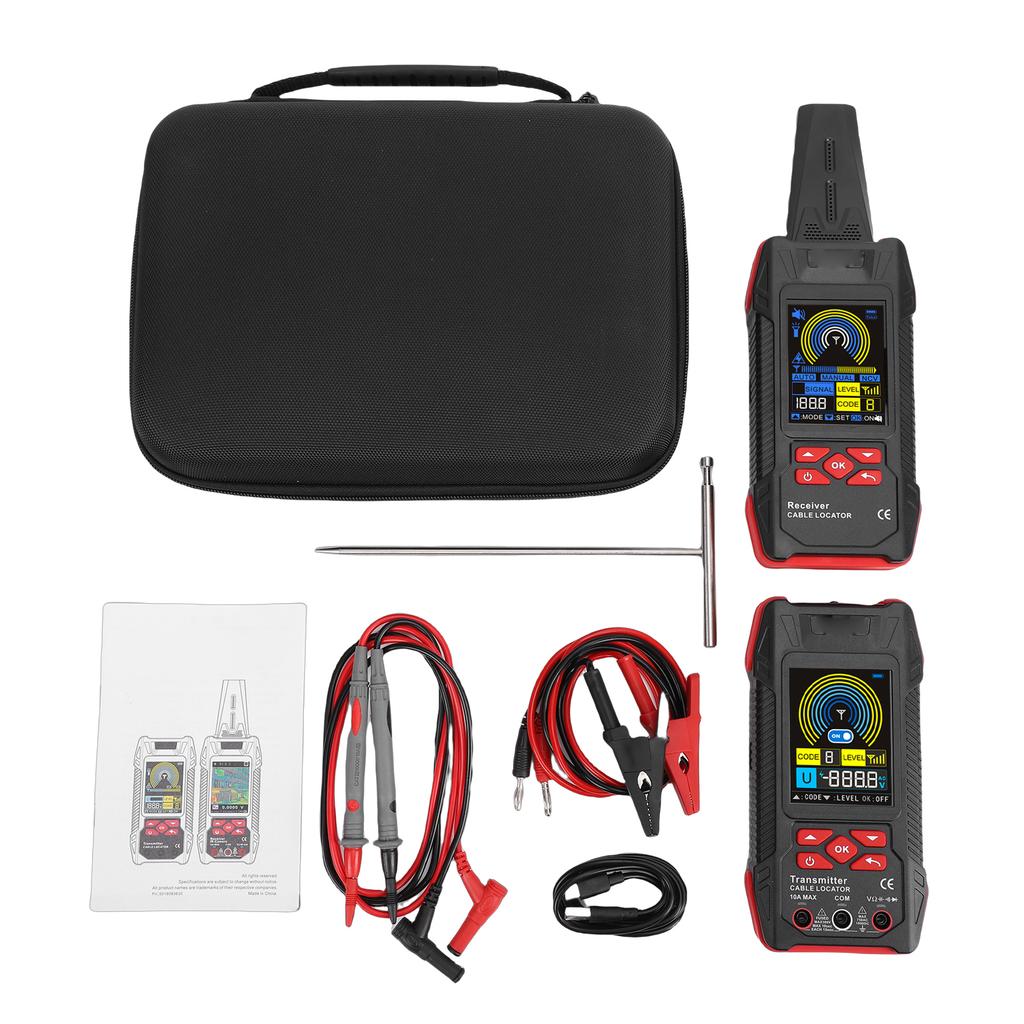

Package List:
2 x Main Unit
1 x User Manual
2 x Test Cable
2 x Test Probe
1 x Storage Bag
1 x USB Cable
1 x Grounding Stake
Note:
Short circuit testing requires the short center to be identified first before testing can proceed.
