SIM800L V2.0 5V Wireless GSM GPRS Module Quad-Band With Antenna Micro SIM Card Core Board TTL Serial Port for arduino

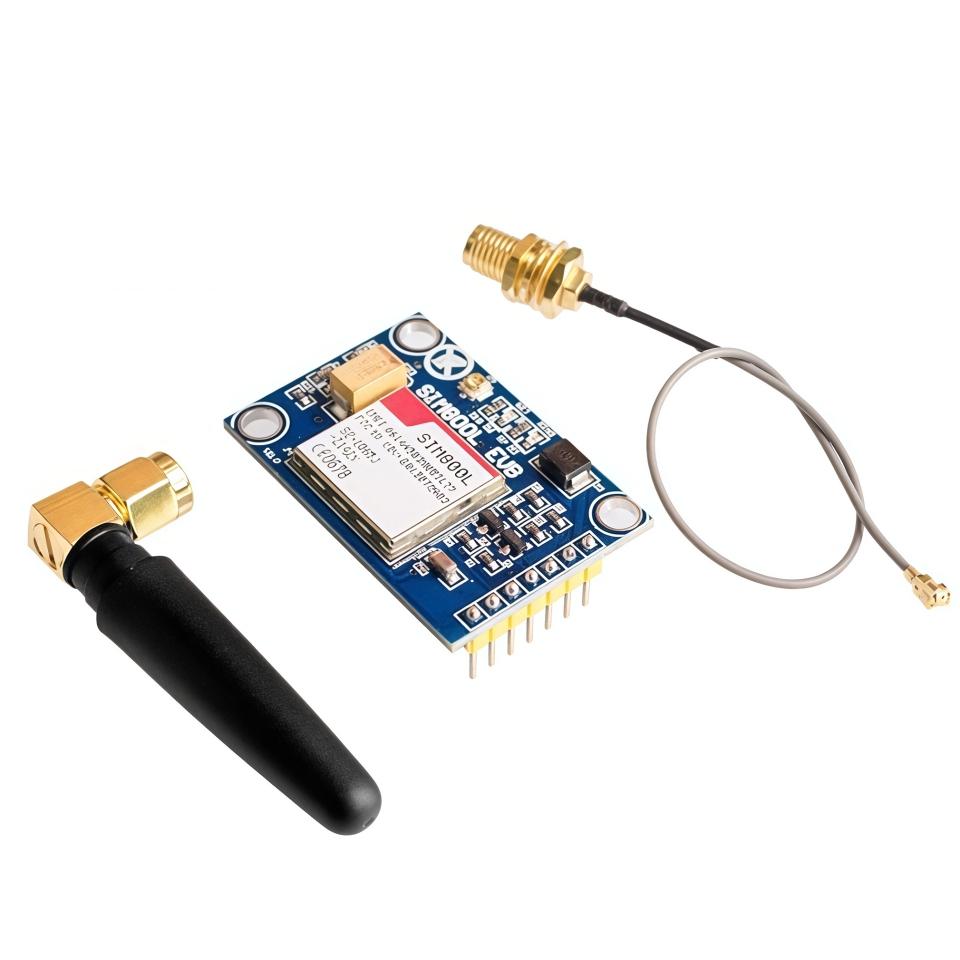

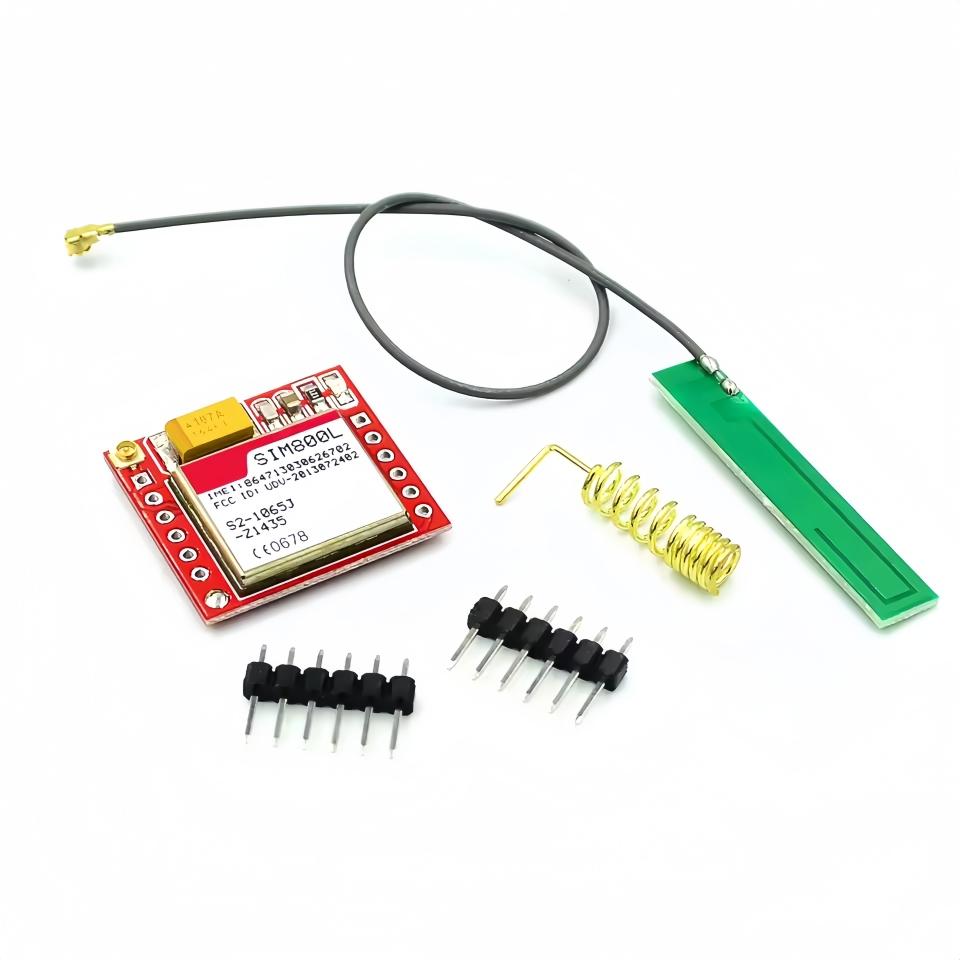

SIM800L V2.0 5V Wireless GSM GPRS Module Quad-Band With Antenna Micro SIM Card Core Board TTL Serial Port for arduino Comprehensive Introduction to SIM800L GSM/GPRS Module Kit The image showcases two complete kits of the SIM800L GSM/GPRS module, a compact, cost-effective, and industry-standard cellular communication solution that has become a cornerstone of IoT, embedded systems, and DIY projects worldwide. Designed to enable 2G cellular connectivity for microcontrollers and embedded devices, the SIM800L module bridges local embedded systems and global cellular networks, allowing devices to send SMS, make voice calls, transmit data over GPRS, and connect to the internet—all in a tiny, easy-to-integrate form factor. Core Hardware & Chip Specifications At the heart of both module variants is the SIM800L quad-band GSM/GPRS transceiver chip from SIMCom Wireless Solutions, a global leader in cellular IoT modules. This chip supports quad-band GSM/GPRS 850/900/1800/1900 MHz networks, making it compatible with 2G cellular infrastructure worldwide. It delivers GPRS multi-slot class 12 data speeds up to 85.6 kbps, operates on a 3.7V-4.2V DC supply (ideal for lithium-ion batteries), and consumes less than 1mA in sleep mode, with peak transmission current up to 2A. The chip fully complies with standard GSM AT commands, supporting SMS (text/PDU mode), voice calls, TCP/IP, HTTP, FTP, and MMS functionality, making it a versatile solution for cellular-connected projects. Kit Components & Design Features Each SIM800L kit includes all components required for immediate project integration: Core Module Breakout Boards: Two variants are shown: a compact red breakout board and a full-featured blue breakout board, both with the SIM800L chip, SIM card slot, antenna connector, and labeled I/O header pins for easy microcontroller connection. Multiple Antenna Options: The kit provides flexible antenna solutions for different use cases: a high-gain external whip antenna with an SMA right-angle connector for fixed installations, a flexible PCB antenna with an IPX/U.FL connector for compact portable devices, and a spring helical antenna for low-cost, space-saving hobbyist projects. Accessories: Male header pins for breadboard/PCB soldering, and coaxial IPX/U.FL to SMA cables for connecting external antennas to the module’s antenna port. The breakout boards feature optimized circuit layouts with power regulation, filtering capacitors, and status LEDs to ensure stable operation. The modules are designed for seamless integration with common microcontrollers like Arduino, ESP32, STM32, and Raspberry Pi, with extensive open-source code and tutorials available for quick setup. Key Advantages & Application Scenarios The SIM800L module offers unmatched versatility and affordability for cellular IoT projects: Global 2G Compatibility: Works with 2G networks worldwide, making it ideal for remote monitoring, asset tracking, and IoT devices in areas with limited 4G/5G coverage. Low Power & Compact Design: Perfect for battery-powered portable devices, remote sensors, and wearable tech. Multi-Functionality: Supports SMS, voice, and data, enabling use cases like remote control, alarm systems, and IoT data logging. Wide Compatibility: Fully compatible with all major microcontroller platforms, with plug-and-play integration for hobbyists and engineers. Common applications include: remote environmental monitoring systems, GPS asset trackers, home security alarms, smart agriculture sensors, industrial remote control systems, and DIY IoT projects.
