256*192 Pixel Time Live Infrared Thermometer Portable Industrial Handheld Thermal Camera

UTI260B introduction

Technical Parameter

Temperature range: -15°C~ 550°C (5°F~1022°F)

Precision: ±2°C/±2% whichever is greater

Sensor: Uncooled focal plane

Mode High gain: -15°C~150°C, low gain: 150°C~550°C

Corresponding time of temperature measurement: ≤500ms

Thermal imaging pixels: 256*192 (49152)

Pixel size: 12um

Swatches: White hot, black hot,iron red, lava, rainbow, high contrast rainbow, red hot

Infrared spectrum bandwidth: 8~14um

Field of view: 56° (H) *42.2° (V)

IFOV: 3.8mrad

Thermal imaging sensitivity: <60mK

Frame rate: <25Hz

Visible light resolution: 640x 480

Mixed settings: 0% (full visible light), 25%,50%, 75%, 100% full thermal imaging)

Image format: BMP

PC analysis software:Yes

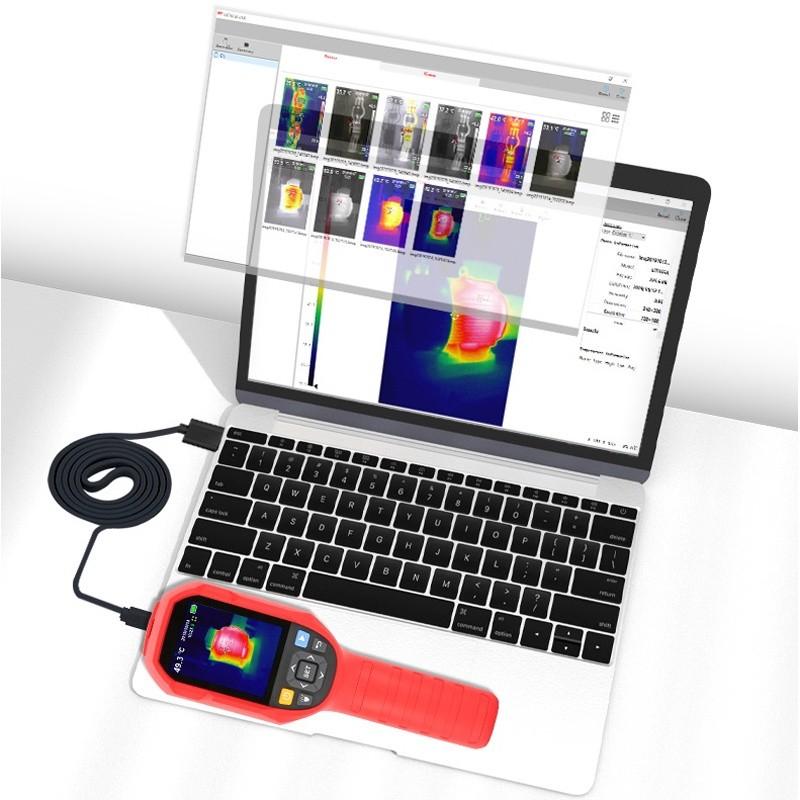

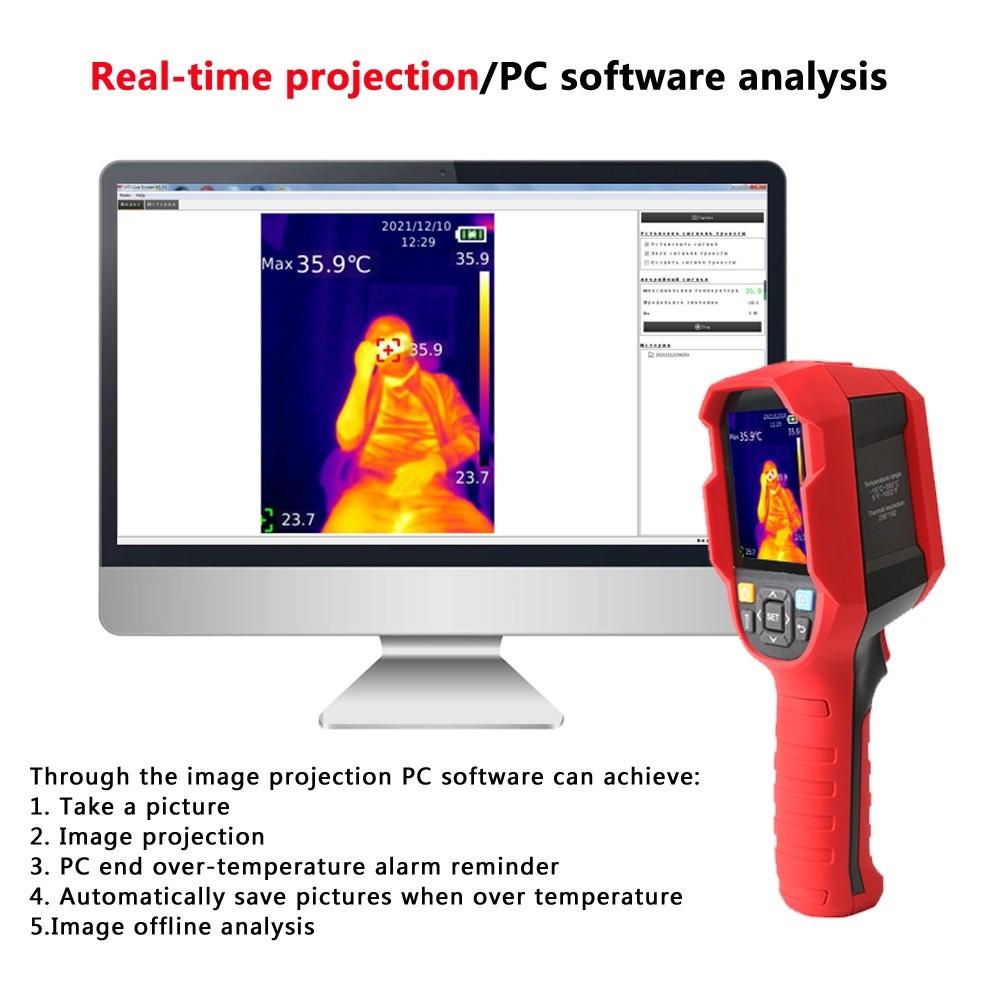

Real-time image transmission: PC software real-time projection

Data communication: Type-C USB

IP rating: IP65

Drop test: 2m

Display screen: 2.8 "TFT LCD

Display resolution: 320* 240

Battery: Li-ion 3.6V 5000mAh 26650 single cell

Automatic shut-down: Optional (5min, 10min, 30min,) The default 30min automatic shutdown

Usage time: Not less than 6 hours

Charging time: No more than 5 hours

Charging voltage/current: 5V/2A

Image storage: Micro SD card

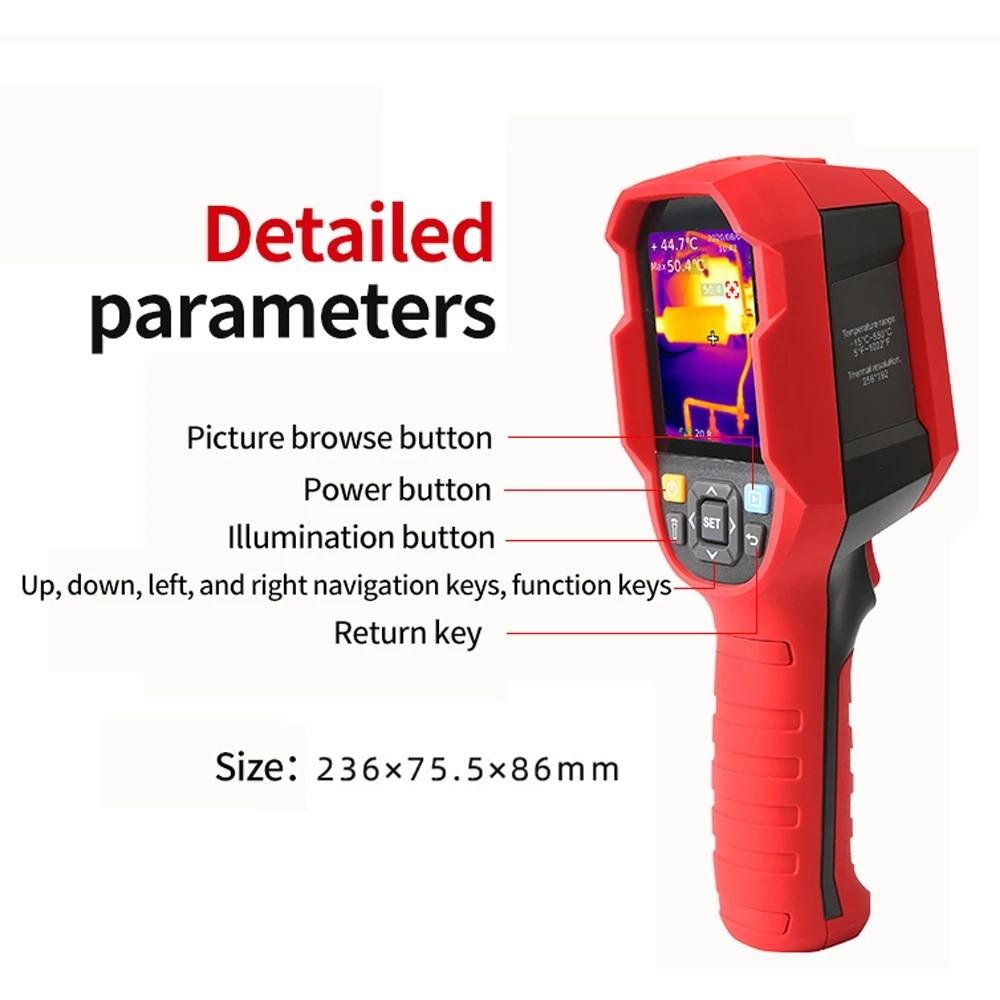

Product Size: 236*75.5*86mm

Accessories: Manual, Type-C USB cable, 16G TF card

Package Included:

1 x Infrared Thermal Imager

1 x Manual

1 x Data cable

1 x Memory card

1 x Color box

Note:

-Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.

-Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
