RM530N-GL IoT Module Sub6GHz & mmWave 5G Global Module High Speed for Stable Data Transfer and Low Latency Connection

Features: The RM530N-GL is a 5G Sub6GHz module designed specifically for /eMBB applications, utilizing 3GPP Released technology and supporting both 5G SAandNSA modes. Adopting M.2 packaging, it is compatibility with the RM520N series of 5G modules for mobile communication, making it convenient for customers to design single Sub6G devices and devices supported by Sub6G&mmWave simultaneously. Integrating multiple constellations high-precised positioning GNSS etc receivers simplifies product design while greatly improving positioning speed and accuracy. This module is equipped with rich interneting protocols, integrates multiple industrial standard interfaces, and supports multiple driver and software, features (such as Win7/8/8.1/10, LinuxAndroids, and other operating system) USB/PCIe driver, etc. Widely used in industrial grade routers, home gateways, set-top boxes, industrial laptops, consumer laptops, industrial grade PDAs, reinforced industrial tablets, video surveillances, and digital signages.

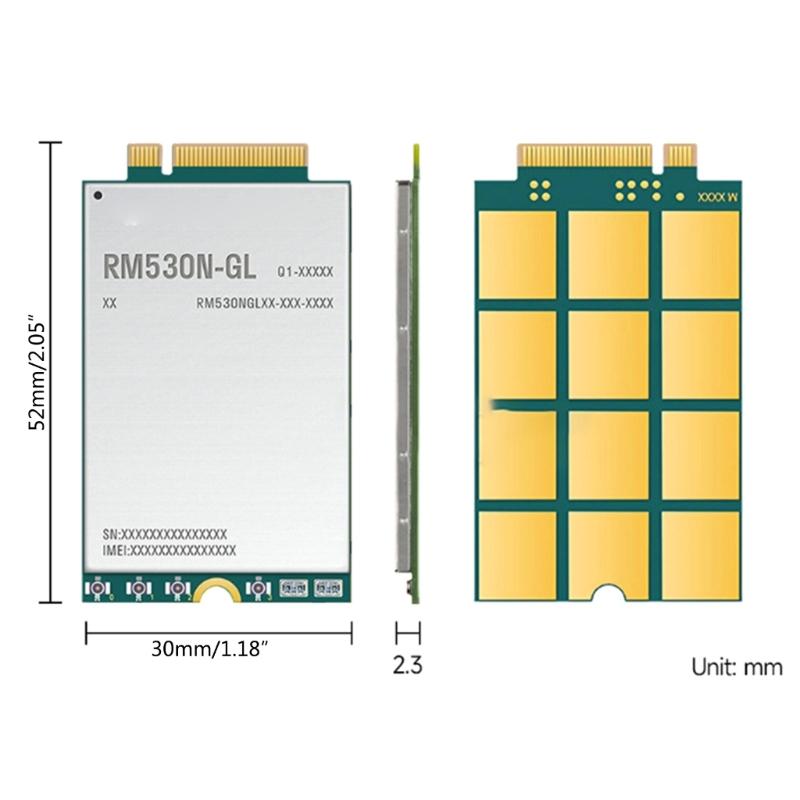

Specifications: Printed Circuit Board Size: Approx. 52x30mm/2.05x1.18inch Working temperature: -30~+75 Expansion temperature: -40~+85 Power supply voltage: 3.135-4.4V, typical value 3.7V Downlink: 4.0Gbps Uplink: 1.4Gbps Other Functions: Specially designed for /eMBB applications, while supporting the M.2 module of 5G/4G/3G Supports comprehensive coverage of multiple k formats including 5G and LTEA Supports NSAandSA modes Integrate multiple constellation GNSS receivers to meet the needs of fast and accurate positioning in different environments Supports multiple functions, such as DFOTA and VoLTE (optional)

Note: This product is M.2 packaged module, without 5G antenna or 5G expansion board. Please allow 1-2cm errors due to manual measurement. Please allow for slight color differences due to different display resolution.

Package includes: 1 RM530N-GL IoT Module
