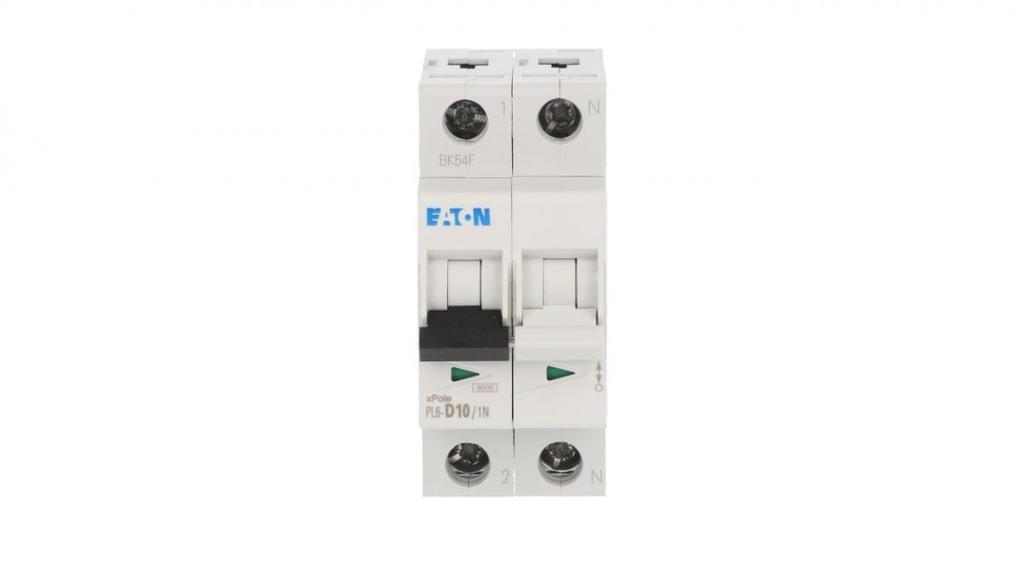

Circuit breaker 1P+ND 10A 6kA AC PL6-D10/1N 164937

Tripping characteristic: D CN: 85363010 Length: 80 EAN: 4015081614479 Built-in depth [mm]: 69.5000 Manufacturer's index: 164937 Simultaneously disconnected N pole: Yes Overvoltage category: 3 Energy limitation class: 3 Number of poles: 1 Number of poles (total): 2 Possibility of additional equipment: Yes Nominal voltage [V]: 230 PKWiU: 27.12.23.0 Nominal current [A]: 10 Voltage type: AC series: PL6 Protection class (IP): IP20 Pollution degree: 2 Width: 75 Width expressed in number of modules: 3 Weight: 0.3500 Height: 40 Rated short-circuit breaking capacity according to EN 60898 [kA]: 6 Rated short-circuit breaking capacity according to IEC 60947-2 [kA]: 0
