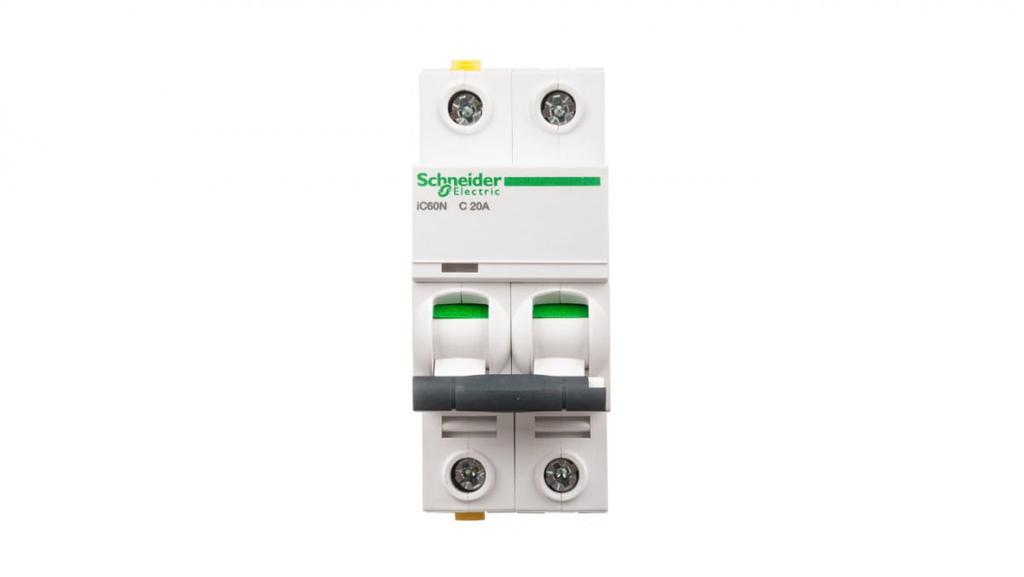

Circuit breaker 2P C 20A 6kA AC iC60N-C20-2 A9F04220

Trigger characteristics: C CN: 85362010 Frequency [Hz]: 50 Length: 90 EAN: 3606480440526 Built-in depth [mm]: 69.5000 Manufacturer's index: A9F04220 Simultaneously disconnected N pole: No Overvoltage category: 4 Energy limitation class: 3 Number of poles: 2 Possibility of additional equipment: Yes Nominal voltage [V]: 400 PKWiU: 27.12.22.0 Nominal current [A]: 20 Voltage type: AC series: Acti9 Degree of protection (IP): IP20 Pollution degree: 3 Width: 75 Width expressed in number of modules: 2 Weight: 0.2300 Height: 35 Rated short-circuit breaking capacity according to EN 60898 [kA]: 6 Rated short-circuit breaking capacity according to IEC 60947-2 [kA]: 10
