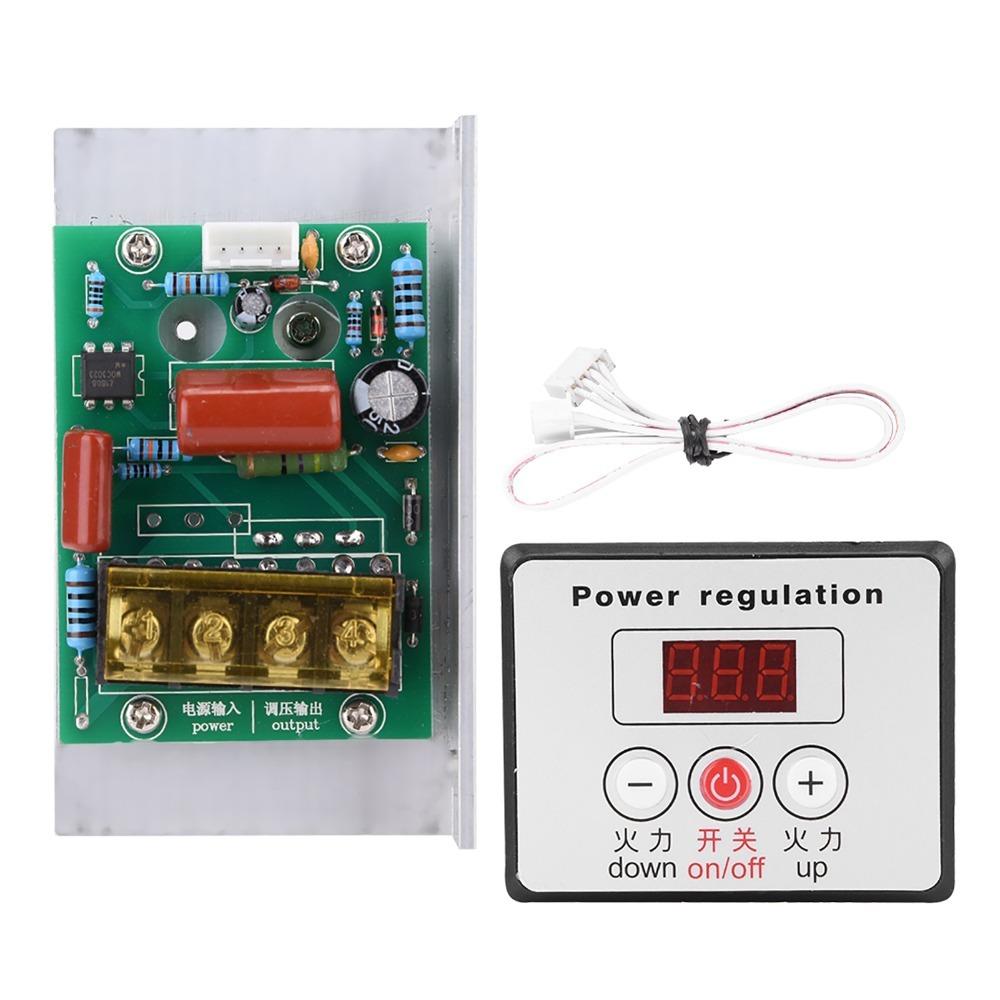

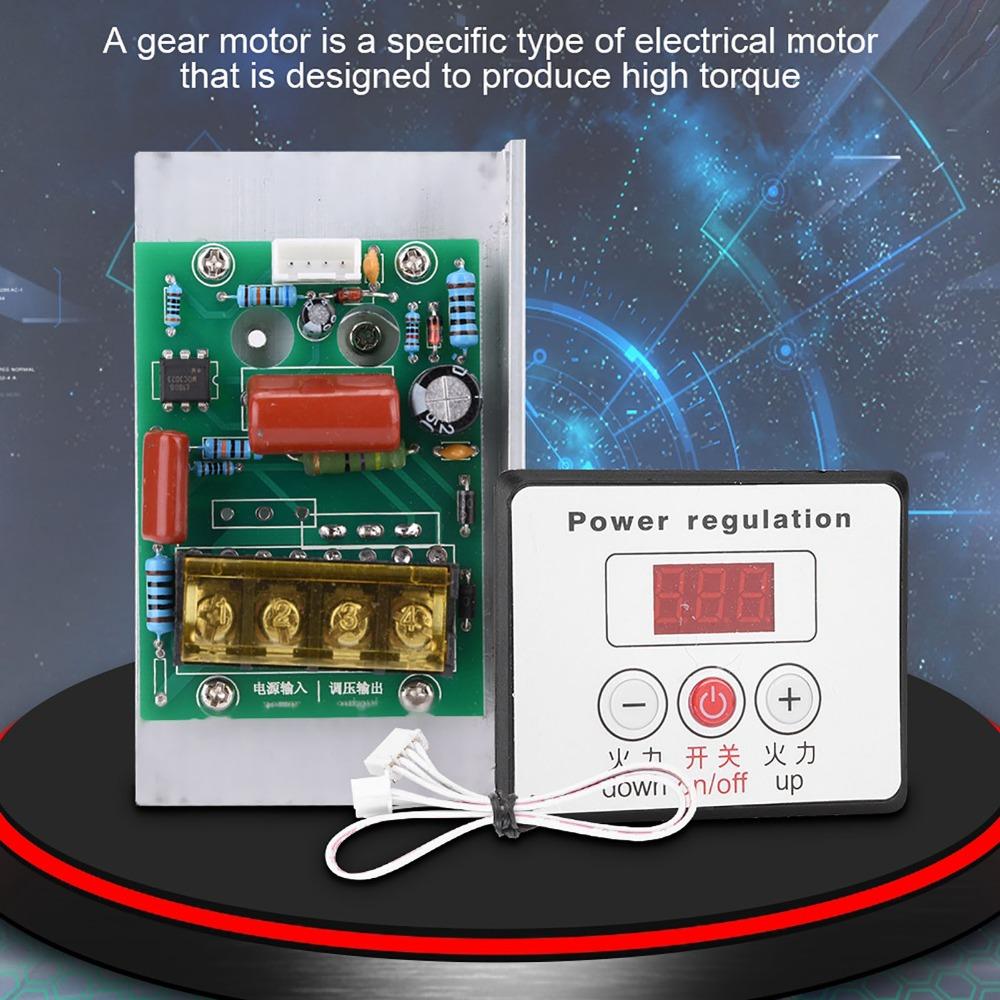

AC 220V Motor Speed Controller 6000W Dimmer Controlled Rectifier Motor Control

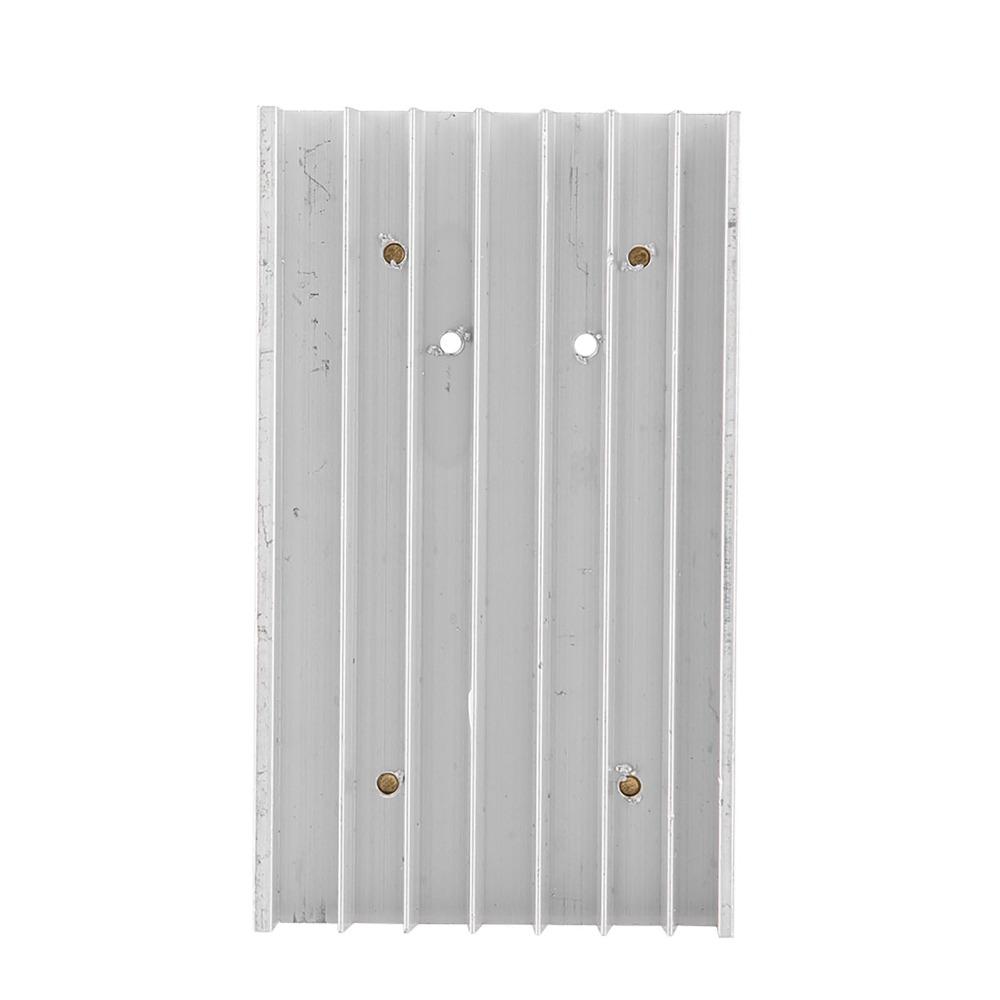

Label:Yes 5,Widely Applicable: It can be used as a power source for large electrical equipment, sufficient for household appliances or small factories, and can also be widely used as a thermal controller on electric furnaces, water heaters, dimmers on lighting fixtures, speed controllers on small motors, or temperature controllers on soldering irons 2,0-100% Nonlinear Voltage Adjustment:Enables smooth output voltage adjustment from 0 to 100% on a nonlinear scale for flexible power control of connected devices. 3,Efficient Heat Dissipation & 6000W Capacity:Equipped with a large, thick heatsink to improve thermal management. Rated for maximum power of 6000W, suitable for common household appliances or small-scale industrial use. 1,High-Current 80A SCR Design:Incorporates a bidirectional high-power silicon controlled rectifier supporting currents up to 80A, designed to handle current demands in high-load applications such as electric heating equipment. 4,Stable Push-Button Voltage Control:Uses push-button adjustment for voltage setting, providing more stable and repeatable control compared to traditional potentiometers.Voltage regulator has wave voltage absorbing circuit and effective protects large power silicon controlled rectifier, longer service life and more durable

Specification: Product Name: 6000W Controllable Silicon Voltage Regulator Voltage:AC 220V Maximum Power: 6000W(instantaneous limit power for resistive load; for long time use, 3000w or lower is recommended) Voltage Adjustment: 0-100% (nonlinear) Controller Size: 9.7*5.7*4.2cm / 3.8*2.2*1.7in Panel Size: 7.5*6*1.7cm / 3*2.4*0.7in Panel Screw Hole Spacing: 6*4.5cm / 2.4*1.8in Cable Length: 28.7cm / 11.3in Color: Green and Silver Installation type: Panel installation Weight: 177g

Package list: 1 x SCR Controller 1 x ABS Panel 1 x Cable

Note: 1, AC input, AC output, output voltage is lower than(or equal to) input voltage; voltage can be adjusted only when connected to load; mainly used for resistive load(e.g. heating wire, incandescent light bulb). 2, It can not replace electric bicycles' battery recharger, nor drive electric appliances which use switch power supply (such as 110V TV, speaker, refrigerator, air conditioner, rice cooker with a computer), and cannot drive induction cooker, energy saving lamp. 3. Due to the difference between different monitors, the picture may not reflect the actual color of the item. 4. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
