Explanation by manufacturer
High-grade snap lens with metal exterior, a fusion of craftsmanship and advanced technology
It is a high-performance zoom lens that demonstrates excellent depiction performance throughout the entire range while achieving a high zoom magnification that covers everything from the equivalent of 16 mm at an ultra-wide angle to the equivalent of 50 mm as a standard. In addition to thorough miniaturization and weight reduction, it also has excellent environmental resistance such as dustproof and splashproof performance and operability, and you can comfortably enjoy high image quality and diverse shooting with a single camera, from dynamic angles of view unique to ultra-wide angles to stable angles of view in the standard range.

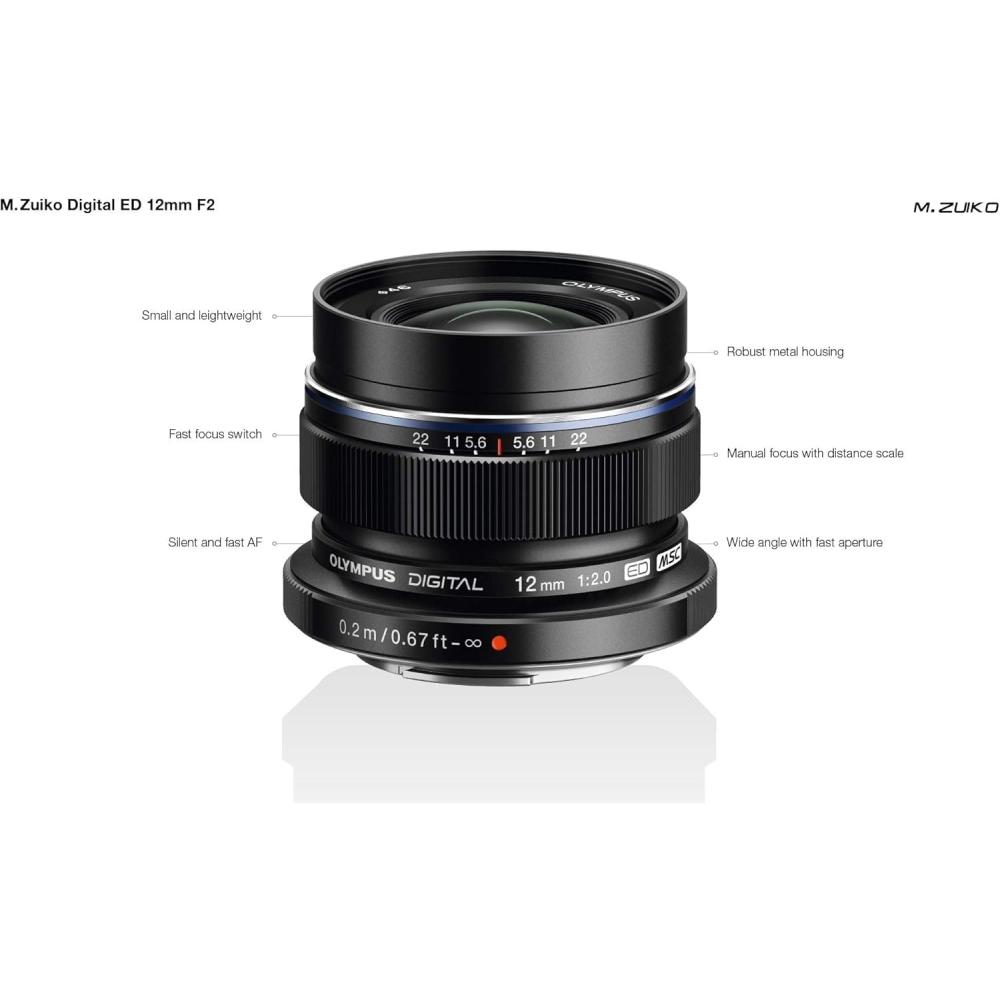

Product Features
Rational lens design that achieves both miniaturization and high depiction performance
With a reasonable lens design with 11 elements in the 8 groups, we have achieved high depiction power even though it is small. By applying a ZERO coating that thoroughly eliminates ghosts and flares, which were difficult to prevent until now, clear depiction performance is ensured even under adverse conditions such as backlighting.
DSA (large partial bifacial aspherical) lens
It is a large flat bifacial aspherical lens with an extremely large ratio of thickness between the center and periphery of the lens, which was successfully mass-produced by OM Digital Solutions ahead of the world.
Super HR (Ultra High Refractive Index) Lenses
This lens has a very strong ability to bend light and has a high ability to correct spherical aberrations.
ZERO (Zuiko Extra-Low Reflection Optical) coating
It is an advanced anti-reflection coating that uses thin film control technology cultivated through advanced microscopic multilayer film deposition technology. We have succeeded in reducing the reflectivity at wavelengths of 450 to 650 nm to about half of what it used to be. The film strength is strong due to vacuum evaporation, and no matter how many times you wipe the lens, it is scratch-resistant, and maintains low reflection. In addition to achieving clear depiction performance with high transmittance (transparency), it also minimizes the occurrence of ghosts and flares even under adverse conditions such as backlight photography.
Demonstrates power when shooting in the dark, large aperture F2.0+ in-body image stabilization mechanism
With the in-body image stabilization mechanism mounted on the wide-angle 12mm (24mm in 35mm format conversion) & large aperture F2.0+ OM-D/PEN series, you can easily take wide, powerful photos not only in environments with low light levels such as dusk or indoors, but also in places where a tripod cannot be used or where flash is prohibited, such as zoos.
“MSC mechanism” that realizes fast and quiet autofocus
The inner focus method used in conventional single-lens reflex interchangeable lenses has evolved further. A screw drive mechanism was adopted as the drive system to achieve “quick,” “smooth,” “quiet,” and “high-accuracy” AF (autofocus). Due to the advanced optical design that enables focusing with a lightweight and small number of images, the ED 12mm F2.0 performs focusing with a single lens.
Uses a metal shaft (shaft) with submicron accuracy and a feed screw (screw drive) mechanism
By eliminating gears that cause operating noise and adopting a metal shaft (shaft) finished with submicron accuracy and a feed screw (screw drive) mechanism, the lightweight focusing lens is directly driven without loss.
Focus moves to a specified distance “snapshot focus mechanism”
In combination with the aperture value, a mechanism called a “snapshot focus mechanism” was installed as a mechanism to enjoy pan-focus shooting with a snap. When you slide the focus ring forward, the focus position moves to a specified distance, and when the focus ring is rotated, the focus position moves to the position of the distance scale engraved on the lens barrel.
How to set pan focus
Set the camera's mode dial to A or M mode and set the aperture value (example: F8.0)
Slide the focus ring to the camera side and set the snapshot focus
Rotate the focus ring to set the focus position (example: 3m)
Features of pan-focus photography
It is possible to focus from the front to the background
You don't need AF so you definitely won't miss a shutter opportunity
Shooting is possible even in environments where AF is difficult
Focal length
12mm (35mm equivalent to 24mm format)
Maximum aperture ratio/minimum aperture ratio
F2.0/F22
lens configuration
11 elements in 8 groups (1 DSA lens, 1 aspherical lens, 1 super HR lens, 1 ED lens, etc.) Angle of view
84°° AF method
High Speed Imager AF (MSC) Shortest shooting distance
0.2m Maximum shooting magnification
0.08 times (equivalent to 0.16 times in 35mm format) Closest shooting range
216 x 162 mm Number of diaphragm blades
7 sheets (circular aperture) filter size
46mm MOUNT STANDARD

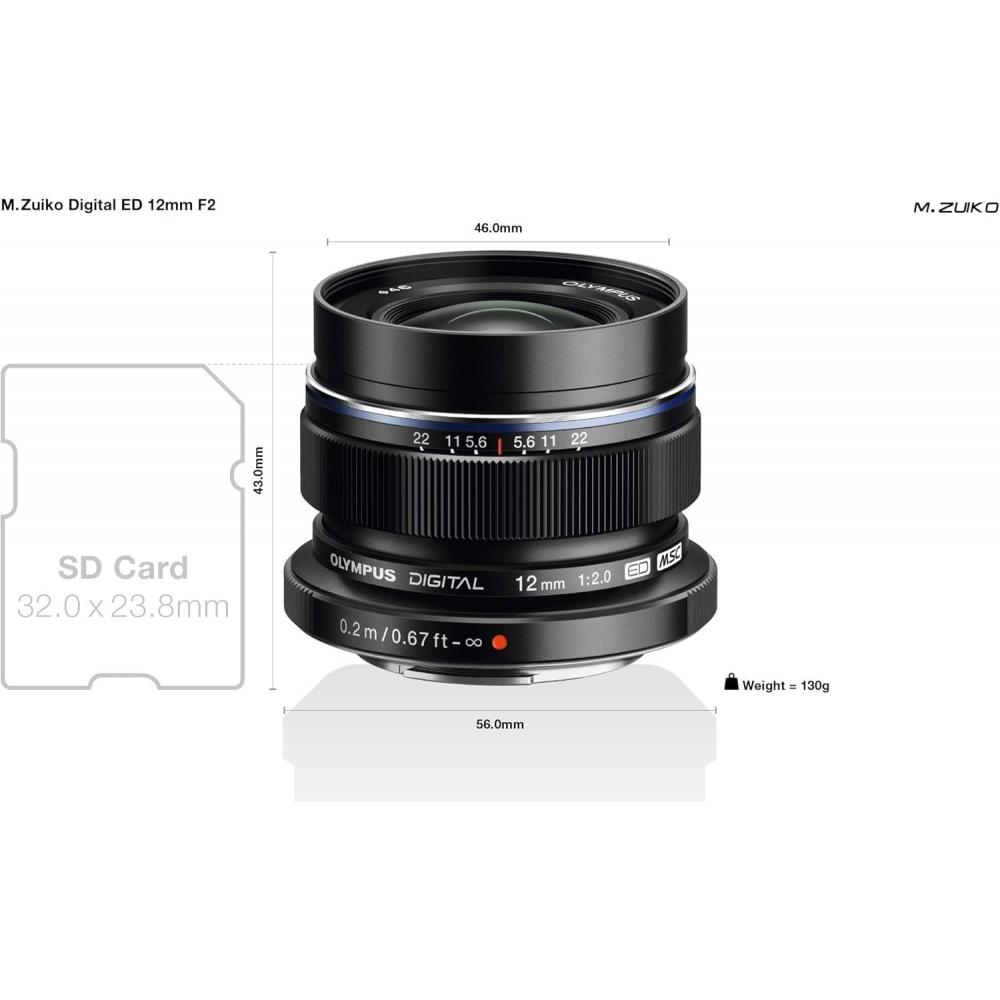

MICRO FOURTHERS SYSTEM STANDARD size max diameter x length
56×43mm mass
130g Main bundled items
lens cap LC-46, lens rear cap LR-2, instruction manual
