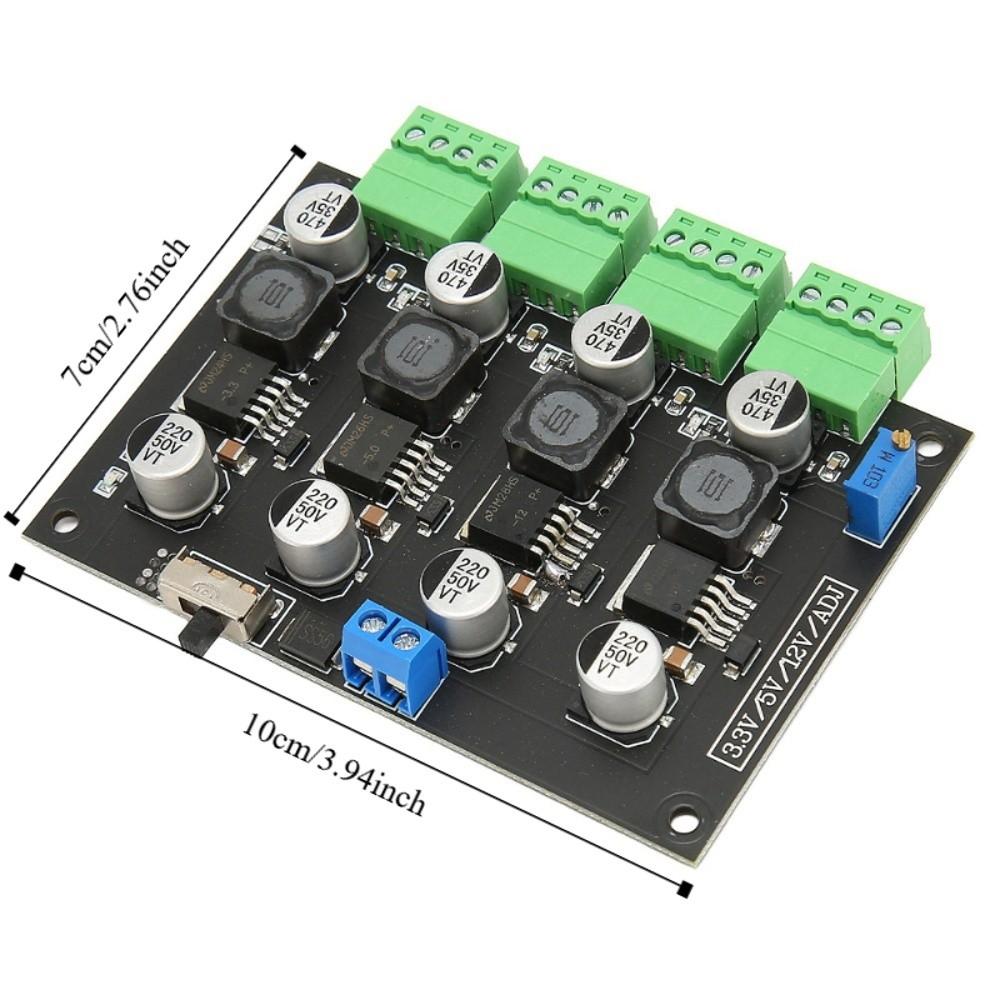

-Multi Channels: This module adopts multi channel design, which can output 4 groups of power supply of 3.3V, 5V, 12V and ADJ at the same time, strictly following the design specification of power supply circuit to layout wiring.
-Module Features: Low noise, with input and output power; indicator; with positioning holes.
-Function: Step down type power management monolithic integrated circuit switching voltage regulator, capable of outputting 3A drive current, while having good linearity and load regulation characteristics.
-Applications: Industrial automation control, LED illumination, industrial control equipment, communication equipment, power equipment, instrumentation.
-Voltage Stability: SMD aluminum electrolytic capacitors, high power inductors with high 0 value to ensure stable output voltage, the back of the PCB board window treatment is more conducive to the chip heat dissipation.
Specification:
Item Type: Multi Channel Power Supply Module
Product Material: PCB
Color:As shown in the figure
Size:10*7cm(3.94*2.76in)
Module Model: Multi Circuit Power Supply
Module Type: Switching Power Supply
Output Current: 3A (Maximilian) Module Single Circuit Current Up To 3A, The Total Current Does Not Exceed 5A
Conversion Efficiency: 85%
Output Power: 9.9W 3.3V, 15W 5V, 36W 12V, 36W ADJ
Static Power Consumption: 26mA
Switching Frequency: 150KHz
Module Enable: None
Module Guard: Reverse Connection Guard
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
Package List:
1 x Power Module

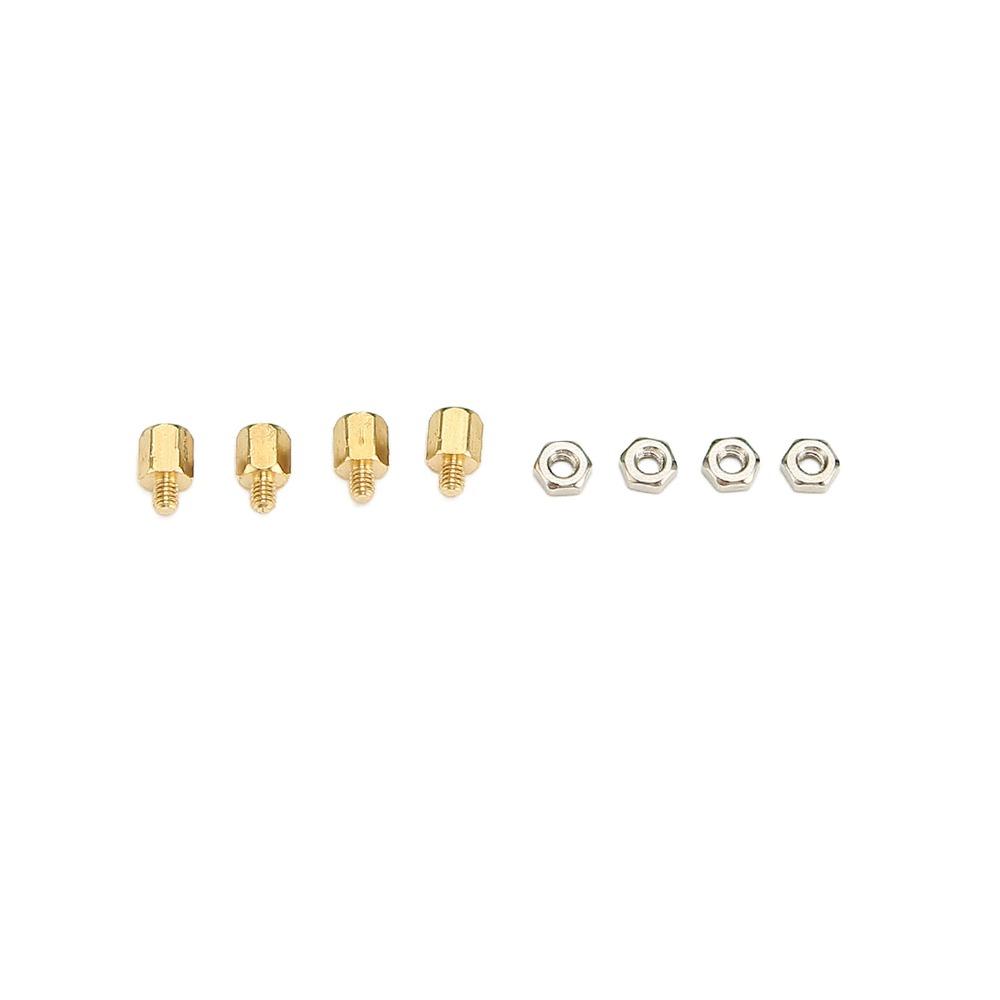

1 x Screw Package
