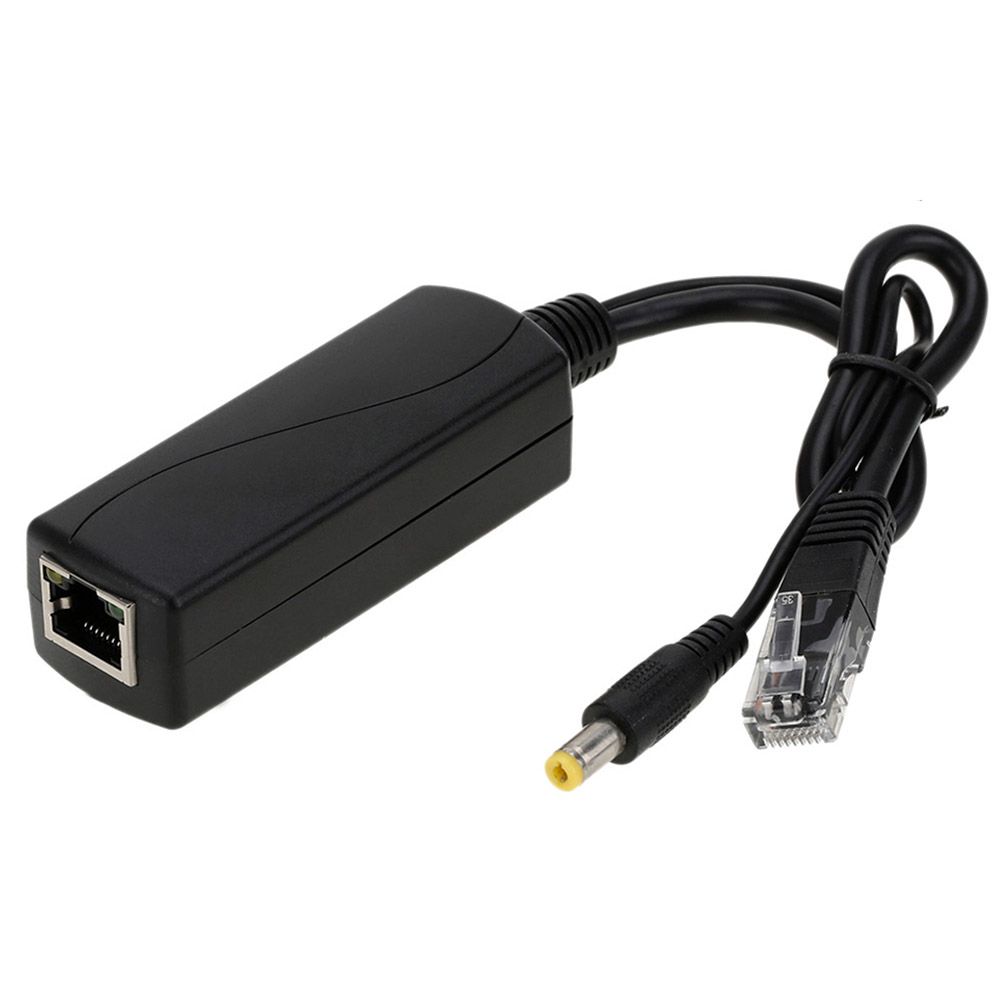

Standard Type IEEE802.3AF/AT Camera Active POE Splitter Connector POE Switch Ethernet Adapters

Label:Yes Data Transfer Rate: 10/100Mbps Power Pin:support both 1/2(+),3/6(-) or 4/5(+),7/8(-) Power Input: DC44~57V Compliant with IEEE802.3af Data Output Port: RJ45 Male RJ45 Modular Plug cable length155mm Isolation: 2.5kV DC cable length165mm Storage Temperature:-30 ~ 70 Data&Power INPUT Port: from RJ45 female Operation Temperatue:-20 ~ 45 Devices will be detected before poe input Power Output: DC12V 1A~2A(Rated 1.3A,max.2A) Body size: 80 x 27x 22 mm Power Output Port: 5.5x2.1mm DC Power Plug

Notice:

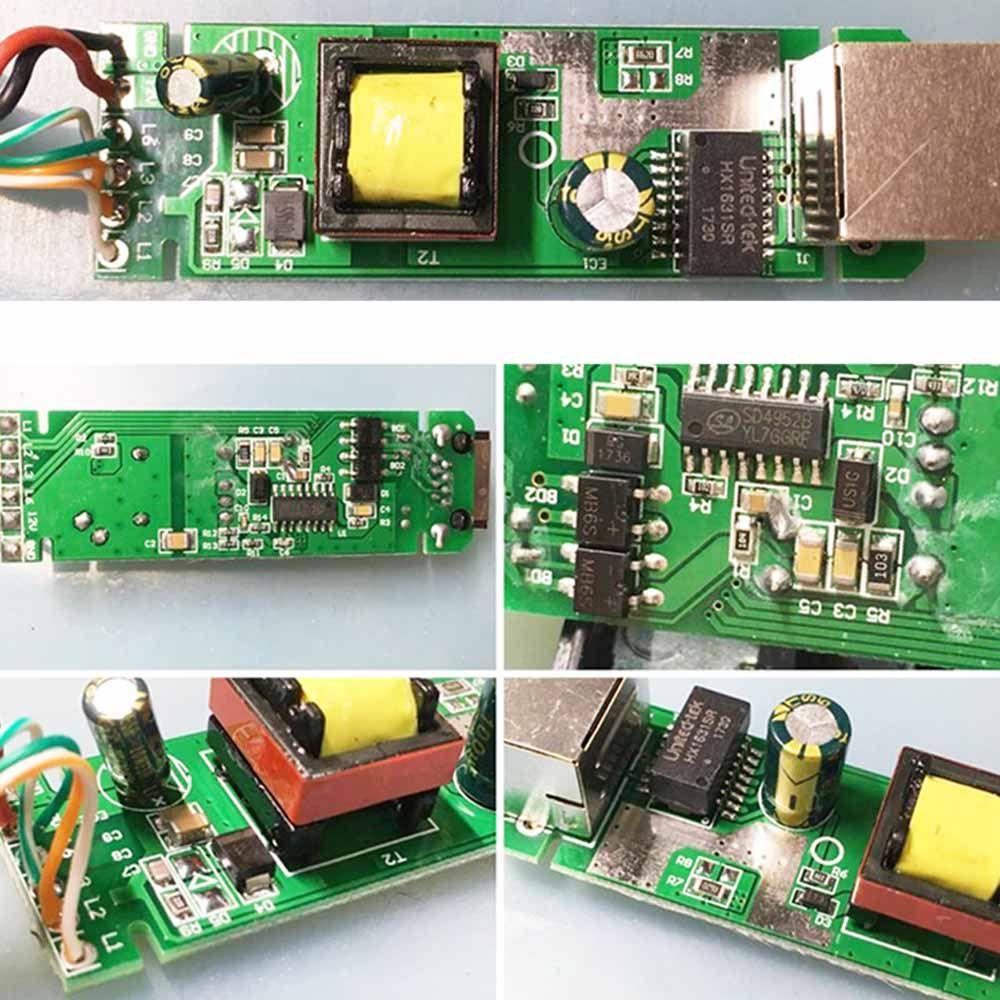

Yellow LED(power) will be light up when DC Port connects to the device. Green LED(data) never light in any circumstances,two reasons are below, 1.The splitter does not have the function to monitor the data of the network cable. 2.due to the cost problem,the network interface component is from the universal components which own two LEDs on the market.
