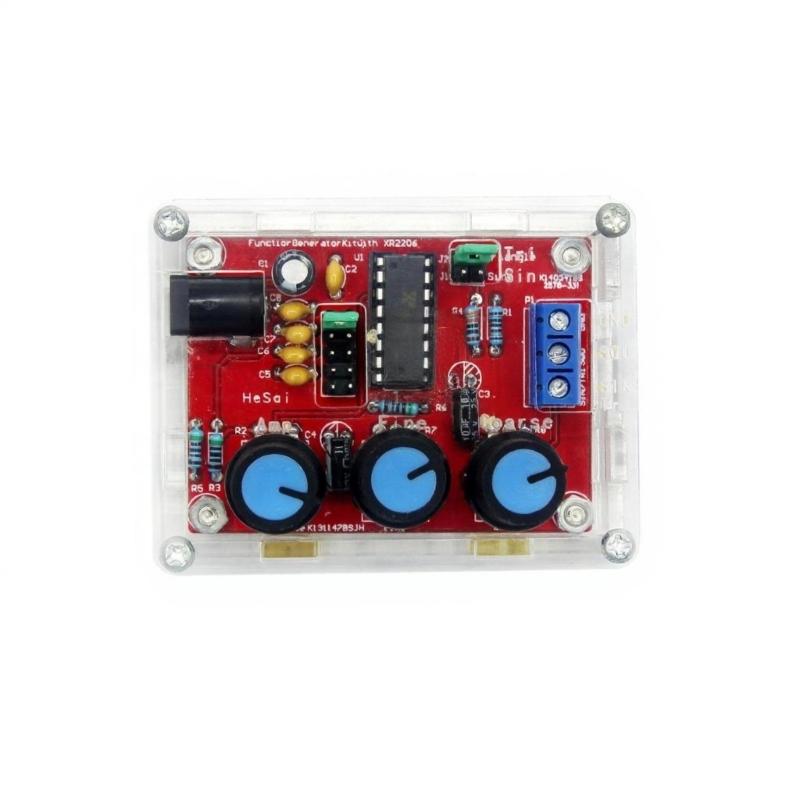

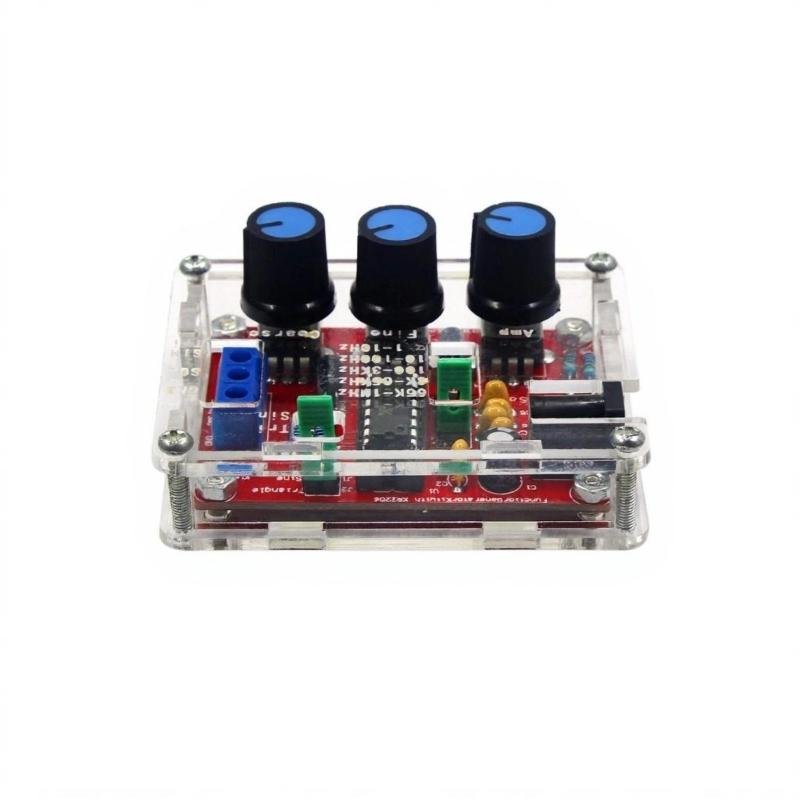

1Hz-1MHz XR2206 Function Signal Generator Sine/Triangle/Square Output Signal Generator Adjustable Frequency Amplitude

Features: The XR2206 function generator provides waveform outputs including sine, square, and triangle waves and low distortion for superior quality in various applications. Built with ABS housing and PCB, this integrated circuit features excellent temperature stability and a user friendly design, ensuring consistent Suitable for both electronics beginners and experienced professional, this generator simplifies experiments, development projects, and educational activities with straightforward setup. Ideal for scenarios such as sound processing, laboratory testing, and waveform applications, the XR2206 maintains stable output even in fluctuating environmental temperatures for results. Offering frequency external components like resistors and capacitors, this function generator delivers minimal distortion output, making it an essential tool for demanding electronic designs and quality focused projects.

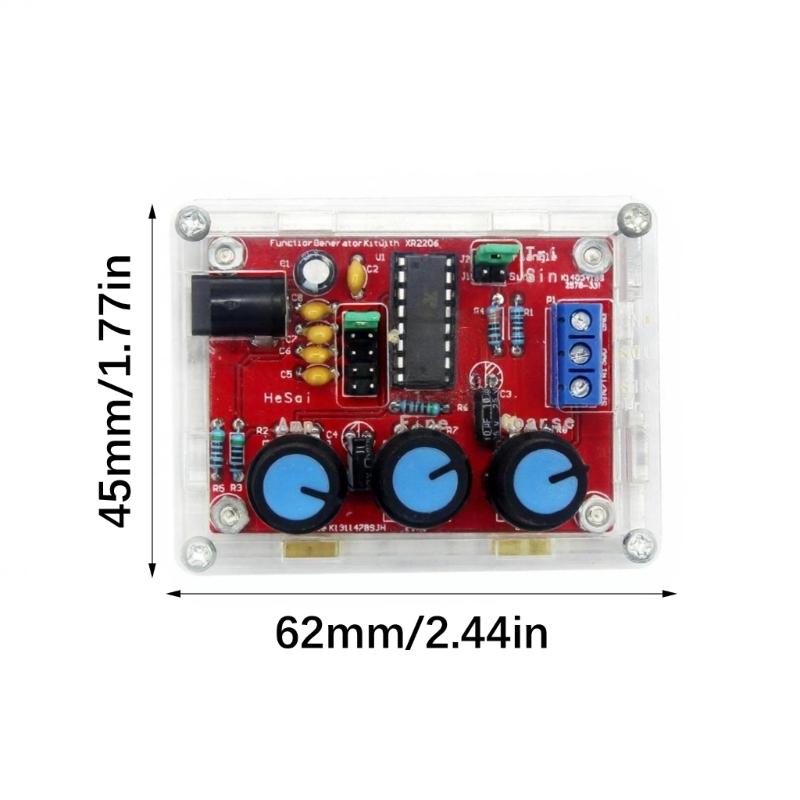

Specifications: Component:ABS+PCB Type:B/A Size:Approx.62x45x2.4mm/2.44x1.77x0.09inch Power supply: 9-12V input. Waveforms: square, sine and triangle. Impedance: 600ohms + 10%. Frequency: 1hz-1mhz. Amplitude: 0-3V at 9V input. Flatness: +0.05db 1hz extension. Rise time: less than 50ns (1kHz). Fall time: less than 30ns (1kHz). Amplitude: 0-3V at 9V input.

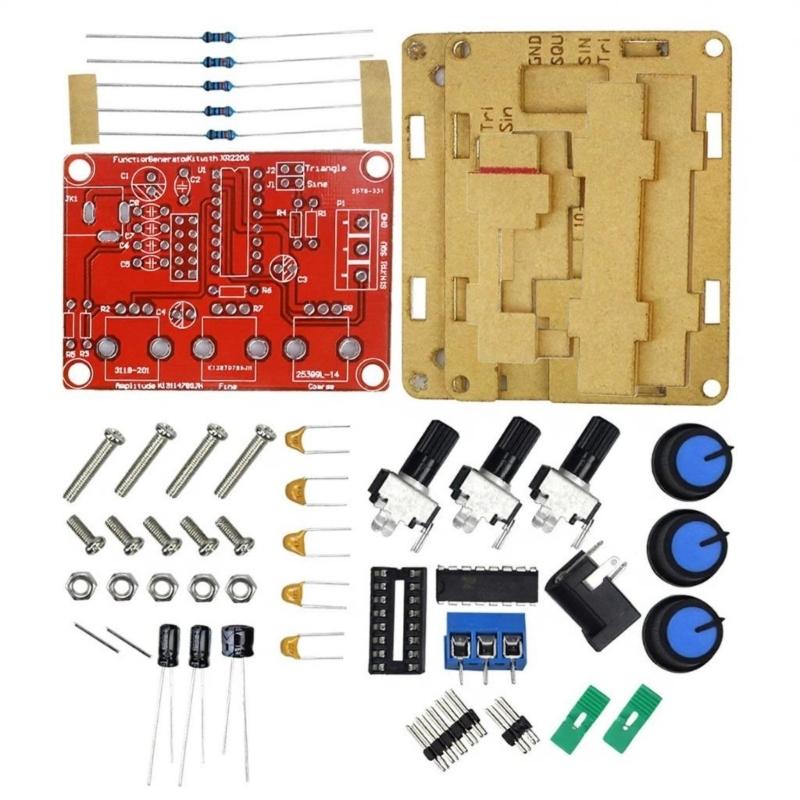

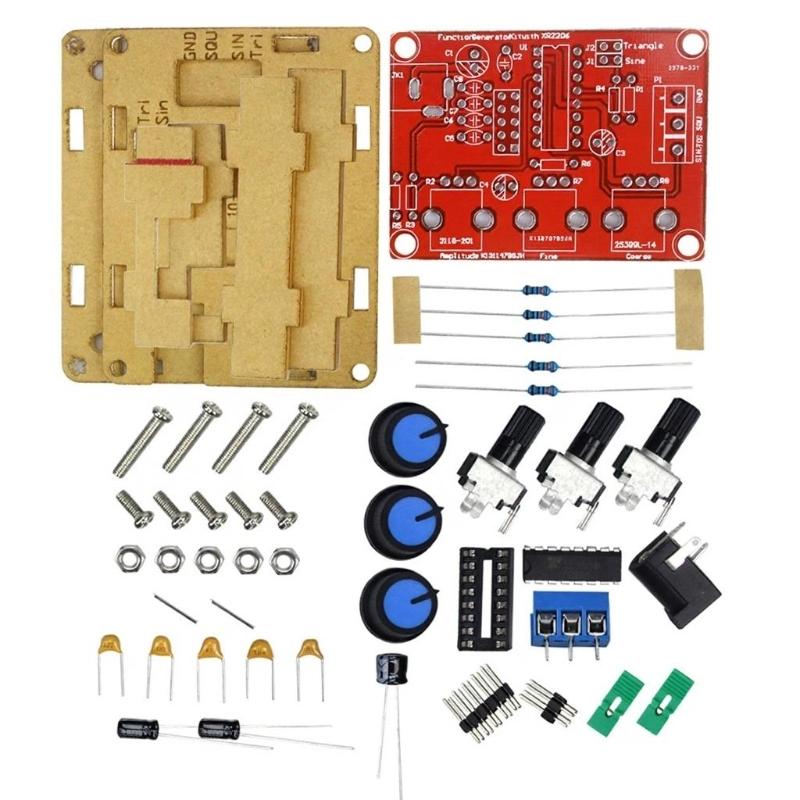

Package Includes: 1Pc Generator

note: 1.Please allow 1-2cm errors due to manual measurement, making sure that you not mind before order. 2.Due to the differences between different monitors, the picture may not reflect the actual of the item.
