6.L_IS: Reverse drive current alarm output
1.RPWM: forward level or PWM signal input, active high
Electrical performance:
4.L_EN: Reverse drive enable input, high-level enable, low level off
Input voltage: 6V-27V
Duty cycle: 0-100%
Maximum current: 43A
2.LPWM: Reverse level or PWM signal input, active high
8.GND: signal common low end
Input level: 3.3-5V

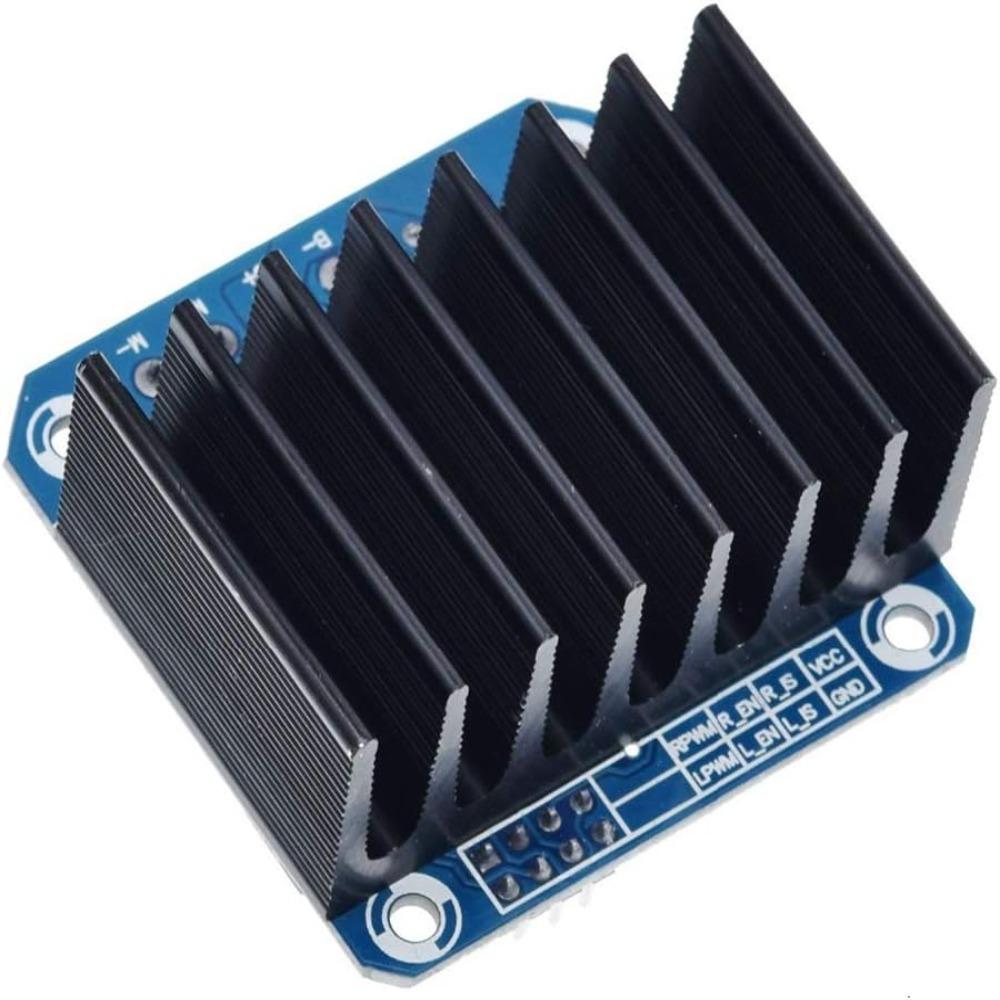

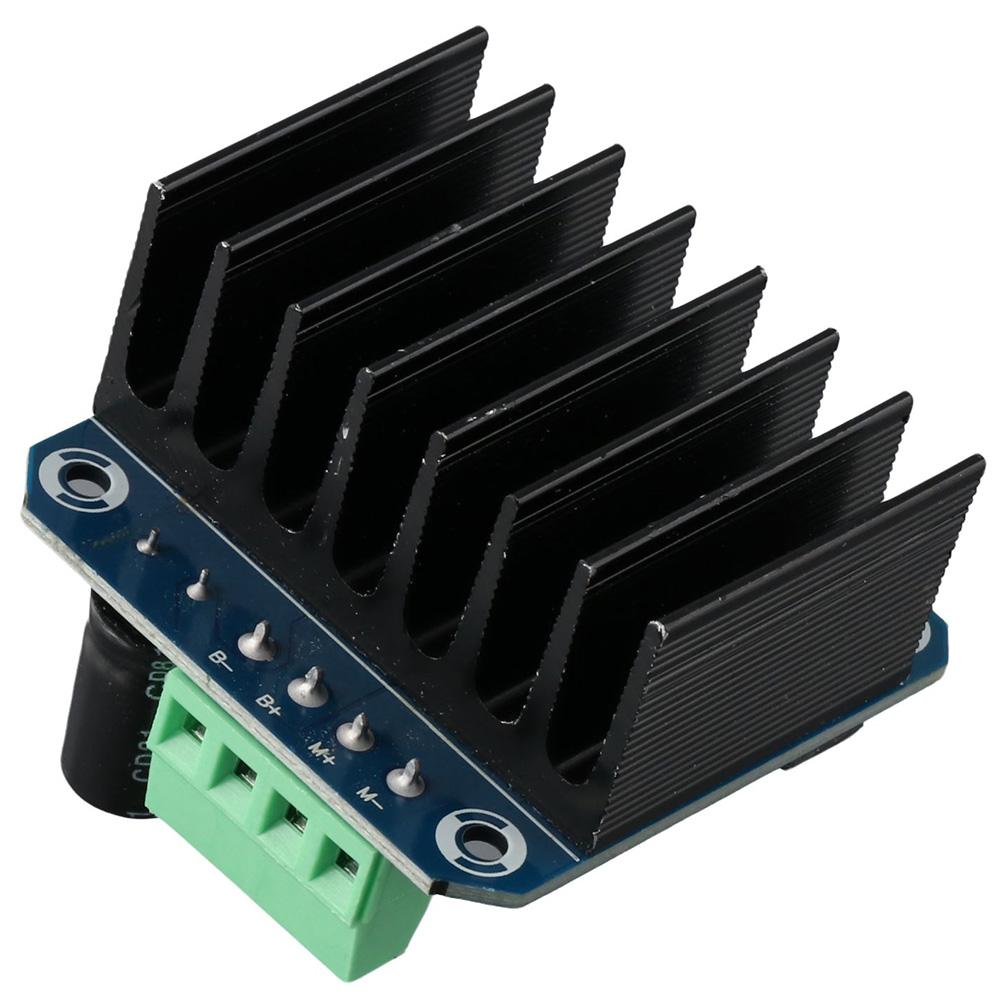

Model: IBT-2
Control method: PWM or level
5.R_IS: forward drive current alarm output
3.R_EN: forward drive enable input, high-level enable, low level off
Input port:
7.VCC: +5 V power output, 5V power supply connection with the microcontroller
Package Included:
1pc 1BTS7960 Motor Driver Module
High Power Performance: The IBT-2 motor driver module is capable of handling input voltages ranging from 6V to 27V and a maximum current of 43A, making it suitable for high-power applications.
Versatile Control Options: The module supports both PWM and level control methods, allowing for flexible and precise control of motor speed and direction.
Easy to Use: With its clear input port labeling and high-level enable inputs for forward and reverse drive, the IBT-2 module is user-friendly and can be easily integrated into various projects.
Current Limiting and Alarm Outputs: The module features current alarm outputs for both forward and reverse drive, providing additional safety and protection for your motor and system.
Reliable Power Supply: The module has a built-in +5V power output, which can be connected to a microcontroller for a stable and reliable power supply.
