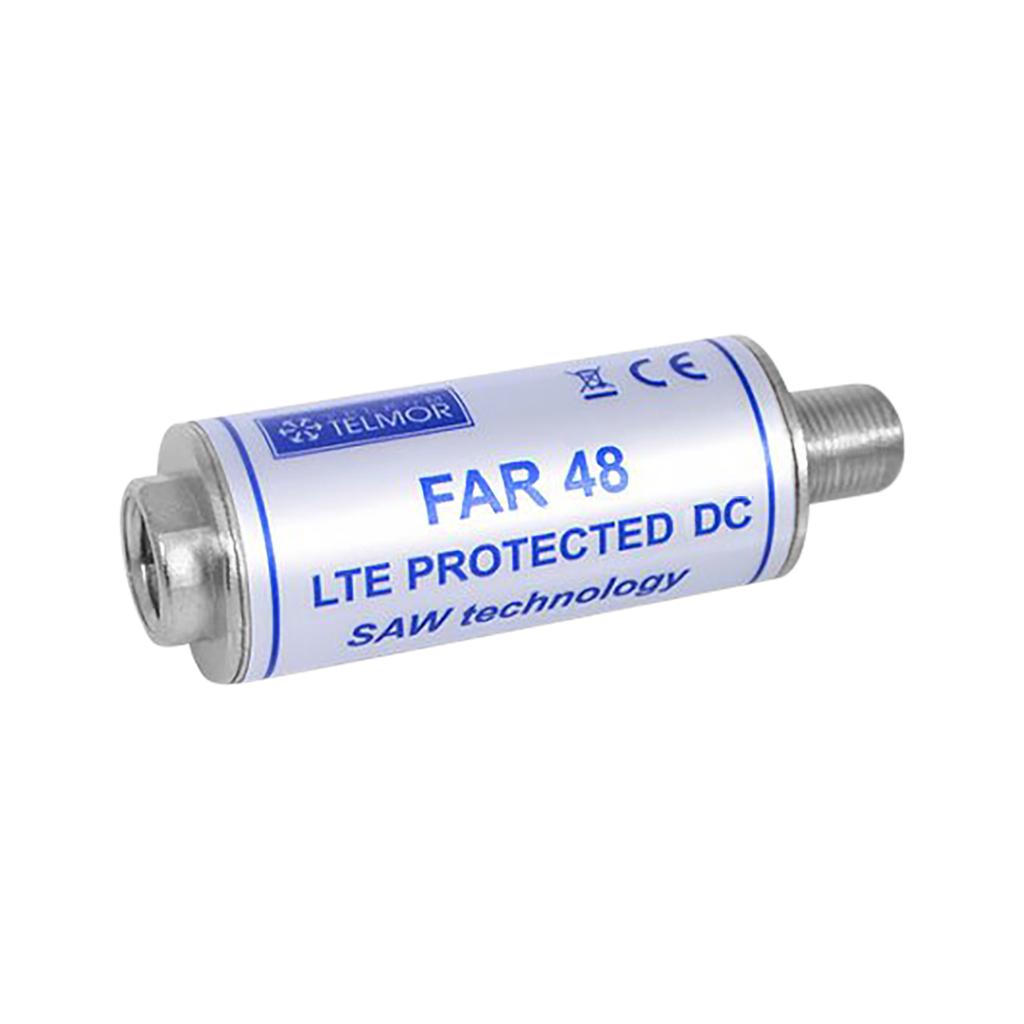

5G LTE FAR 48 694MHz Telkom Telmor Antenna Filter

Telkom Telmor's 5G FAR 48 filter is a high-quality LTE low-pass filter specifically designed to eliminate signal interference in the frequency range above 694 MHz, including LTE 700 and 5G signals. With a frequency range of 47-694 MHz, the product effectively transmits TV, radio (FM, VHF, UHF), and other passband signals. This low-pass filter features a passband attenuation of 4 dB and a stopband attenuation of greater than 18 dB for the 698-718 MHz range, greater than 26 dB for the 718-725 MHz range, and greater than 30 dB for the 725-2600 MHz range. The product also features a built-in DC pass, allowing for power transfer from the output side (maximum voltage 5-24 V DC / 100 mA). The filter has an input and output impedance of 75 ohms, and the input connector is an F-socket and the output connector is an F-plug. The FAR 48 is designed for indoor use. Its compact dimensions are 64 mm (length) x 20 mm (diameter) and it weighs 0.045 kg. This filter is also compatible with antenna preamplifiers, thanks to its DC PASS function, which allows for the transmission of DC voltage. For signal interference suppression above 694 MHz, including LTE 700 and 5G signals, the Telkom Telmor 5G FAR 48 filter is a reliable solution with high efficiency and reliability.
