Label:Yes
Material. Plastic
Operating current: 100mA
LED cable length: about 300mm
Lamp color: white, red, yellow, blue
Number of LED bulbs. 12
This 12 LED lighting system kit is suitable for 1/10 RC cars. It has four colors of lights including white headlights, blue tail lights, red brake lights and yellow turn signals. By improving the circuit board, it can support both high voltage receivers and normal receivers. A set of car lights can be controlled by the transmitter.

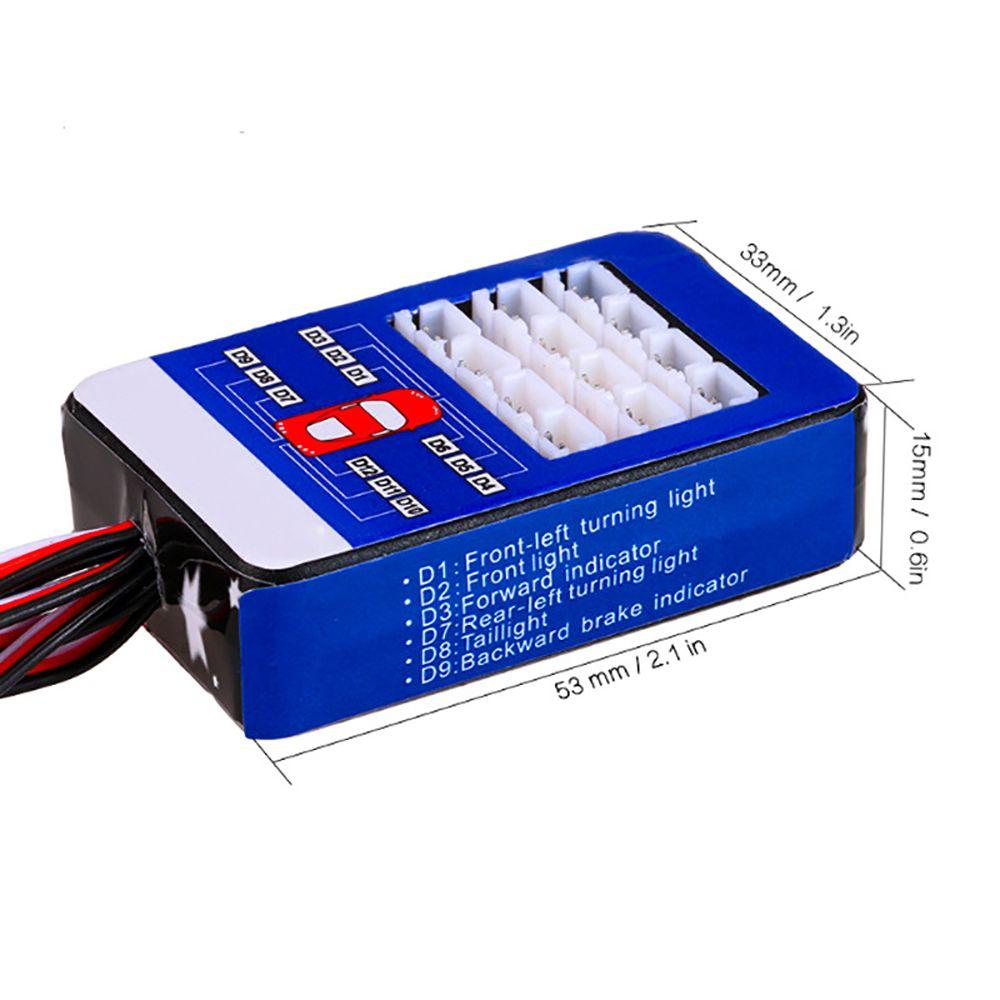

Circuit board size: 53*33*15mm
Weight: 60g
CH3 - Receiver
Connection. CH1 - Servo
Product Name: 12pcs LED lighting system kit
Input voltage: 4.8V - 6.0V
CH2 - Speed controller
Features.
12 LED lights
Simulation of car lights
Simple and easy to use
Long distance flashing, super bright
Improved design of circuit board, HOSI power saving
Front light white, tail light blue, brake light red, turn signal yellow
Lamp description.

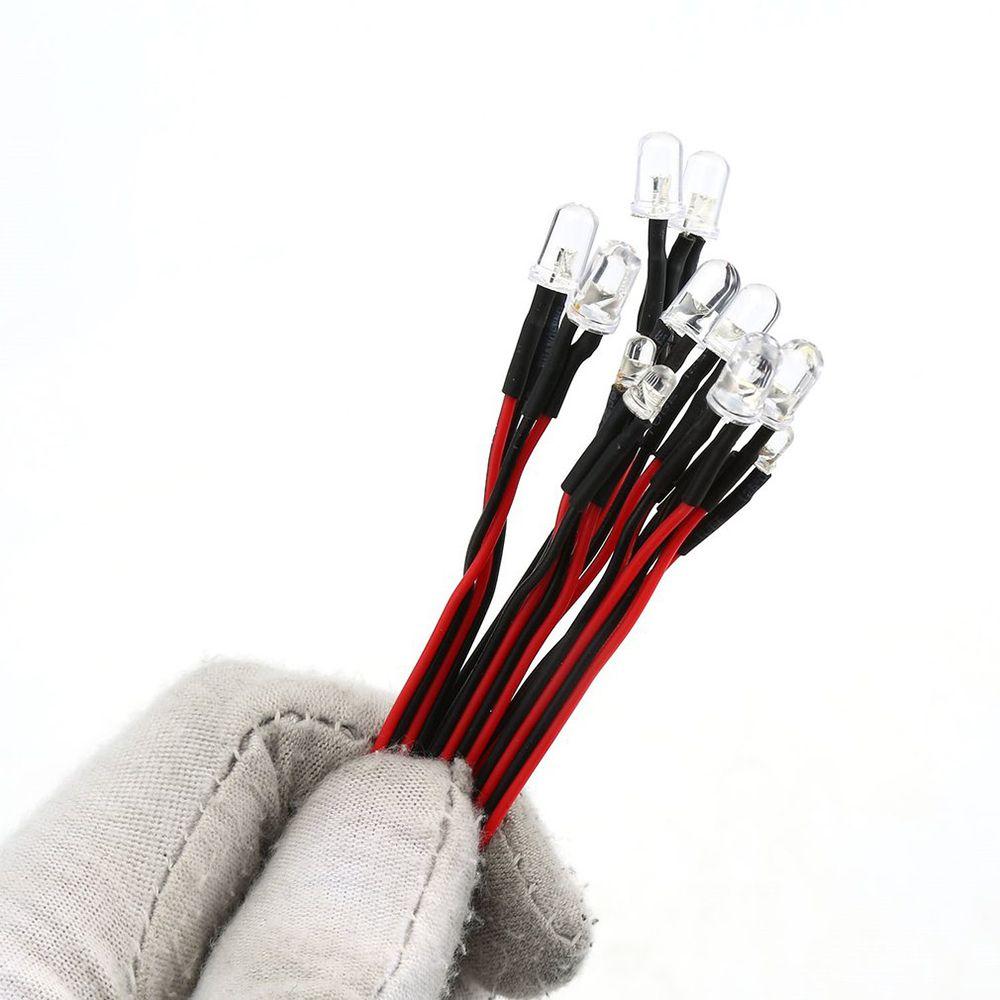

Headlights: 4 white LEDs
Connect the lighting system to the receiver on CH3: the transmitter can control one set of lights independently and another set of lights turn on when the car accelerates; not connected to the receiver on CH3: one set of lights is always on and another set of lights turn on when the car accelerates.
Turn signals: 4 yellow LEDs
Change the direction with the remote control, the lights will flash synchronously.
Tail lights: 2 blue LEDs, 2 red LEDs
The blue light is always on. When the car accelerates or brakes, the blue light will go out. The red light will come on only when the brake is applied.
Installation method.
CH2 transmitter.
Connect the plugs of the servo and ESC to CH1 and CH2 of the light system, then connect CH1 and CH2 to the receiver.
CH3 transmitter.
Connect the plugs of the servo and ESC to CH1 and CH2 of the lighting system, then connect CH1, CH2 and CH3 to the receiver.
Package includes: 1 * 12 LED lighting system kit
Notes: There may be some deviation or slight color difference due to manual measurement or shooting scenes.
