【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------
Multi-platform compatibility: Compatible with PS4, PS3, Xbox Series S/X, Xbox One, Xbox 360, Switch, Windows PC, macOS, Android, Raspberry Pi, Steam, Steam Deck, NEOGEO mini, NEOGEO Arcade Stick Pro, SEGA Mega Drive Mini, SEGA Genesis Mini, SEGA Astro City Mini, and PlayStation Classic Mini. *When using with PS4, Xbox Series S/X, Xbox One, or Xbox 360, you will need to connect a wired PS4 or Xbox controller to the F500 Flat's USB port.
Audio & Chat Support: Supports background music and online chat output via headset on PS4, Xbox Series X/S, Xbox One, and Xbox 360.
Equipped with turbo function Supports turbo function with multiple speed settings.
Customizable arcade controller Compatible with Sanwa Electronics buttons, allowing you to customize it to your liking.
Removable clear acrylic top plate You can create a top panel with your own design by downloading templates from the MAYFLASH official website.
Multi-system support:
PS4, PS3, Xbox Series S/X, Xbox One, Xbox 360, Switch, PC Windows, macOS, Android, Raspberry Pi, Steam, Steam Deck, NEOGEO mini, NEOGEO Arcade Stick Pro, SEGA MEGA DRIVE mini, SEGA GENESIS mini, SEGA Astro City Mini, PS Classic Mini.
For use with PS4, Xbox Series S/X, Xbox One, or Xbox 360, you will need to connect a wired PS4 or Xbox controller to the F500 Flat's USB slot.
The wireless controller that comes with the console can be transformed into a wired controller by simply connecting a standard USB cable.
Special Features:
It supports Sanwa Denshi buttons and joysticks, allowing you to customize and personalize it.
It can also be used with PS5 by connecting the Mayflash Converter Magic-S Ultimate or MagicBoots for PS4 (converter must be purchased separately).
PS4, Xbox Series X/S, Xbox One, and Xbox 360 support headsets and can output background music and online chat.
When using a PC, it supports XINPUT and DINPUT.
Supports turbo function with various speed settings.
D-Pad and X/Y analog axis modes can be swapped.
Package Includes:
1 x MAYFLASH Arcade Controller F500 FLAT
1 x User Manual
1 x 1.0m Micro USB Cable
1 x 10cm OTG USB cable
4 x Rubber Feet and Screws
F500 FLAT Fight Stick All-Button Arcade Controller for PS4, PC, Xbox Series S/X, Xbox One, and Switch
Turbo function
TURBO-1: Turbo speed is 15 times per second.
TURBO-2: Turbo speed is 25 times per second.
Headset and Mute
On PS4, Xbox Series X/S, Xbox One, and Xbox 360, you can use your headset to output background music and online chat.
Acrylic clear panel
This clear top panel is replaceable.

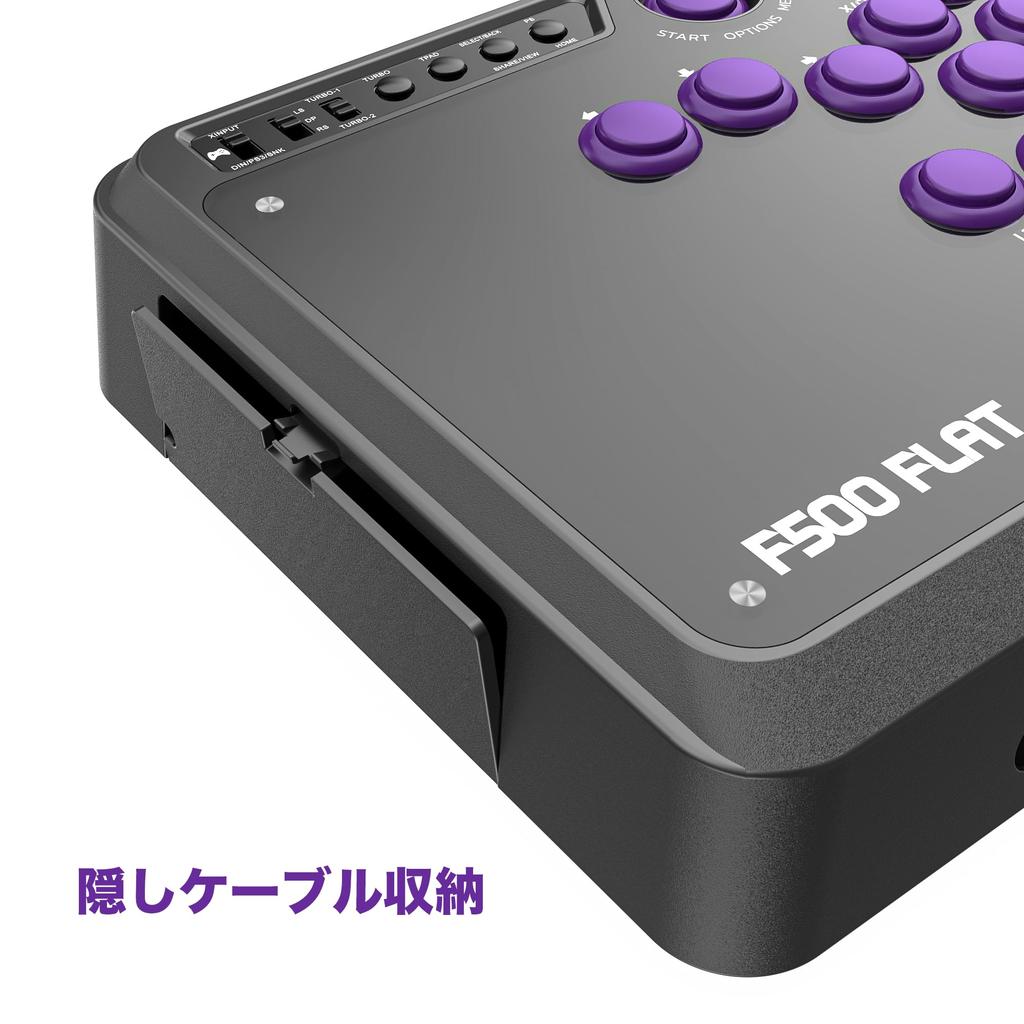

Cable Cabinet
The 3m USB cable is safely stored in a special hidden storage compartment.

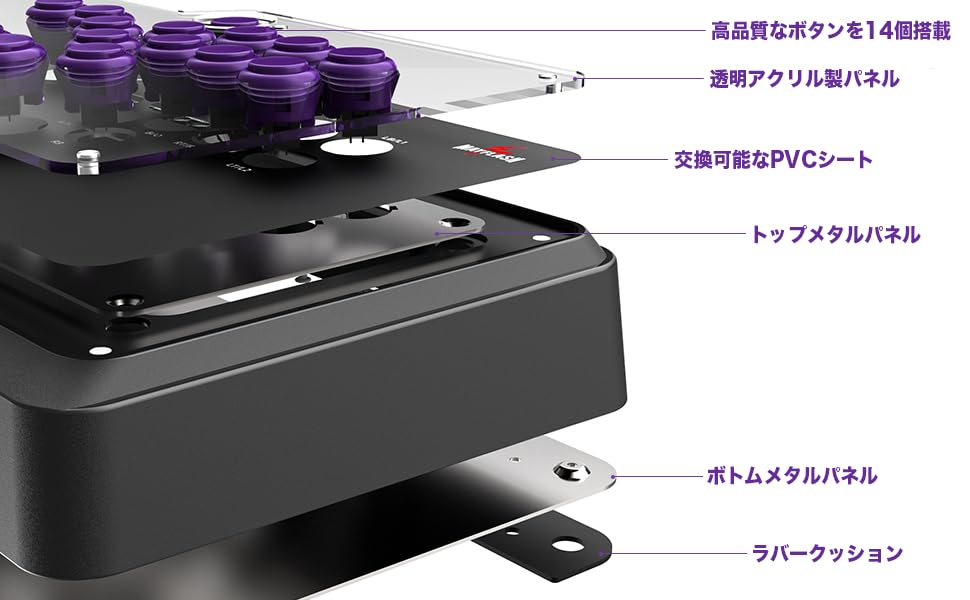

Two metal panels
Two metal panels (metal cover and metal base) add weight to the arcade stick, providing a stable feel.
Removable top cover plate
You can create your own design using templates available for download from the Mayflash website.
SOCD mode
Switch to DP mode and then select SOCD mode.
Mode 1 (Tournament Mode)
Left + Right = Neutral
Up + Down = Neutral
Mode 2 (last input priority)
Left + Right = Right / Right + Left = Left
Top+Bottom = Bottom / Bottom+Top = Top
Mode 3 (Standard Mode)
Left + Right = Neutral
Bottom+Top = Top (Top+Bottom=Top)
Mode 4 (First input priority)
Left + Right = Left / Right + Left = Right
Top+Bottom = Top / Bottom+Top = Bottom
Mode 5 (SOCD off/default mode)
Left + Right = Left + Right
top+bottom = top+bottom
For detailed operation, please refer to the included user manual.
PS5 compatible
Compatible with PS5 by connecting Mayflash Converter Magic-S Ultimate or MagicBoots for PS4 (sold separately).

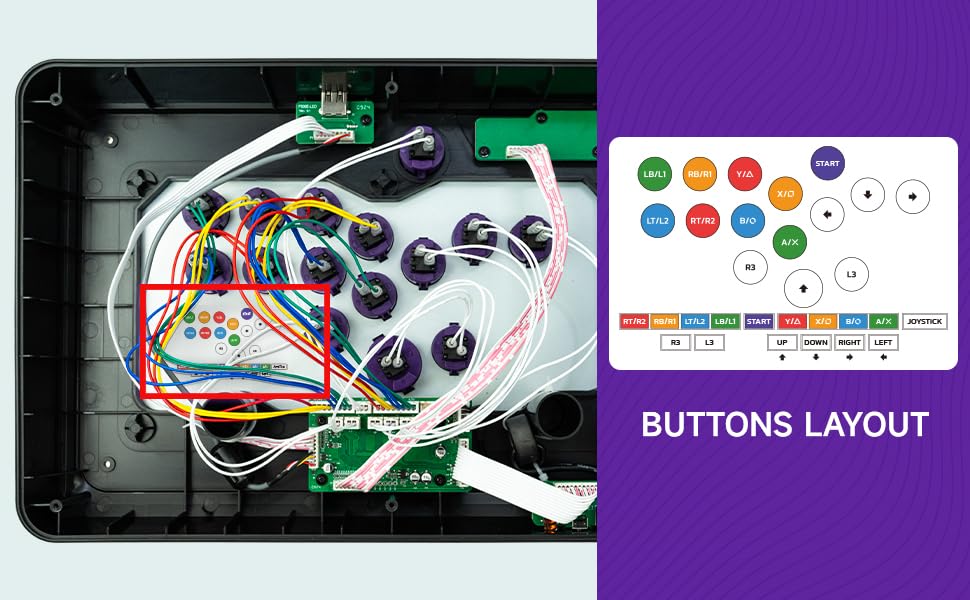

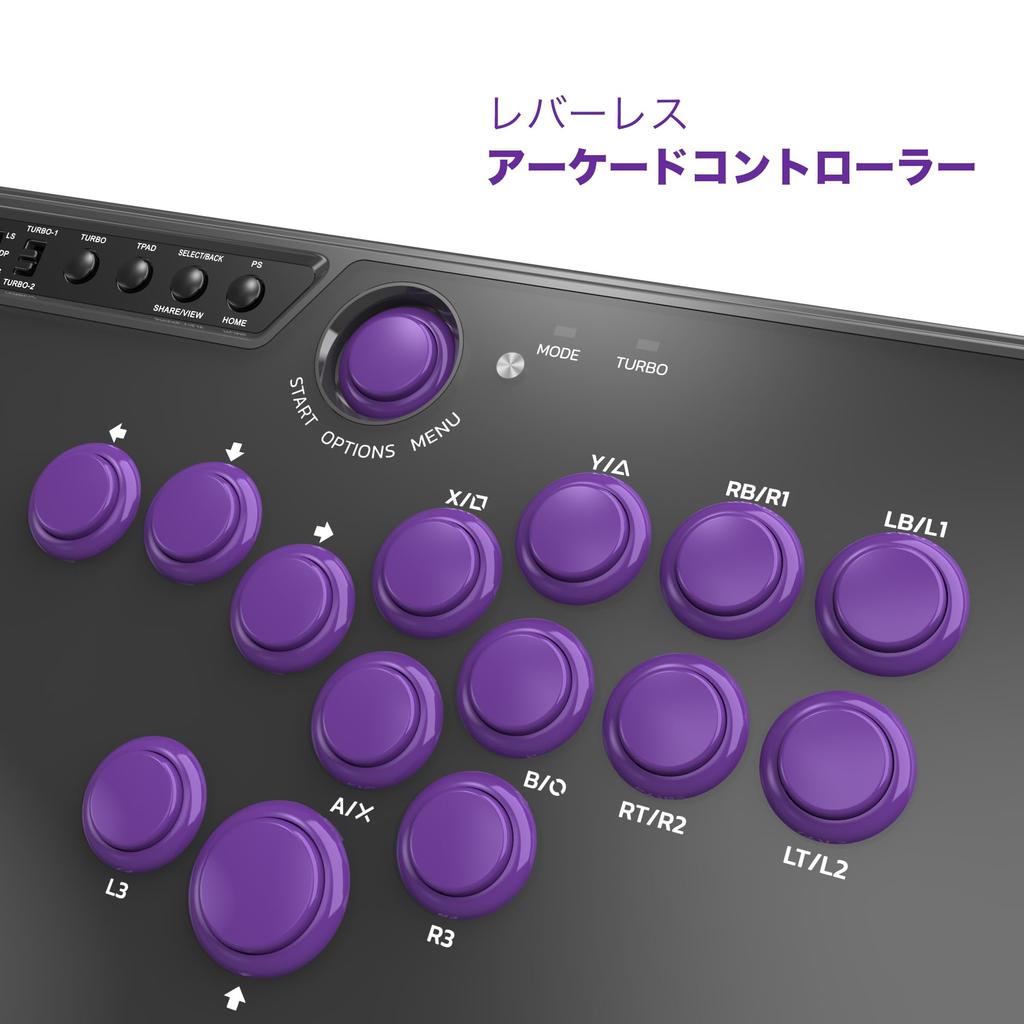

Precise quad movement button placement
By replacing the joystick with four movement buttons, you can enjoy clean, crisp play without input errors.
14 24mm buttons compatible with Sanwa OBSF-24 model.
One 30mm button fits Sanwa OBSF-30 model.
