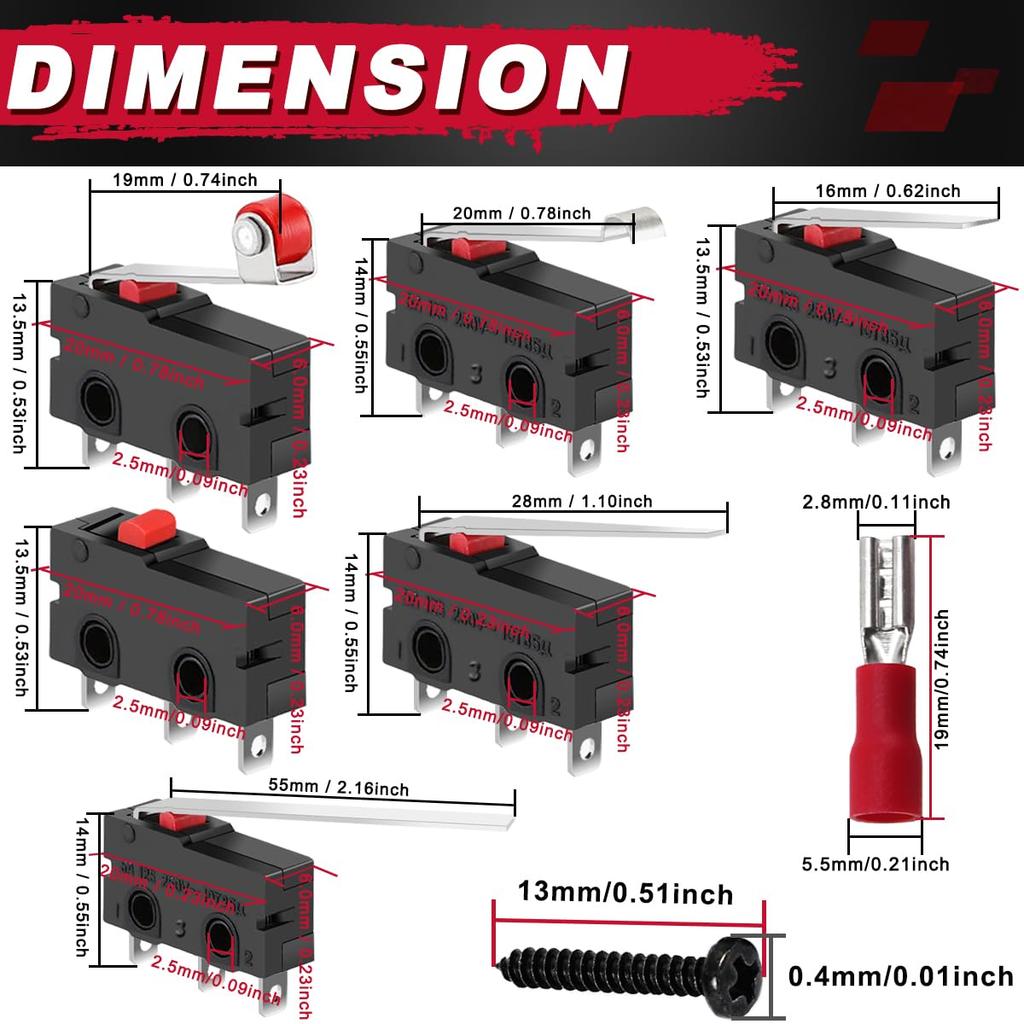

【Dimension】Micro Limit Switch Size: 20mm x 6.0mm x 13.5mm/0.78" x 0.23" x 0.53"(L x W x H) Roller Lever Arm Length: 19mm/0.74" Short Lever Arm Length: 16mm/0.62" Half Arc Bending Lever Arm:20mm/0.78" Long lever arm:28mm/1.10" Extra Long Lever Arm Switch: 55mm/2.16" Cold Press Terminal Diameter: 2.8mm/0.11" Screw Height: 13mm/0.51"

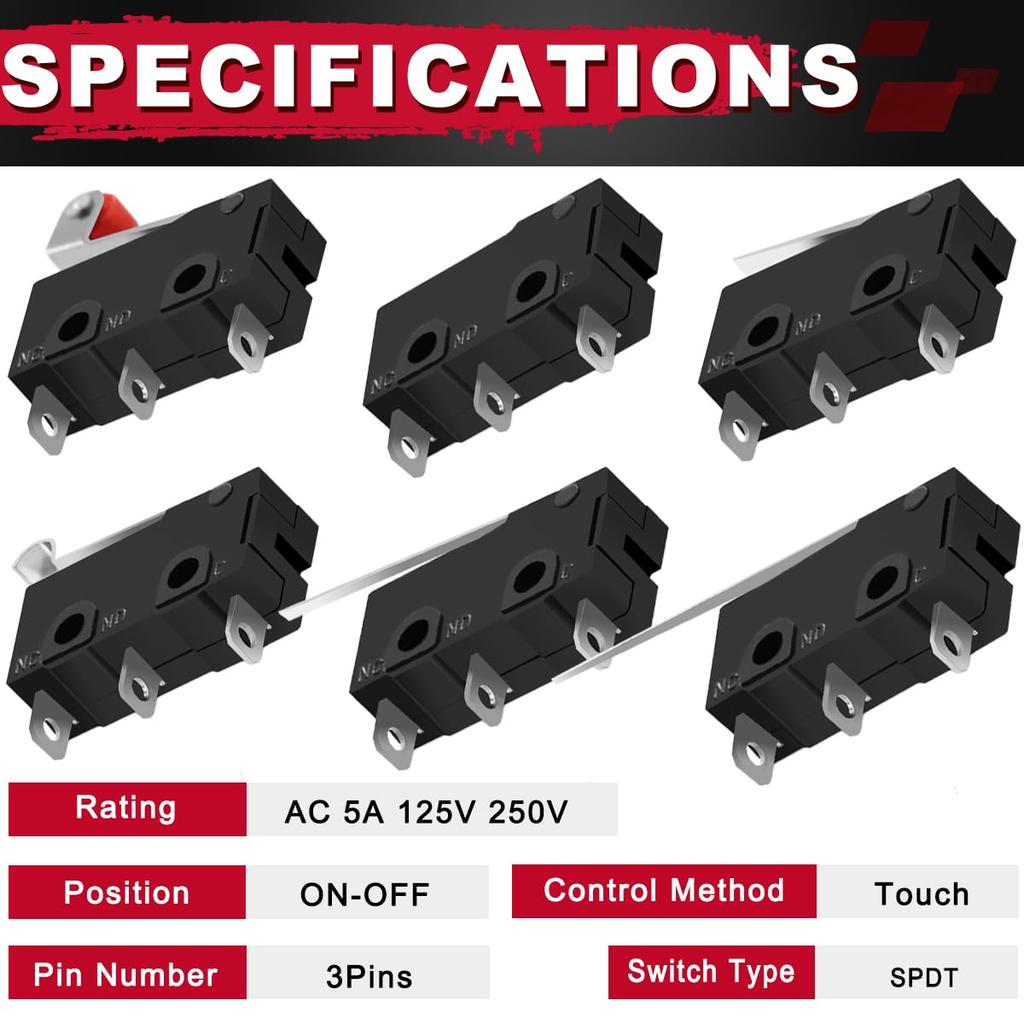

【5A 125V 250V AC】With 125V and 250V AC, the switch safely stream and control current up to 5A
【Widely Used】The mini micro limit switch is suitable for communication equipment, testing equipment, rice cooker, microwave oven, refrigerator, office equipment, fitness equipment, medical equipment, automotive electronics, gaming equipment, home appliances and other equipment
Small Design: Small enough to easily incorporate into various small devices without taking up much space

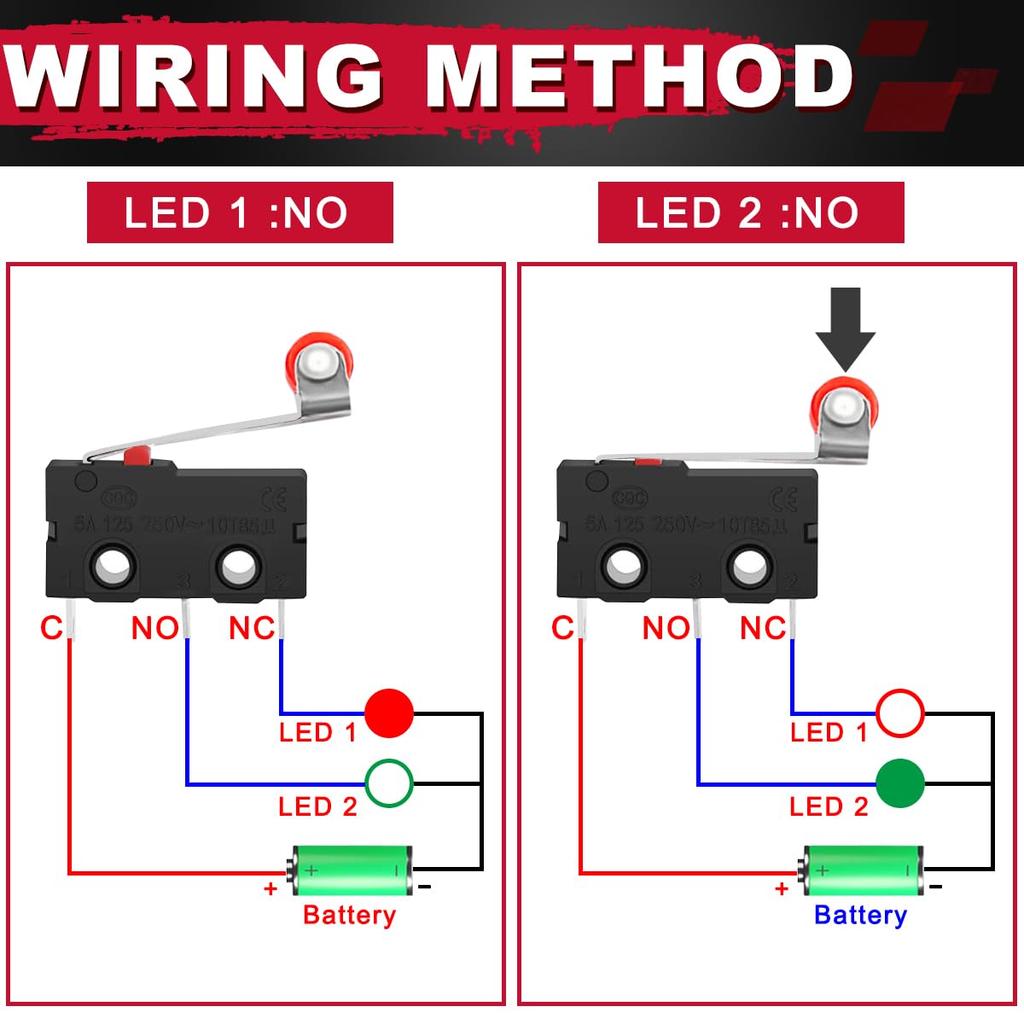

[Contact Marking] On the back of the switch, C is the common terminal, NO is always open contact (open when not powered), and NC indicates the Normally Closed contacts (shut when not powered)

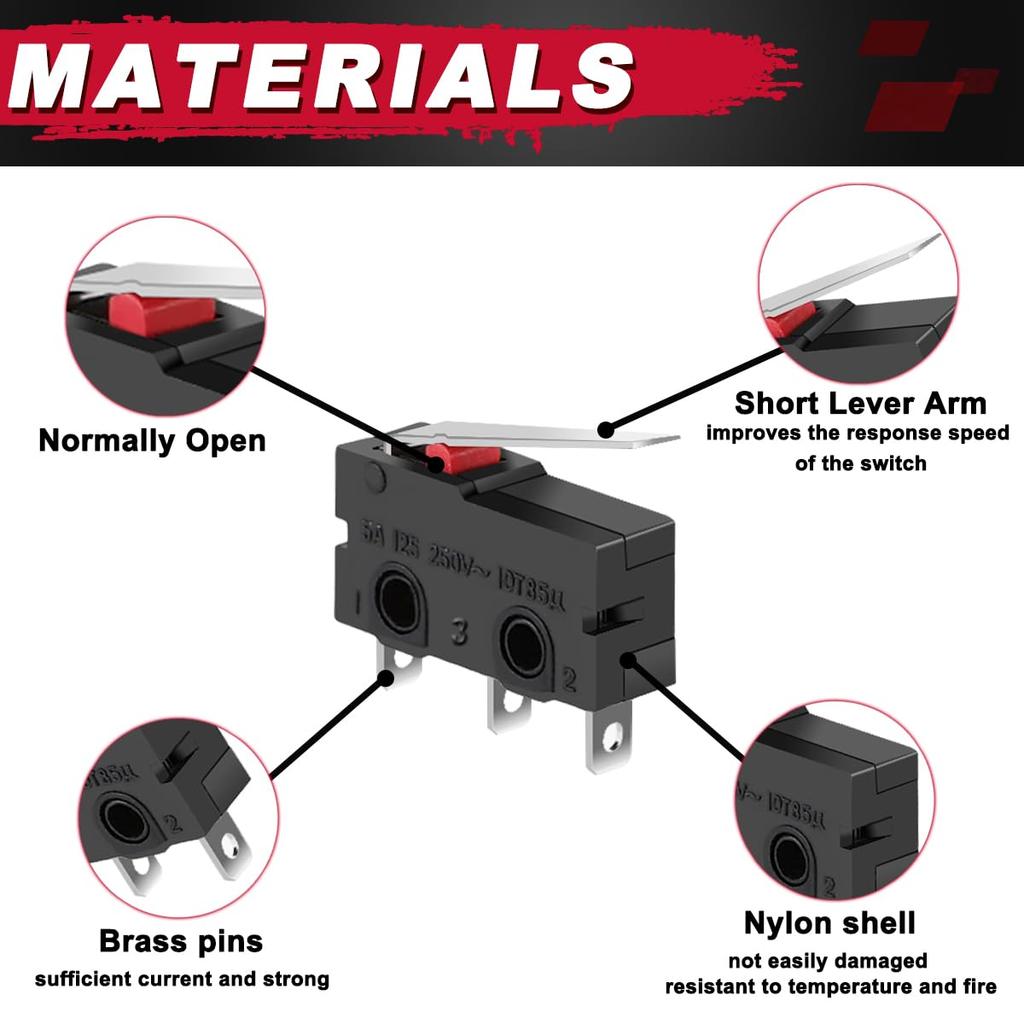

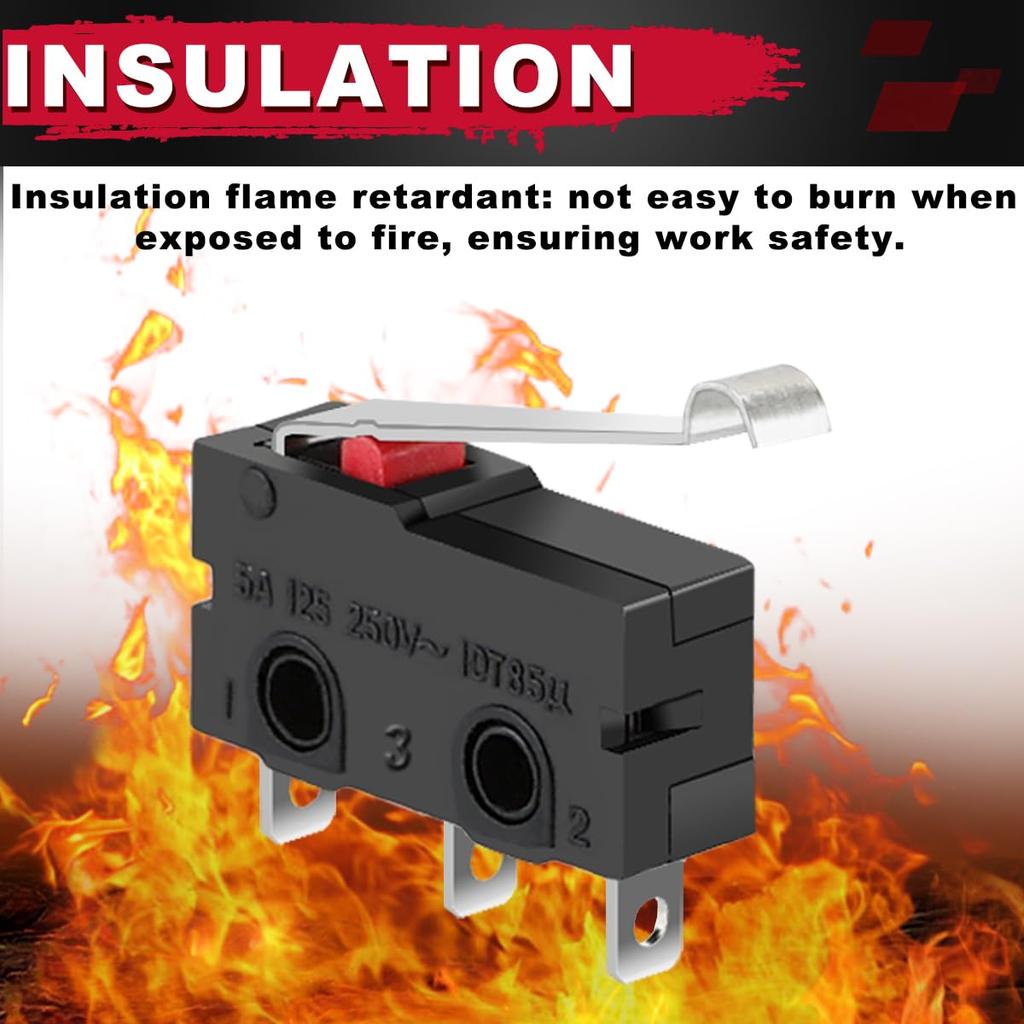

Strict Material Selection: The micro limit switch is made of high quality material with excellent cold resistance and heat resistance, making it difficult to burn even when encountered a fire, ensuring the stability of your work

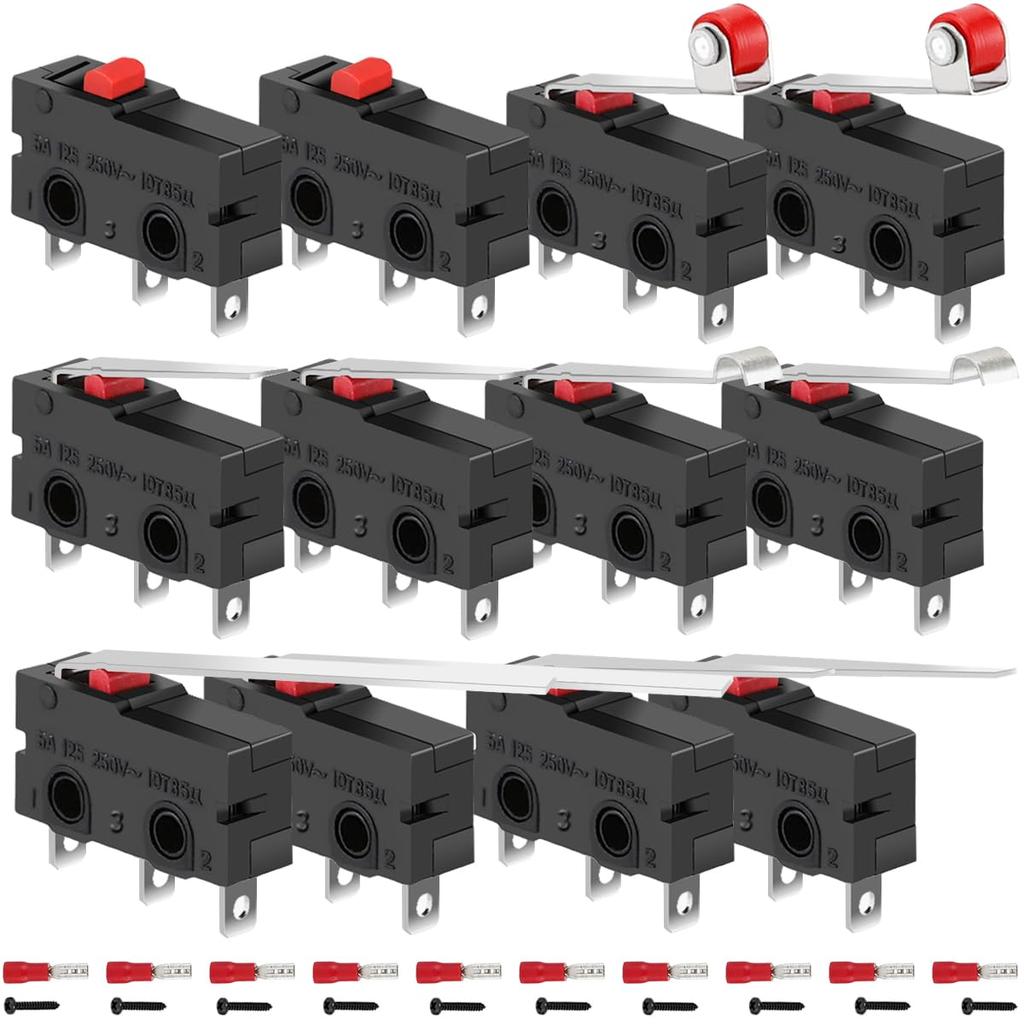

【Package Includes】2 x Micro Limit Switches without Rod, 2 x Micro Limit Switch with Roller Lever Arm, 2 x Micro Limit Switch with Half Arc Bent Lever Arm, 2 x Micro Limit Switch with Short Lever Arm, 2 x Micro Limit Switch with Long Lever Arm, 10 x Red Cold Press Terminals, 10 x Screws
