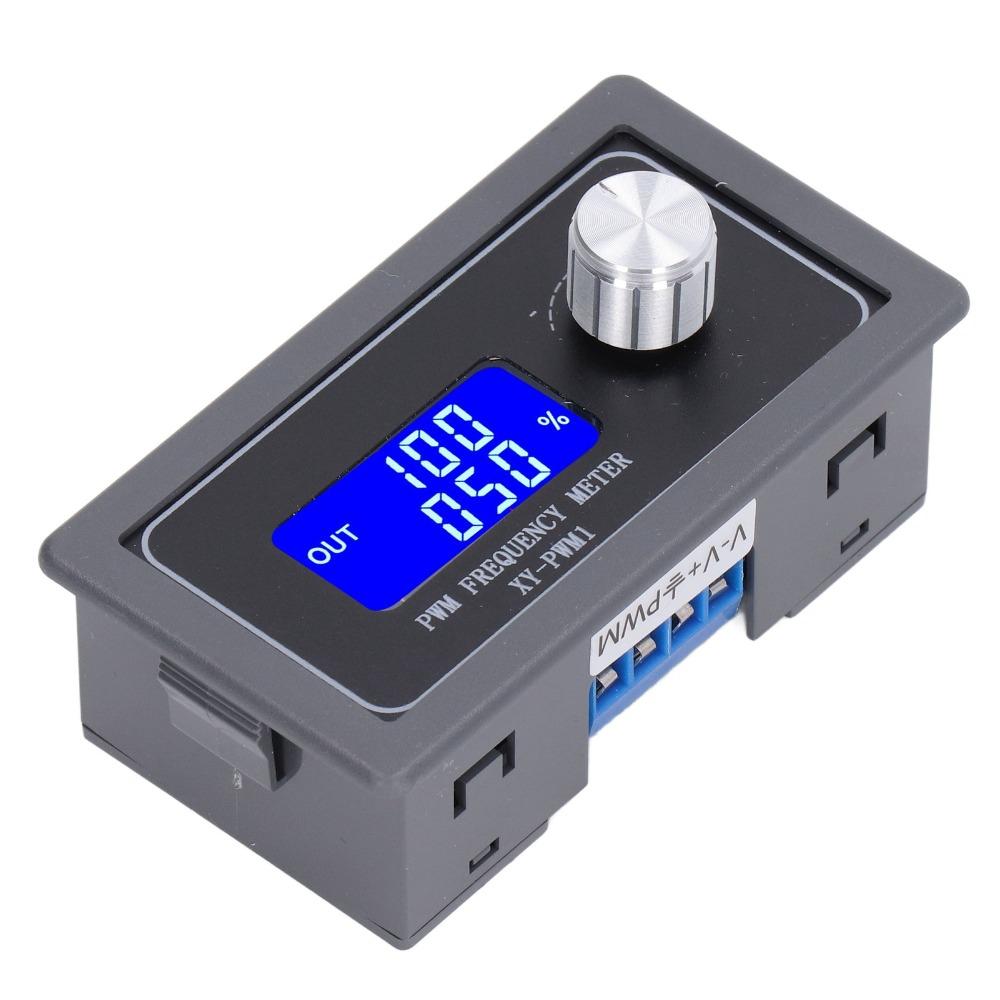

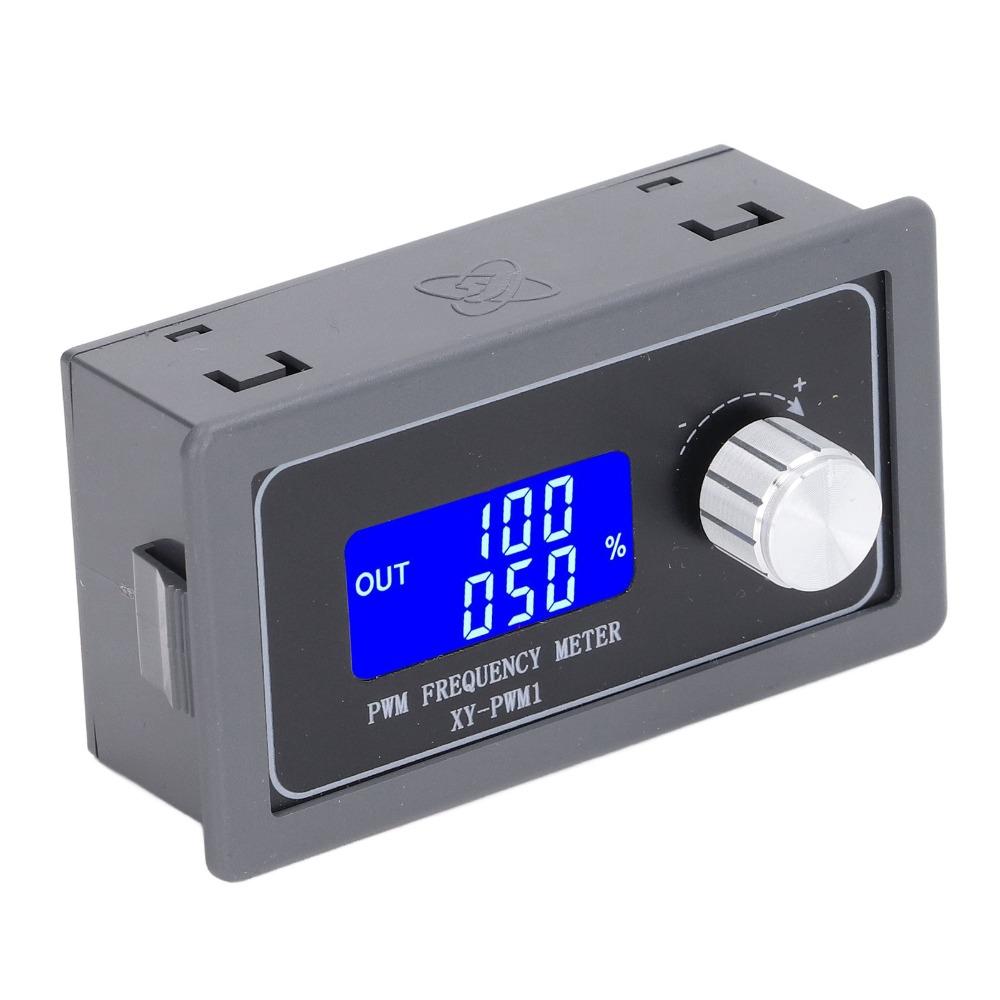

DC 3.3V-30V Frequency Generator LCD Display Signal Pulse Generator Motor Driving

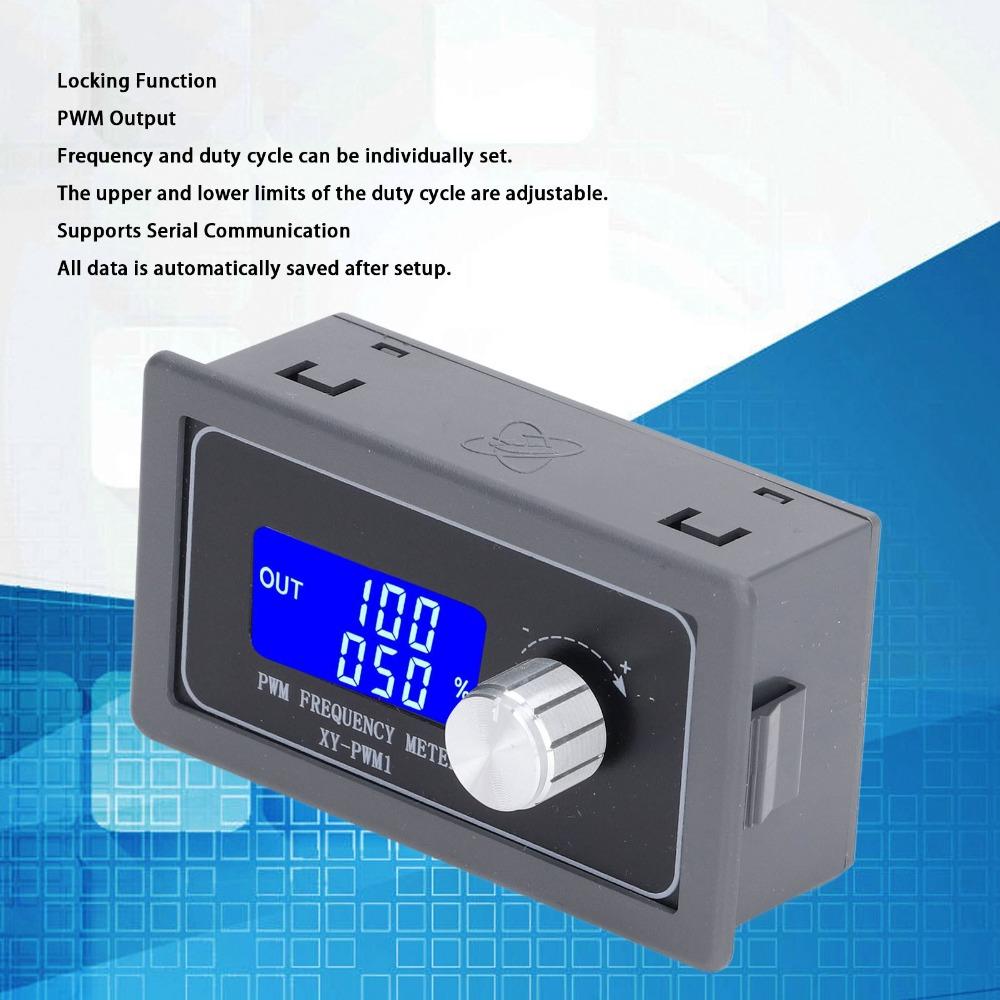

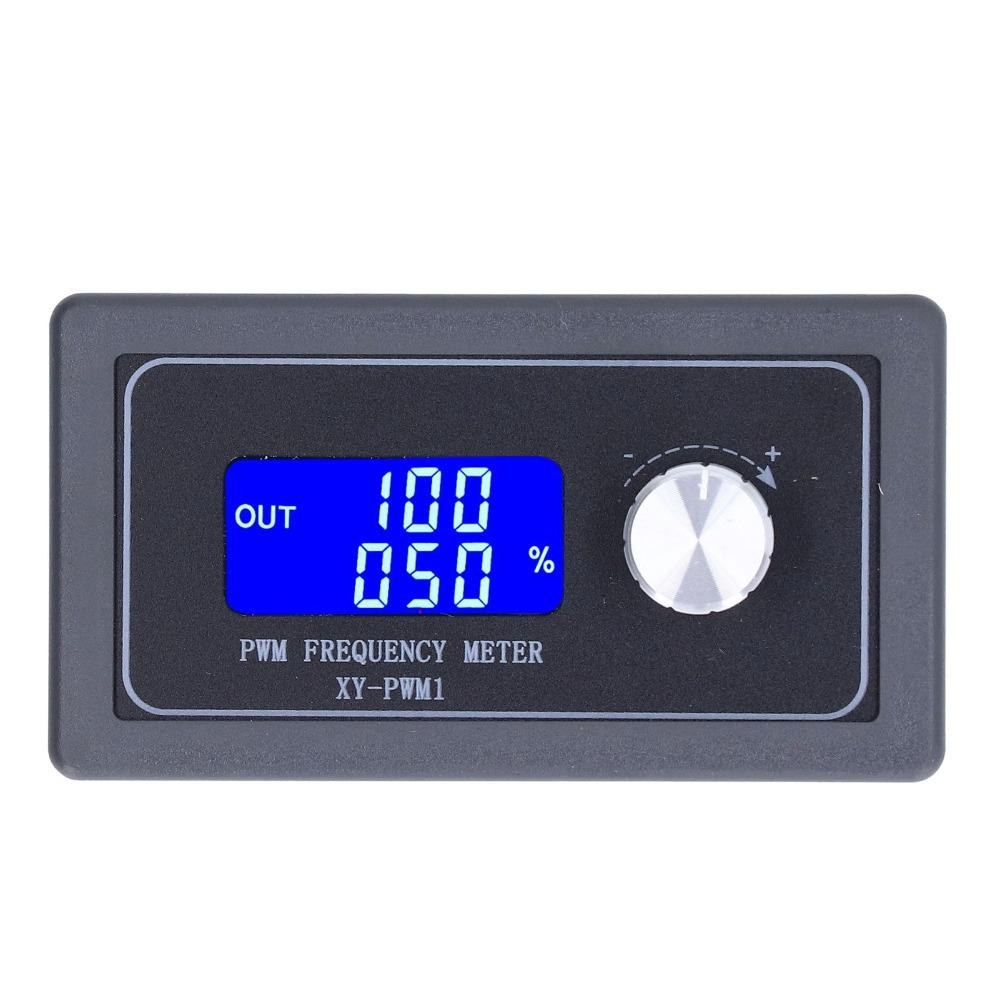

Label:Yes -User-Friendly: It comes with a locking function, can automatically save all set data, and boasts many other functions. -Clear Display: LCD screen ensures clear viewing on the date, making the manipulate and adjustment much more convenient. -Excellent Controllability: This machine is capable of generating square wave pulse frequency signals, facilitating effortless control of equipment. -Versatile Applications: It can be widely used in experiments, motor driving, MCUs, PWM controllers, and more, proving to be highly useful. -Working Modes: Designed to have normal mode and fine mode, and the 2 working modes have different working frequency.

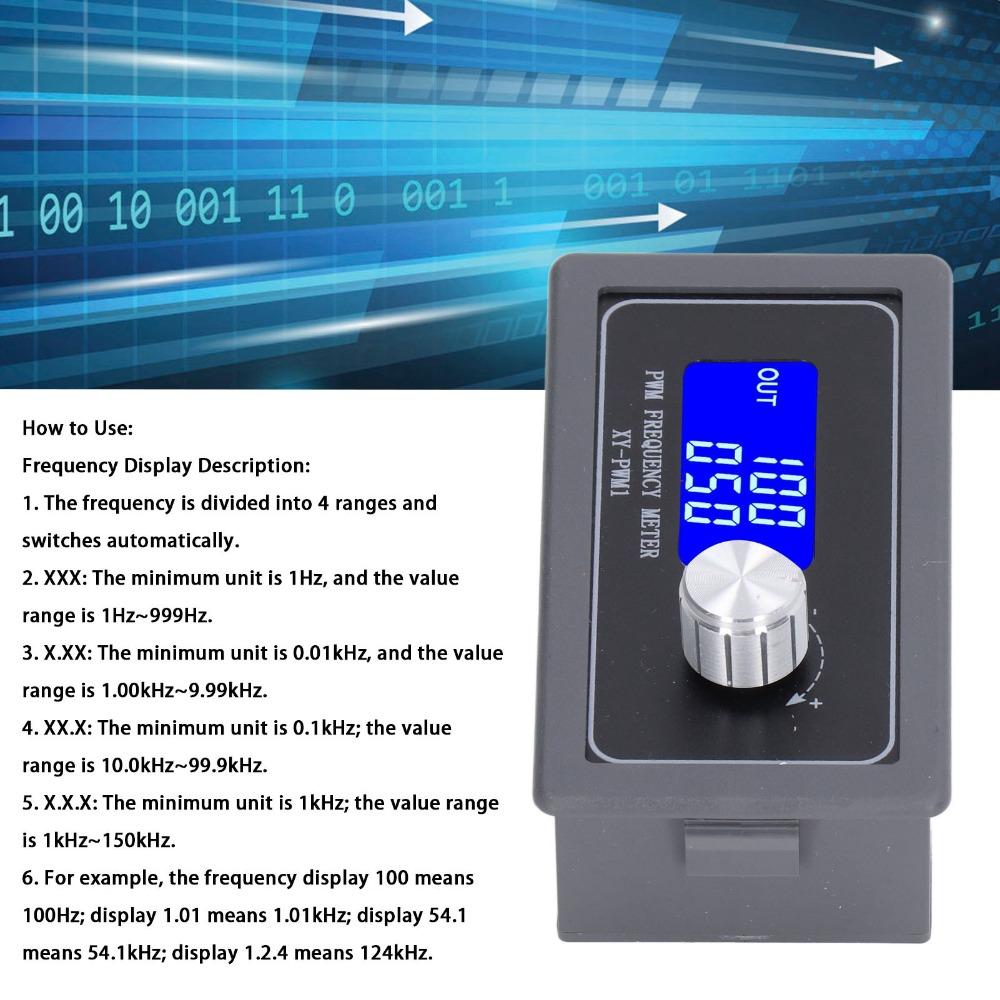

Specification: Item Type: Frequency Generator Model: XY-PWM1 Material: PCB + ABS + LCD Working Voltage: DC 3.3V-30V Frequency Accuracy: 2% in each range. Application: Square Wave Signal Generator Frequency Range: Normal Mode: 1Hz-150kHz; Fine Mode: 1Hz-15kHz. Signal Load Capacity: The output current is about 5-30mA. Working Temperature: -20℃~+70℃ Output Amplitude: The PWM amplitude is equivalent to the input voltage value. Normal Mode Frequency Range: 1Hz-150kHz Normal Mode Duty Cycle: 00 to 100% Normal Mode Duty Cycle Stepper: 1% Fine Mode Frequency Range: 1Hz-15kHz Fine Mode Duty Cycle: 00.0 - 100% Fine Mode Duty cycle Stepper: 0.1%

Application: 1. As a square wave signal generator for experimental development; 2. As a motor driven square wave signal generator; 3. As an adjustable pulse generator for MCU; 4. As a pulse generator, it controls related circuits (PWM dimming, speed adjustment).

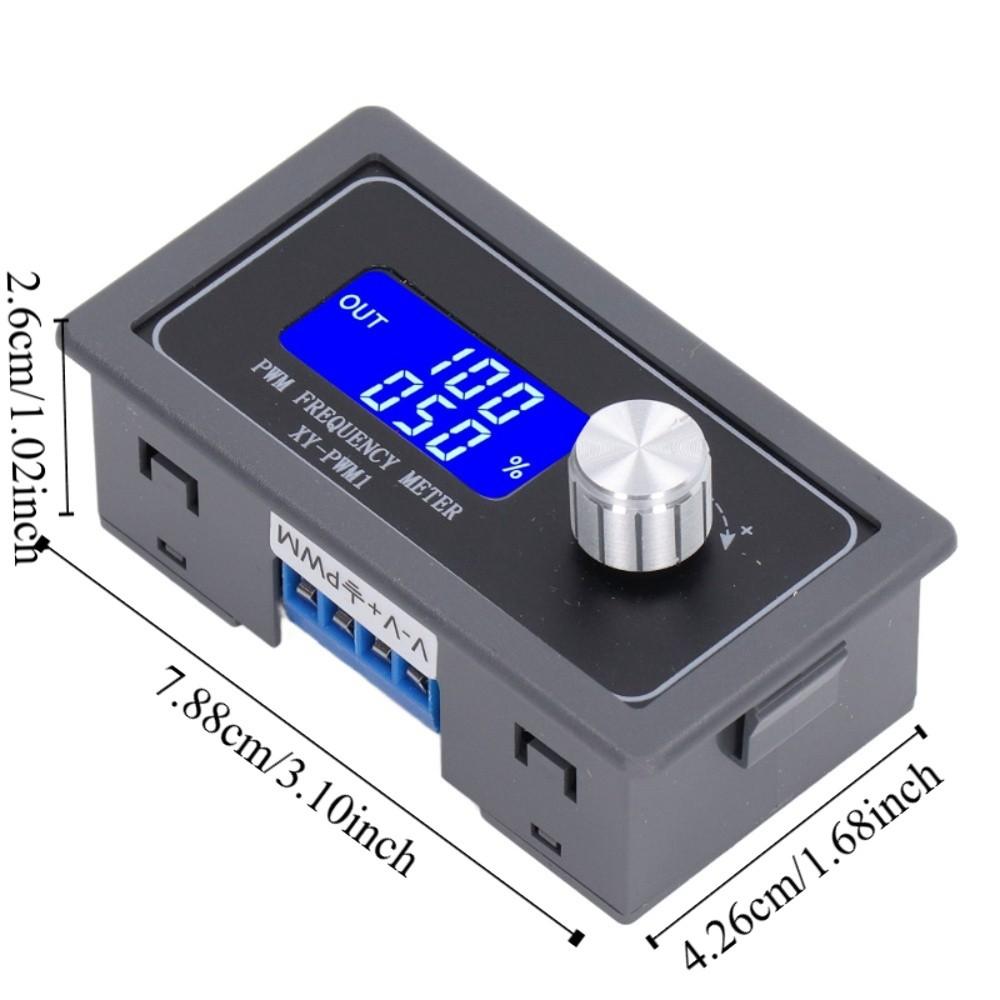

Note: 1.Please pay attention to electricity safety when using it. 2.Please allow 0.2 inch measuring deviation due to manual measurement. thanks for your understanding.

Package List: 1 x Frequency Generator
