Label:Yes
4,With an IP67 rating, this waterproof connector resists water ingress, making it suitable for harsh industrial environments, outdoor installations, and washdown areas.
1,Brass nickels-plated shell connector is designed with excellent 360° full shielding function and damping.
5,Designed for panel mount applications, this connector features a bulkhead design for straightforward installation on control panels, enclosures, or machinery, simplifying integration into industrial systems.
3,Sealing material is polyepoxide resin, pin material is brass gold-plated and rubber core material is PA66.

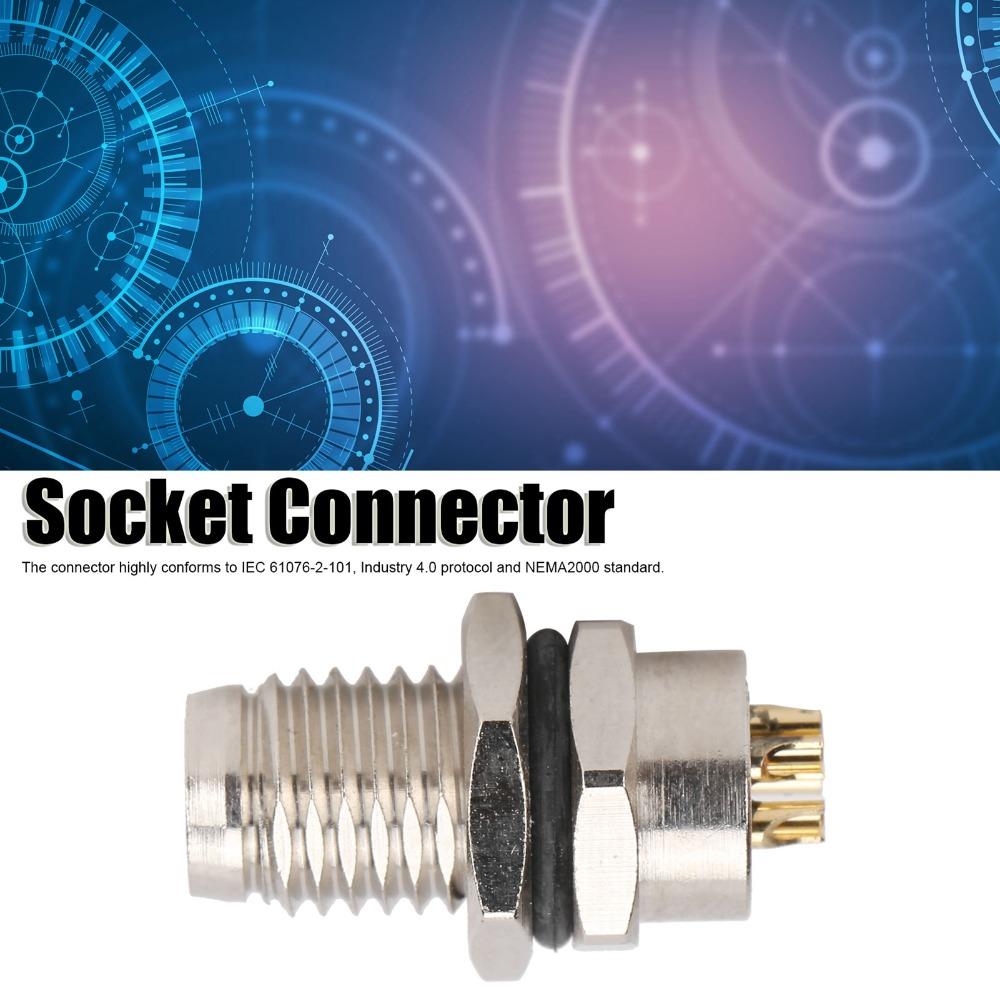

2,The connector highly conforms to IEC 61076-2-104 standard.
Specifications:
Item Type: Socket Connector
Number of Cores: 4
Waterproof Rating: IP67
Shell Material: Brass Nickels Plated
Rubber Core Material: PA66
Moulding Material: TPU/PVC
Sealing Material: Polyepoxide Resin
Pin Material: Brass Gold-Plated
Rated Current: 3A
Conductor Specifications: AWG24, 0.25mm²
Contacts Impedance: ≤5 milliohm
Insertion Times: ≥500 Times
Standard: IEC61076-2-104
Applicable Temperature: -25℃ to +80℃
Color:silvery

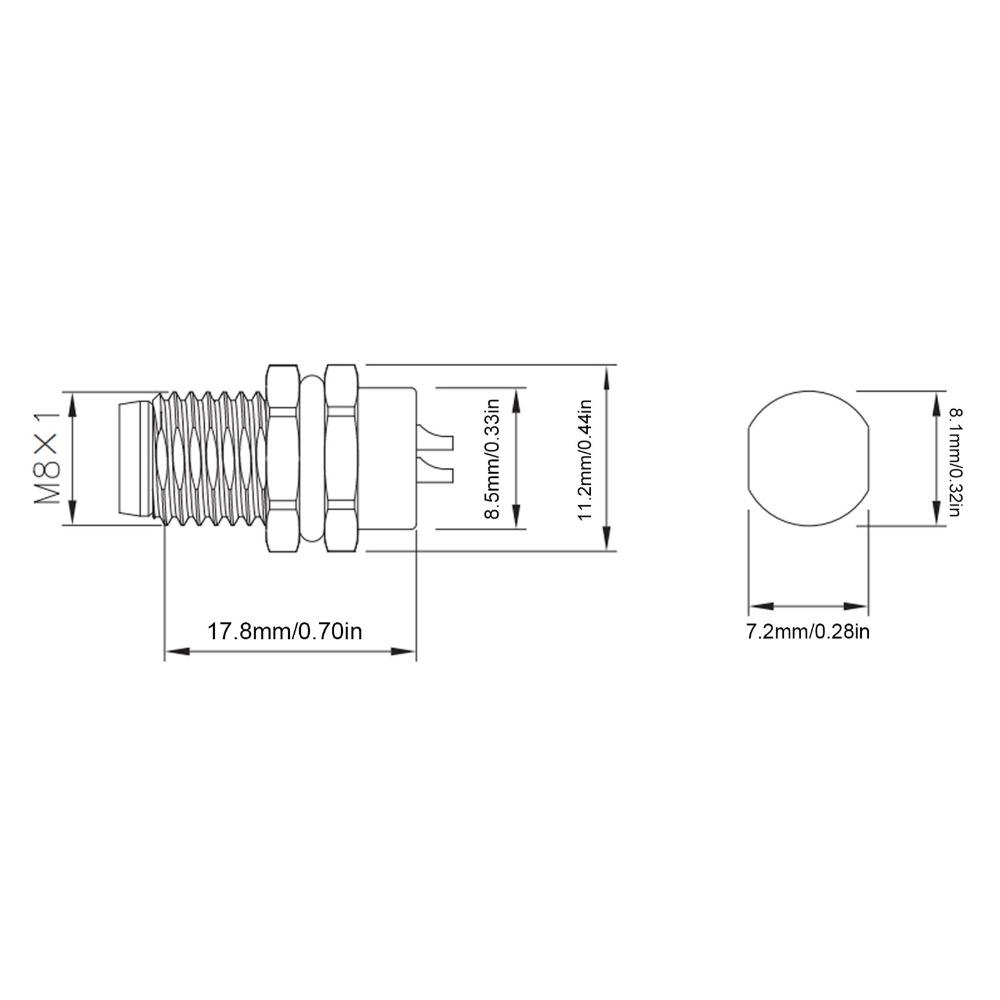

Size:17.8*11.2mm(0.70*0.44in)
Package List:
1 x Socket Connector
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
