5,Package Contents: This connector set includes male plug, female socket, cover, screws, and nuts for straightforward panel mounting in various industrial applications, ensuring quick and secure assembly processes without additional hardware needed
1,Specification: WS16 aviation connector, 2 Number of Cores, 10A Rated Current, AC 500V Working Voltage, 1.5x2 Contacting Diameter, 2.5 milliohm Contacting Resistance, ≤2/14 mm(0.08/0.55 in)²/AWG Wire Gauge, -40℃~85℃ Temperature Range, 500 Number Of Connections; Temperature range:-40℃~85℃.

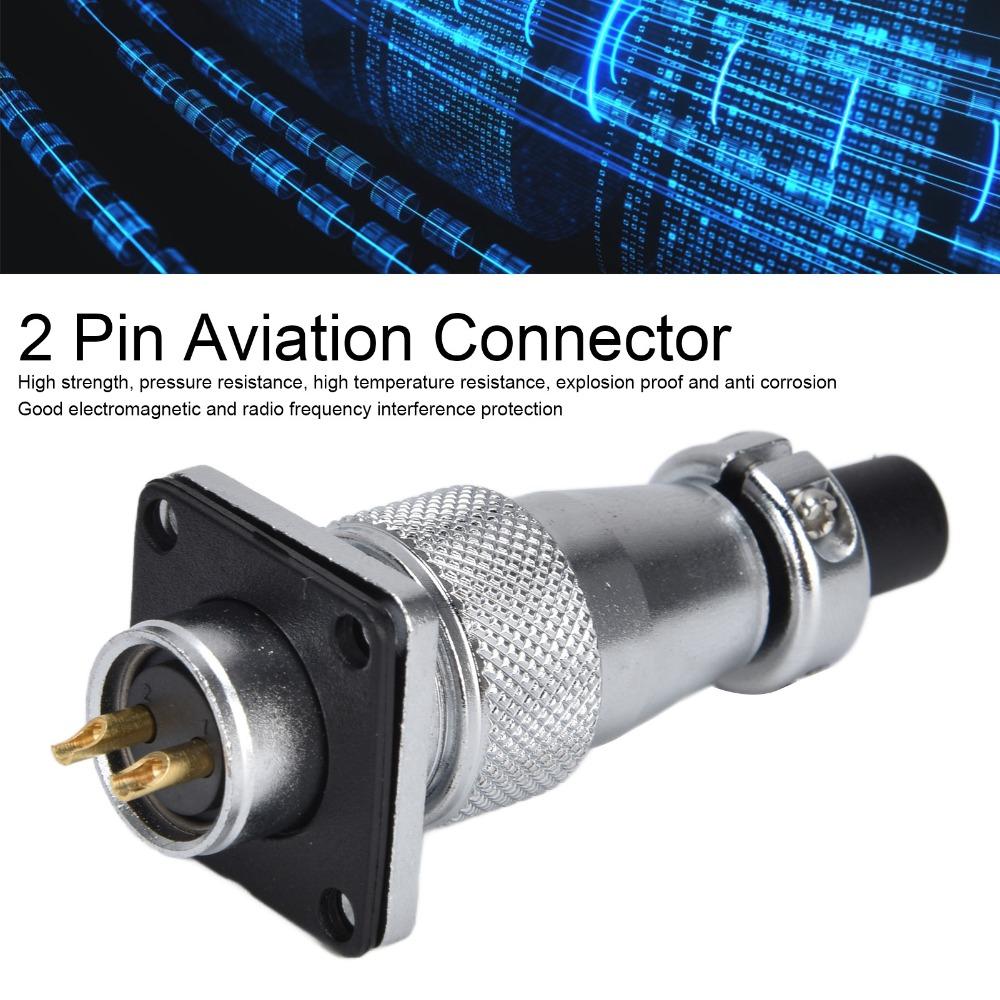

3,Good Protection: This WS16 aviation connector has good electromagnetic and radi0 frequency interference protection, soldering and crimping can be used with 2 pin metal aviation connector adapter, High strength, pressure resistance, high temperature resistance, explosion proof and anti corrosive

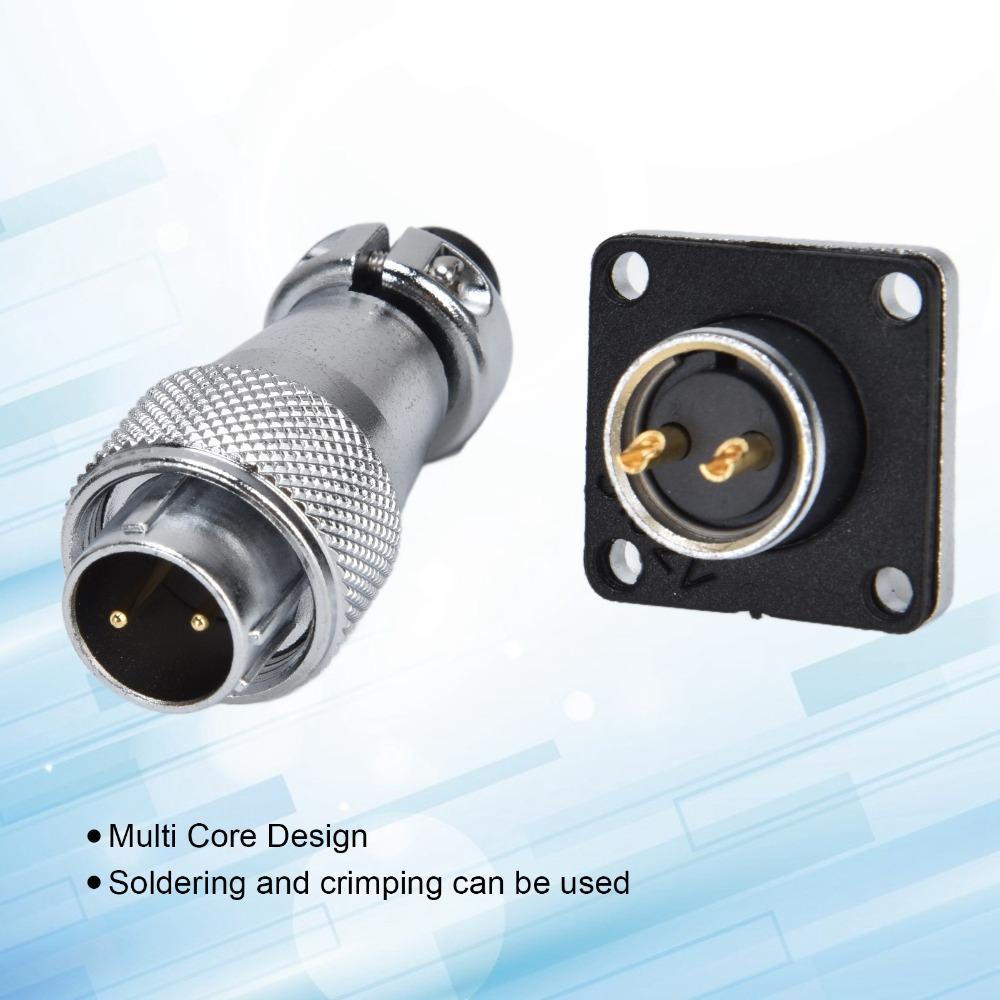

4,Applicable Scope: Aviation plug socket adopt multi core design to adapt to different industrial needs, widely used in communications, instrumentation, computers, marine, aerospace, electric power and other fields
2,Zinc Alloy Material: Made of premium Zinc Alloy material, durable and sturdy, wear-resistance and difficult to break, good corrosive resistance is durable and will not be easily damaged, has a long service life
Specifications:

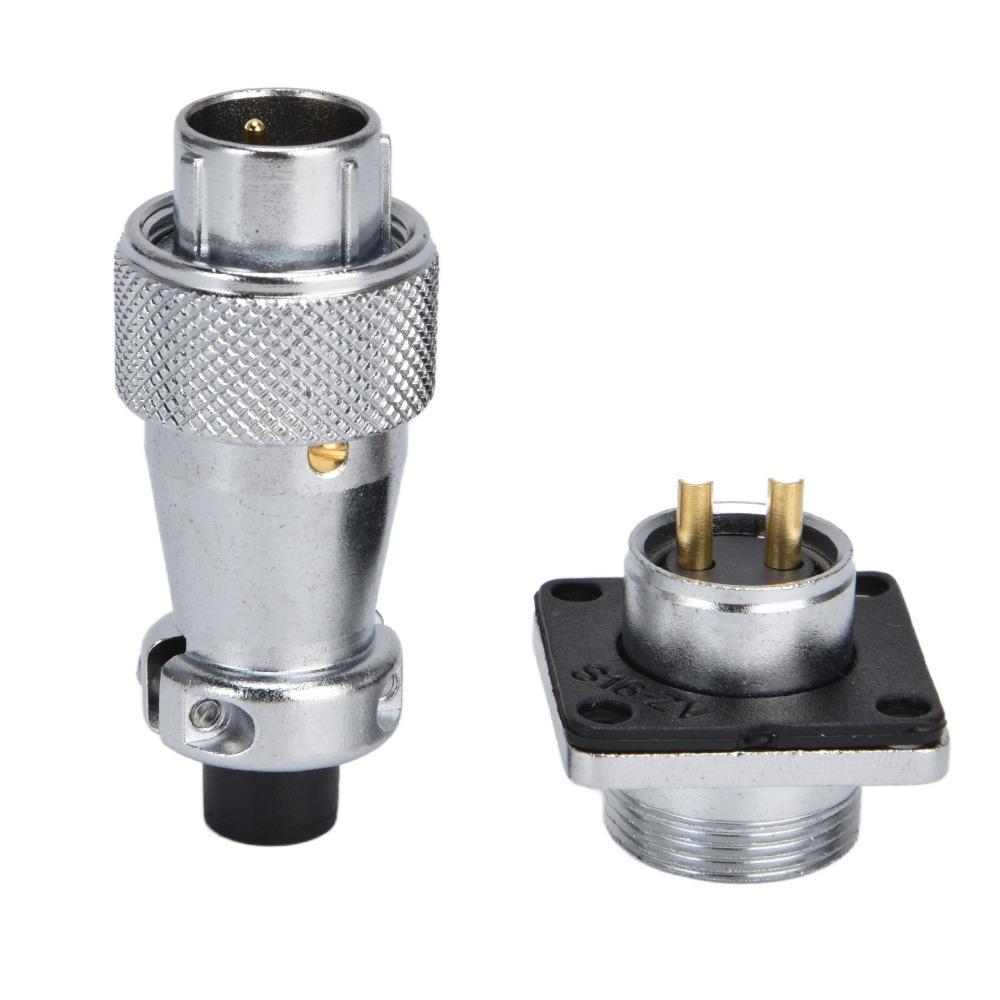

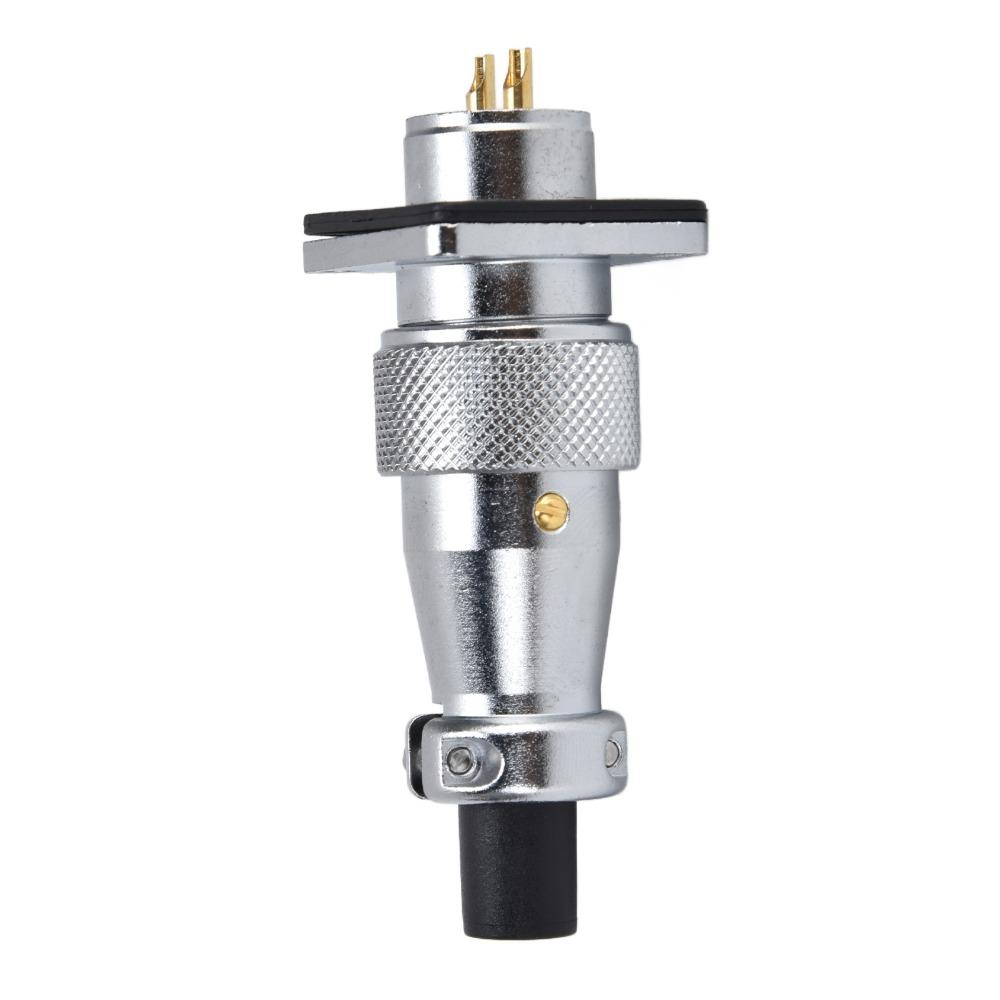

Item Type: 2 Pin Aviation Connector
Material: Zinc Alloy
Number of Pins: 2
Rated Current (A): 10
Contacting Diameter (mm): 1.5x2
Working Voltage (AC, V): 500
Withstand Voltage (AC, V) 1min: 1500
Contacting Resistance (milliohm): 2.5
Insulation Resistance (megaohm): 2000
Temperature Range: -40℃-85℃ / -40°F-185°F
Mating Times: 500
Wire Gauge (mm²/AWG): ≤2/14
Color: Silver
Size: 44 * 21.9mm(1.73 * 0.86in)/26 * 26mm(1.02 * 1.02in)

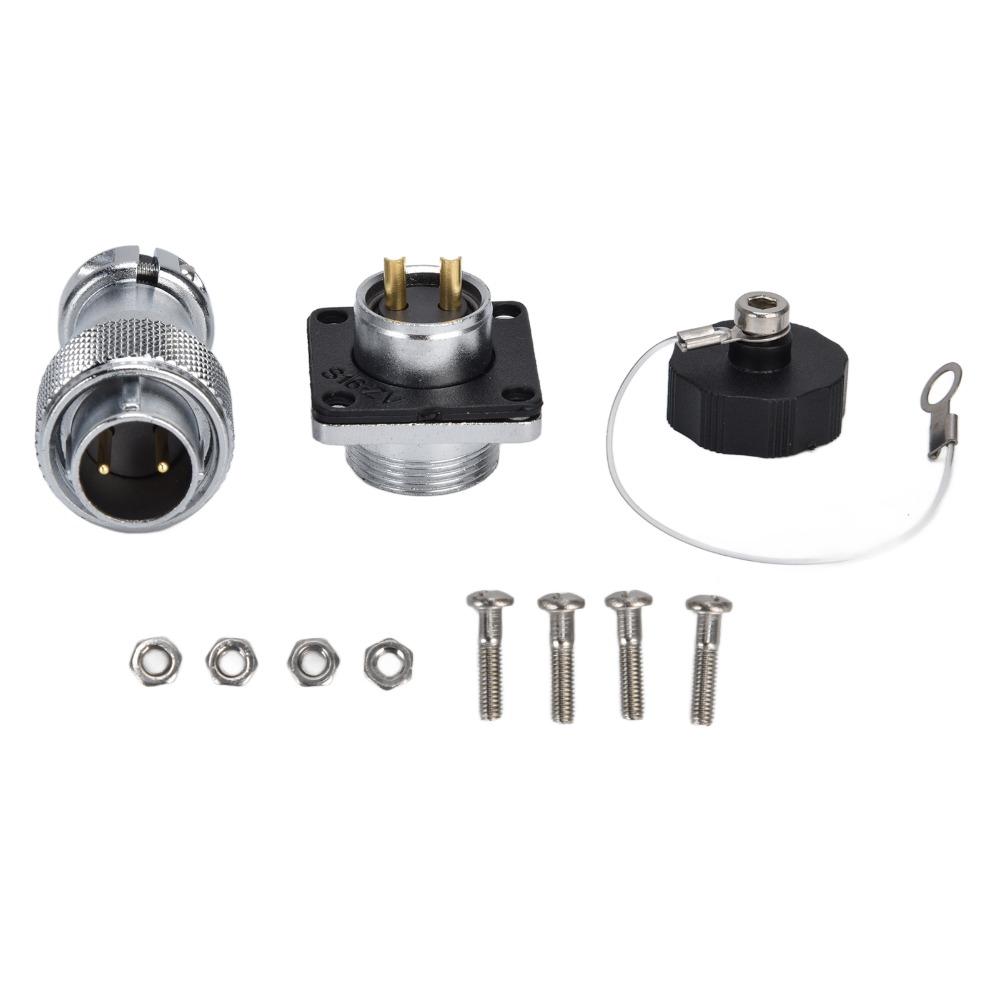

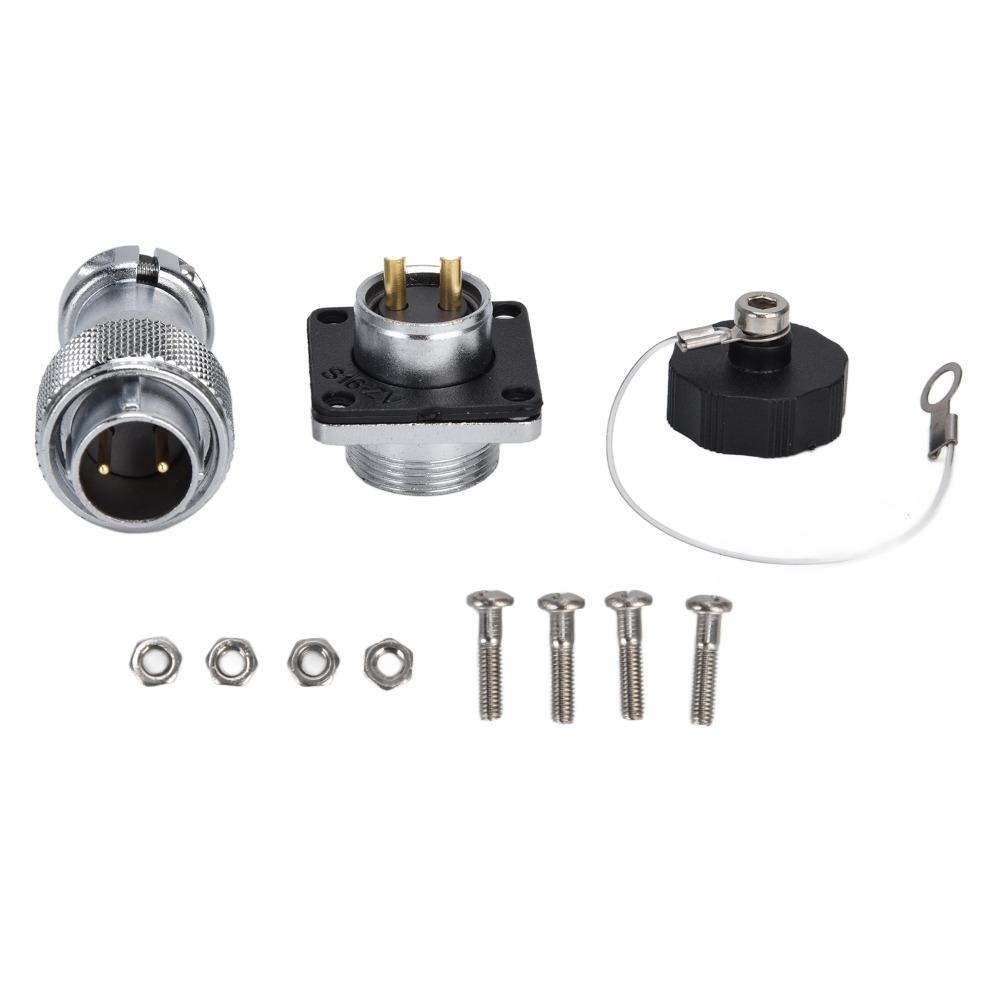

Package List:
1 x TQ Plug
1 x Z Socket
1 x Waterproof Cover
4 x Screw
4 x Nut
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
