Label:Yes
4,SCR are mainly used for resistive loads such as filament and filament lamp. Most single-phase AC motors can also be used.
5,The motor governor can adjust the speed, voltage, temperature, brightness of various electronic devices, such as electric furnaces, water heaters, lamps.
2,Input connection AC 220V, output connected to electric furnace wire or motor equipment, then rotate the knob for speed, voltage and temperature control.
3,Adopting a dual capacitor design (safety capacitor+metal film capacitor) to effectively absorb surges and voltage spikes, more effectively safeguard the thyristor, and achieve higher efficiency in use
1,Input: 220V AC; Output: 10V-220V AC; Maximum output power: 4000W (resistive load limited power), power should be reduced for prolonged use
Specifications:
Working voltage: AC 220V
Regulation voltage: AC 10-220V
Maximum power: 4000W (resistive load limited power), power should be reduced for prolonged use
Efficiency: Over 90%

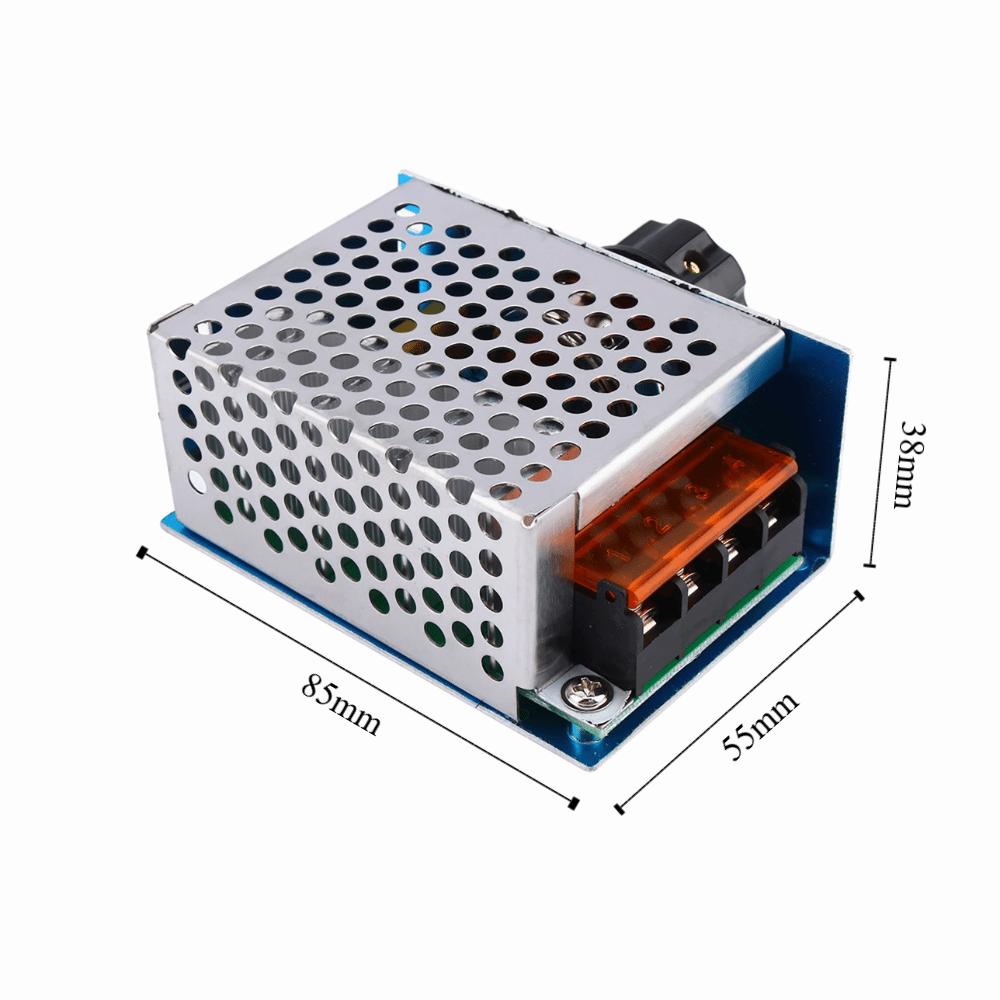

Dimensions: 85 x 55 x 38MM(3.35 x 2.17 x 1.50in)； Knob inner hole 6mm(0.24in)
Color: Silver
Note:You must connect to the load before the regulator.
SCR is mainly used for resistive loads (incandescent electric wire, etc.), most of the single-phase AC motor can, but can not assure, other types of loads buyer to confirm their own. Circuit breaker is not a panacea, there is reaction time, if the current is too large, in addition to burn the circuit breaker, the module may also be burned.
Attention to fitting plastic cover due to the installation of the housing, can not be completely open, screwdriver to tighten the side with the point, the other to be careful when opened, excessive force easily breaking the lid, express transportation may also crushed for wearing parts, but It does not affect the module.
Package included:
1 x 4000W AC220V SCR silicon controlled electronic volt regulator
