DIYmall GX3255BLS Digital Servo, 7.4V, 55KG High Torque, Full Metal Helical Gear Brushless Motor, IP68, for RC Robotic Cars (180°)… Ещё

Product Description

DIYmall GX3255BLS Digital Servo, 7.4V, 55KG, High Torque, Full Metal Helical Gear Brushless Motor, IP68, for 1/8 and 1/10 Scale RC Robots

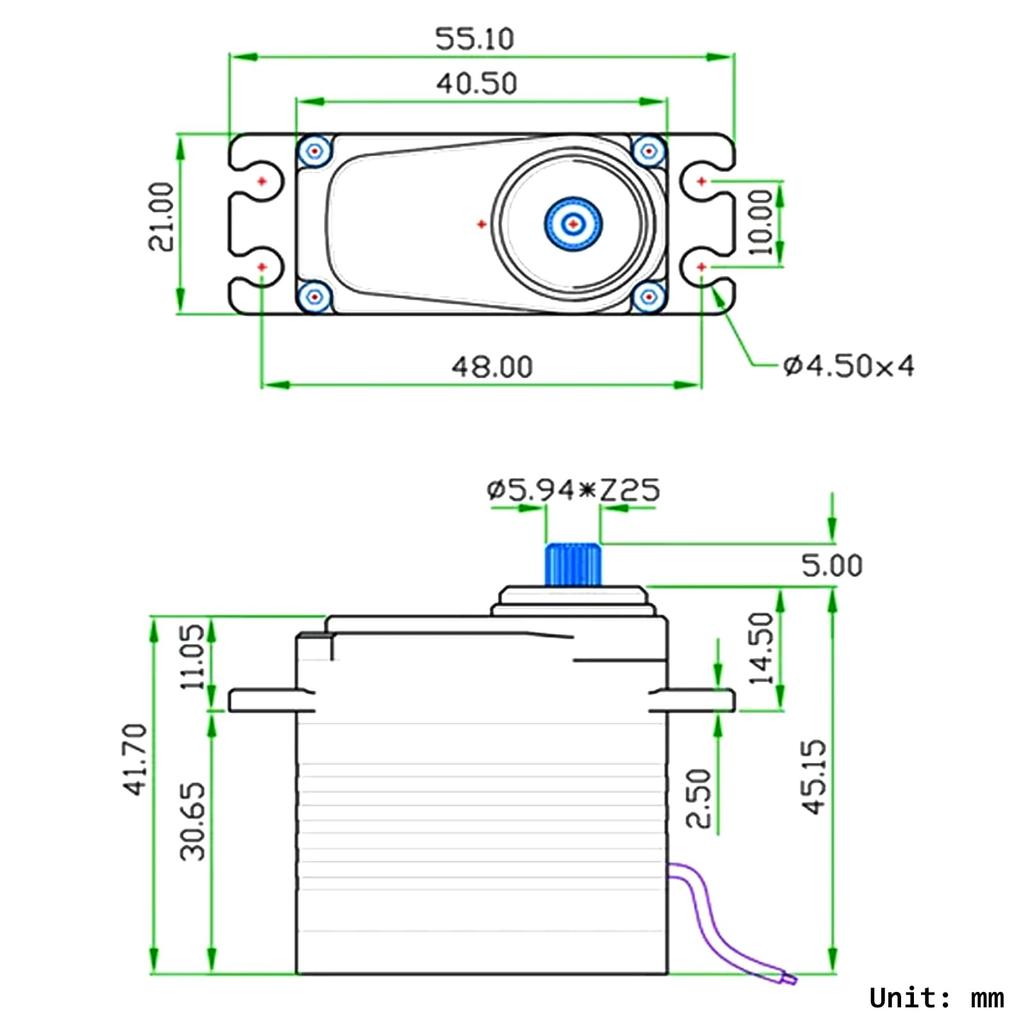

Product Description Product Size: 40.5*21*41.7mm Net Weight: 90g Operating Voltage: 5.0-7.4V DC Standby Current: ≤ 20mA Stall Current: 5.0V: ≤ 6A Stall Current: 6V: ≤ 7A Stall Current: 7.4V: ≤ 8A No-Load Speed: 5.0V: ≤ 0.1 sec/60° No-Load Speed: 6V: ≤ 0.09 sec/60° No-Load Speed: 7.4V: ≤ 0.08 sec/60° Maximum Torque: 5.0V: ≥ 45kgf.cm Maximum Torque: 6V: ≥ 50kgf.cm Maximum Torque: 7.4V: ≥ 55kgf.cm Rotation Direction: CCW (500~2500µs) Operating Angle: 180±10° (500~2500µs) Neutral Position: 1500µs Reduction Ratio: 1:299 Deadband Width: ≤ 2µs Operating Temperature Range: -20°C~+80°C Waterproof Rating: IP68

Features - Metal Gear - Semi-Metal Case - Brushless Motor - IP68

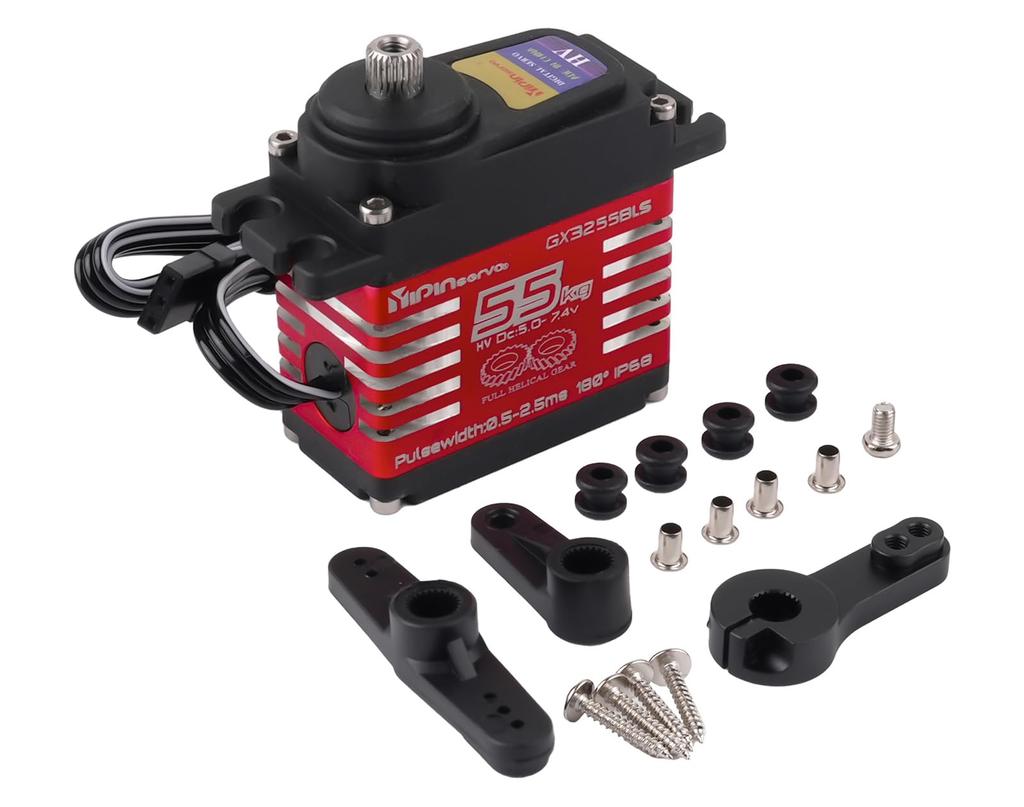

Packing List 1 Servo with Servo Accessories 1 Color Box Packaging

Safety Warning

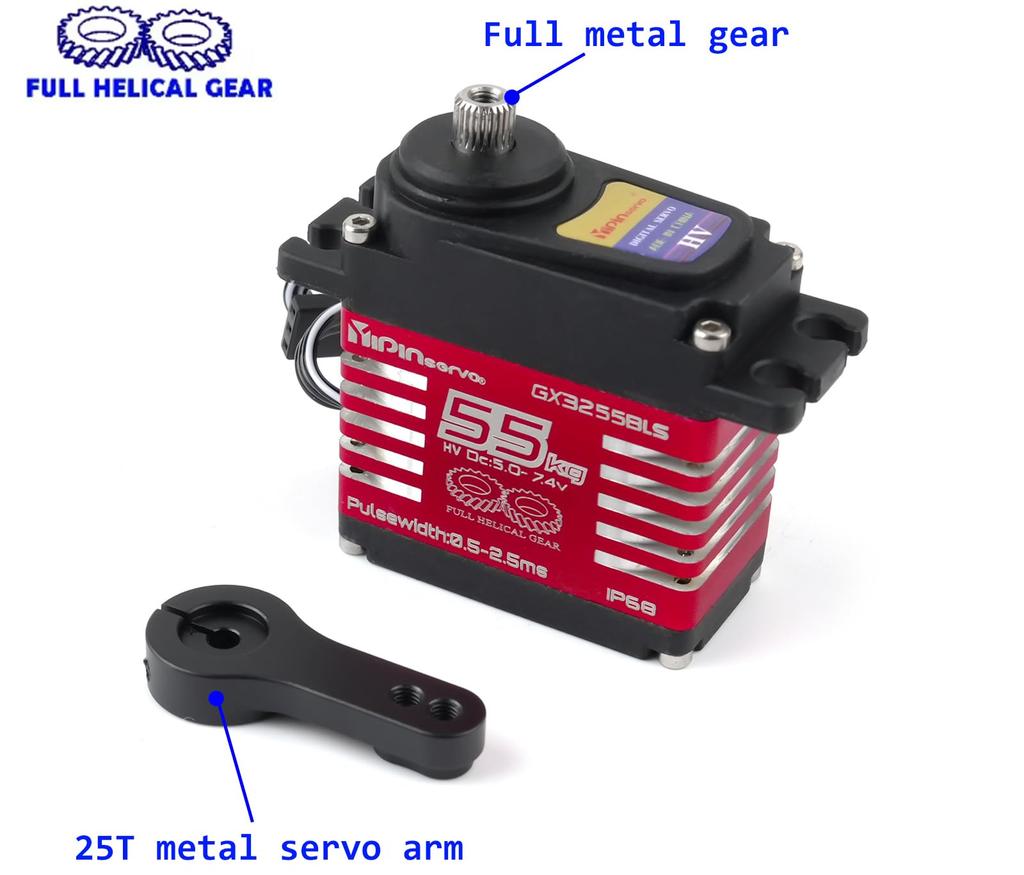

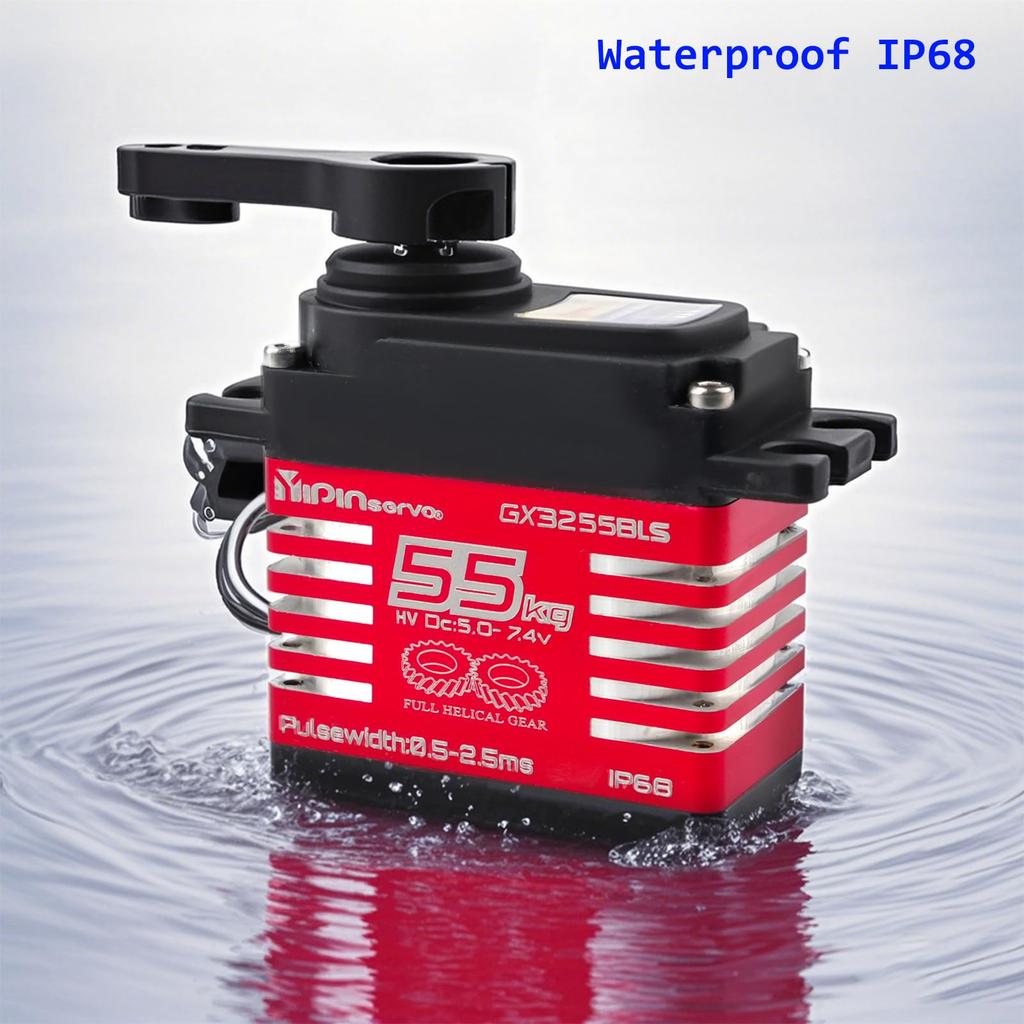

None 55kg High-Performance, High-Torque Digital Servo for 1/10/1/8 TRX6/Scx10 RC Crawlers. Full Metal Helical Gear Brushless Motor RC Servo with 25T Metal Servo Arm Operating Voltage: 5.0~7.4V DC, Max Torque 5.0V: ≥45kgf.cm; Max Torque 6V: ≥50kgf.cm; Max Torque 7.4V: ≥55kgf.cm Control Angle: 180° (500~2500µs) Waterproof IP68 servo suitable for use on boats, drones, and outdoor RC applications.
