Product Description
SG90 9g 180° Servo for RC Airplanes
Description:
The SG90 is a high-quality, low-cost servo for all your mechatronics needs. Includes a 3-pin power and control cable and mounting hardware.
Speed: Standard angle is 120°, maximum angle is 180°.
Operating Voltage: 4.8~6.0V
Current: 0.19A@5V, 0.24A@6V
Operating Speed: 0.12 seconds/60 degrees (4.8V), 0.1 seconds/60 degrees (6.0V)
Torque: 1.6kg/cm (4.8V)
Deadband Width: 5usec
Temperature Range: -30~+60°C
Cable Length: 25cm
Servo Type: Analog Servo
Brand Model: SG90
Size: 23*12.2*29mm

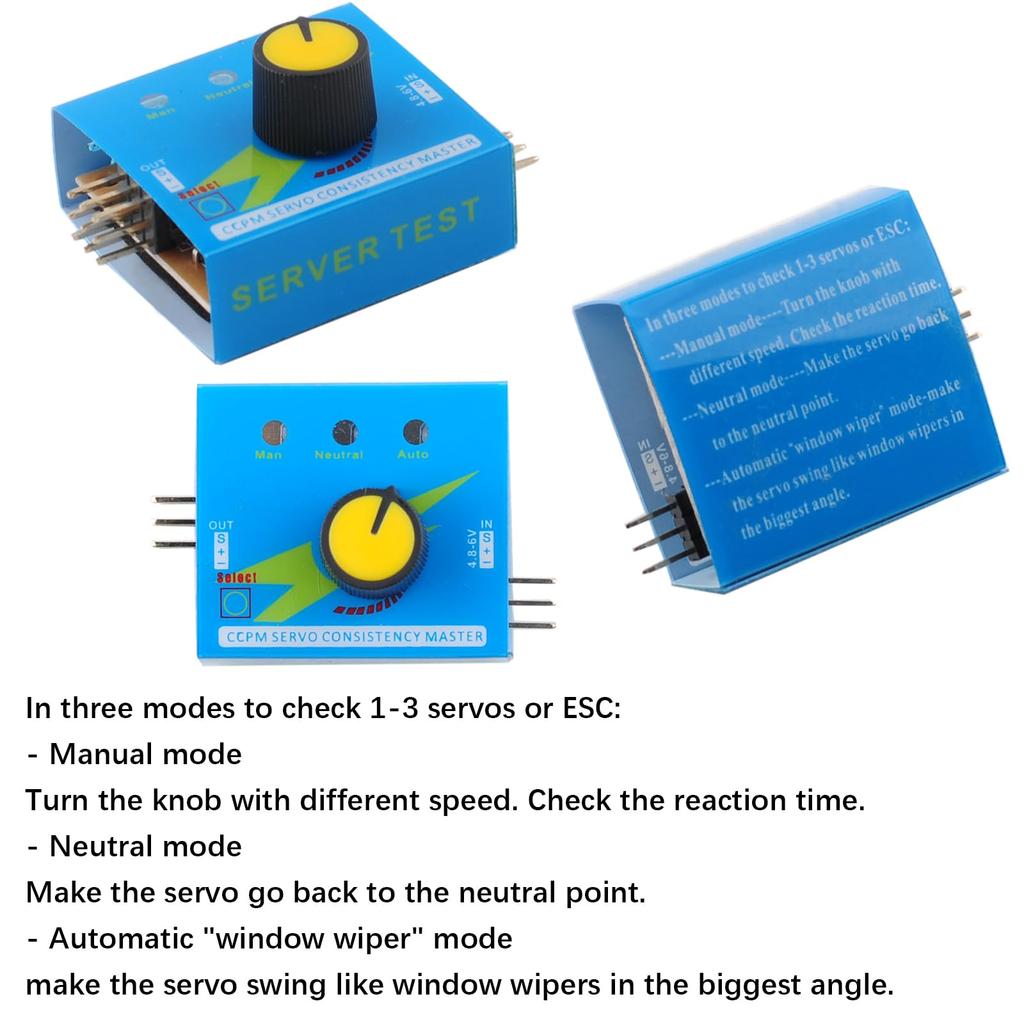

3-Channel Digital Multi-Servo Tester ECS RC Consistency CCMP Master Speed Controller Checker
Description:
Output: ≤15mA (5.0V)
Input: DC 4.2-6.0V
Output Signal: 1.5ms±0.5ms
Size: 46*32*17mm
Weight: 8g
Adjustment Modes: Manual, Auto, Median
Features: Easily detect and set dummy bit server, jitter, and median.
Connects to two servos or ESCs; MCU control provides excellent stability and high accuracy. Turn the knob to detect steering.
Connect an electronic governor (brushed or brushless) to manually control the remote control and test the tone.
Speed and motor performance are very practical, eliminating the hassle of connecting the remote control and receiver. This function is equivalent to a "hand dynamic receiver" and reproduces the rudder knob of an analog transmitter.
Note: This tester can test servos weighing 55 grams or more.
Includes a 4-cell AA battery holder case and JR connector receiver battery pack.
Description:
Each holder holds four AA batteries (batteries not included).
Voltage: 6V
With JR connector
Ideal for RC servo testers and other applications.

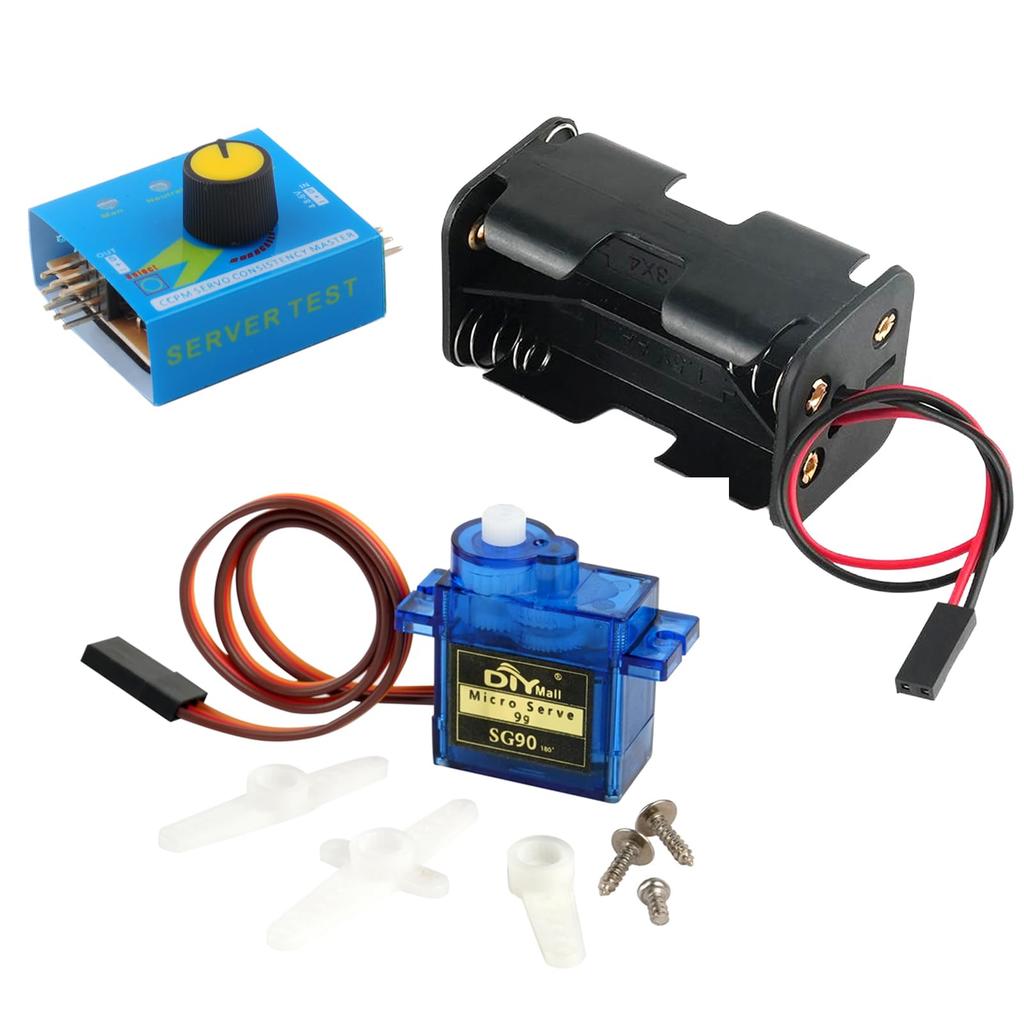

Package Contents:
1 x SG90 Servo
1 x Servo Tester
1 x 4-cell AA battery holder (batteries not included).
Safety Warning
None
SG90 servo standard angle is 120 degrees, maximum angle is 180 degrees.
Operating Speed: 0.12 seconds/60 degrees (4.8V), 0.1 seconds/60 degrees (6.0V). Torque: 1.6 kg/cm (4.8V).
3-channel digital multi-servo tester can test servos weighing 55 grams or more. Adjustment Modes: Manual, Auto, Median.
4-cell AA battery holder case with JR connector. Each holder holds four AA batteries (batteries not included). Voltage: 6V.
Package Contents: 1 SG90 Servo + 1 Servo Tester + 1 4-cell AA battery holder (batteries not included).
