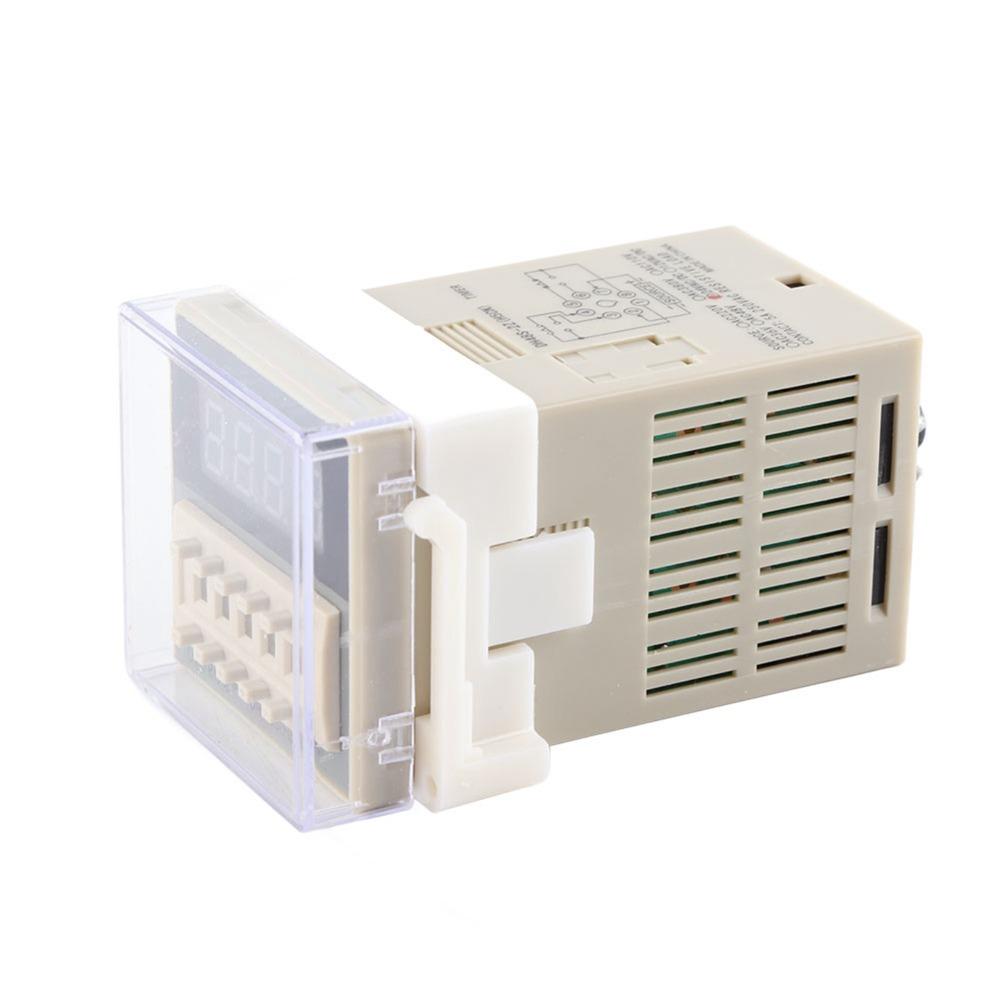

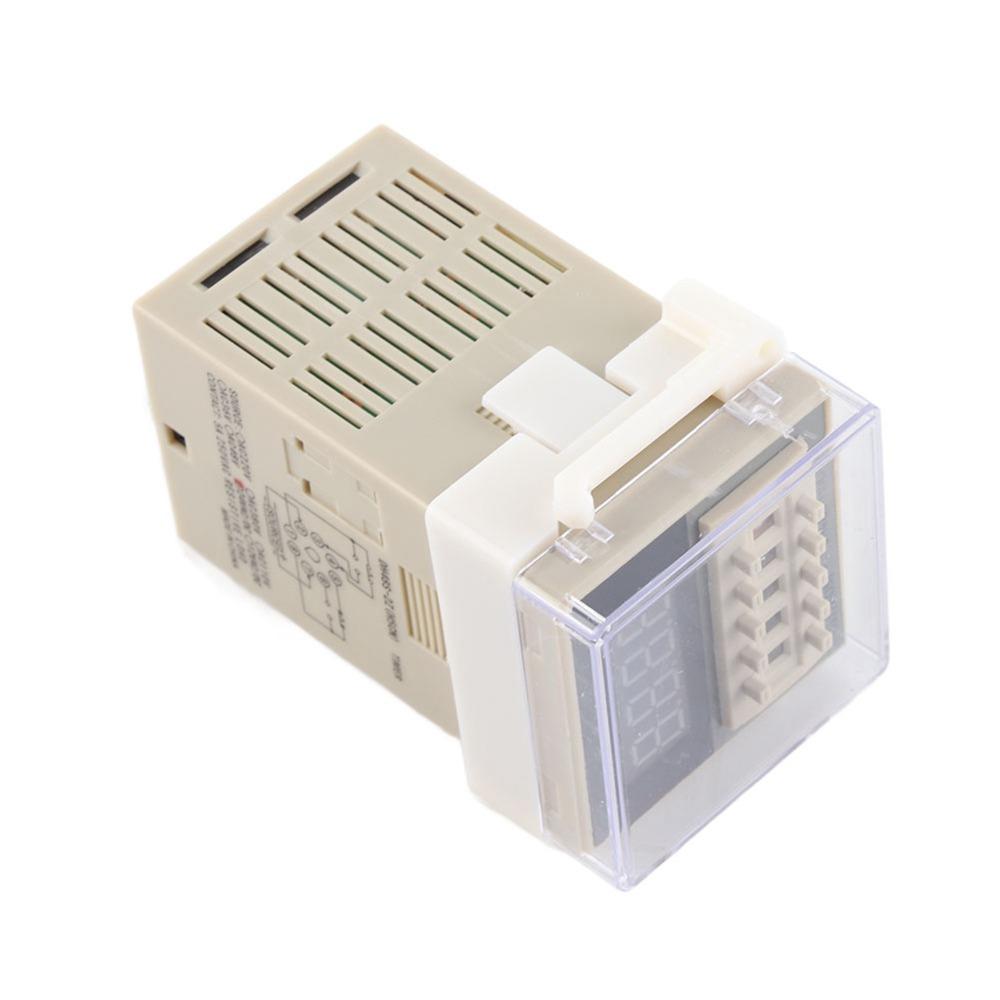

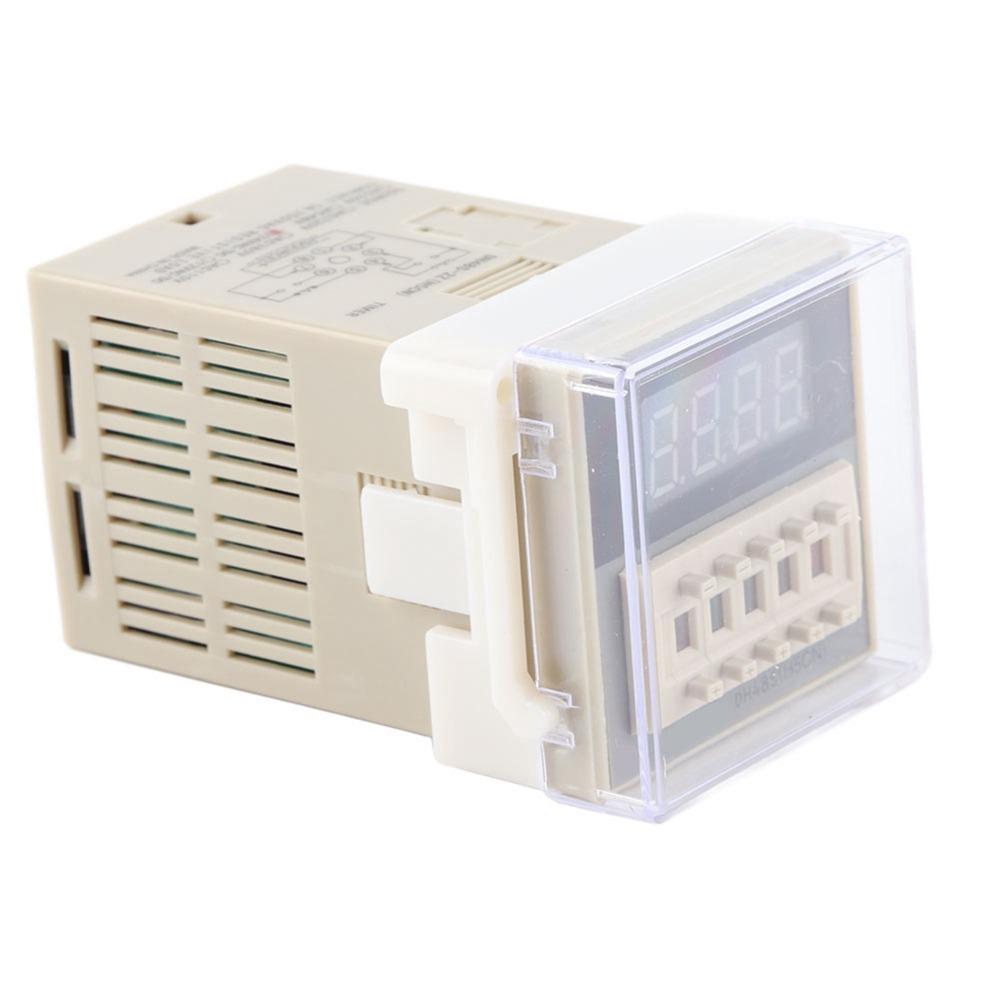

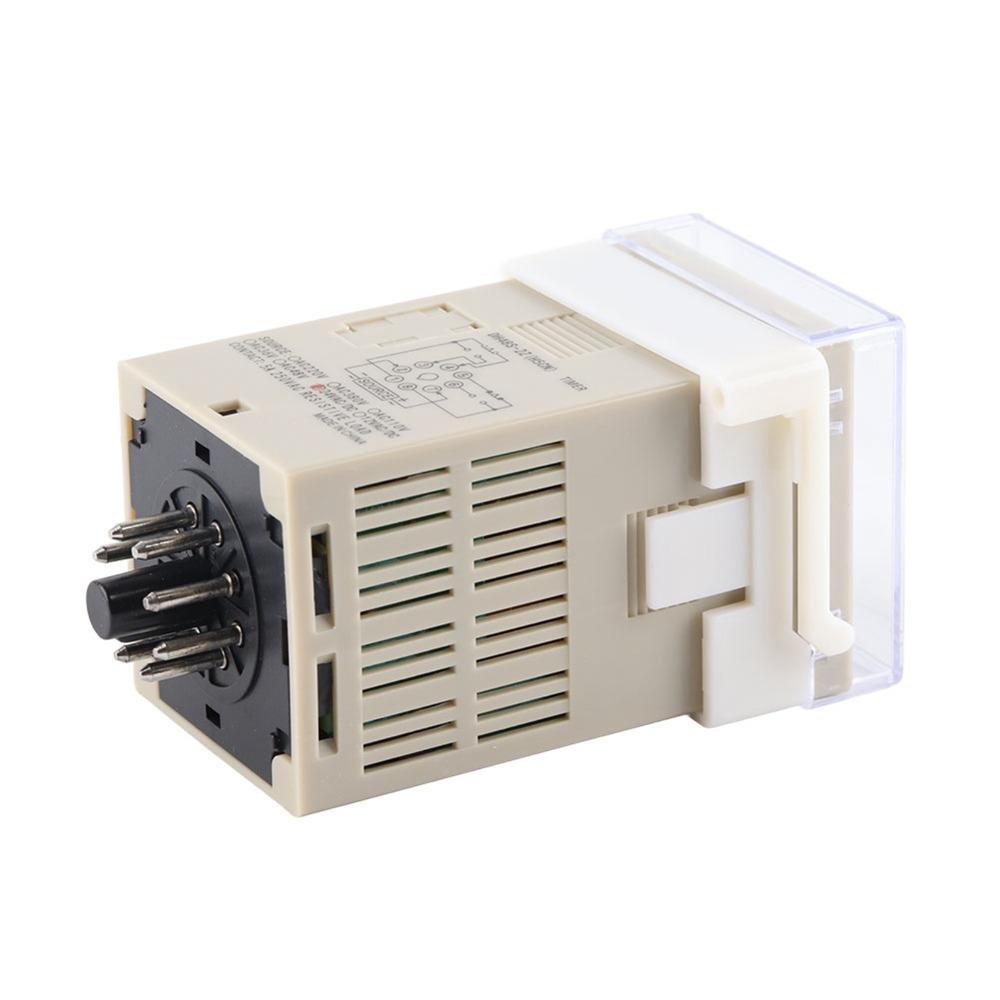

24VAC/DC Digital Time Relay DH48S-2Z DH48S‑2Z Time Relay Timing Applications

Label:Yes Clear LED display for accurate timing control. Integrated circuit: Premium original, precision welding, fully automatic control, safe and reliable work. The relay is closely connected with the base, and the conductivity is excellent. Time range can be set freely by the dial switch, quick adjustment, easy to operate. The time adjustable range is 0.01S-9999H, which can satisfy most control requirements.

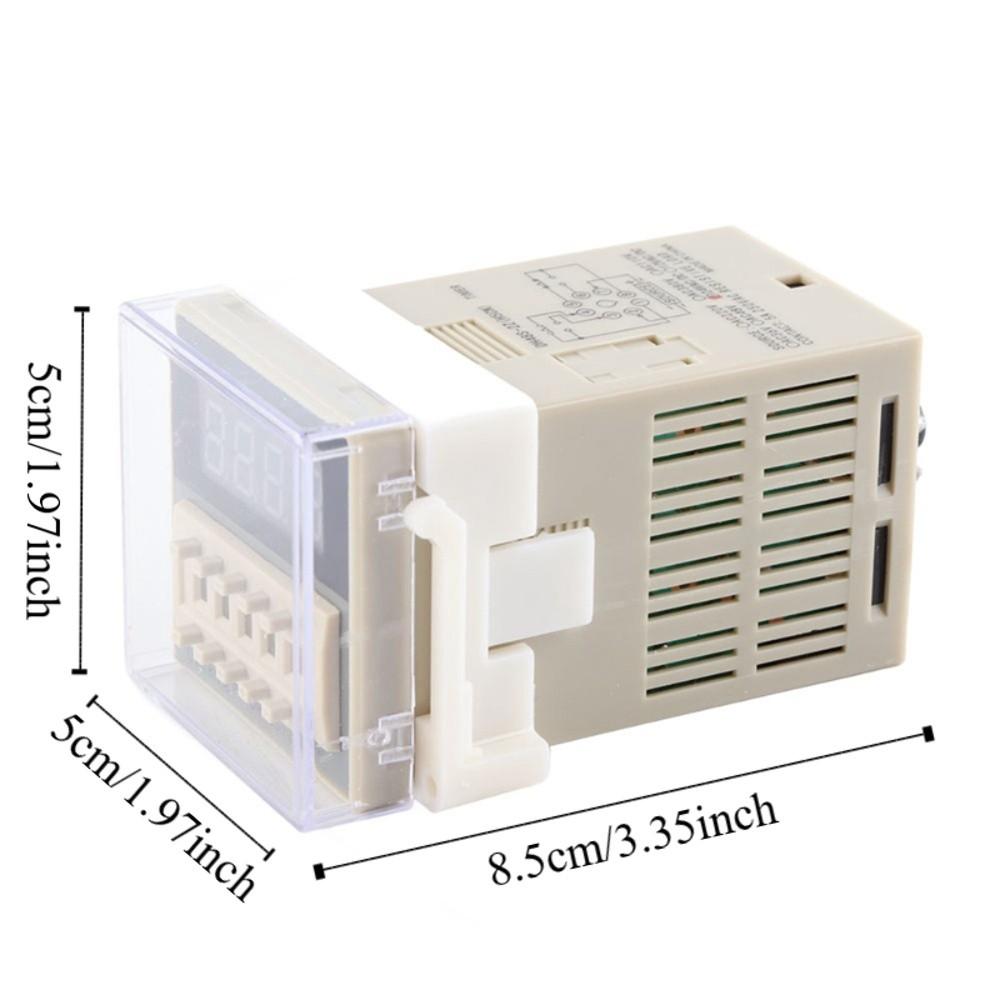

Specification: Item Type: Digital Time Relay Material: Plastic Product Name: Digital Time Relay Model: DH48S-2Z Delay Range: 0.01S-9999H Power Supply Voltage: 24VAC/DC Rated Current: 5A Function: 2 groups of delay switches, no pause, no reset Power Connection: Round 8 Pin Display: LCD Display Adjustment Method: Dial Code Product Size: 85*50*50mm(3.35*1.97*1.97in) Color: As picture shown

Package list: 1 x Digital Time Relay

Notes: 1. The actual product color may deviate from the photo due to light. 2. There may be a slight deviation in the measurement of product.
