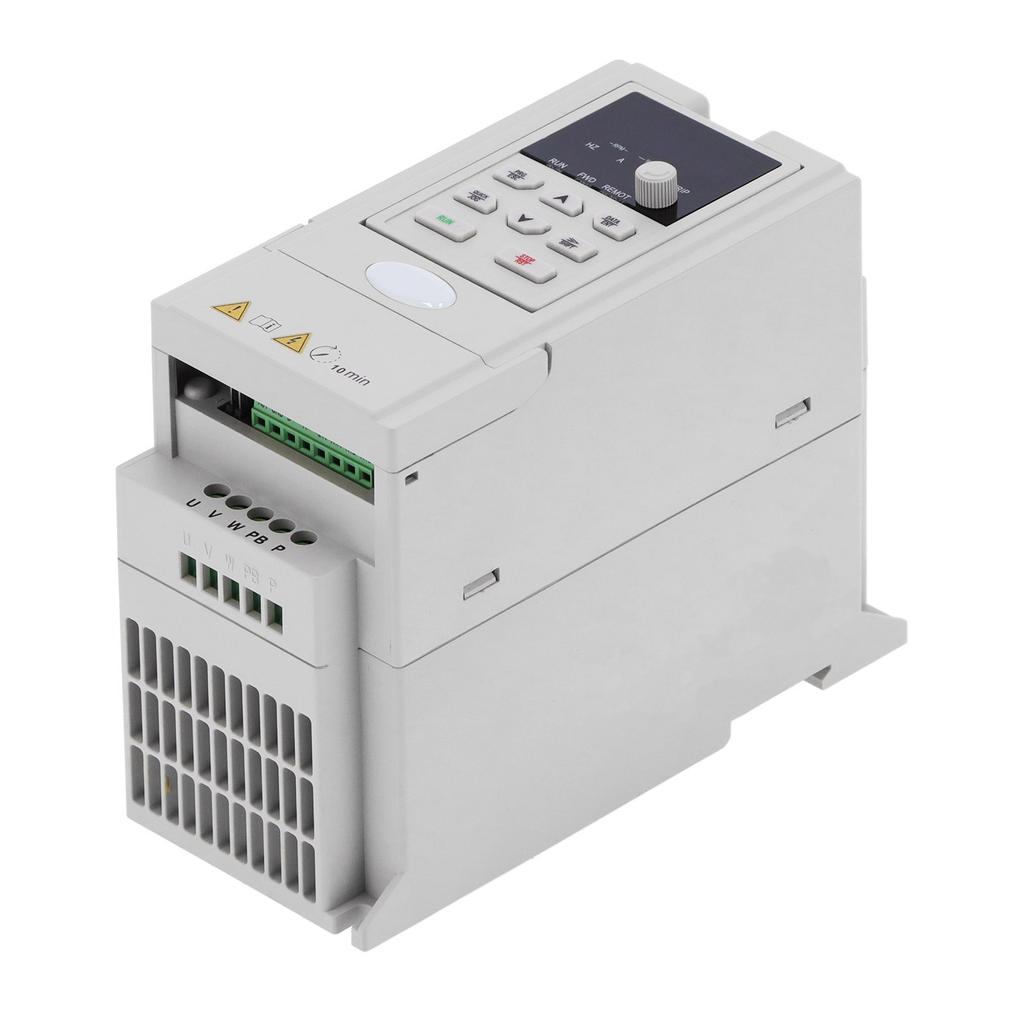

Variable Frequency Drive VFD with PID Auto Adjustment Function Vector Inverter C10(C10004G4TB 3Phase AC380V480V )

Feature: 1. Variable frequency drive is a simple vector inverter that can automatically increase the torsion moment. 2. With PID automatic adjustment function, easy and convenient to use and operate. 3. Built‑in protection functions, such as acceleration overvoltage, deceleration overvoltage, constant speed overvoltage, running undervoltage, acceleration overcurrent, deceleration overcurrent, uniform overcurrent, inverter overload, motor overload, CPU failure, etc. 4. Simple operation and wiring, quick response to start and stop, have stable and reliable performance. 5. Made of high‑quality electronic components, sturdy and durable, have a long service time. Specification: Item Type: Variable Frequency Drive Material: ABS Control Method: V F, vector Model AC Input Voltage (V) Power (kW) Rated Input Current (A) C10 0R7G 2SB Single phase AC220V 240V 0.75 8.2 C10 1R5G 2SB 1.5 14.2 C10 2R2G 2SB 2.2 23 C10 0R7G 4TB Three phase AC380V 480V 0.75 3.4 C10 1R5G 4TB 1.5 5 C10 2R2G 4TB 2.2 5.8 C10 004G 4TB 4 10 . Package List: 1 x Variable Frequency Drive1 x User Manual Note: 1. Ambient temperature ‑5 celsius ‑40 celsius , avoid high temperature and humidity, humidity is less than 90percent (no condensation). 2. Prevent electromagnetic interference and stay away from the source of interference.3. Prevent the intrusion of water droplets, steam, dust, cotton wool, and fine metal powder, and prevent the intrusion of oil, salt, and corrosive gases.4. It is forbidden to install in the environment containing flammable and explosive gas, liquid and solid.5. Do not install air switches, contactors and related capacitors or varistors on the output side, otherwise it will cause the inverter to malfunction. Trip protection or damaged components.6. The inverter must use an independent power supply, and avoid sharing the same power supply with electric welders, otherwise it will cause protection or damage to the inverter.7. In order to facilitate cooling and maintenance, the inverter must be installed vertically with enough space around to ensure smooth air circulation.8. The installation wall should be made of incombustible materials such as iron plates, and vibrations must be avoided to cause damage to the inverter.9. When multiple inverters are installed in the same cabinet, when they are installed up and down, pay attention to the spacing and add a diversion baffle in the middle.
