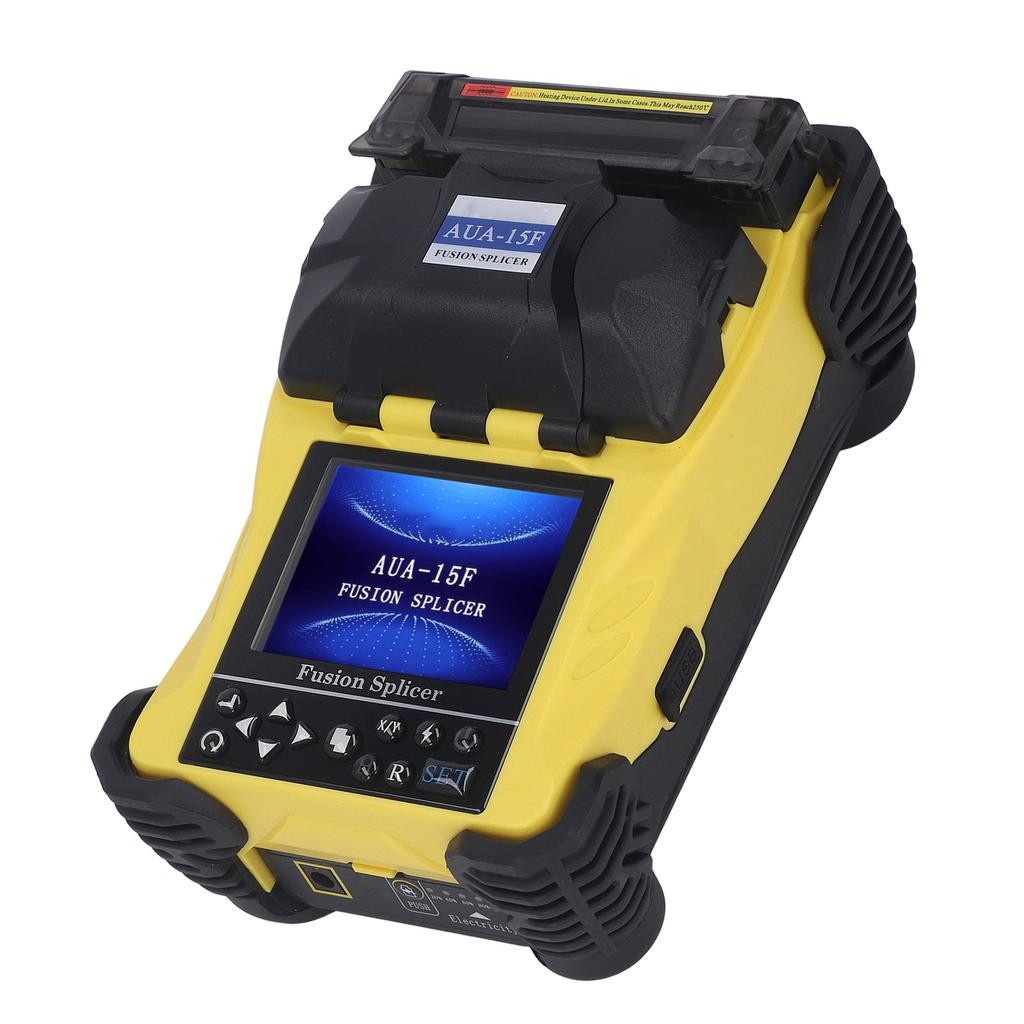

Fiber Optic Fusion Splicer LCD Display Wire Cable Hot Melting Welding Machine 100‑240V US Plug

Feature: 1. HIGH EFFICIENCY: The optical fiber fusion splicer is small and compact, easy to operate, with fast splicing speed and small splicing loss, has strong practicability. 2. WORKING RANGE: Applicable fiber cladding Diameter is 80‑150micrometer‌, coating Diameter is 100‑1000micrometer‌, with 17 sets of fusion modes and 9 sets of heating modes. 3. LCD DISPLAY: Equipped with 3.5in TFT color LCD display, the content can be flipped, convenient for dual way operation, the focus magnification is up to 400X. 4. ADJUSTABLE DESIGN: The heating time of the fiber fusion splicing machine can be set, the heating temperature can be adjusted, the duration is up to 9 seconds. 5. WIDE APPLICATION: Suitable for optical fiber engineering in the fields of telecommunications, railways, petrochemicals, electric power and public security, etc. Specification: Item Type: Fiber Optic Fusion Splicer Model: AUA 15F Material: ABS Magnification: 400X (X axes or Y axes) Return Loss: Better than 60dB Typical Connection Time: 9 seconds Typical Heating Time: 26 seconds (heating time can be set, heating temperature can be adjusted) Fiber Diameter: Cladding Diameter 80 150micrometer‌, coating Diameter 100 1000micrometer‌ Cutting Length: Coating Layer Below 250micrometer‌: 8 16mm 0.31 0.63in; Coating Layer 250 1000micrometer‌: 16mm 0.63in Heat Shrink Tubing: 60mm, 40mm and a range of micro shrink tubing Display: 3.5in TFT Color LCD display (content can be flipped, convenient for dual way operation) External Interface: USB interface. Easy data download, software update Splice Mode: 17 groups of use modes Heating Mode: 9 groups of use modes Connection Loss Storage: Internal memory saves 5000 updated connection results Use Battery: 1 x 11.1V 4800mAh lithium battery (with matching battery) Power Supply: Built in lithium battery power supply, charging time less than 3.5 hours Applicable Fibers: SM (G.652 G.657), MM (G.651), DS (G.653), NZDS (G.655) and custom fiber types Optical Fiber Fixture: Multifunctional fixture, suitable for bare fiber, pigtail, jumper, leather cable; replacement fixture can be used for SC and other connectors for various FTTx fiber optic cables. Package List: 1 x Optical Fiber Fusion Splicer1 x Battery Pack1 x Fiber Cleaver1 x Stripping Pliers1 x Pliers1 x Plastic Length Fixer1 x Charging Adapter1 x Power Cord1 x Empty Bottle1 x Blowing Ball1 x Brush1 x Tweezers1 x Fusion Splicer User Manual1 x Cutter User Manual1 x Drop Proof Bag1 x Cooling Bracket3 x Knife Adjustment Wrench (Two of them are installed at the bottom of the cutter)1 x Tool Box
