- Working Range: With a pressure-sensing range of 0-500g, this sensor does not produce electromagnetic interference, enabling it to be applied in a wide range of scenarios.

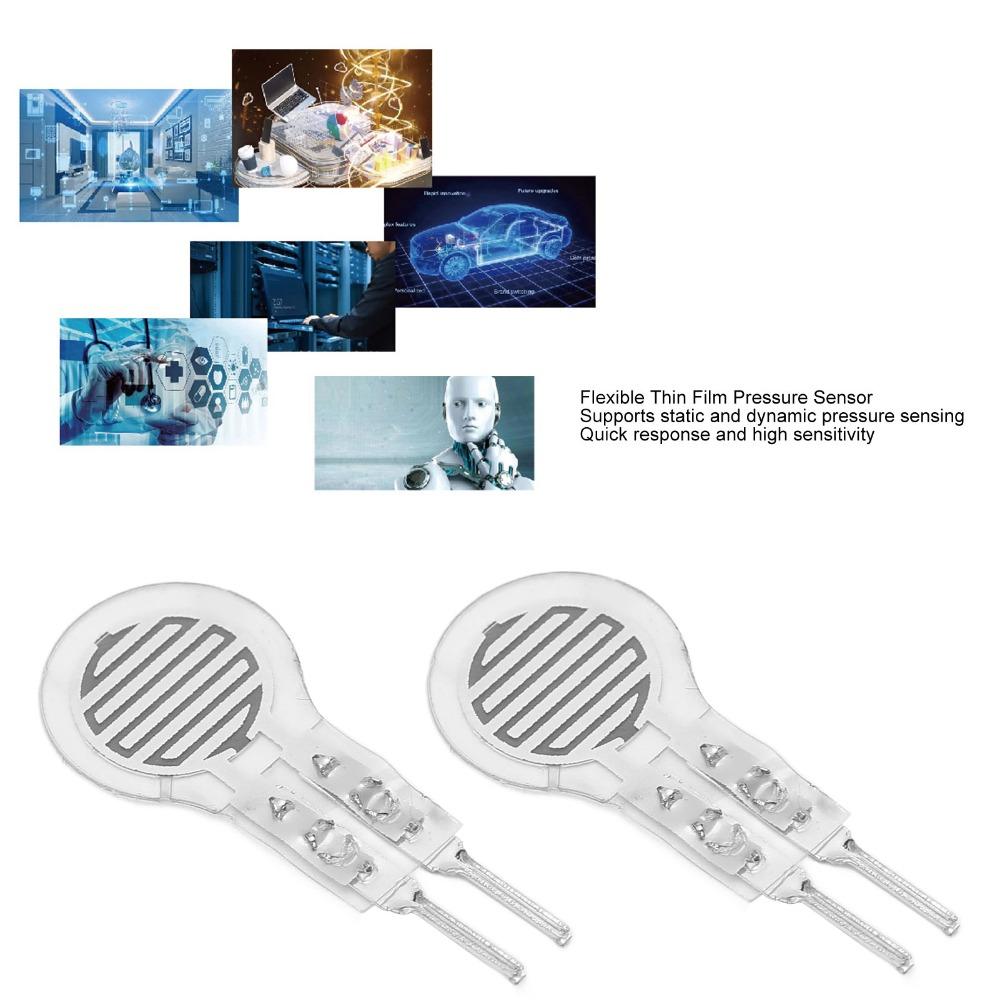

- Excellent Performance: This thin film pressure sensor supports both static and dynamic pressure sensing. It features a fast response speed and high sensitivity.
- Wide Applications: It is extensively used in bed monitoring, sleep monitoring, smart shoes, smart switches, counters, and medical equipment, among other areas.
- Durable Material: The package includes 2 film pressure sensors. Crafted from good materials, ensuring a long service life.
- Thin Film Sensor: The resistive pressure sensor is a flexible thin film sensor. Its resistance decreases as pressure increases, and it is stable and reliable in performance.
Specification:

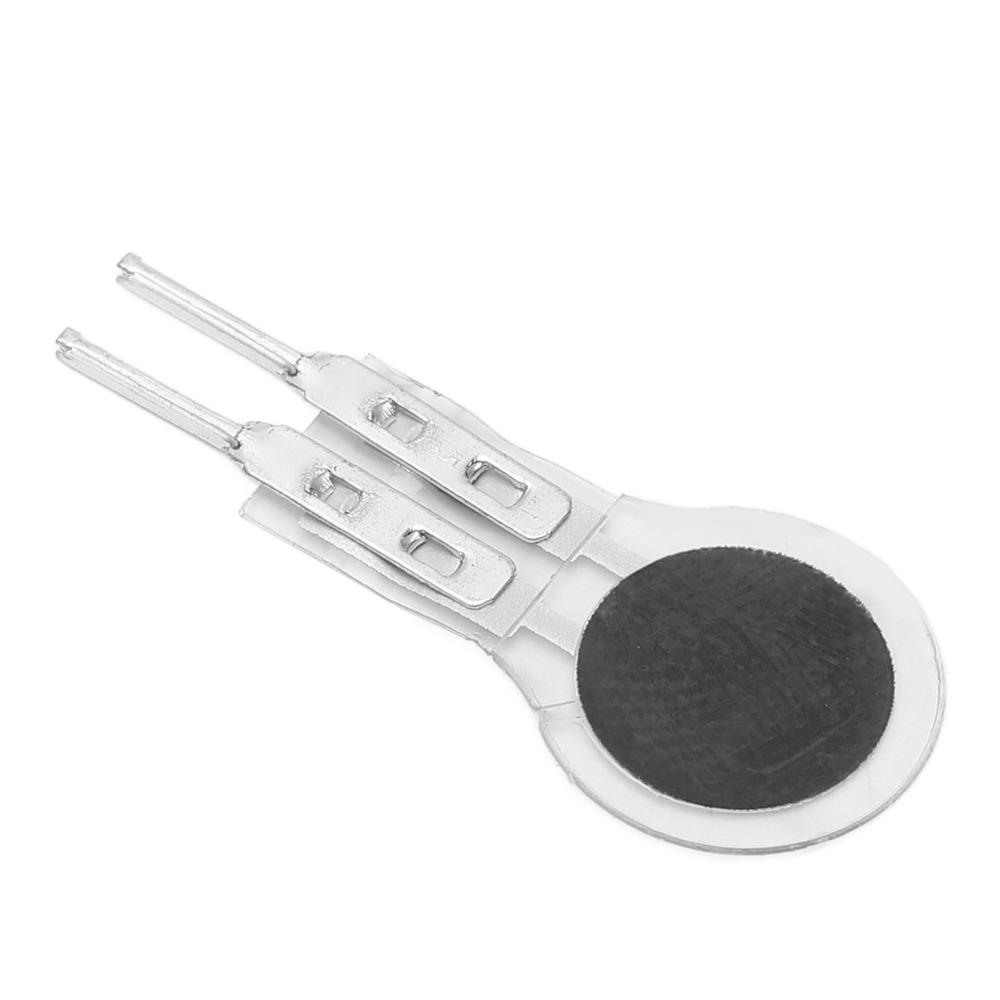

Item Type: Thin Film Pressure Sensor

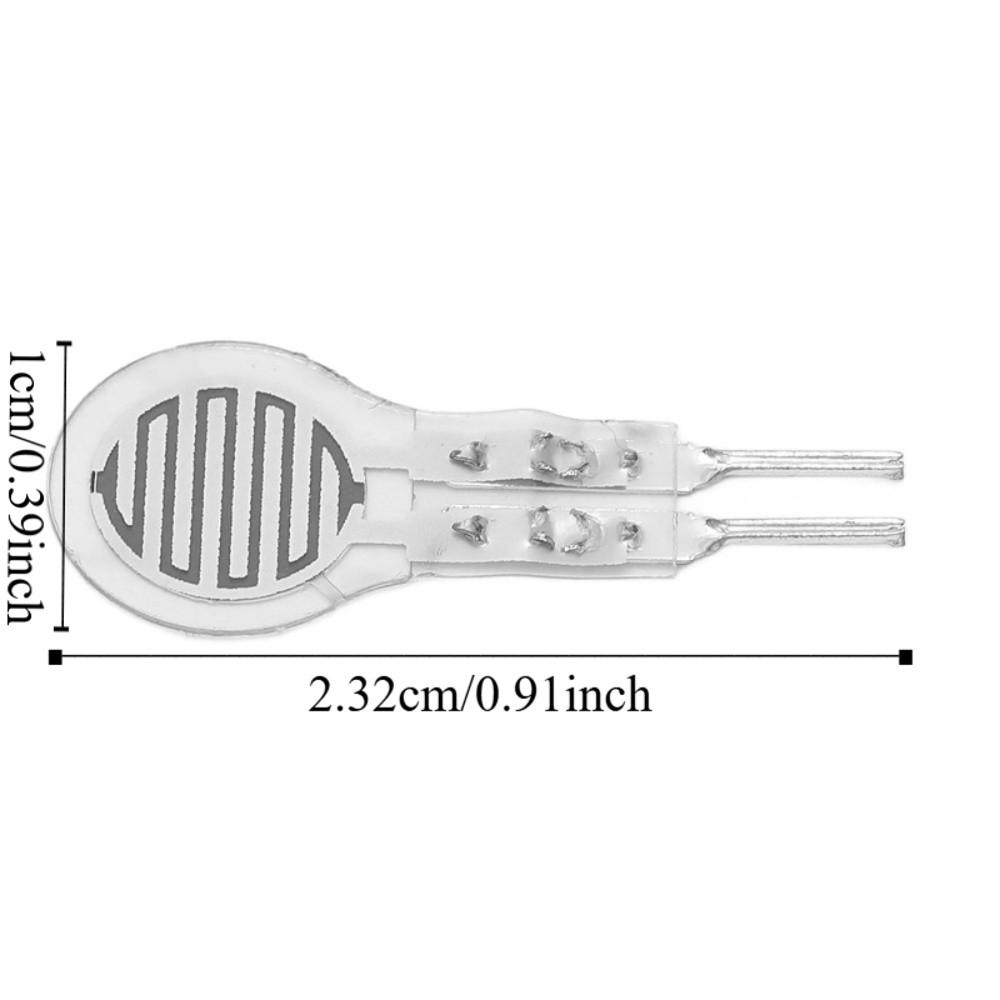

Size:2.32*1cm(0.91*0.39in)
Color:As shown in the figure
Range: 0-500g
Response Point: ≤20g
Repeatability: <±4.1% (50% load)
Durability: > 1000000 times
Accuracy: ±2.5%
Initial Resistance: >100Mohm (no load)
Response Time: <1ms
Recovery Time: <15ms
Operating Temperature: -20-60℃
Electromagnetic Interference EMI: Does not generate
Electrostatic Discharge EDS: Not sensitive
Application: Widely used in bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical equipment
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
Package List:

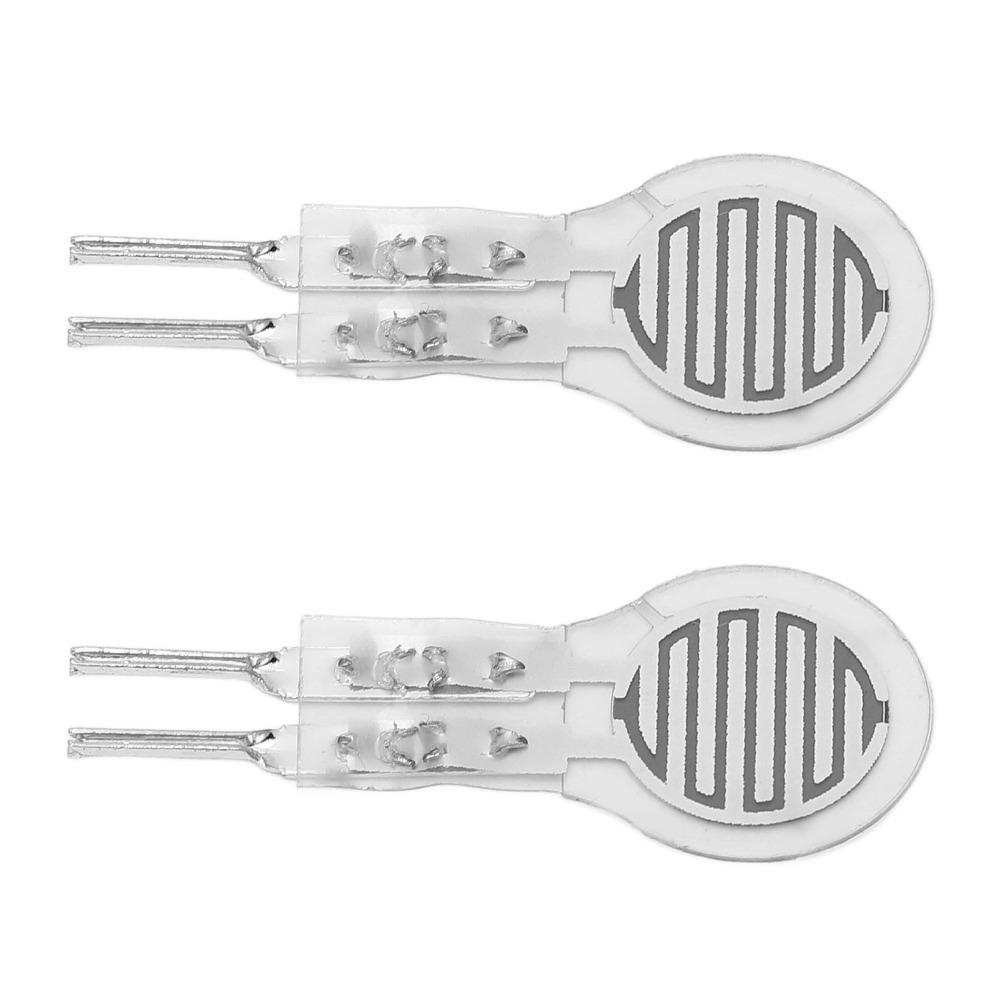

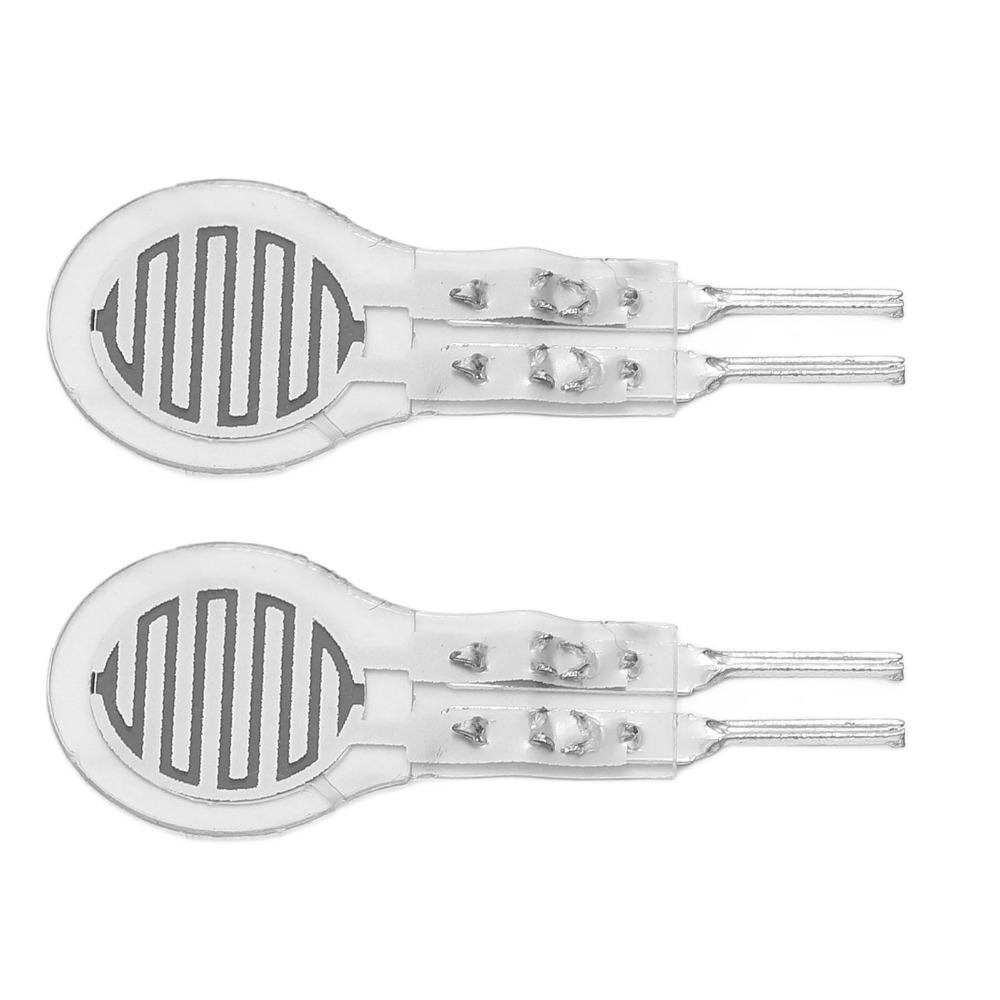

2 x Pressure Sensor
