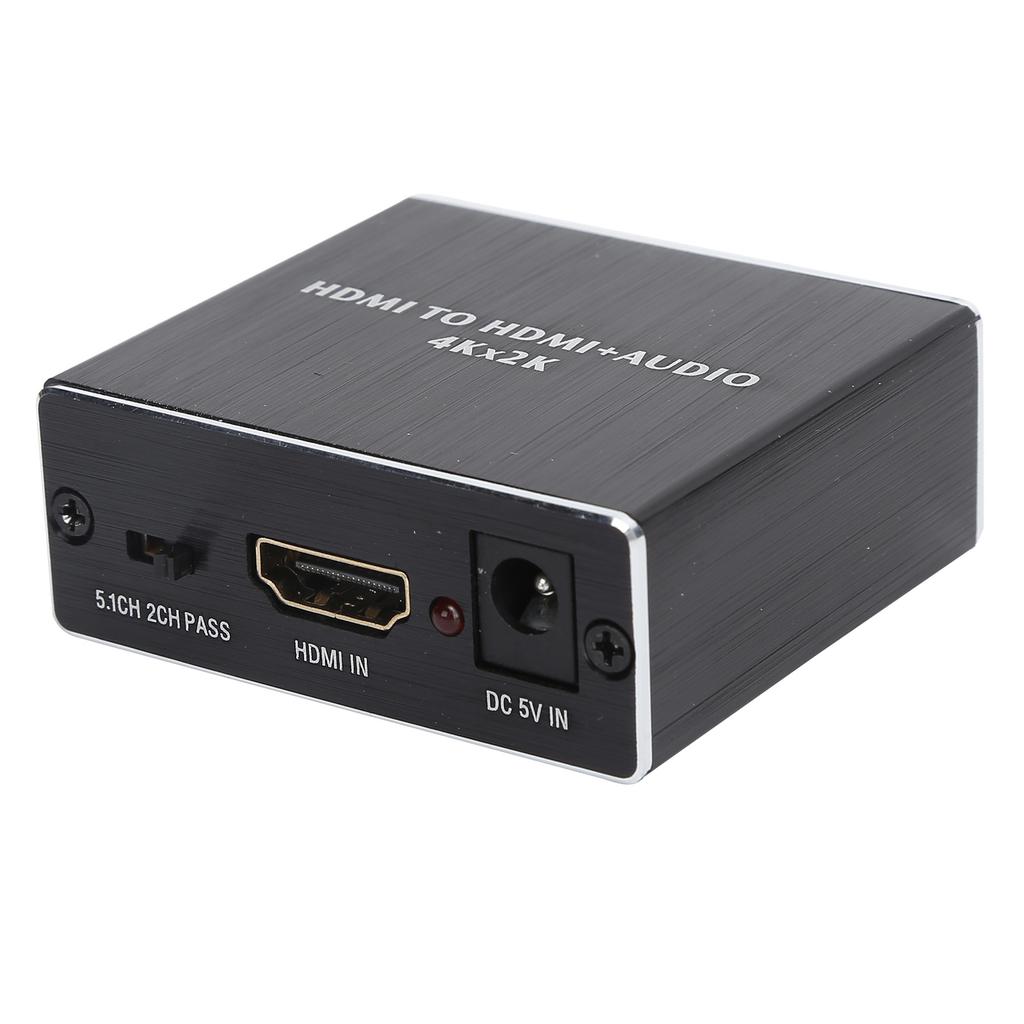

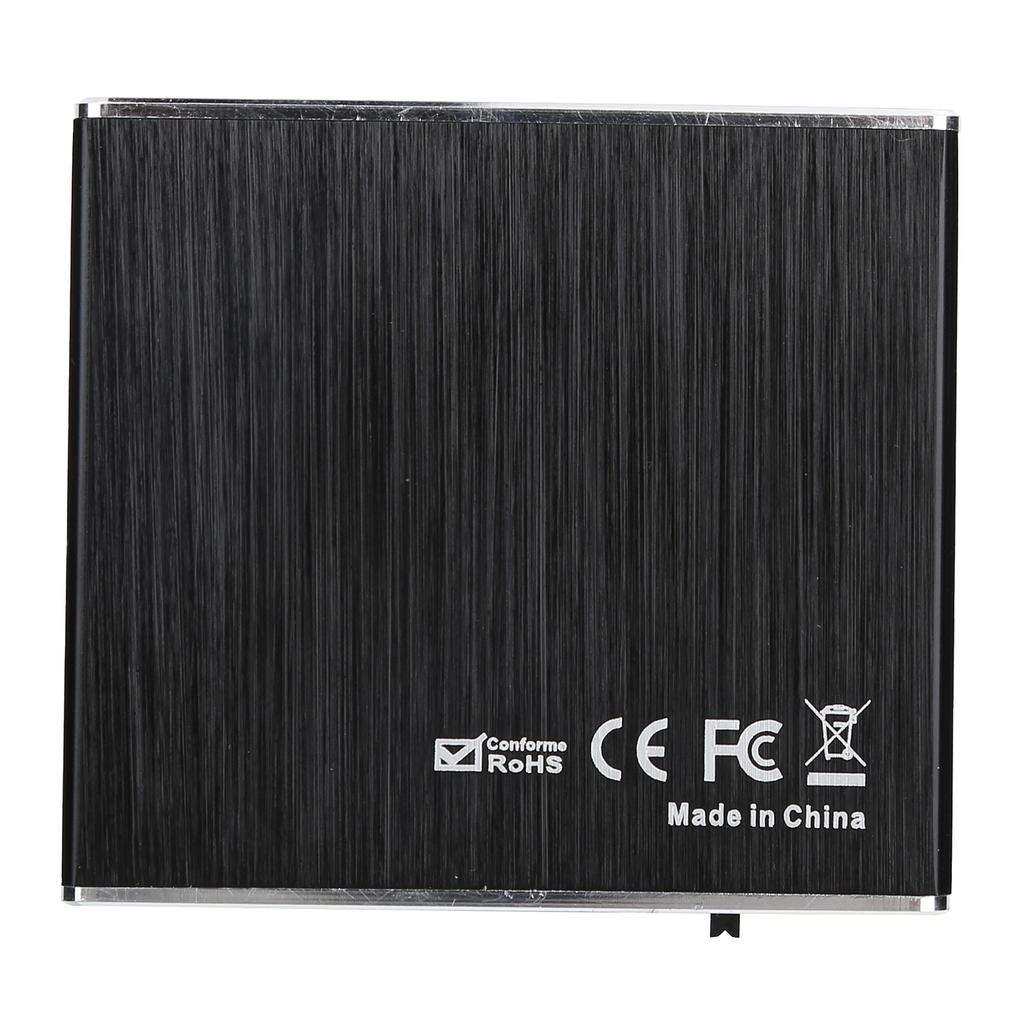

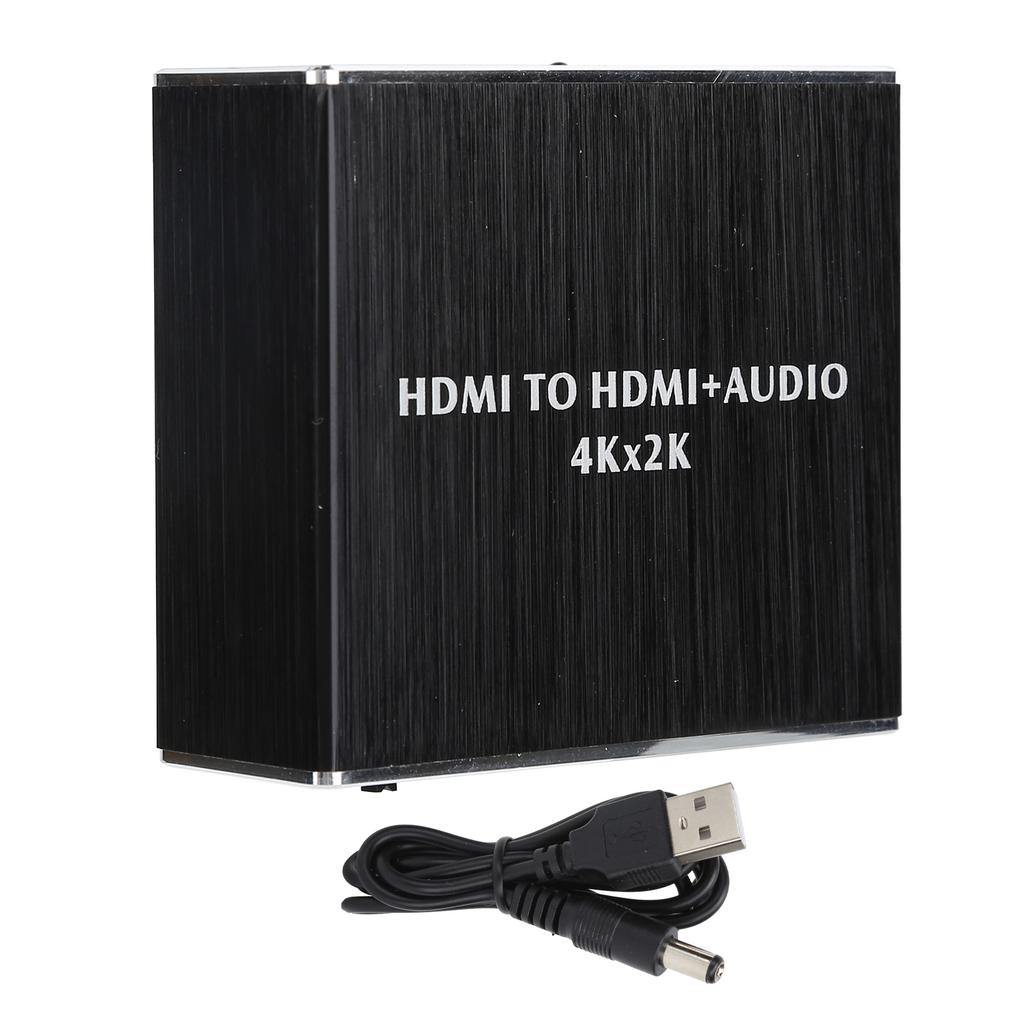

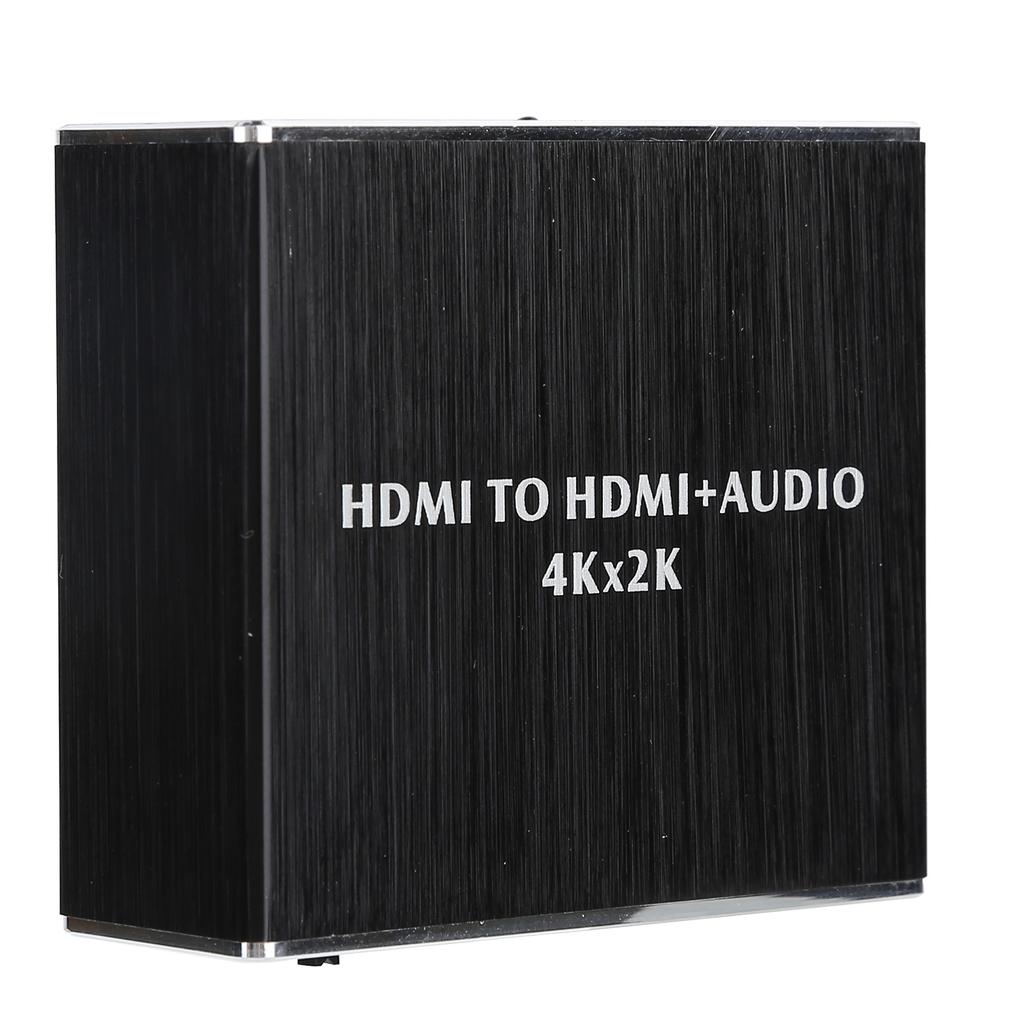

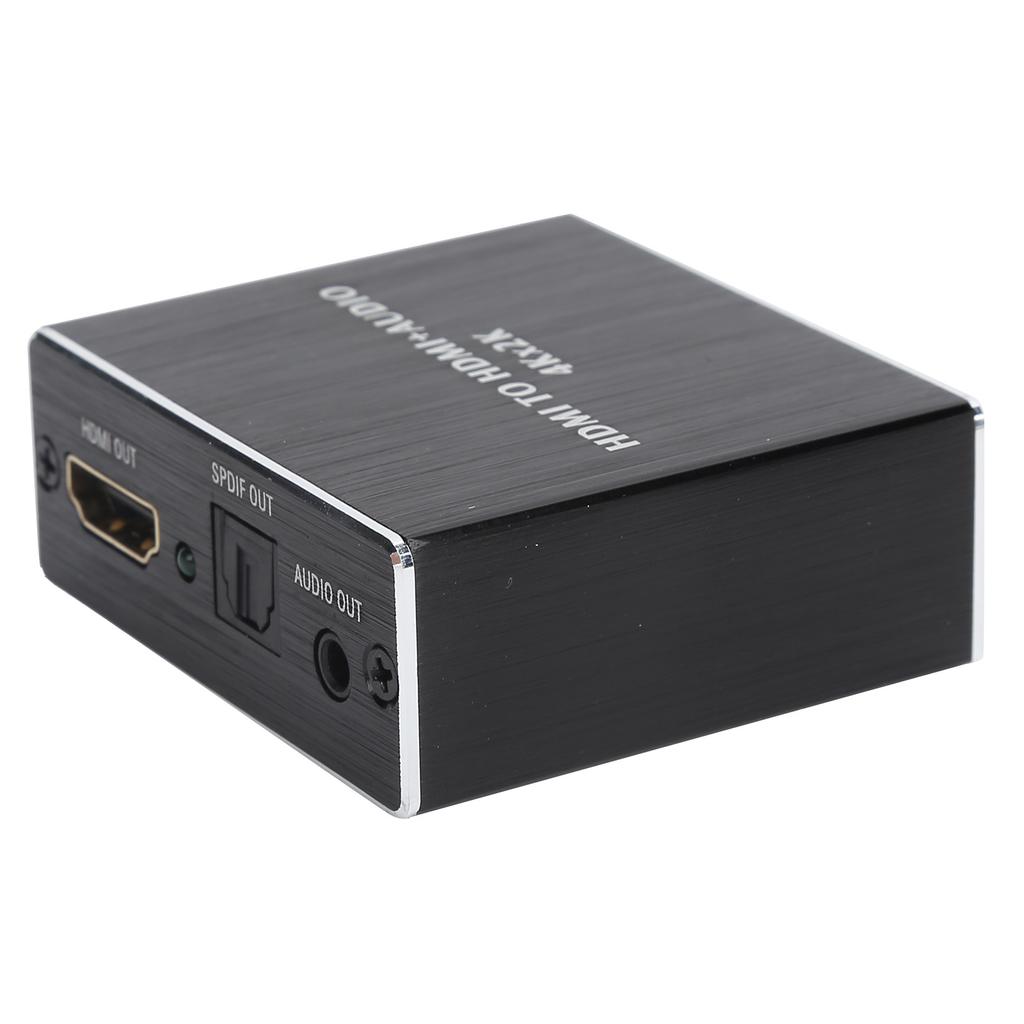

Optical Audio Splitter High Definition Multimedia Interface to Stereo SPDIF Signal Extractor

Feature: 1. Extract the audio signal among the HD multimedia interface signal to the power amplifier system to obtain high‑quality audio effects which is hard for TV peaker to achieve. 2. Connect the HD multimedia interface signal to a single monitor and output the stereo + SPDIF signal independently to extract the HD multimedia interface audio signal. 3. Suitable for situations with high noise, long‑distance transmission range and strict safety requirements. 4. The optical audio splitter supports 1080P at 50 60Hz, with PASS 2.0CH 5.1CH working mode. 5. The converter is equipped with indicator light, and the LED light can display the working mode at any time. Specification: Item Type: Optical Audio Splitter HD Multimedia Interface Resolution: 24 50 60fs 1080p 1080i 720p 576p 576i 480p 480i Supported Video Color: 24bit dark 30bit, 36bit Audio Output: L R CH, optical fiber Maximum Bandwidth: 225MHz Maximum Bit Rate: 6.75Gbps I O TMDS Signal: 0.5 1.5V p p I O DDC Signal: 5V p p (TTL) Input Cable Length: Approx. less than 15meter 49.2ft, AWG26 HD multimedia interface standard cable Output Cable Length: Approx. less than 20meter 65.6ft, AWG26 HD multimedia interface standard cable Maximum Working Current: 500mA Power Adapter: Input: AC (50HZ, 60HZ) 100V 240V; Output: DC5V 1A Working Temperature: 15 celsius 55 celsius Working Humidity: 5percent 90percent RH. Package List: 1 x Optical Audio Splitter1 x User Manual1 x Charging Cable
