Feature:

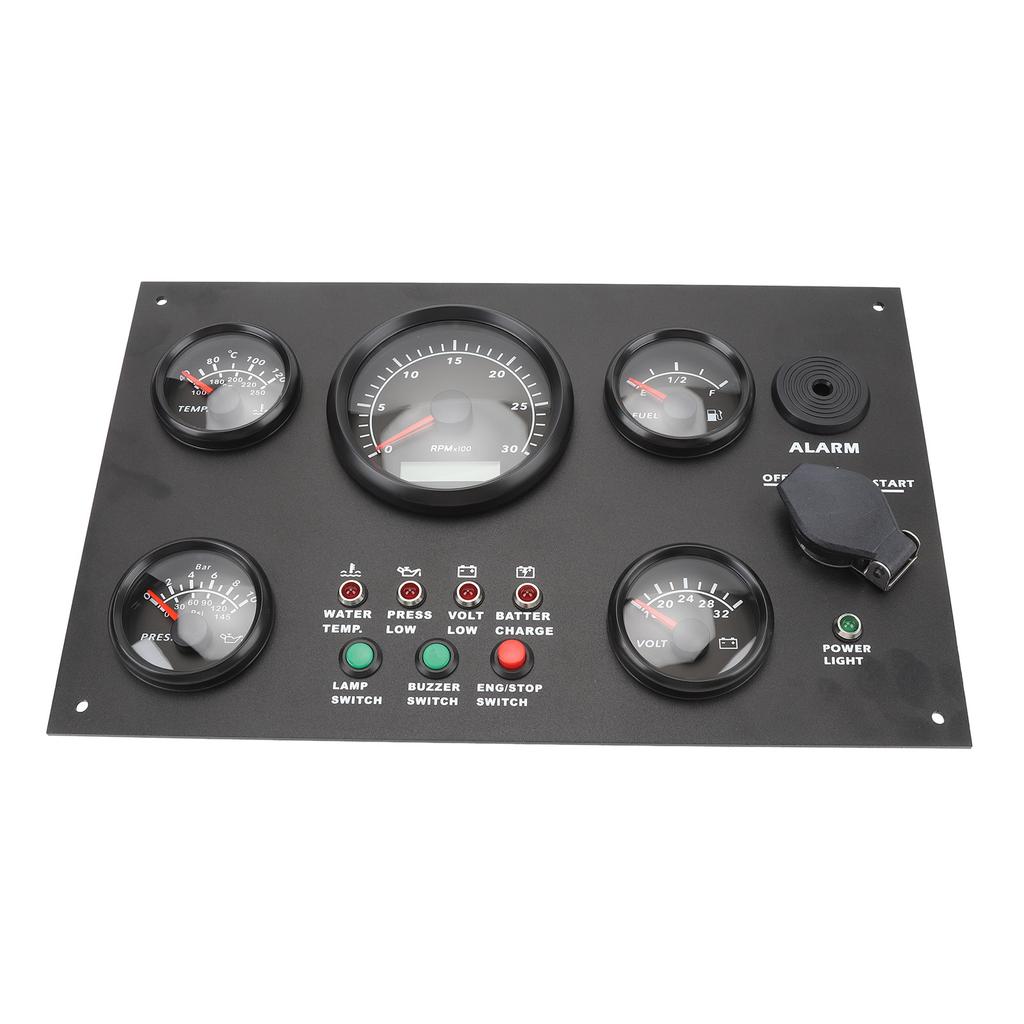

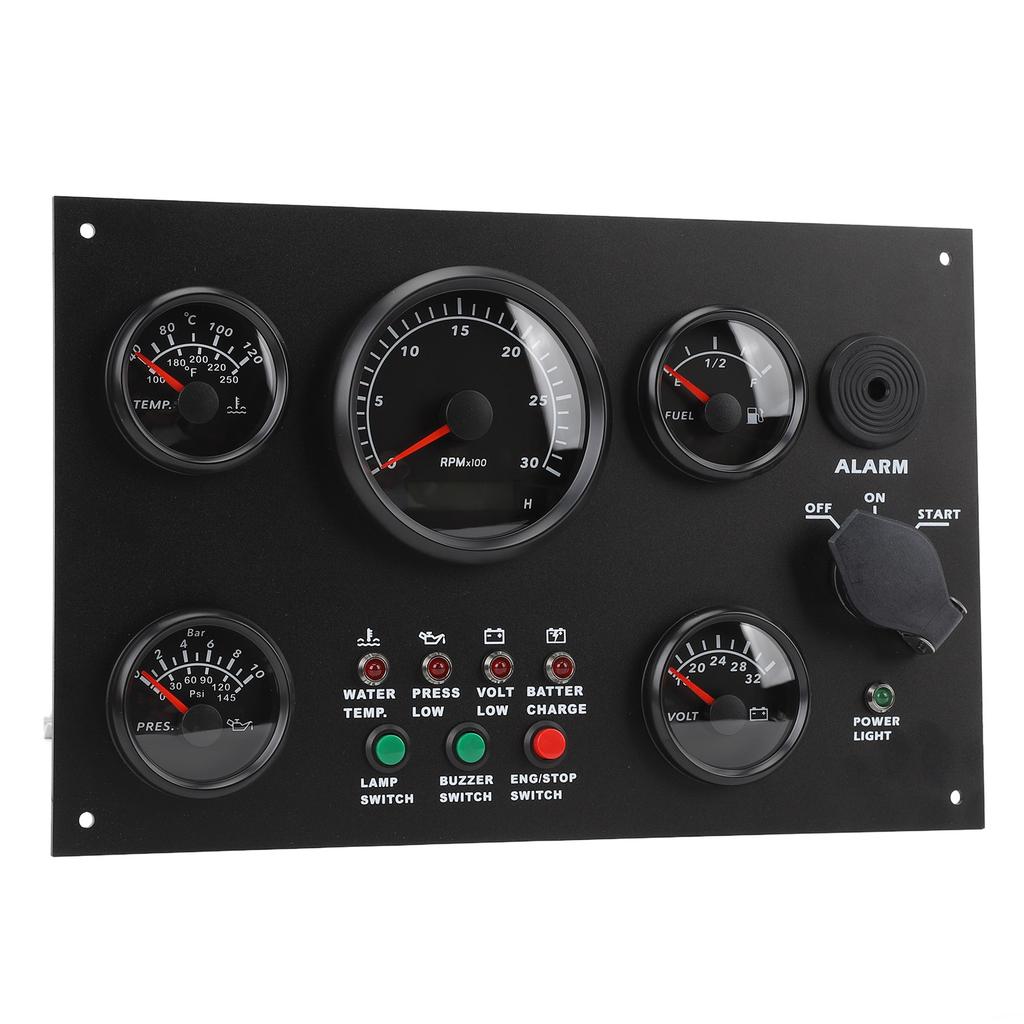

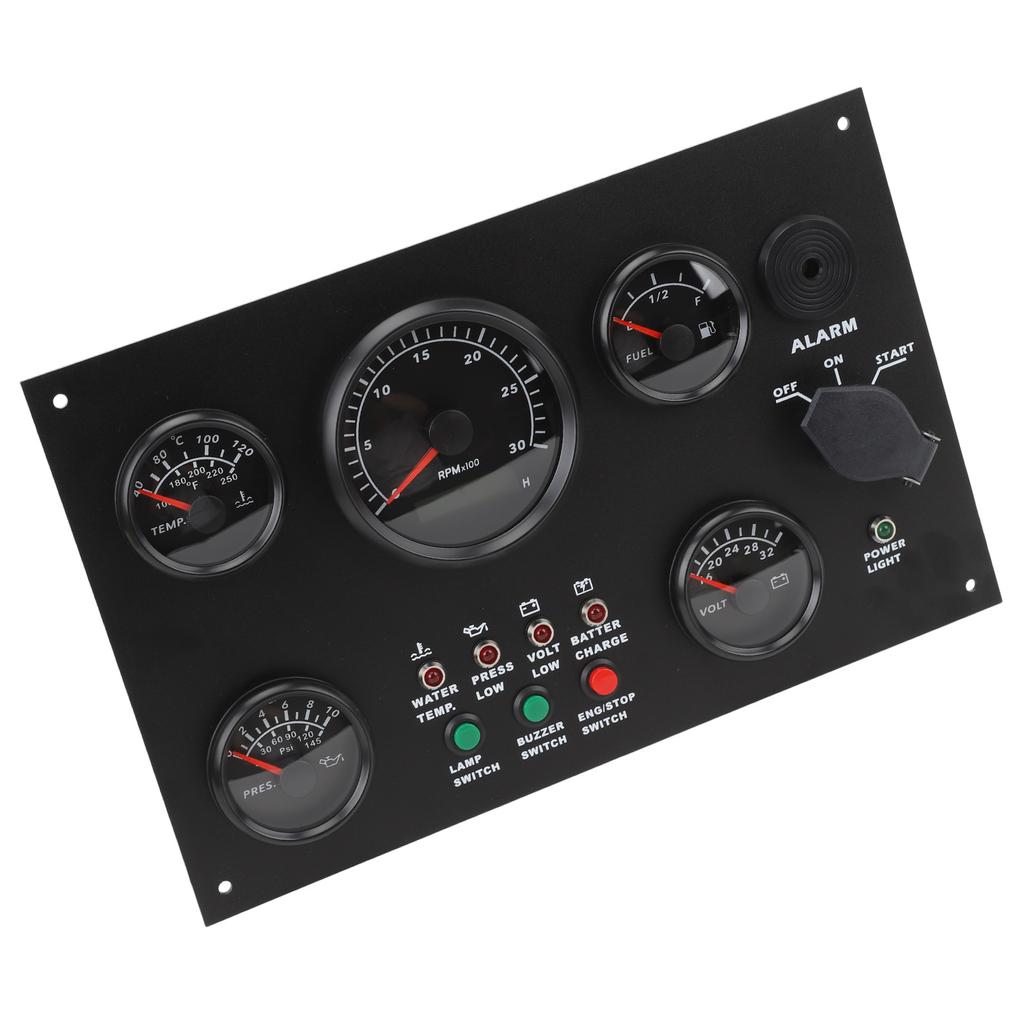

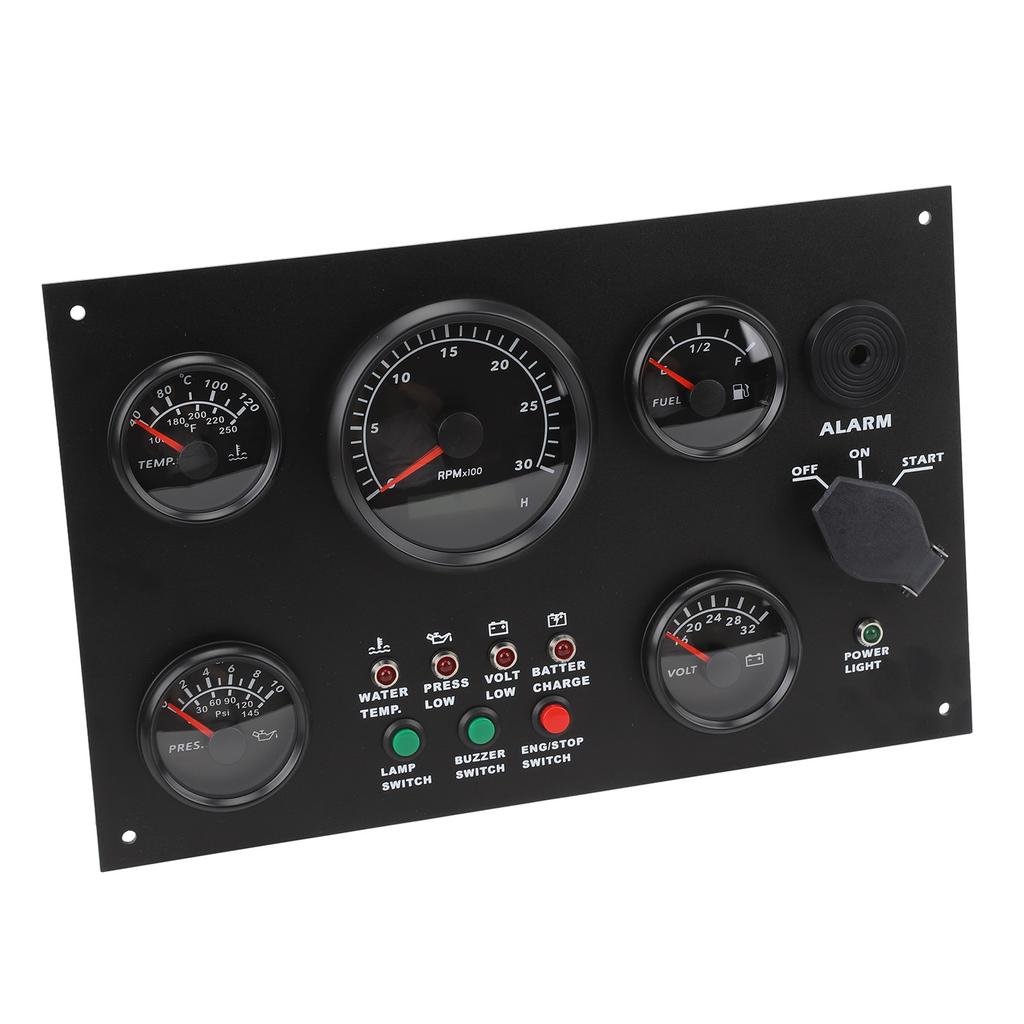

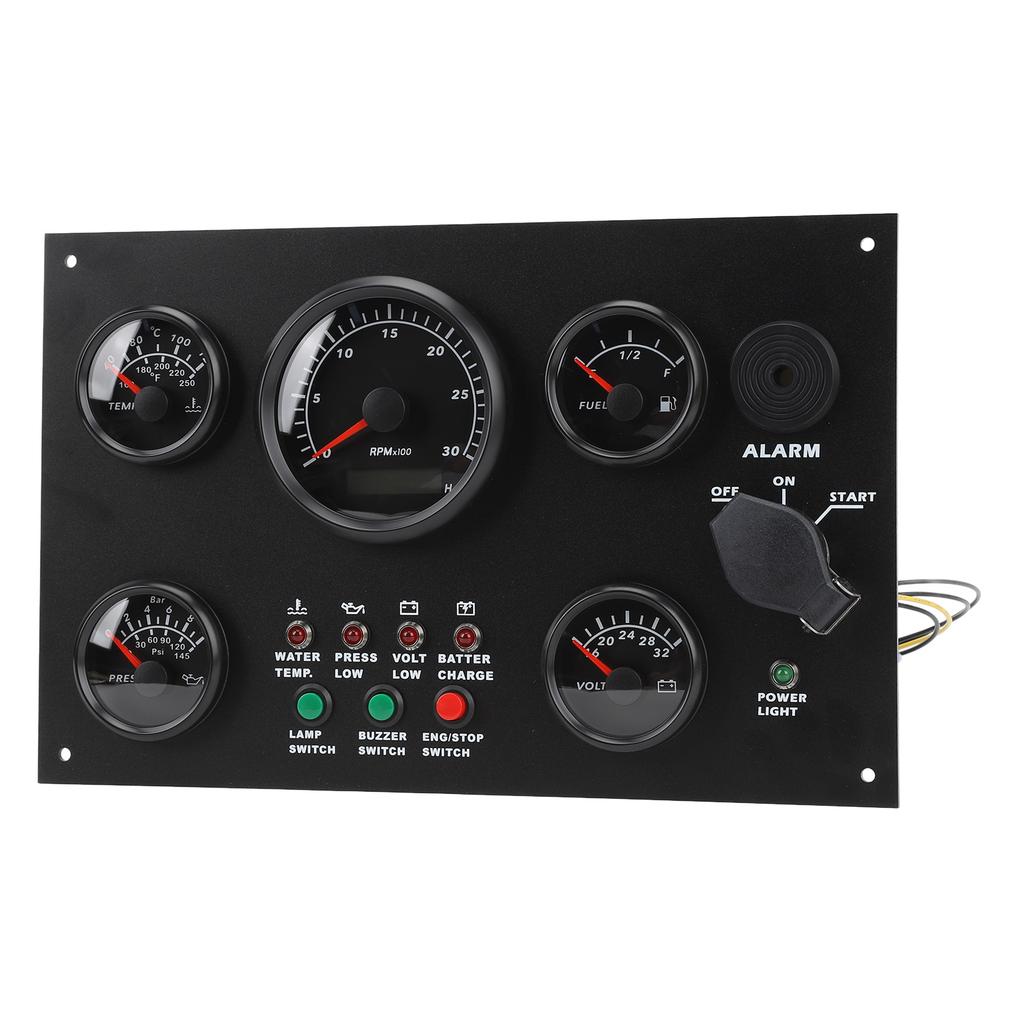

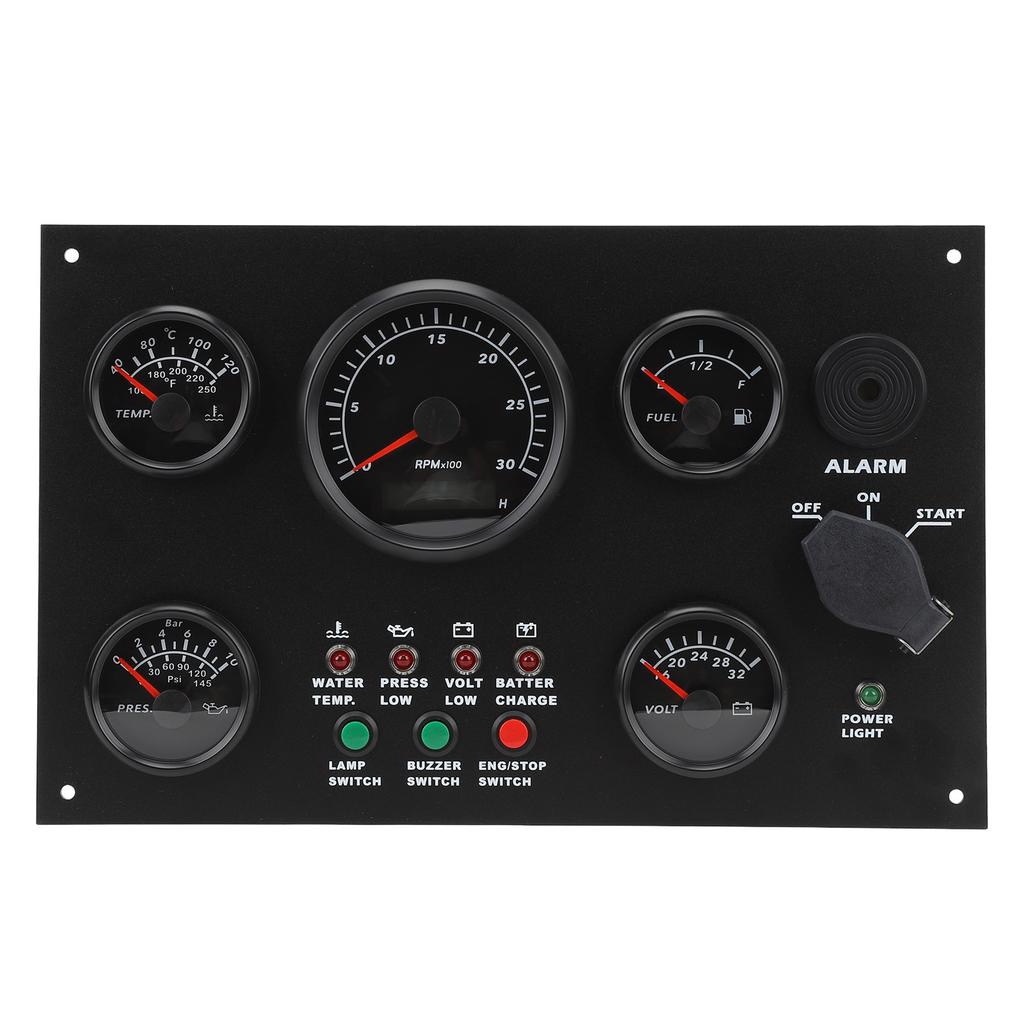

1. MULTI FUNCTIONAL: Marine gauge panel combines 3000 RPM, water temperature, oil level, voltage gauge, oil pressure gauge, comprehensively monitoring important parameters to ensure the normal working of the vessel.
2. PREMIUM MATERIAL: Made of metal and plastic, carefully designed and manufactured for durability and stability, ensuring excellent performance during long term use.
3. EASY INSTALLATION: Simple to install, only need to prepare appropriate openings on the gauge panel, fix the gauge with nuts and fasteners, saving time and effort.
4. WIDE APPLICATION: Suitable for yachts, ships, speedboats, and other types of boats, meeting the needs of different vessels, and is your sailing necessary professional accessories.
5. INTELLIGENT DESIGN: Equipped with engine oil pressure switch that automatically works when the oil pressure is below 0.8BAR, ensuring the safe working of the vessel. Also features an ignition key for easy use.
Specification:
Item Type: Boat Gauge Panel
Material: Metal+Plastic
Bottom Hole Size: Approx. 270x145mm 10.63x5.71in
Oil Pressure Switch (low oil pressure less than 0.8kgf m)
Ignition Key: Off: Stop, ON: Power On
Product Function: Tachometer, Water Temperature, Oil Level, Voltmeter, Oil Pressure Meter, 7 Color Backlight
Tachometer Display Range: 0 30 (RPMx100)
Oil Level Display Range: E F
Oil Pressure Display Range: 0 10BAR
Water Temperature Display Range: 40 120 celsius 100 250 Fahrenheit
Voltage Display Range: White: 2 16V Black: 16 32V
Application: Suitable for yachts, ships, speedboats, etc.
Adjustable Speed Ratio:
1. Long press the black rubber button on the instrument for 3 seconds to enter the speed ratio setting mode, release the button for 3 seconds to exit the speed ratio setting mode and save the setting data automatically.
2. After entering the setting mode, press the button, the value increases, release the button, press it again, the value decreases; speed ratio adjustment range: 1 300, 1 12 step value is 0.1, 12 300 step value is 0.5. Adjust the speed ratio value to the desired value, release the button for 3 seconds, and the figures are saved automatically.
3. If your transmitter is mounted on the flywheel, the speed ratio value is equal to the number of engine gears; if the RPM signal comes from the W point signal, the speed ratio value is equal to half of the electrode plate (number of poles 2). If it is a gasoline engine, the speed ratio is equal to the number of cylinders (cylinders 2).
Application: The panel only needs a unit area of 300x190mm to combine 5 instruments together, saving a lot of space, and you can install this instrument panel in your yacht, RV, truck, work vehicle control, and understand the engine status through the data of the instrument at any time
Simple Installation Steps:
1. Open the hole on the instrument panel ready for installation
2. Put the instrument into the opening of the instrument panel
3. Fixed with M4 nuts and C type buckles.

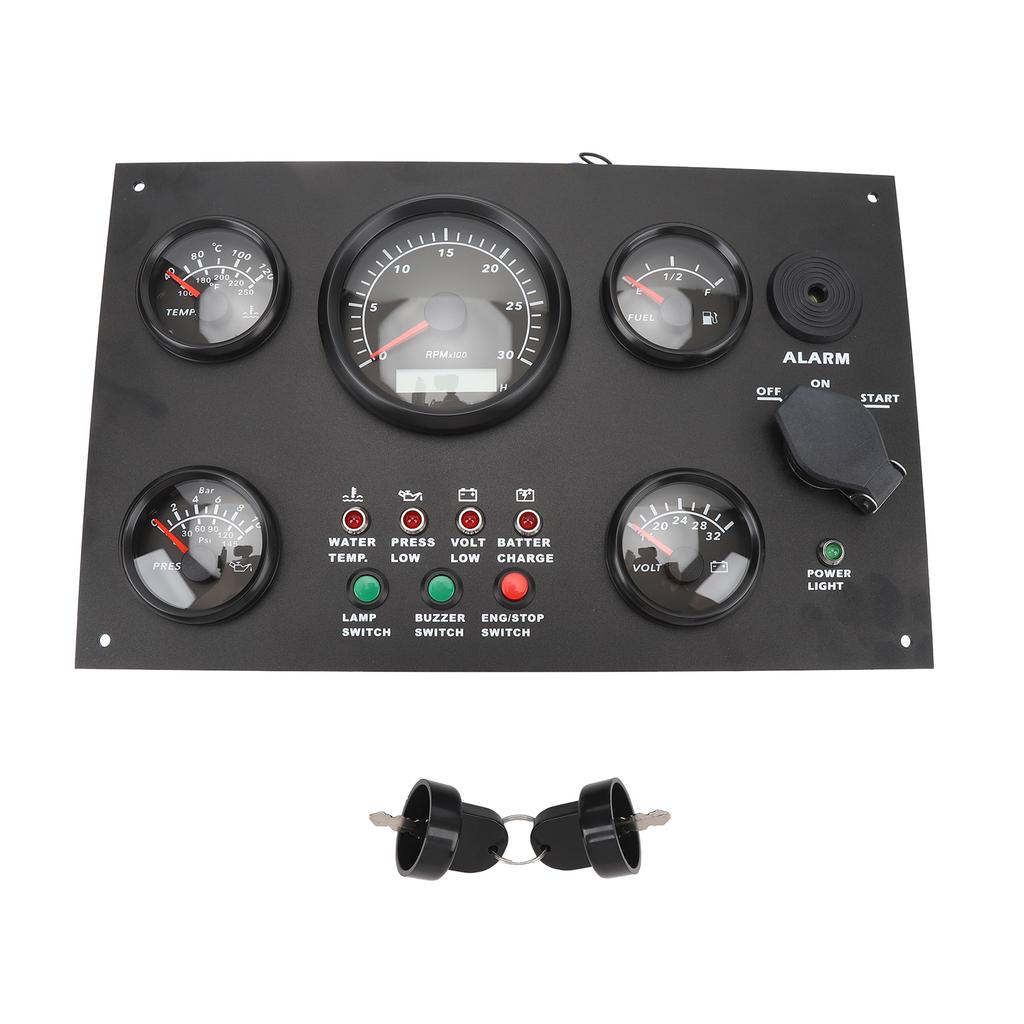

Package List:
1 x Instrument Panel
1 x User Manual
2 x Keys
