ESP32 ESP 32 Development Board WiFi+Bluetooth Module Ultra-Low Power Consumption Dual Core Micro USB C ESP-32 ESP-32S ESP 32

Good luck with your favorite purchases U.S. buyer attention: The areas where the US warehouse does not deliver goods are: Hawaii, Alaska, Puerto Rico, Guam and other US overseas territories. And the military address. But you can choose ship from China.

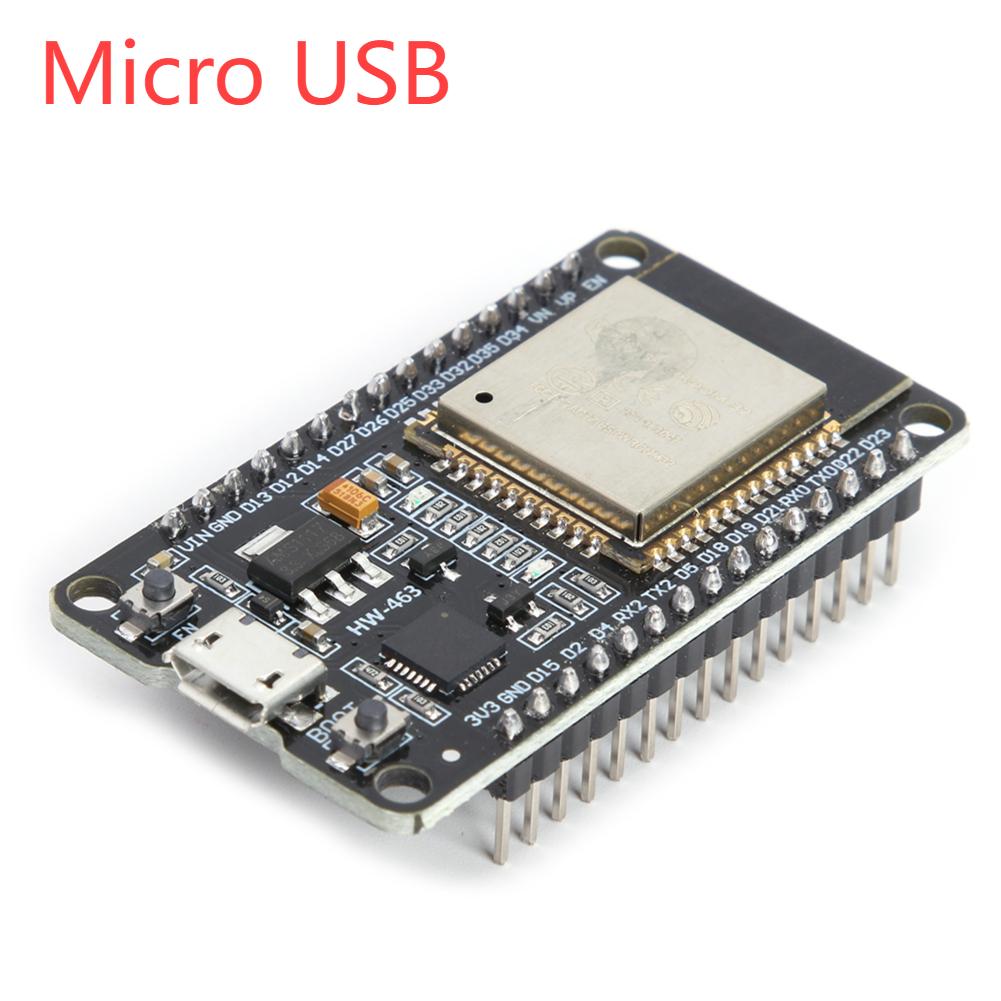

Spanish buyers attention: If your address includes following postal code please do not choose the Spanish warehouse. The zip code starts with 35/38. Overseas warehouse cannot be delivered. But you can choose ship from China Description: 1. The main body of the module is ESP-32 module, and the peripheral uses the USB serial port chip CP2102 to expand the micro USB interface, which can be directly debugged by a USB connected computer, and the data transmission is fast and stable. 2. It has power indicator (red light) and working status indicator (blue light) on it, so you can know the status of the module at any time. 3. There are two touch buttons, one is reset, the other is enable module to enter the halberd program mode. In addition, the pins on both sides of the development board are convenient for developers to connect and use. 4. The module has powerful Bluetooth-compatible and WiFi functions. As a Bluetooth-compatible and WiFi development board, it can obtain rich resources from Lexin and anxinco official websites. 5. In addition, the module supports for NodeMCU and other development environments, which expands the range of its resources available and greatly improves the ease of learning and development. Of course, it can also be widely used in Internet of things occasions, such as home automation, wireless industrial control, wireless positioning system signal, etc.

Feature: 1. The module is the ESP-32 development board, and the ESP32 parameter characteristic is also the parameter characteristic of the module. 2. 802.11b/g/WiFi + BT module. 3. Low power dual core 32-bit CPU, which can be used as application processor; 4. The main frequency is up to 240MHz, and the operation capacity is up to 600DMIPS. 5. Support UART / SPI / I2C / PWM / DAC / ADC and other interfaces; 6. Support openOCD debugging interface; 7. It supports multiple sleep modes, and the current reaches 6.5ua in deep sleep; 8. Embedded LwIP and FreeRTOS; 9. Support STA/AP/STA+AP mode; 10. Support Smart Config / Airkiss one key distribution network; 11. General at command, easy to use; 12. Support local serial port upgrade and remote upgrade (FOTA).

Specification: SPIFlash: default 32Mbit Bluetooth-compatible: Bluetooth-compatible 4.2 BR/EDR and BLE standards Supporting interfaces: UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DAC On chip sensors: Hall sensor, temperature sensor, capacitive touch sensor IO port: 22pcs Serial port rate: 115200 BPS by default Spectrum range: 2412 ~ 2484MHz Antenna form: PCB antenna on board, gain 2dBi Transmitting power: 802.11b: 17 ± 2dbm (11Mbps) 802.11g: 14 + 2dbm (54Mbps) 802.11n: 13 ± 2dbm (MCS7) Receiving sensitivity: CCK, 1Mbps: - 90dbm CCK, 11Mbps: - 85dBm 6Mbps (1 / 2bpsk): - 88dbm 54Mbps (3 / 464-qam): - 70dBm mcs7 (65mbps, 72.2mbps): - 67dbm Power consumption: 300mA 3.3V Security: WPA / WPA2 / WPA2 Enterprise / WPS Power supply range: USB power supply: 5V pin power supply: 5.0V~12V Working temperature: - 20 ~ 85 ℃ Storage environment: - 40 ~ 90℃, < 90% RH Product size: 52 * 29 * 15mm/2.04*1.14*0.59''

Note: Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding. 1 X ESP32 Development Board
