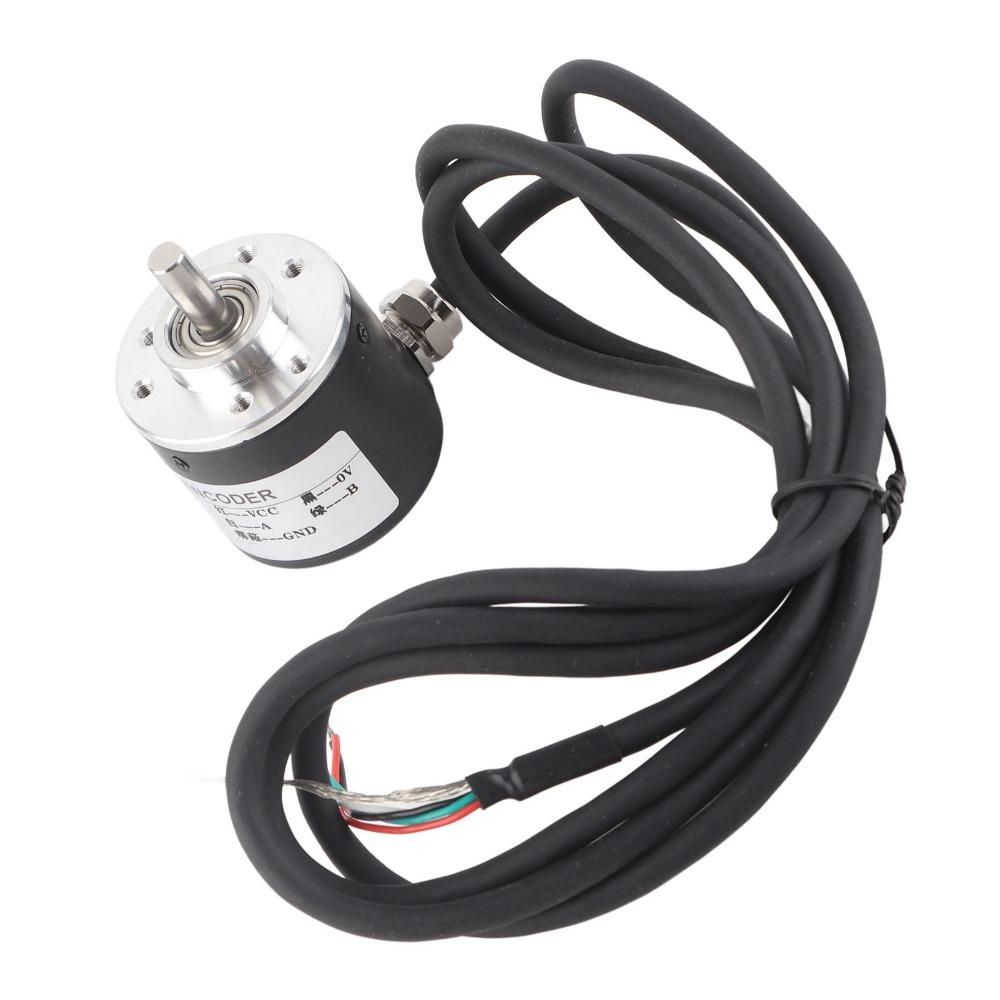

2.AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type.
1.This product has 600 p/r (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses).
4.Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, height and weight scale, racing robots.
5.It can be used to measure the rotational rate, Angle and acceleration of the object and the length measurement.

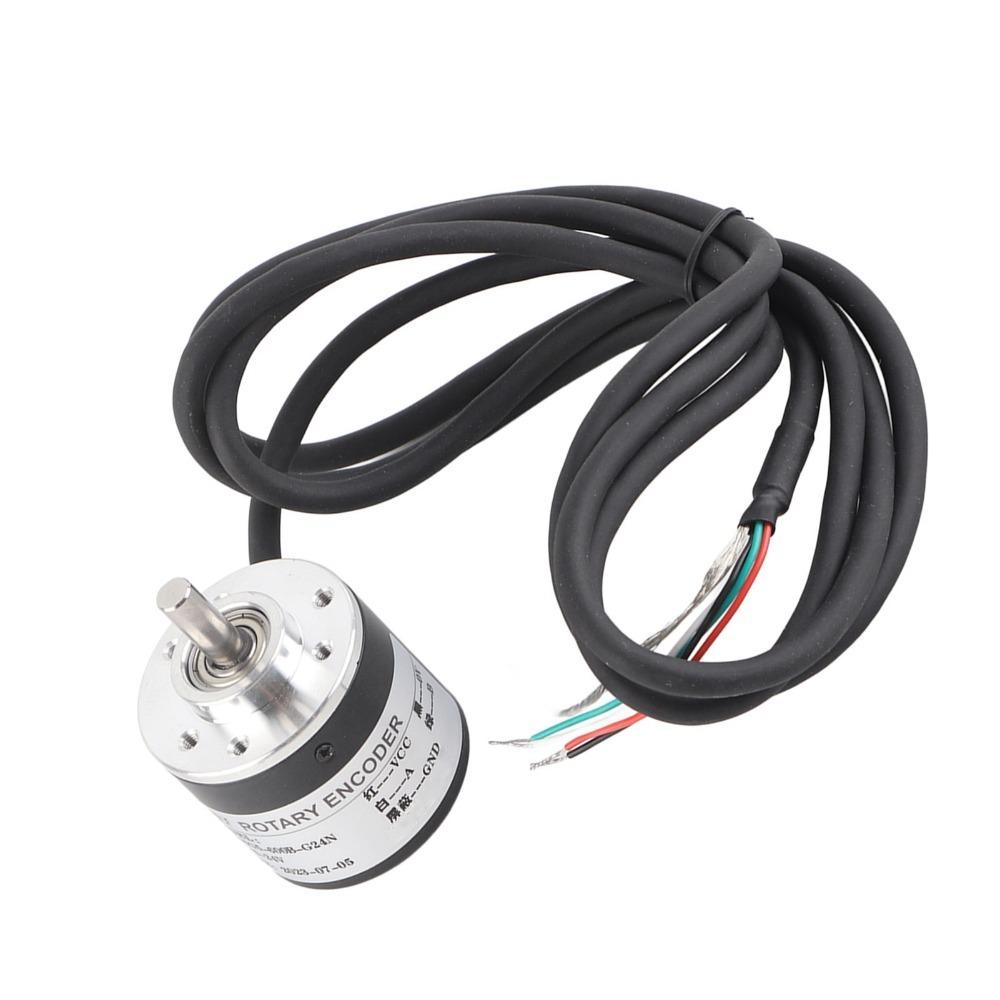

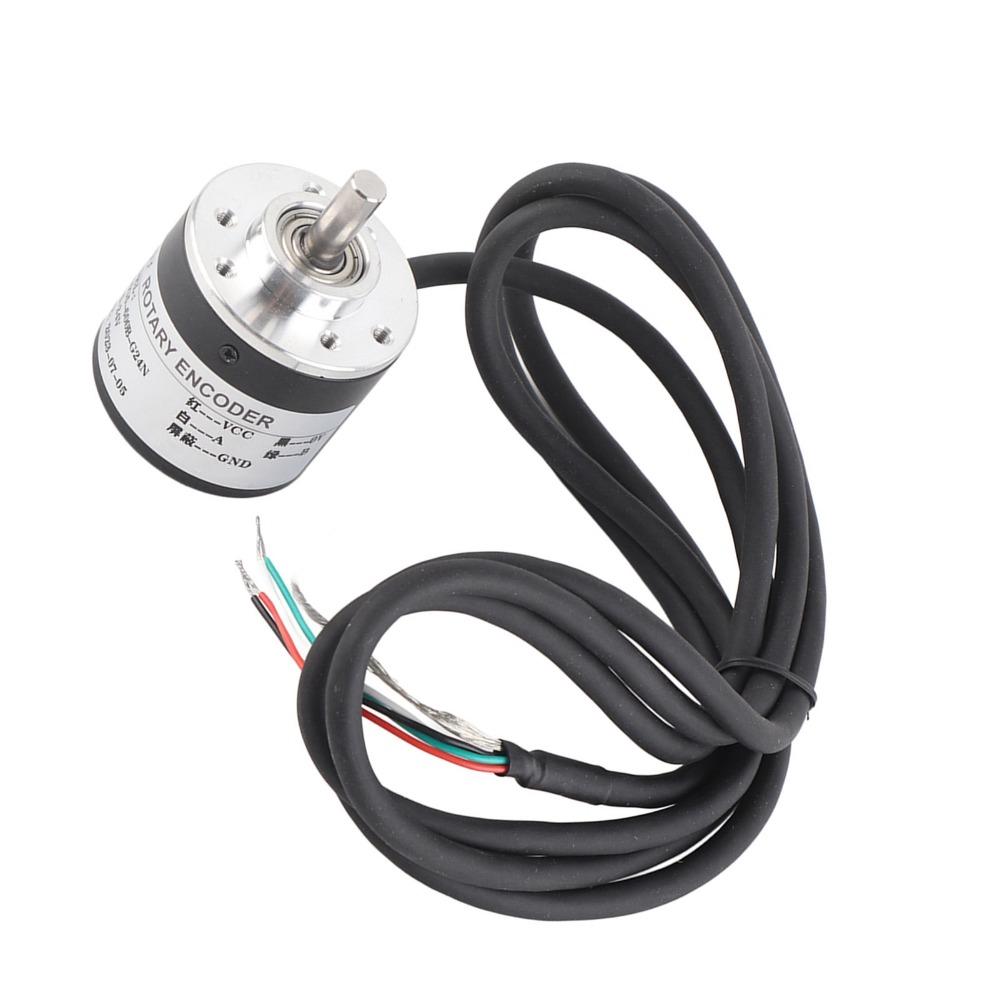

3.Power source is DC5-24V. Stable working performance and good working condition.Connection: Green = B+, white = A+, red = Vcc, black = 0V.
Specifications:
Pulses: 600 p/r (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses)
Power source: DC5-24V
Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type

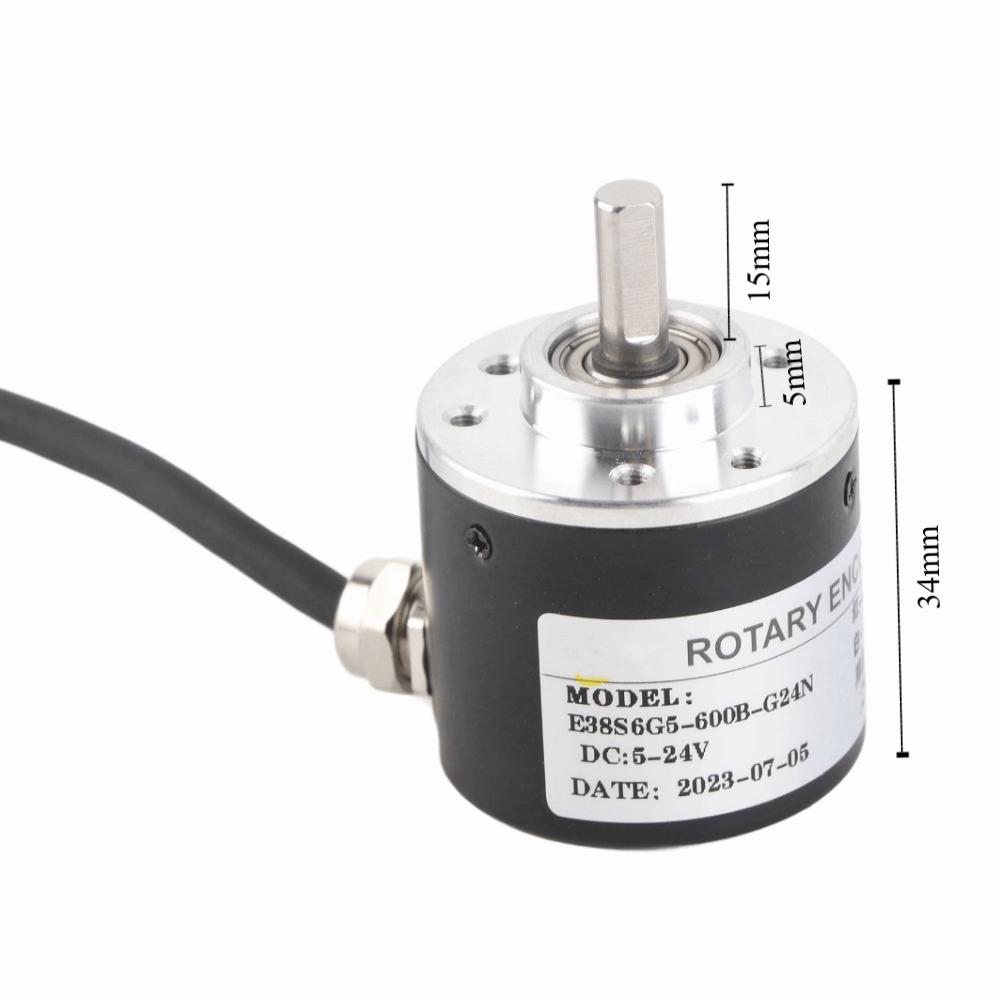

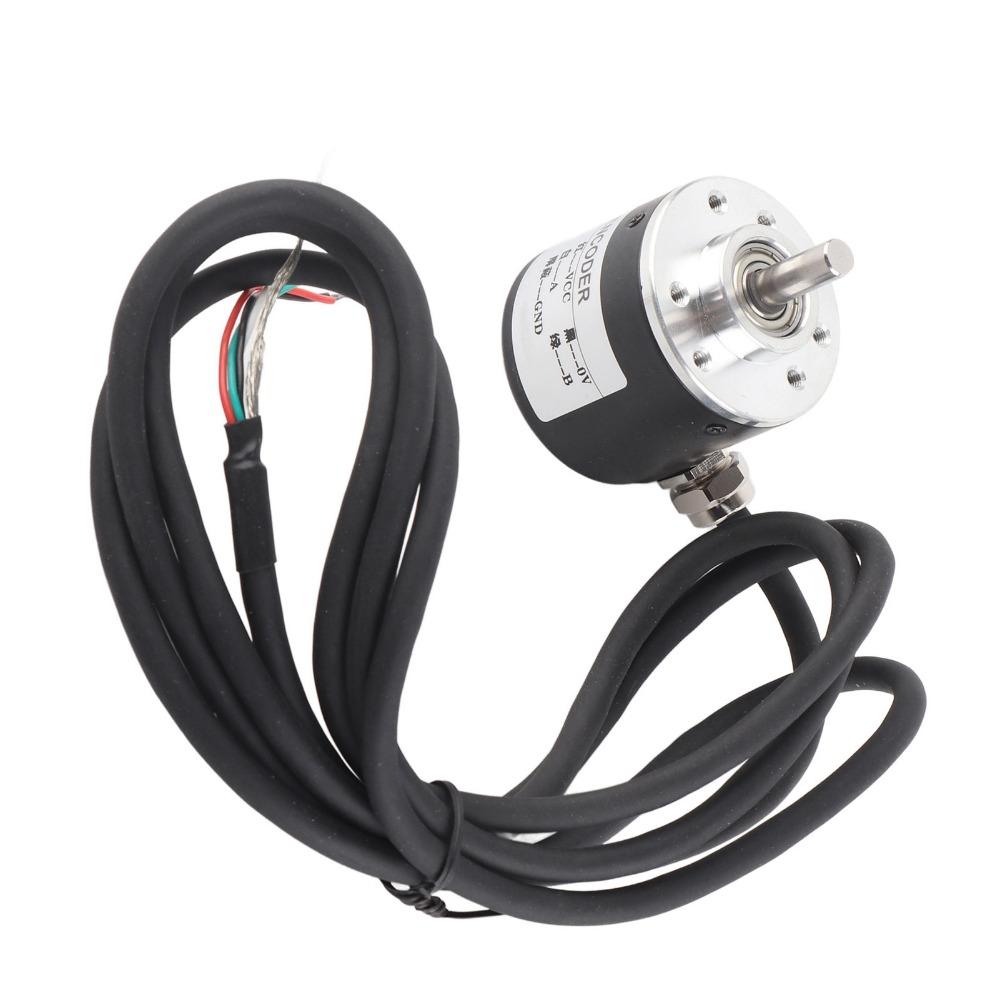

Shaft: 6*15mm(0.24*0.59in)
Maximum mechanical rate: 5000 R / min
Working temperature: -25-85 ℃
Cable length: 1.5 meter
Uses:
1. It can be used to measure the rotational rate, Angle and acceleration of the object and the length measurement
2. Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, racing robots
Notice:
1.AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode

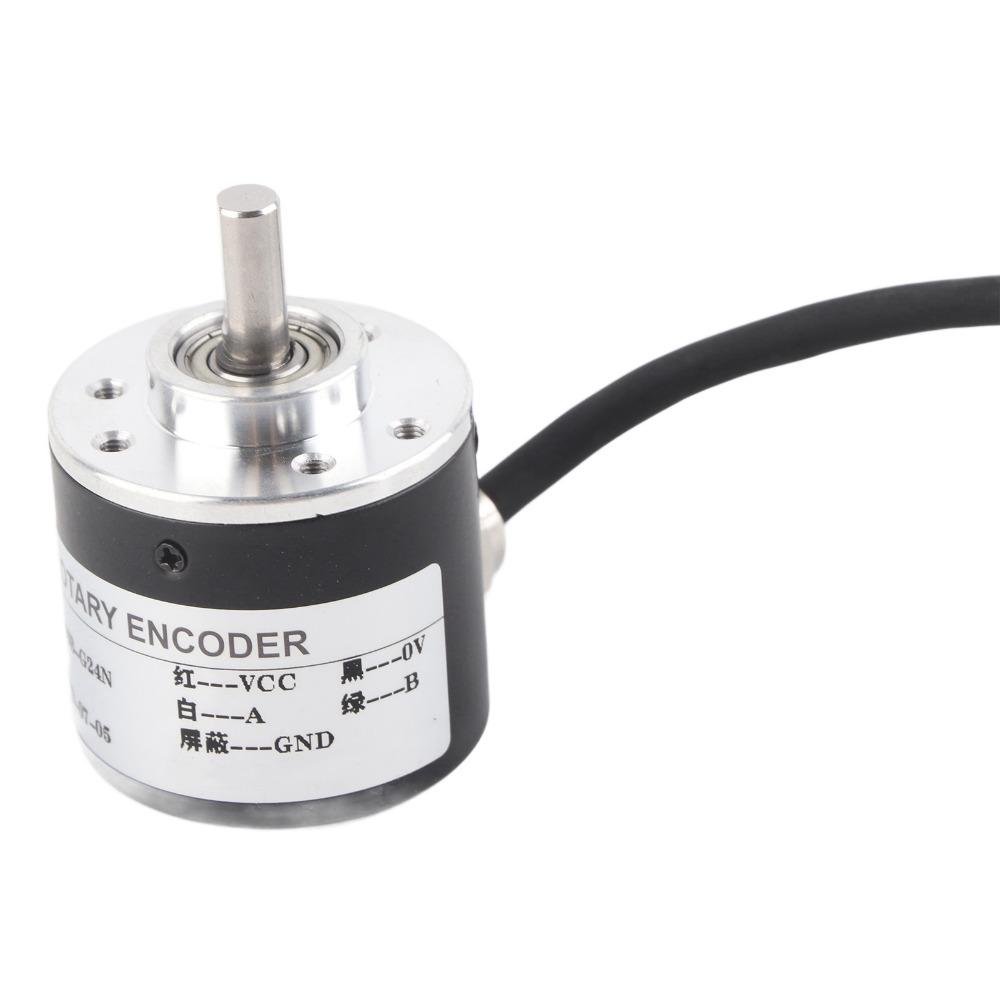

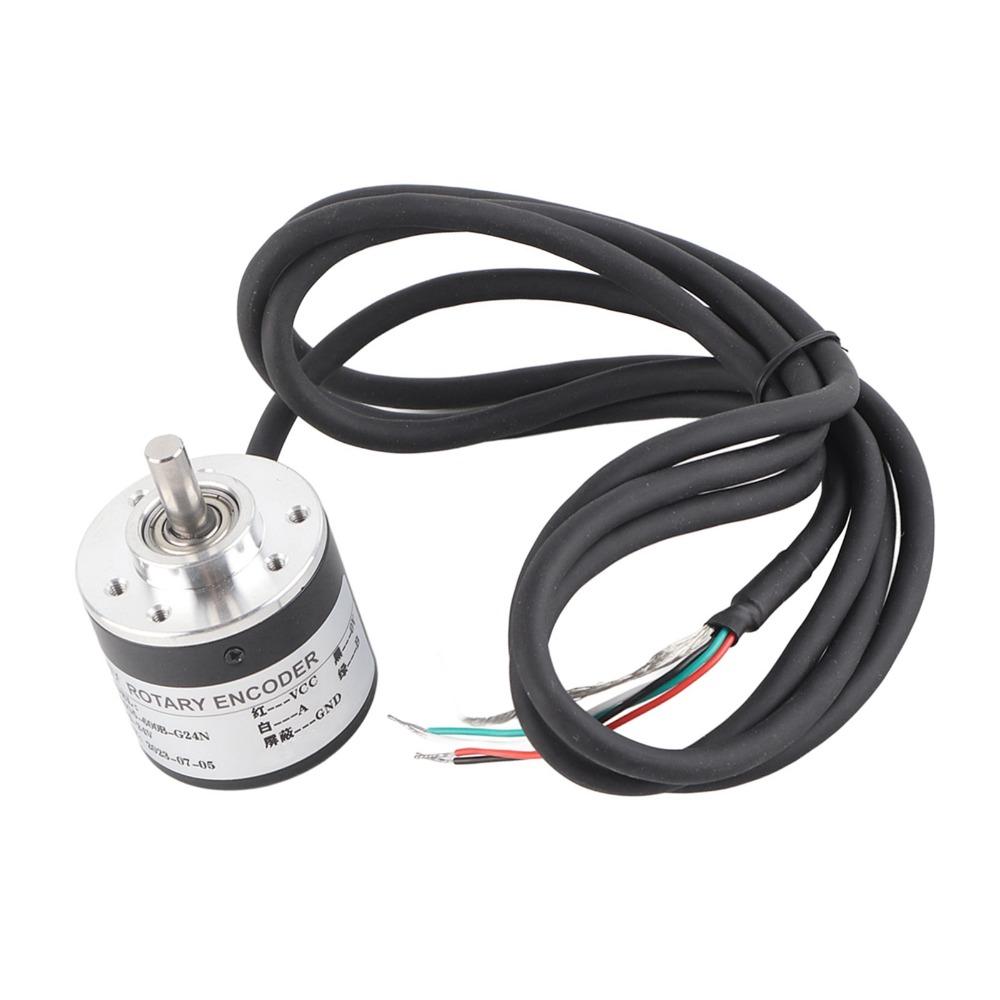

2.Green = B+, white = A+, red = Vcc, black = 0V
3. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
4. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
Package included:

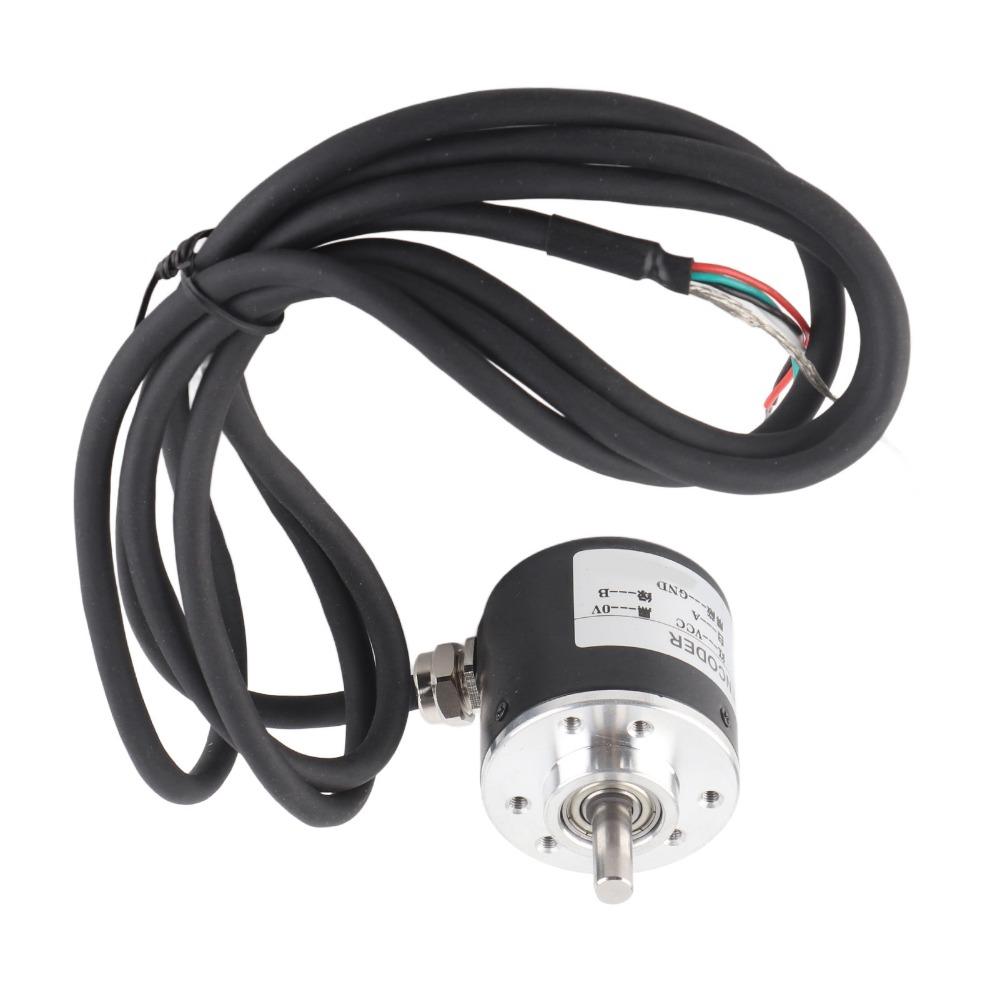

1 x Encoder 600P/R Incremental Rotation Encoder
