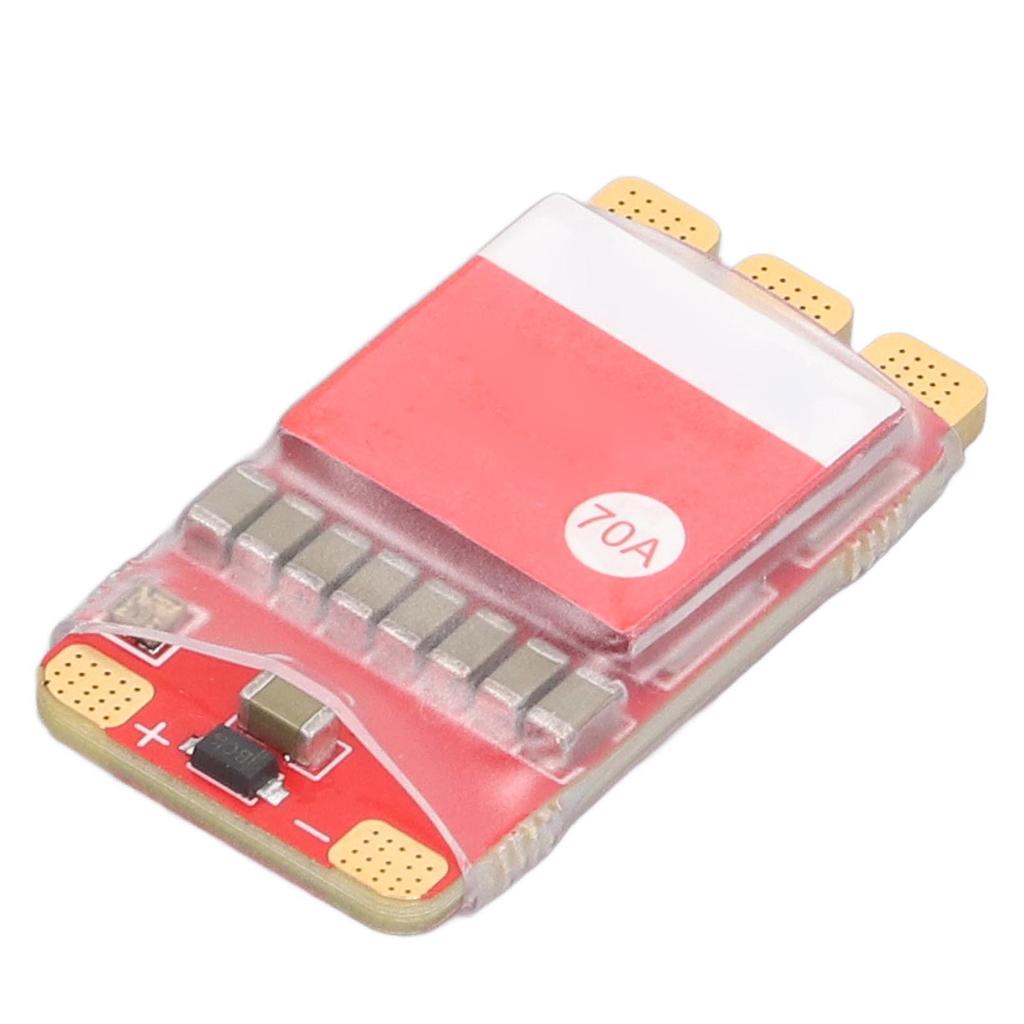

Brushless Electronic Speed Controller BLHeli32 Firmware 70A 2‑6S Lipo Power Supply ESC Speed Controller for RC Boat UAV

Feature: 1. [High Performance Processor] This electronic speed controller features 32 bit high performance processor, the STM32G071, with a working frequency of up to 64MHz, supporting a maximum motor PWM frequency of 128KHz. 2. [Advanced PCB Design] The PCB utilizes 8 layer 3OZ gold immersion process, along with high power MOS and metal heatsink, ensuring efficient heat dissipation even under heavy current loads, ensuring continuous and stable operation. 3. [Multiple Motion Modes] This ESC supports various motion modes such as unidirectional, bidirectional, and braking, providing flexibility for different motor applications. 4. [Parameter Adjustment] With a visual programming parameter adjustment tool, this ESC allows for setting motor angle, throttle calibration, current detection, motor direction, telemetry signal, and more. 5. [Multiple Safety Protections] Equipped with multiple safety protections including low voltage protection, temperature protection, stall protection, current protection and so on, this ESC ensures the safe and reliable operation of your motor system. Specification: Item Type: Brushless Electronic Speed Controller Material: PCB Processor: STM32G071 Input Voltage: DC 7 25.2V (2 6S Lipo) Continuous Current (Good Heat Dissipation): 70A Maximum Current (Good Heat Dissipation): 110A Firmware Support: BLHeli_32 BLHeli_32 Firmware: SEQURE_G071_01 Signal Protocol: Dshot (all), PWM, Oneshot, Multishot Programming Parameter Adjustment: Support Throttle Calibration: Support Angle Setting: Support Current Detection: Support Telemetry Signal: Support Motor Direction Setting: Support RGB LED Light: Support BEC: 5V 4A, 6V 4A, 7.2V 4A, 8.2V 4A, 12V 3A Adjustable. Package List: 1 x Brushless Electronic Speed Controller 1 x 14AWG 100mm Black Silicone Wire 1 x 14AWG 100mm Red Silicone Wire 1 x 35V 680UF High Frequency Capacitor 2 x 18 Gauge Heat Shrink Tube (50mm) 2 x 18 Gauge Heat Shrink Tube (28mm)
