Feature:
1. Multi‑functional ground resistance clamp meter, supports ground resistance test and loop resistance test.
2. It supports automatic gear shifting, when the battery voltage is lower than 5.3V, the battery voltage low sign is displayed.
3. The resistance and current alarm thresholds are adjustable and the data stored at the same time is 99 units, for easy measurement.
4. When measuring a grounding system with loops, there is no need to disconnect the ground wire without auxiliary electrodes.

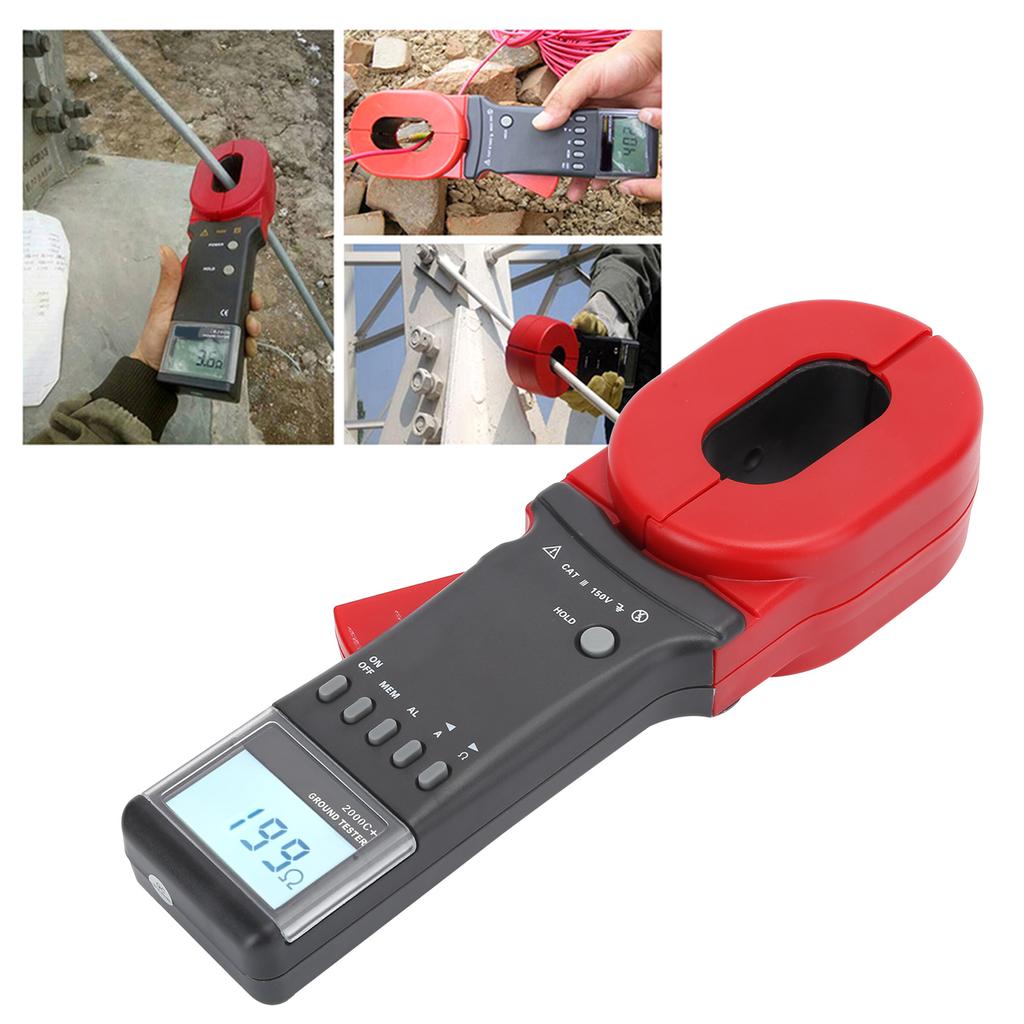

5. Widely used in electric power, telecommunications, meteorology, oil fields, construction and industrial electrical equipment and other fields.
Specification:
Condition: 100percent Brand New

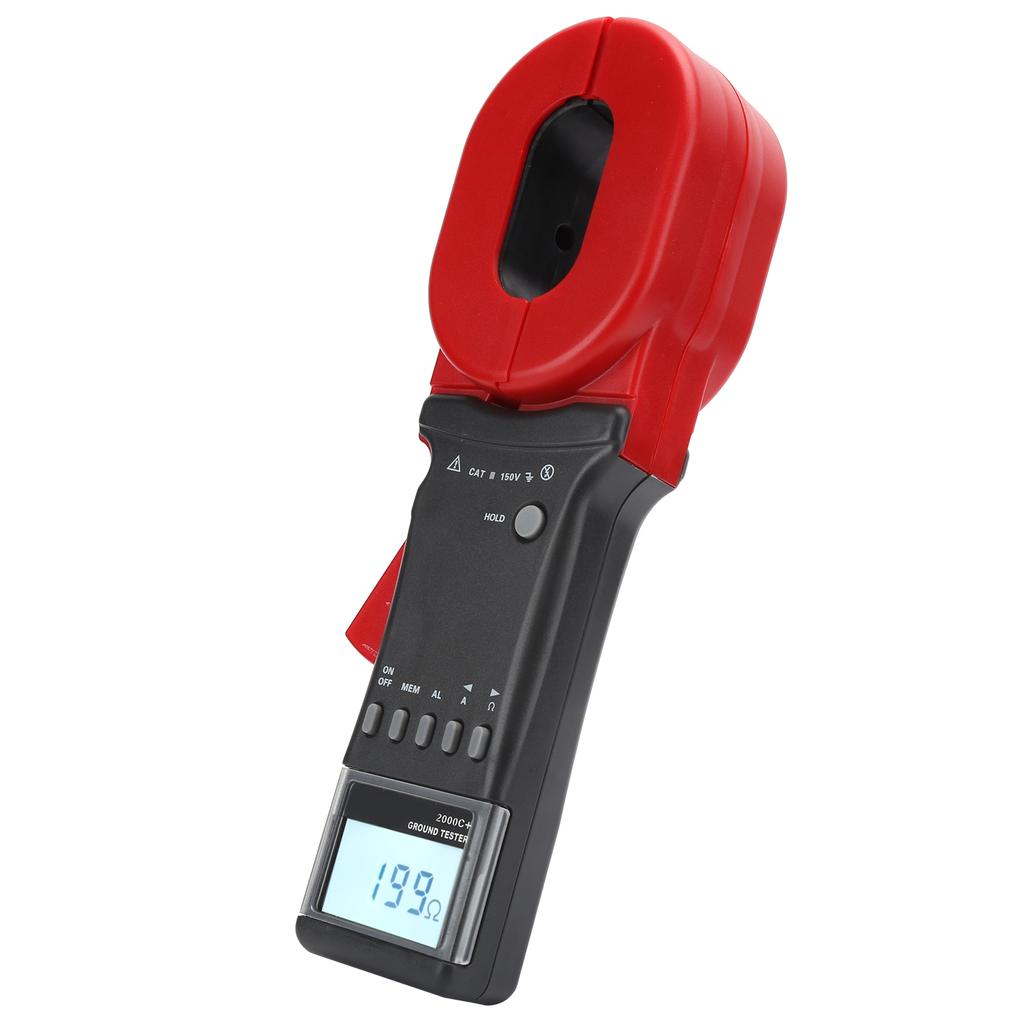

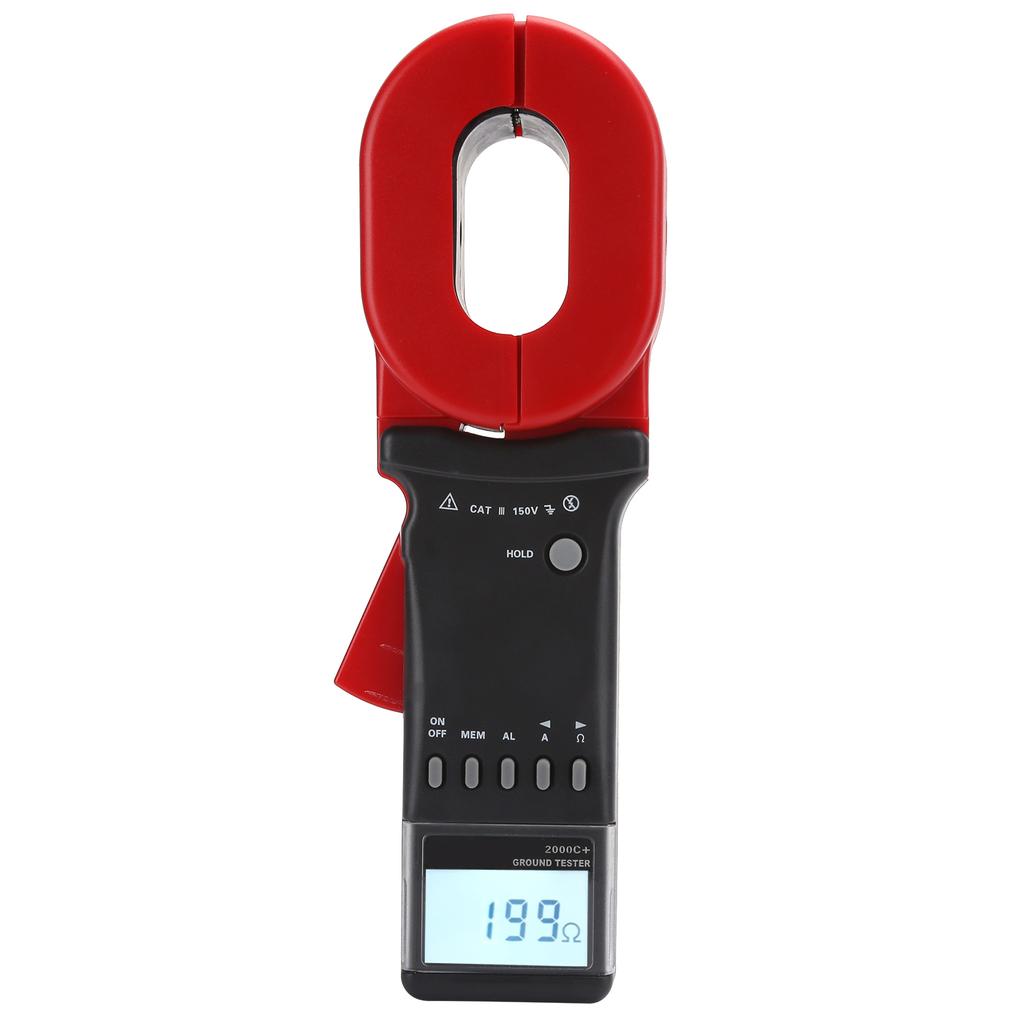

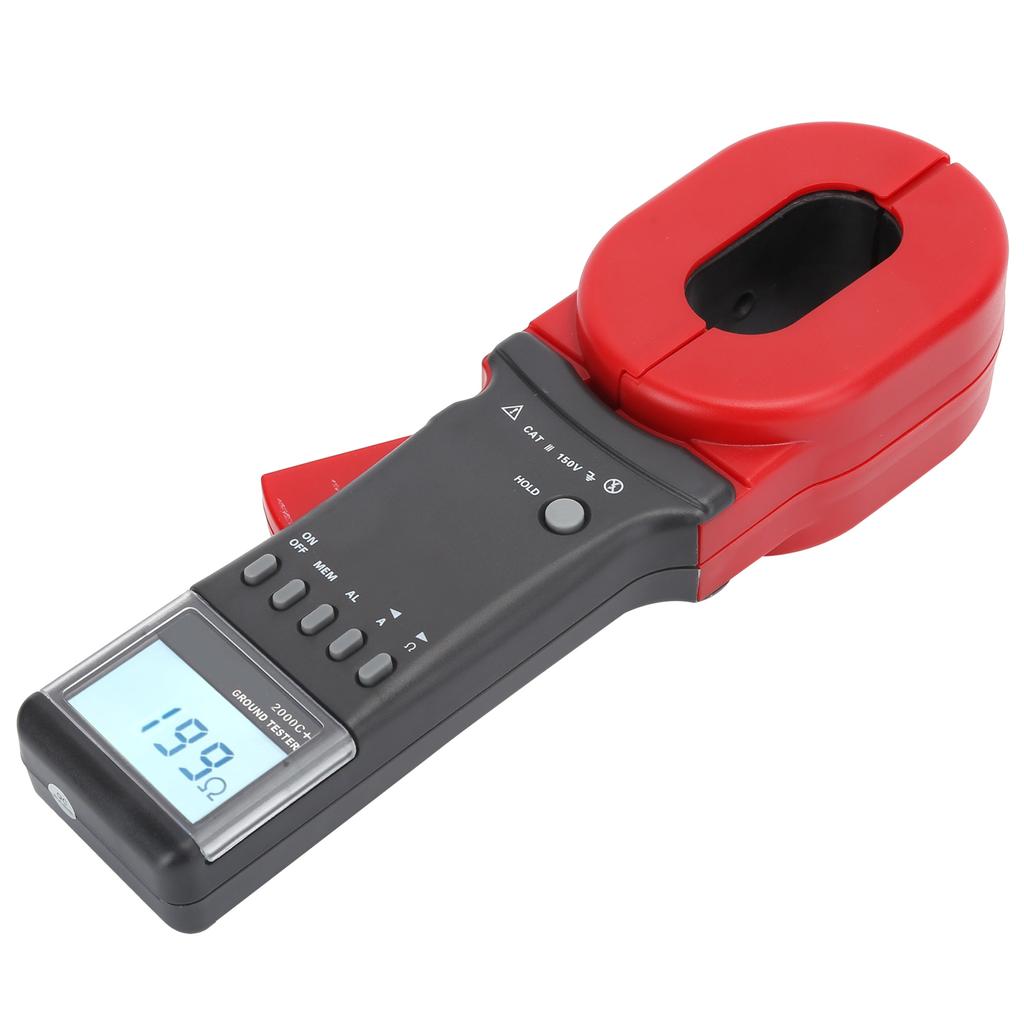

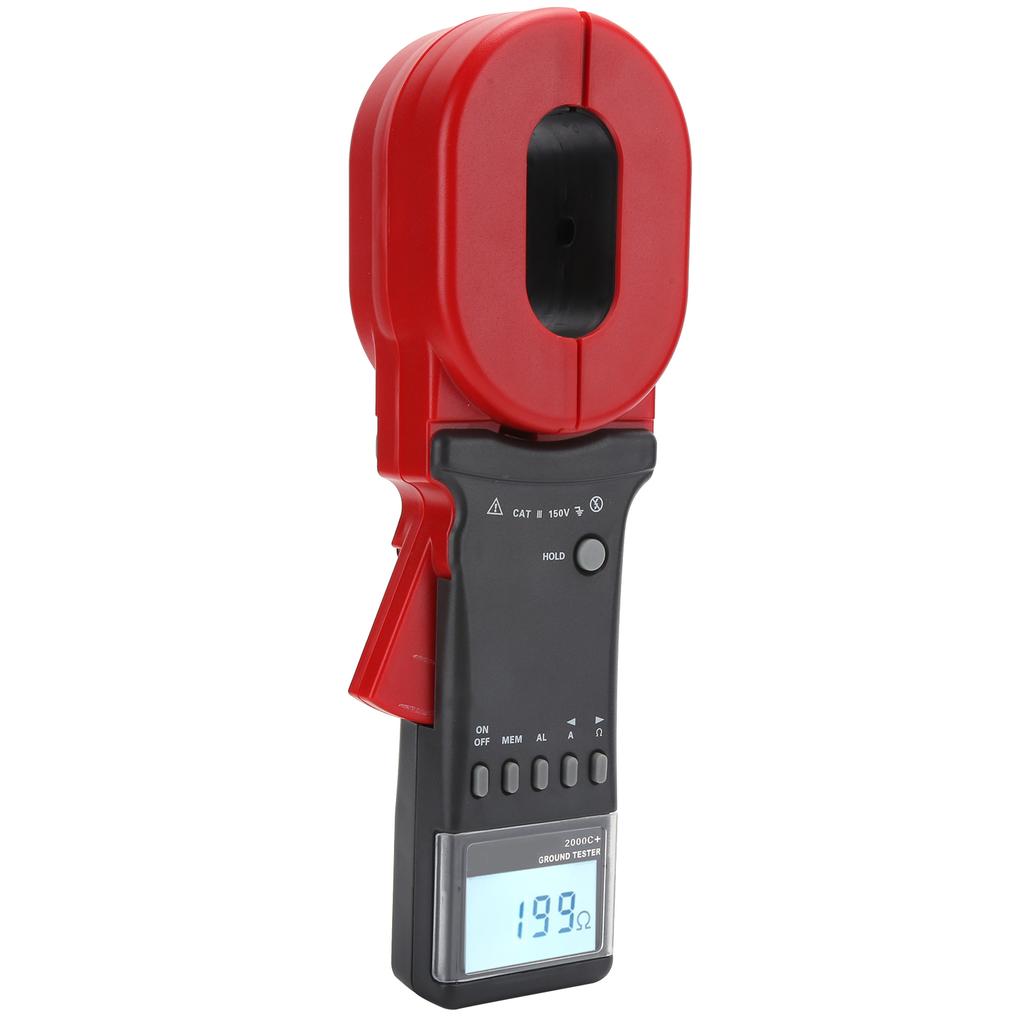

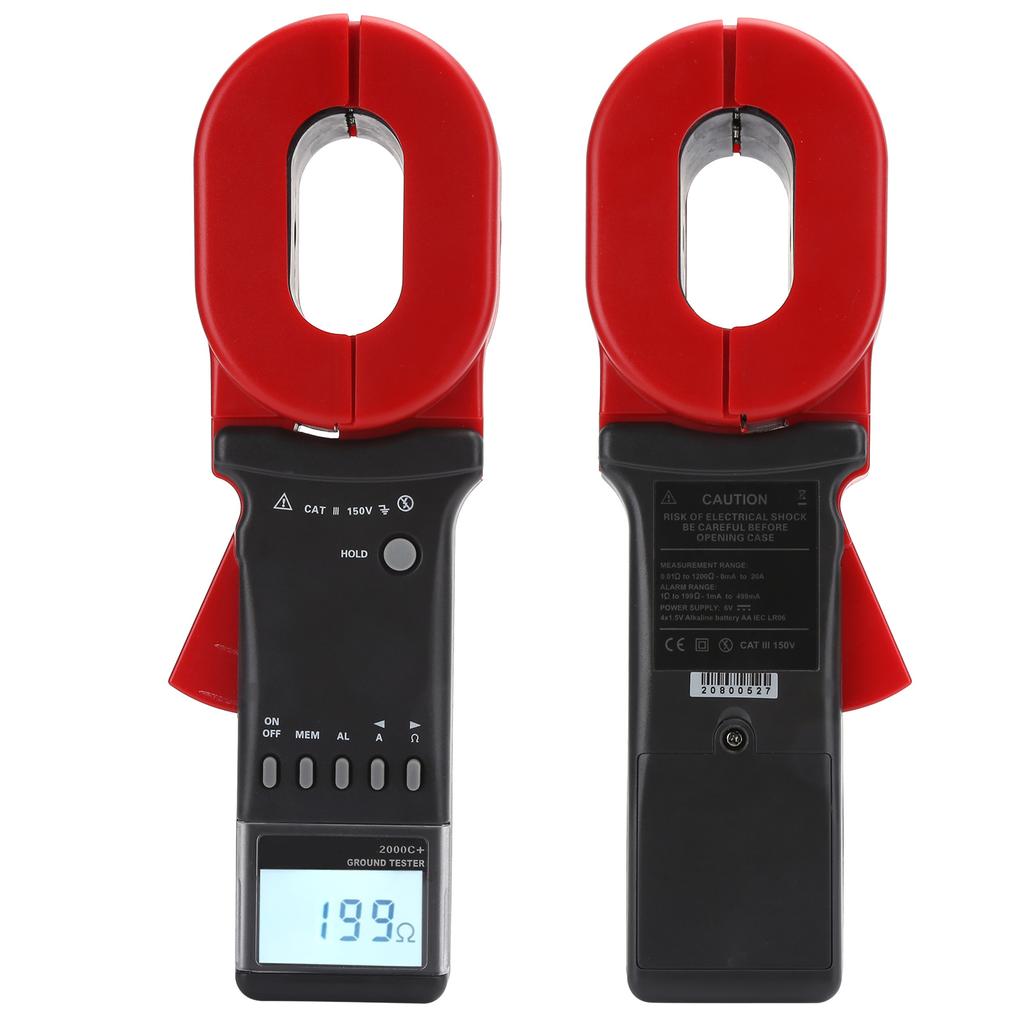

Item Type: Ground Resistance Clamp Meter
Material: ABS+Iron
Function
Ground Resistance Test, Loop Resistance Test
Power Supply
4 x 1.5V AA Dry Battery (Battery Not Included)
Resistance Range
0.01 1200 Ohm
Current Range
0.00mA 20A
Resistance Resolution
0.001 Ohm
Current Resolution
0.05mA
Data Storage
99 Groups
Alarm Threshold Setting Range
Resistance: 1 199 Ohm , Current: 1 499mA
Audible Alarm
Beep beep beep alarm sound, the alarm symbols flashes, press the AL button to turn on, off, and set
Interference Signal Recognition Function
Beep beep beep prompt tones, NOISE symbols flashes
Working Temperature and Humidity
20 celsius 55 celsius ; 20percent RH 90percent RH
LCD Display
4 digit LCD digital display, Size: Approx. 47x28.5mm 1.9x1.1in
Jaw Size
Approx. 65x32mm 2.6x1.3in
Clamp Meter Size
Approx. 285x85x56mm 11.2x3.3x2.2in
Protection Level
Double Insulation
Structural Features
Clamp CT
Shift
Automatic Gear Shift
External Magnetic Field
40A M
External Electric Field
less than 1V M
Single Measurement Time
0.5 Seconds
Resistance Measurement Frequency
more than 1KHz
Frequency of Measured Current
50 60Hz Automatic
Low Battery Voltage Indication Function
When the battery voltage is lower than 5.3V, the battery voltage low sign is displayed
Stored Data Full Indication
99 sets of stored data are full, and the MEM sign flashes
Over Range Indication
Over range indication OL Ohm , L0.01 or OL A
Automatic Shut Down
The meter will automatically shut down after about 5 and a half minutes after starting up
Power Consumption
Startup, working current is less than 50mA, continuous working for about 30 hours
.
Package List:

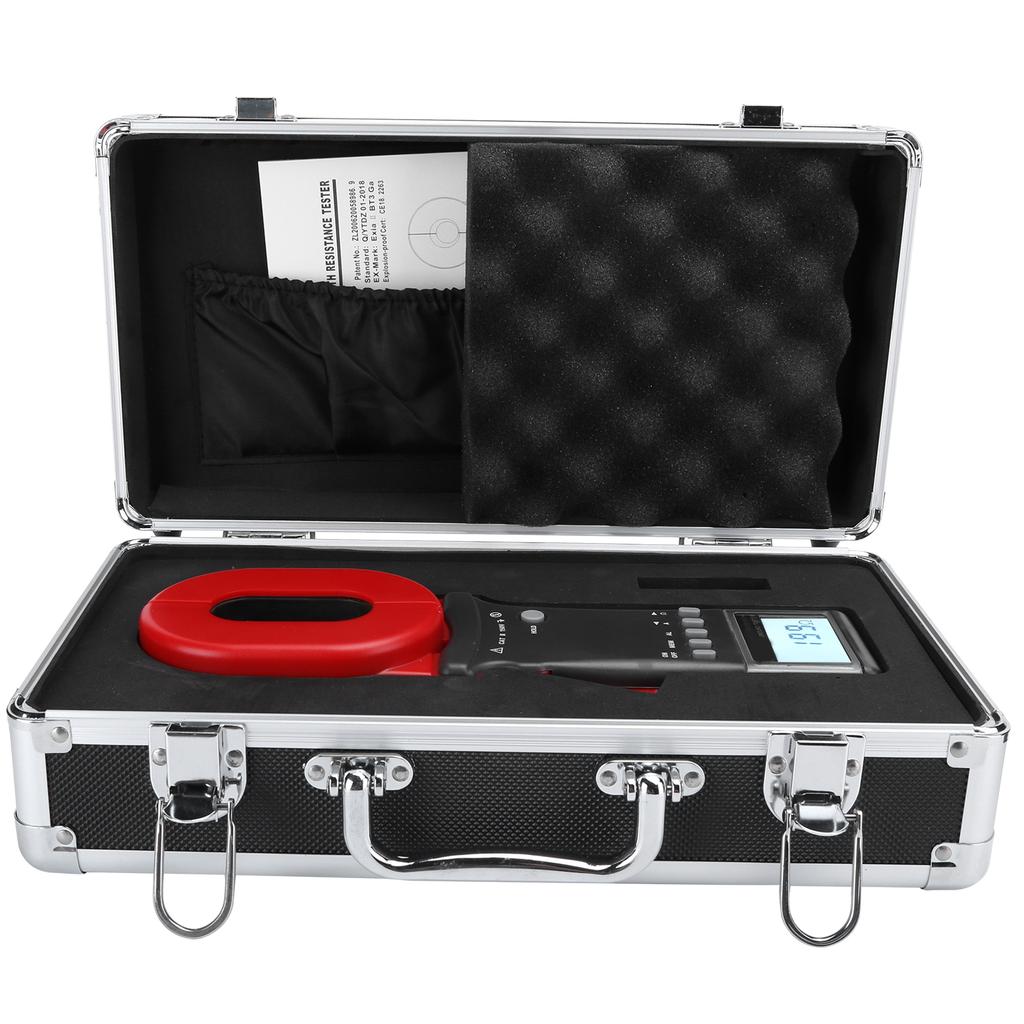

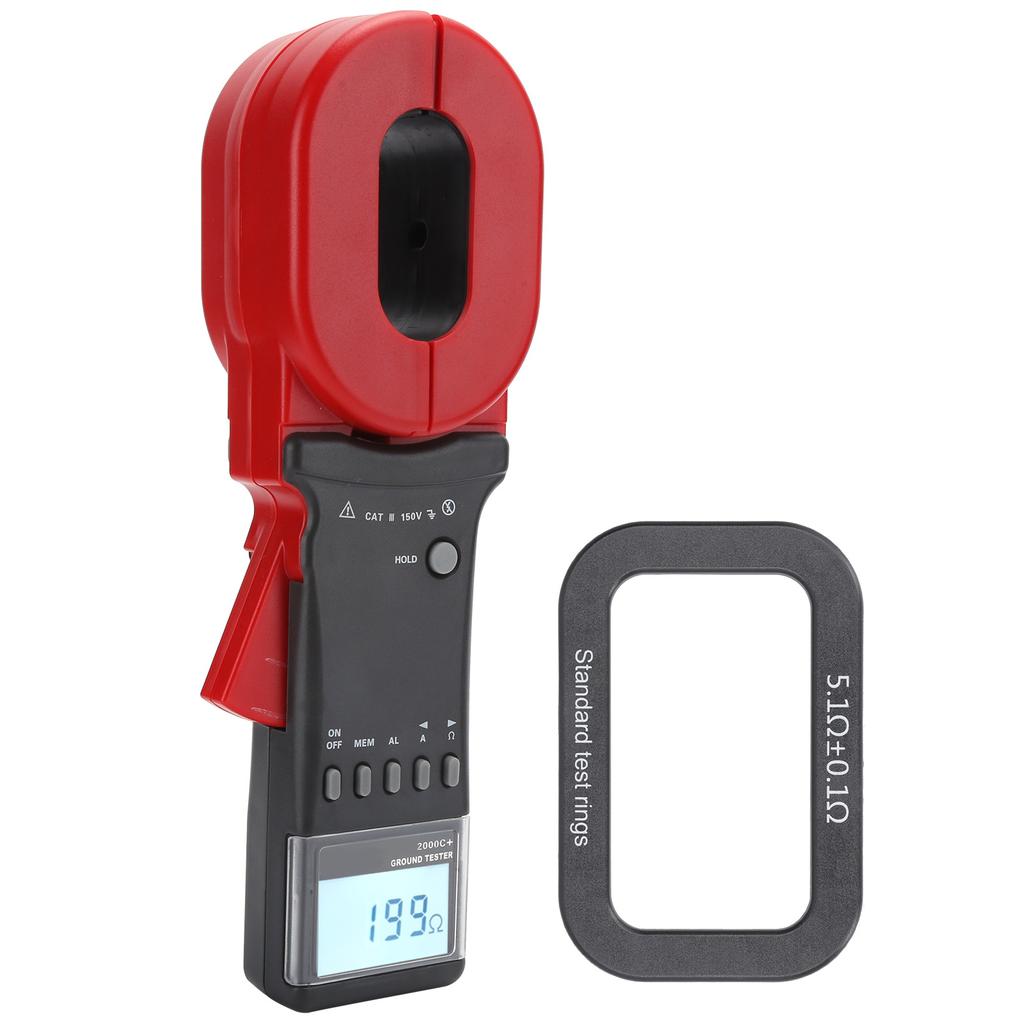

1 x Clamp Meter (Battery Not Included)1 x Testing Ring1 x Aluminum Case1 x Manual
Note:
1. Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
