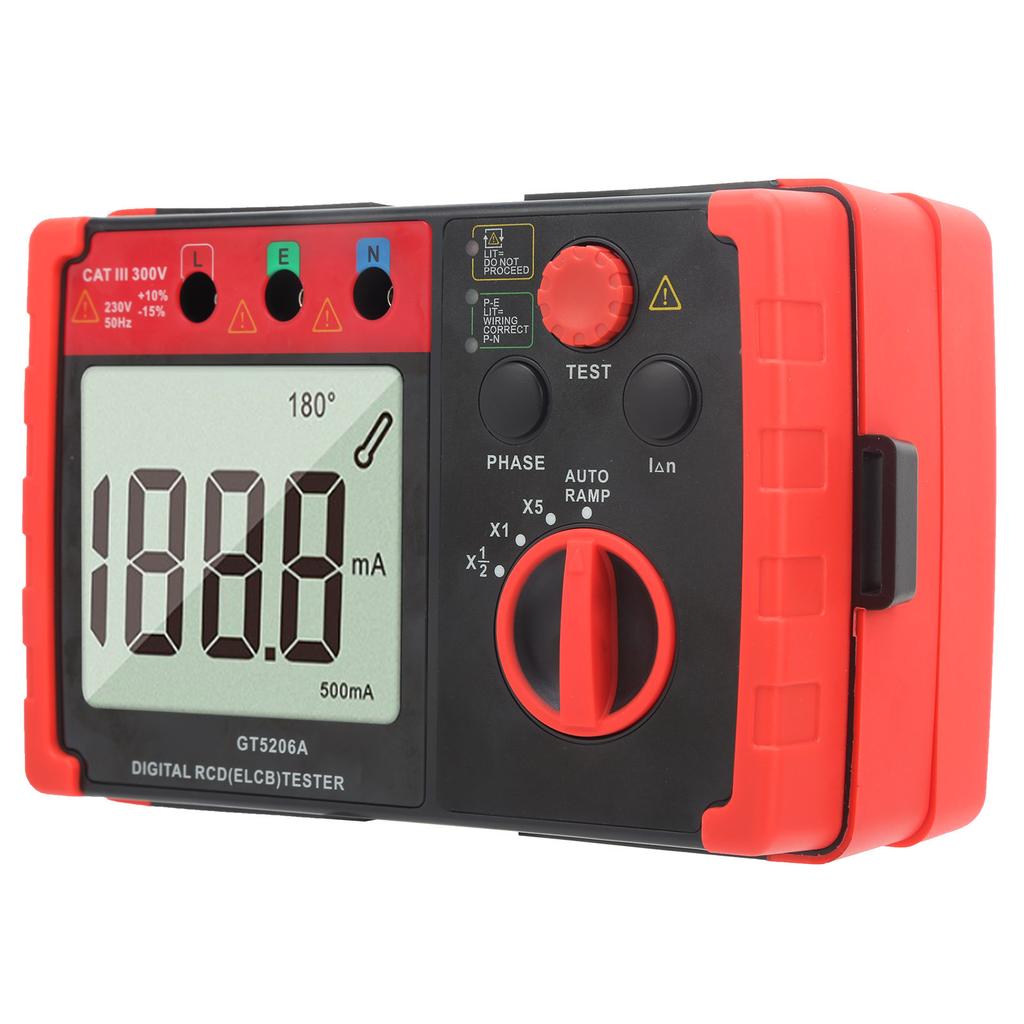

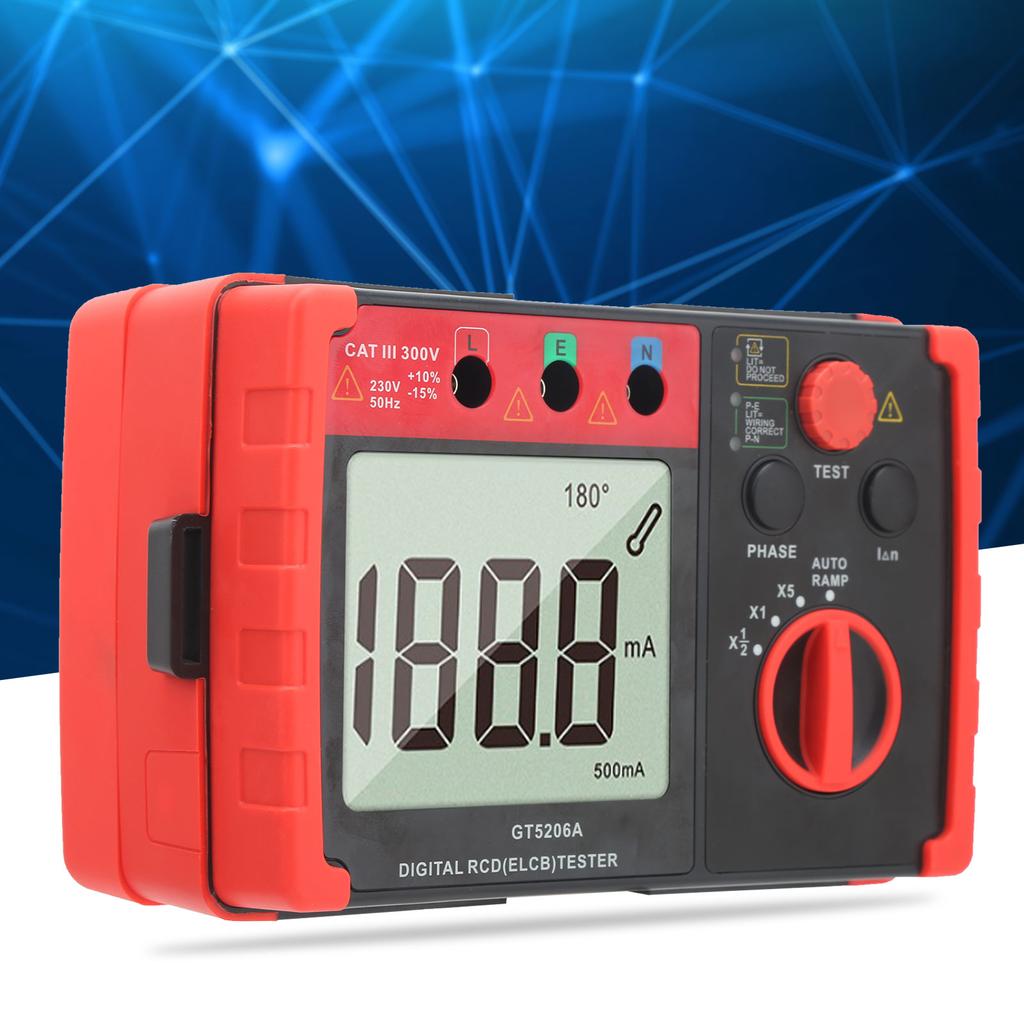

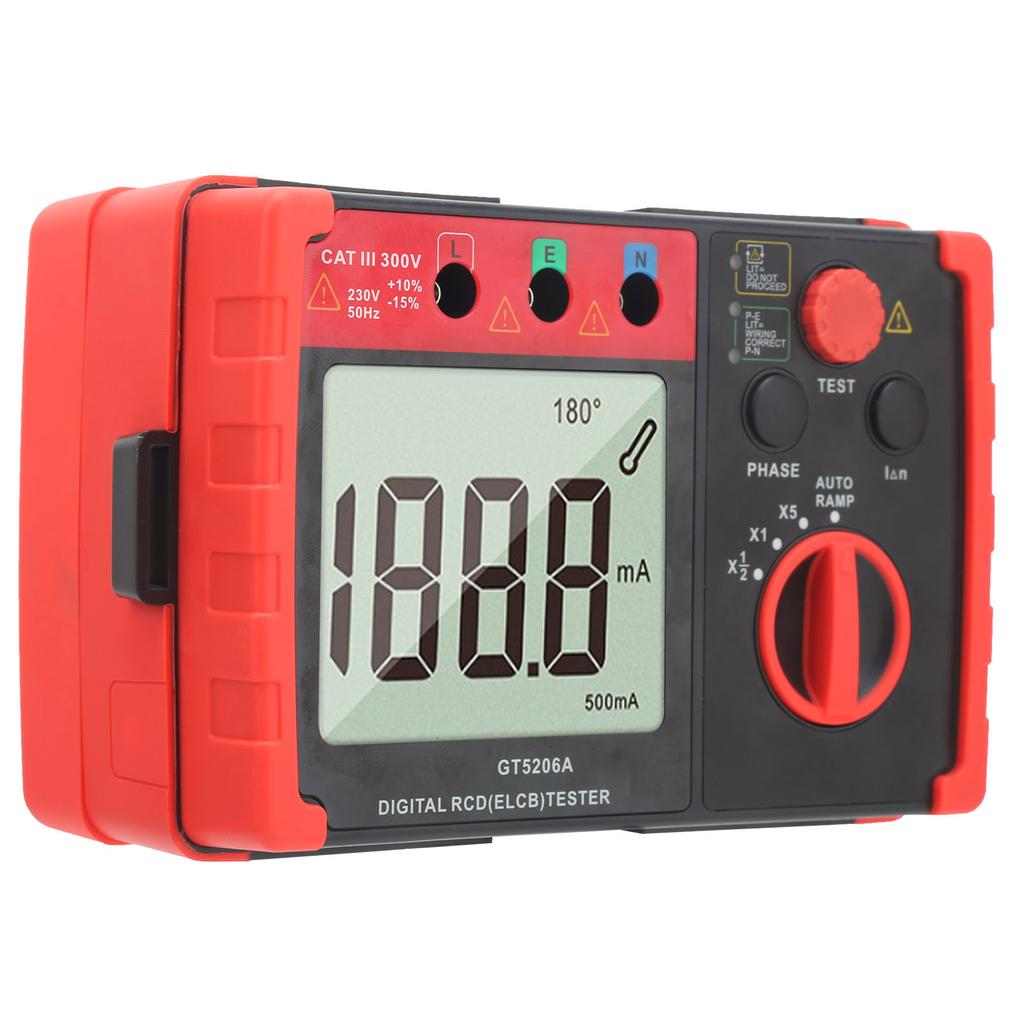

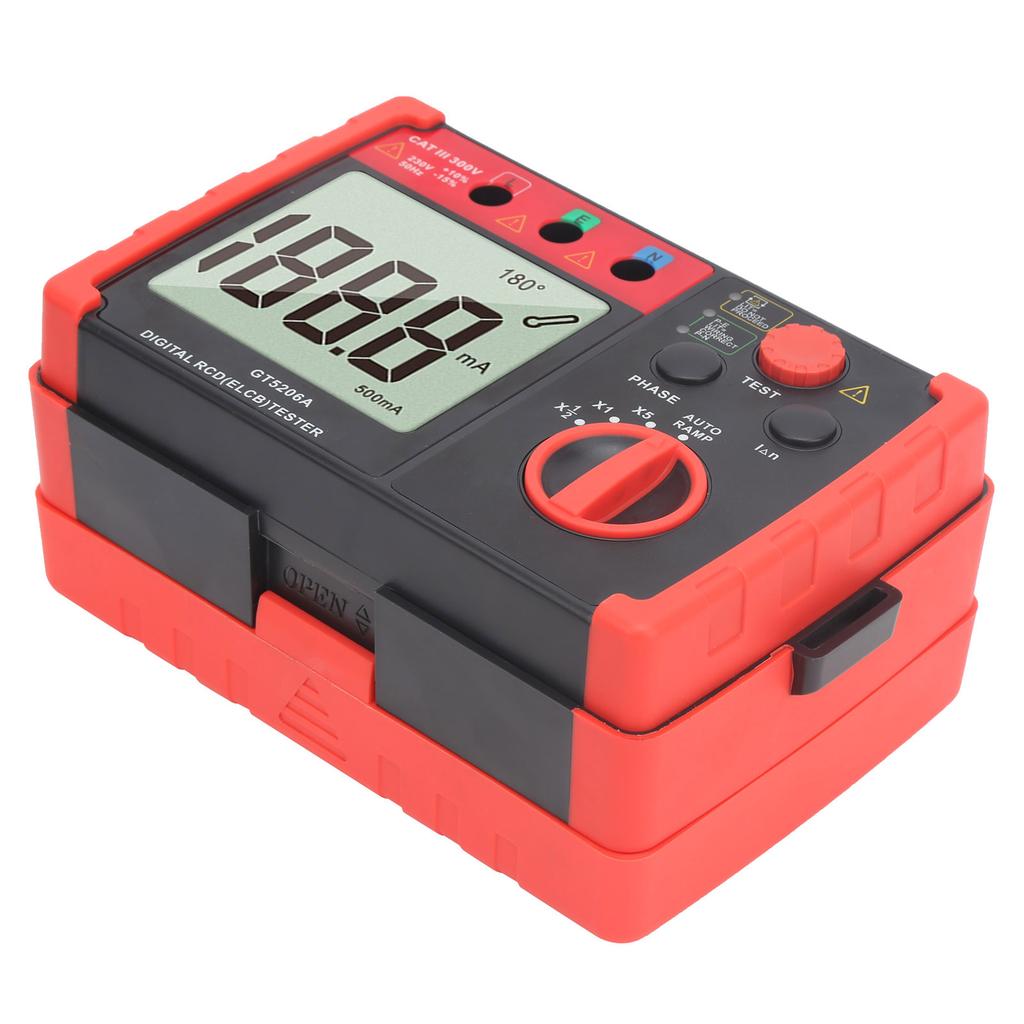

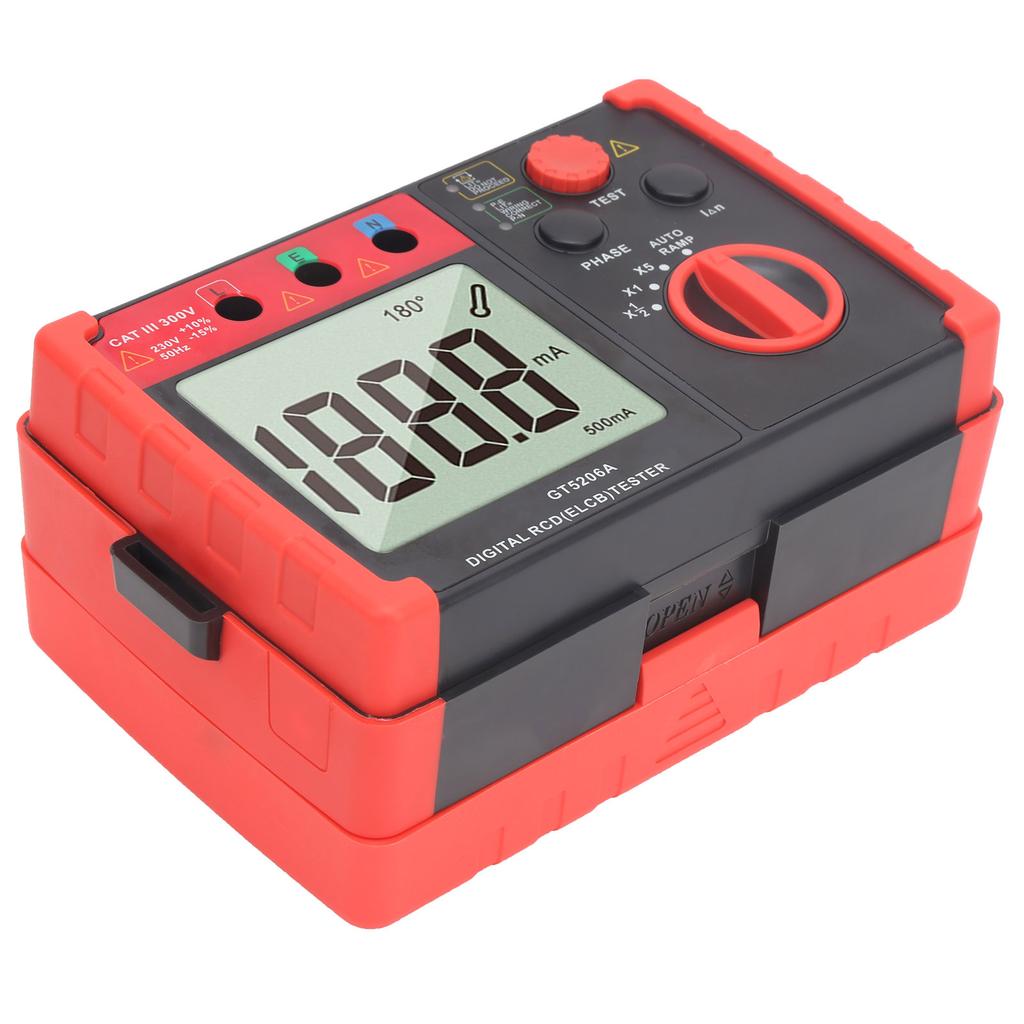

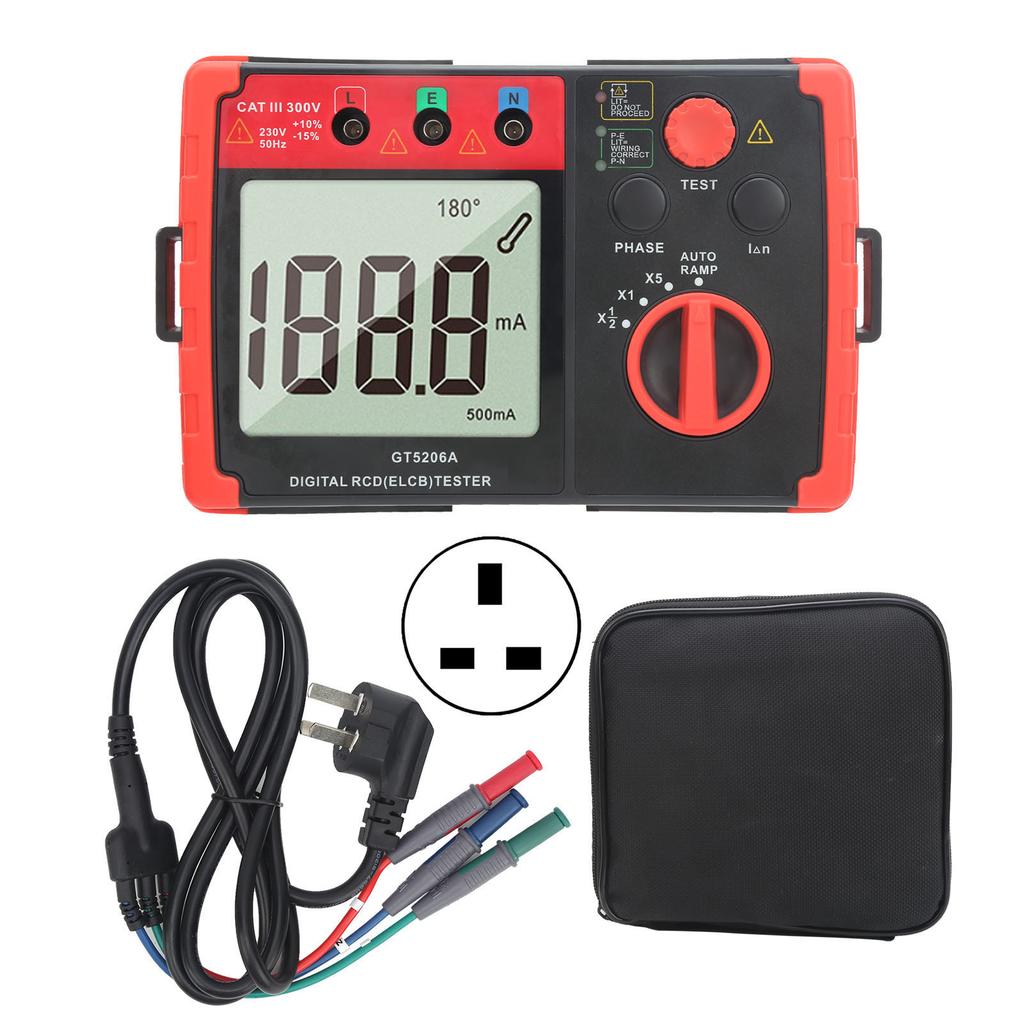

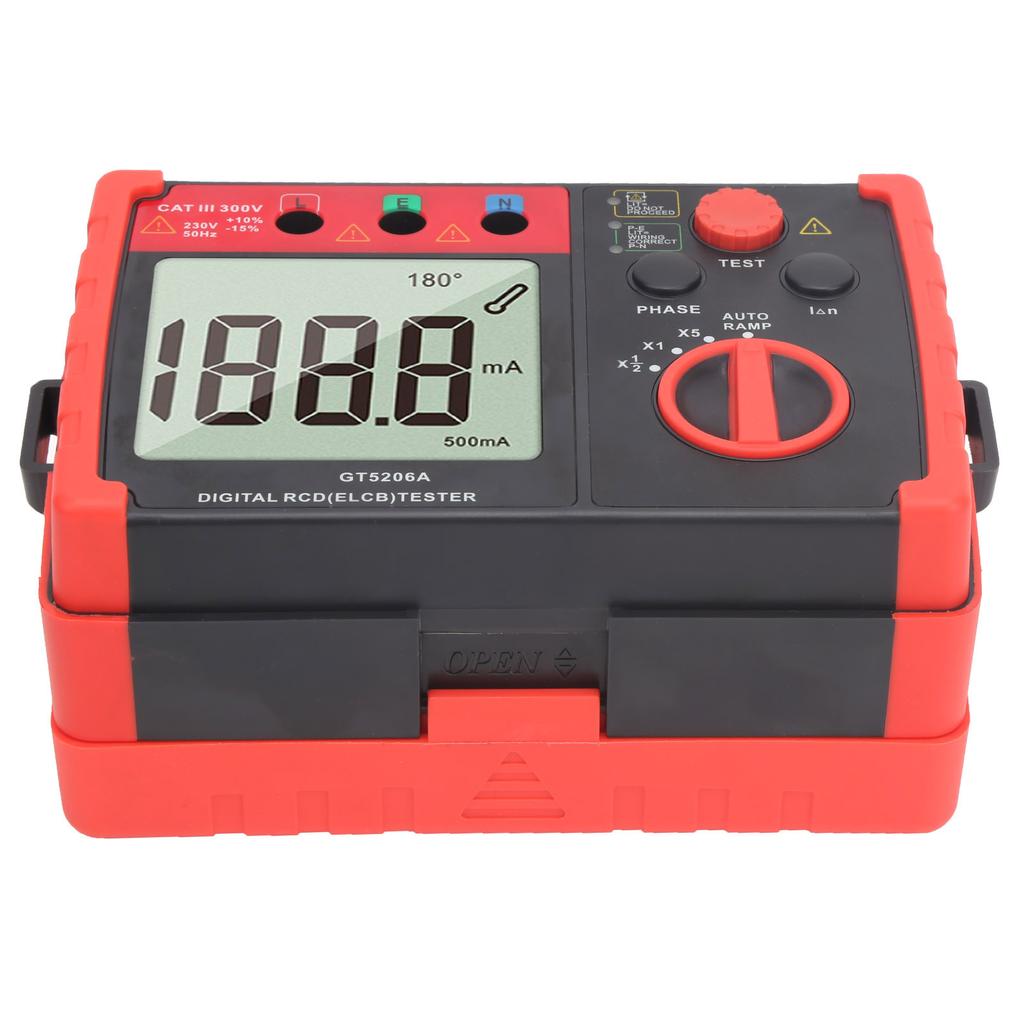

GT5206A Digital RCD (ELCB) Tester Leakage Protection Switch Detector Testing InstrumentAU Plug 220V

Feature: 1. Positive (0 degree) or negative (180 degrees) half‑period phase angle can be selected to measure half‑period. 2. Tripping action current and action time AUTOAMP test can be measured at the same time. 3. It is more convenient to keep the displayed measurement results for a certain period of time after the test is completed. 4. It is used for safety measurement in electric power, manufacturing, smelting, chemical, household electricity and other industries. 5. It is an ideal tool for the production, installation, inspection and maintenance of leakage protection switches. Specification: Item Type: Leakage Protector Tester Material: ABS Function Working Voltage (AC) Rated Working Current Fault Action Time (Maximum) Accuracy Operating Current Operating Time X1 2 230V (Error Range: 15percent 10percent ) Frequency: 50HZ 10 20 30 100 300 500mA 1000mS Error Range: 10percent +10percent + 0.6percent rdg+ 8dgt X1 10 20 30 100 300mA 1000mS Error Range: 10percent +10percent 500mA 300mS X5 10 20 30mA 1000mS Automatic Ramp Test 10 20 30 100 300 500mA Ramp Increase Step Length 10percent Ln from 20percent 110percent Error Range: 10percent +10percent Working Voltage 230V 50HZ(Voltage Range: 195 253V) Working Environment Temperature: 0 celsius 40 celsius , Relative Humidity less than 80percent RH Working Height

less than Approx. 200m 656.2ft Storage Environment Condition Temperature: 20 celsius 60 celsius , Relative Humidity less than 75percent RH .How to Use: Plug the meter head into the corresponding interface and plug the power cord into the socket Wiring check: Whether the three LED indicators are correct, P E and P N two green indicator lights are on, red indicator light is not on, it is correct: the test can be triggered only when the wiring is correct. OL display for over range: When the test trip action time exceeds the maximum test time, the LCD will display OL mS; Phase angle selection: The test can be started from a positive (0 degrees) or negative (180 degrees) half cycle; Automatic data retention: keep the displayed measurement results for a certain period of time after the test is completed; AUTO RAMP test: AUTO RAMP test can test the tripping action current and action time at the same time. Built in FUSE security protection; Power supply: directly supplied by the line to be tested (power supply 230V 50Hz); Shutdown alarm reminder function: after 3 minutes of operation, the instrument will emit a shutdown buzzer alarm reminder; this instrument is only suitable for single phase 230V 50Hz (power supply voltage range 195 253V line use) Package List: 1 x Leakage Protection Switch Tester1 x Power Cable1 x Cloth Bag1 x Instruction
