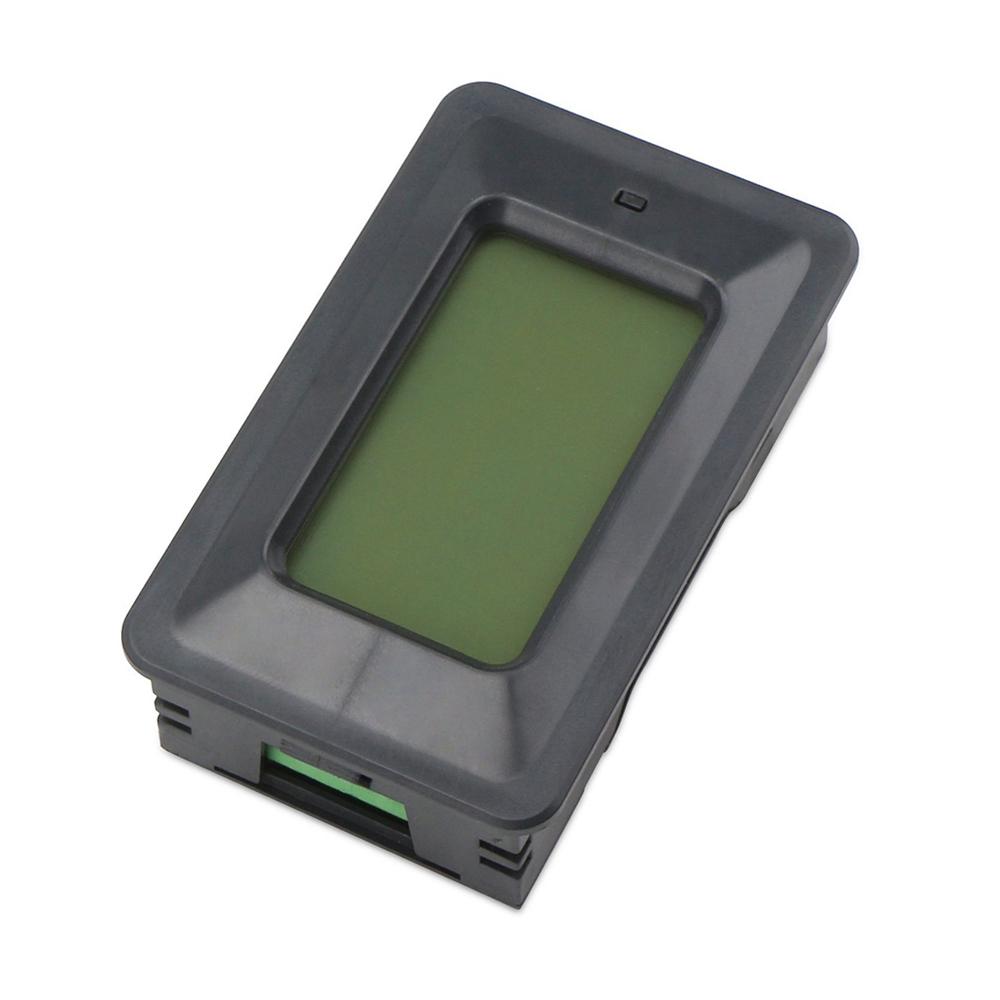

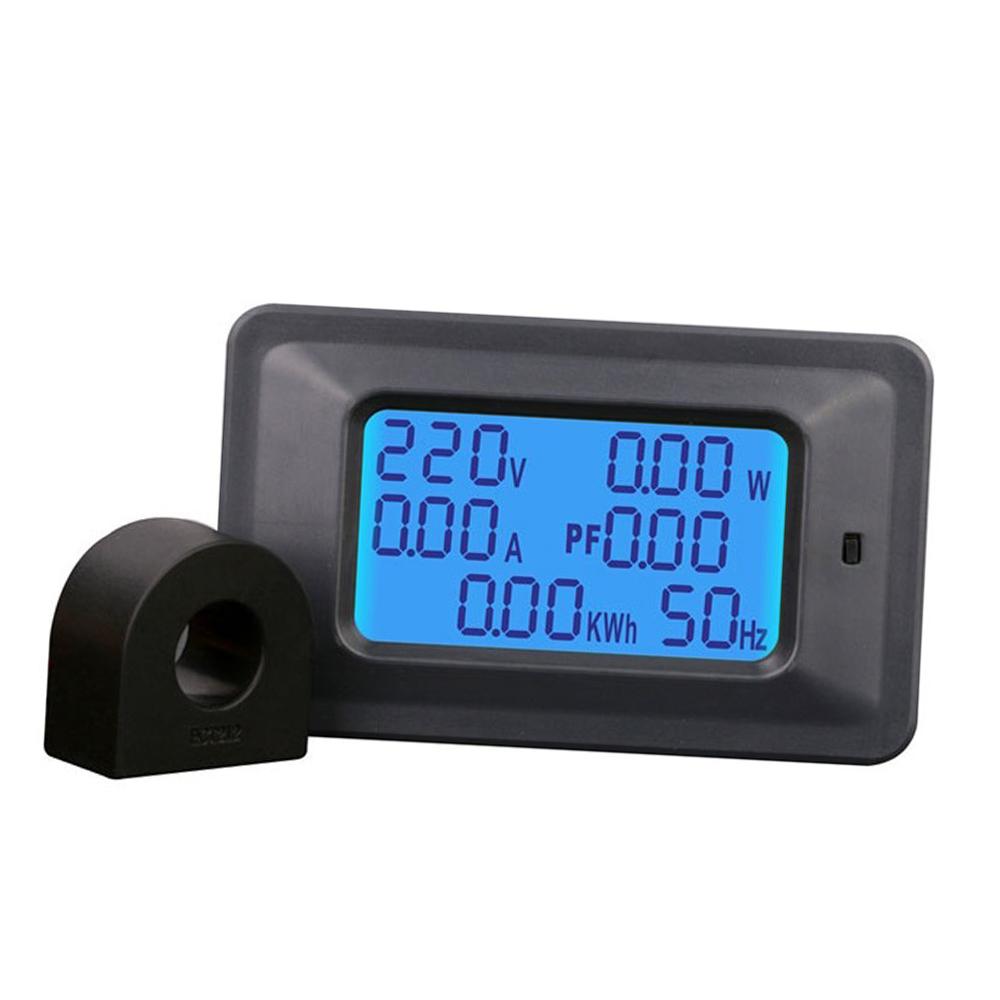

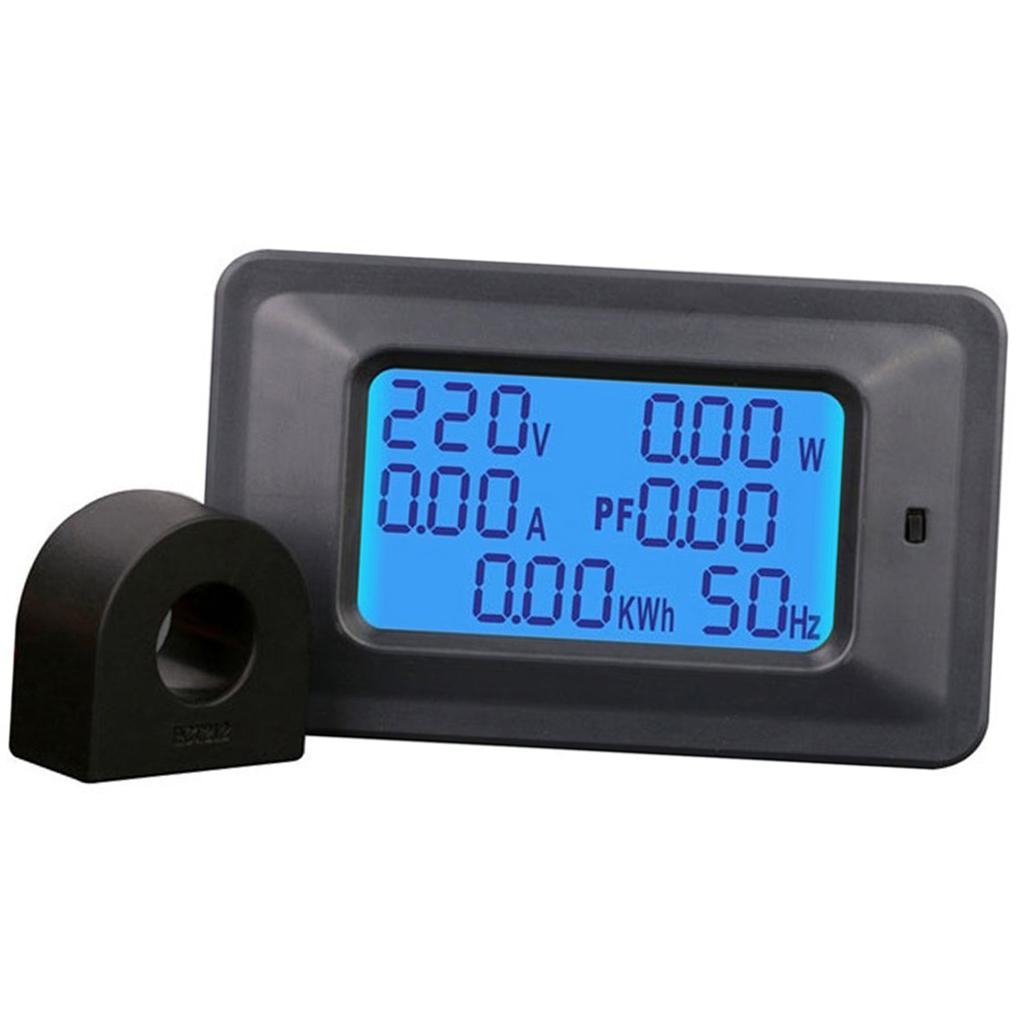

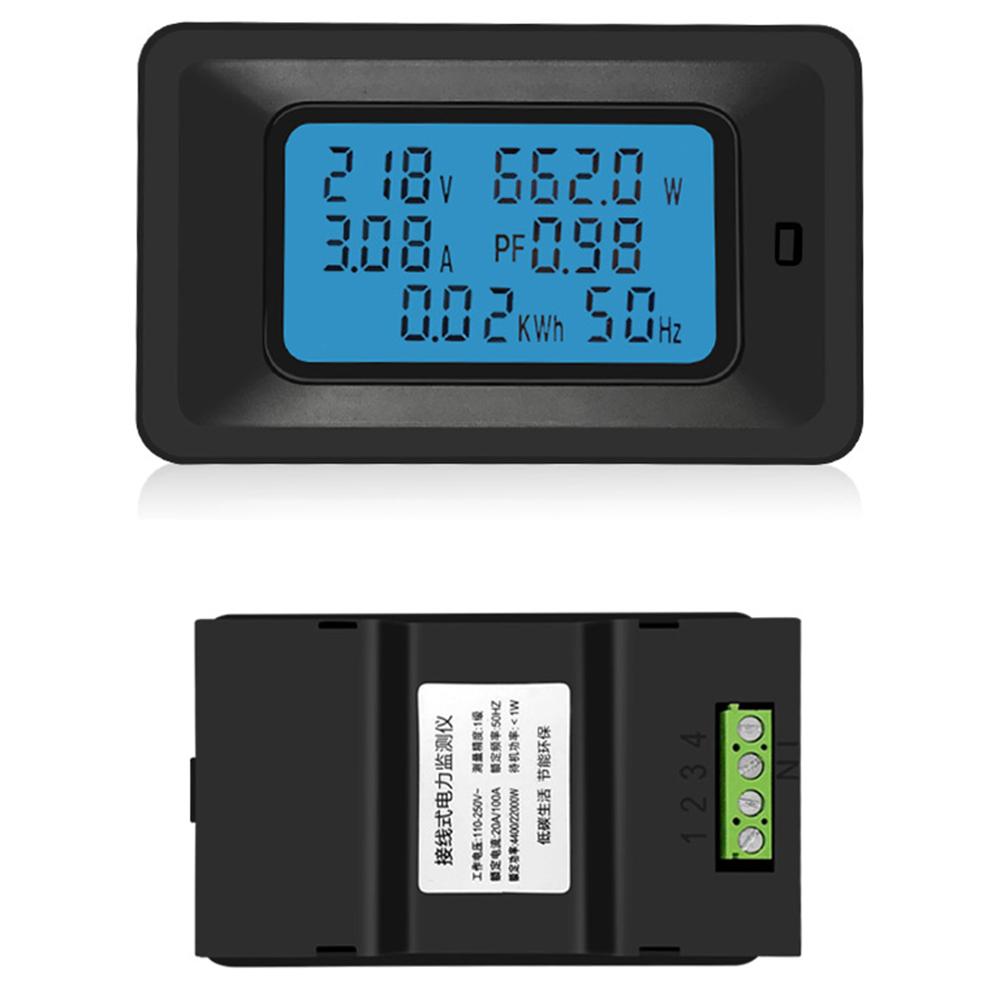

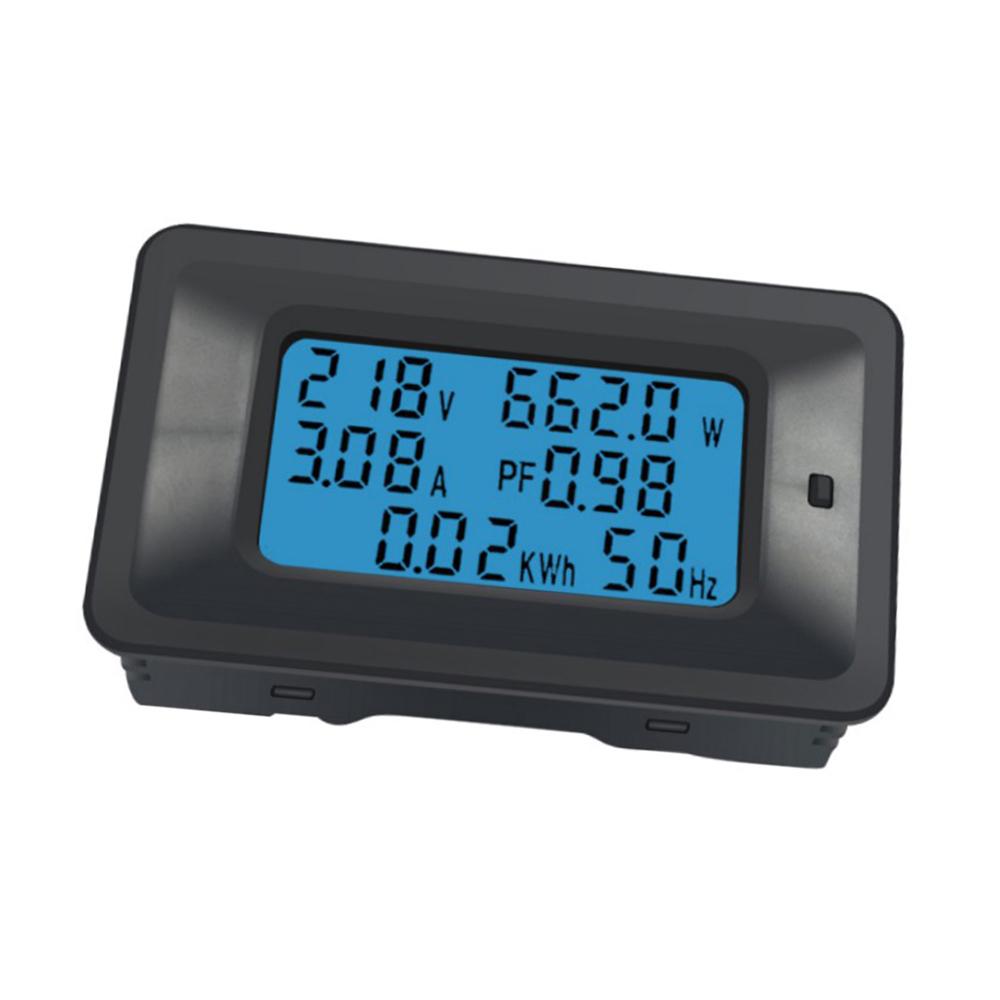

100A Digital Voltage Meter Energy Meter LCD 5KW Power Factor Energy Frequency Meters Voltmeter Ammeter Current Amps

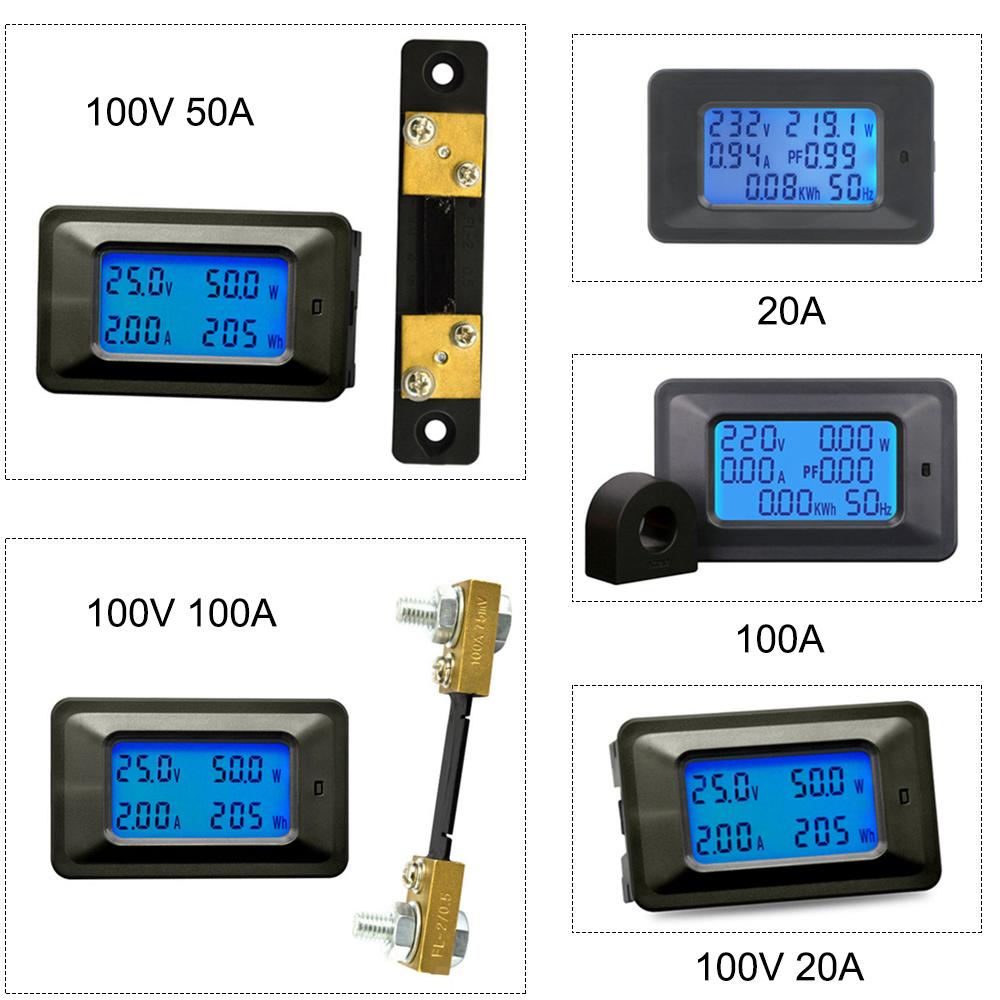

Feature: 1. Electrical parameter measurement function (voltage, current, active power, power). 2. Power alarm threshold preset function, can set up their own power alarm threshold. 3. Power down data storage function. 4. 20A and 100A are two different products optional, not universal. 5. Large screen LCD screen full display display voltage, current, active power, power. 6. Backlight allows you to see the dates clearly even in the dark area. Specification: It is a compact, lightweight and functional multi meter, with large screen LCD display, can display voltage, current, power, power factor, energy and frequency at the same time. Features: Electrical parameter measurement function (voltage, current, active power, power). Power alarm threshold preset function, can set up their own power alarm threshold. Power down data storage function. 20A and 100A are two different products optional, not universal. Large screen LCD screen full display display voltage, current, active power, power. Backlight allows you to see the dates clearly even in the dark area. Specifications: 2 models optional: 20A 100A Working voltage: 110 250VAC Rated power: 20A 5000W(20A) (Default 4400W)

100A 22000W(100A) Working Frequency: 50 60Hz Frequency measuring range: 45 65Hz Power measuring range: 0.01W 4500W Energy measuring range: 0.01Wh 99999kWh Voltage measuring range: AC 50V 300V Current measuring range: 0.01 20A(20A); 0.01 100A(100A) Voltage precision: ±1percent Current precision: ±2percent Power precision: ±2percent Panel size: 90 * 54.5mm 3.54 * 2.15in Product size: 85 * 47 * 28mm 3.35 * 1.85 * 1.10in Package size: 100 * 80 * 30mm 3.94 * 3.15 * 1.18in Product weight: 67g 2.36oz Package weight: 110g 3.88oz Notes: 1. The total power resistive load of the connected appliances cannot excess the rated power, otherwise it will be damaged, even fire. 2. 20A electrical tester is built in shunt, if it doesn't display power and the power factor, means the wiring connection is wrong, please check the wiring diagram. 3. Except for the wires, other objects should not be inserted into the connection hole; tightening the screws. 4. No waterproof function, only used in dry indoor environment. 5. Far away from children and fire. Package List: 1 * Electricity Meter Package List: 1 * Electricity Meter
