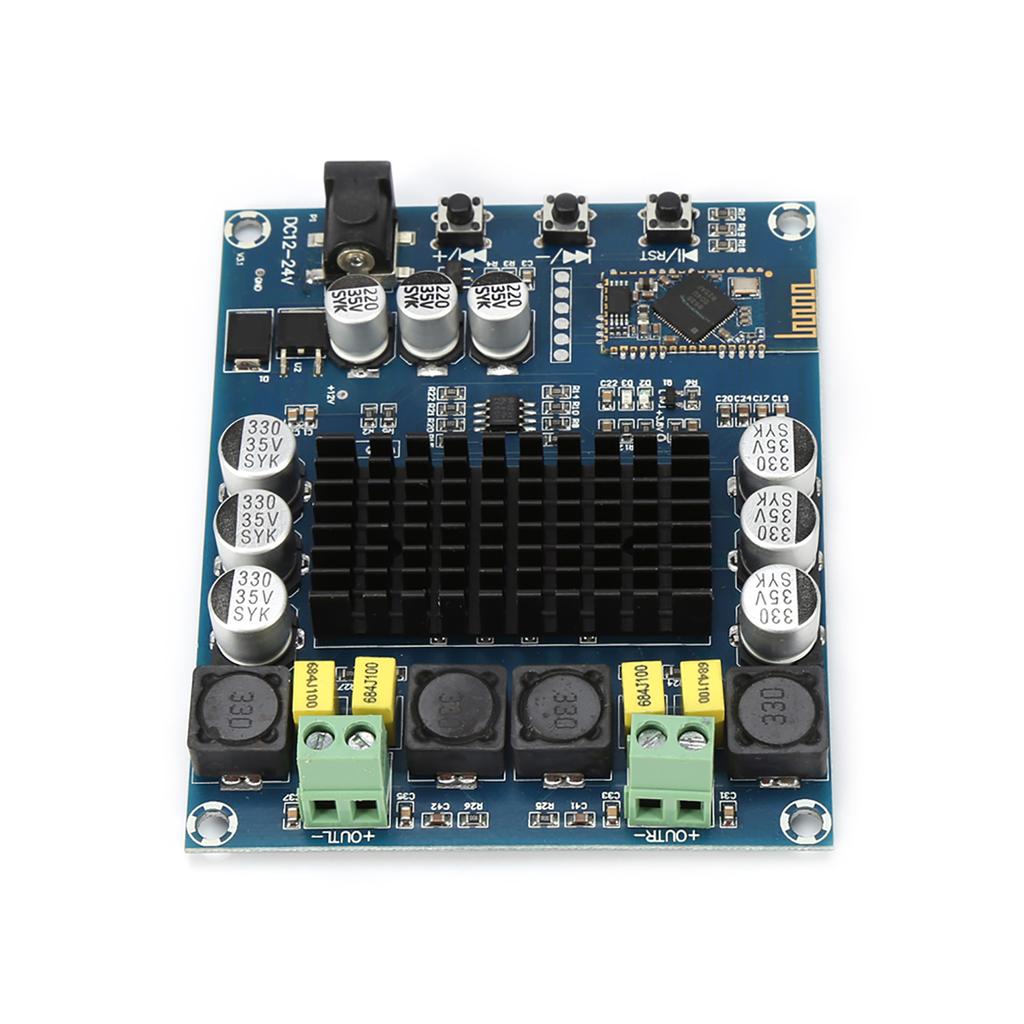

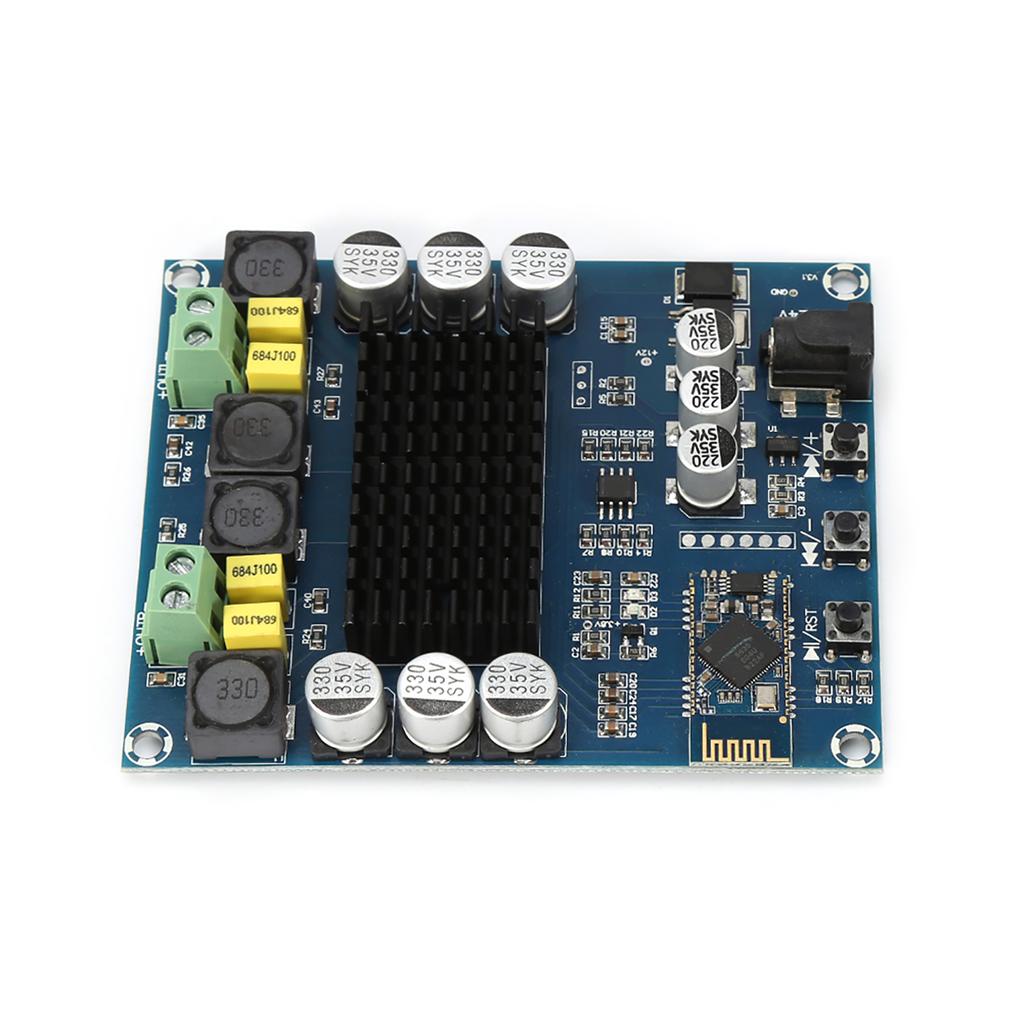

Features:
Using the digital power amplifier chip TPA3116D2 efficient D class operation, integrated CSR8635 4.0 version Bluetooth.
Power amplifier chip has more than 90percent power efficiency and low power consumption when standby.
High level modulation system configuration, highly integrated level reduces the quantity of components.
Self protection circuit includes over voltage, under voltage, overheating, DC detection and short circuit protection,
heat resistant package.

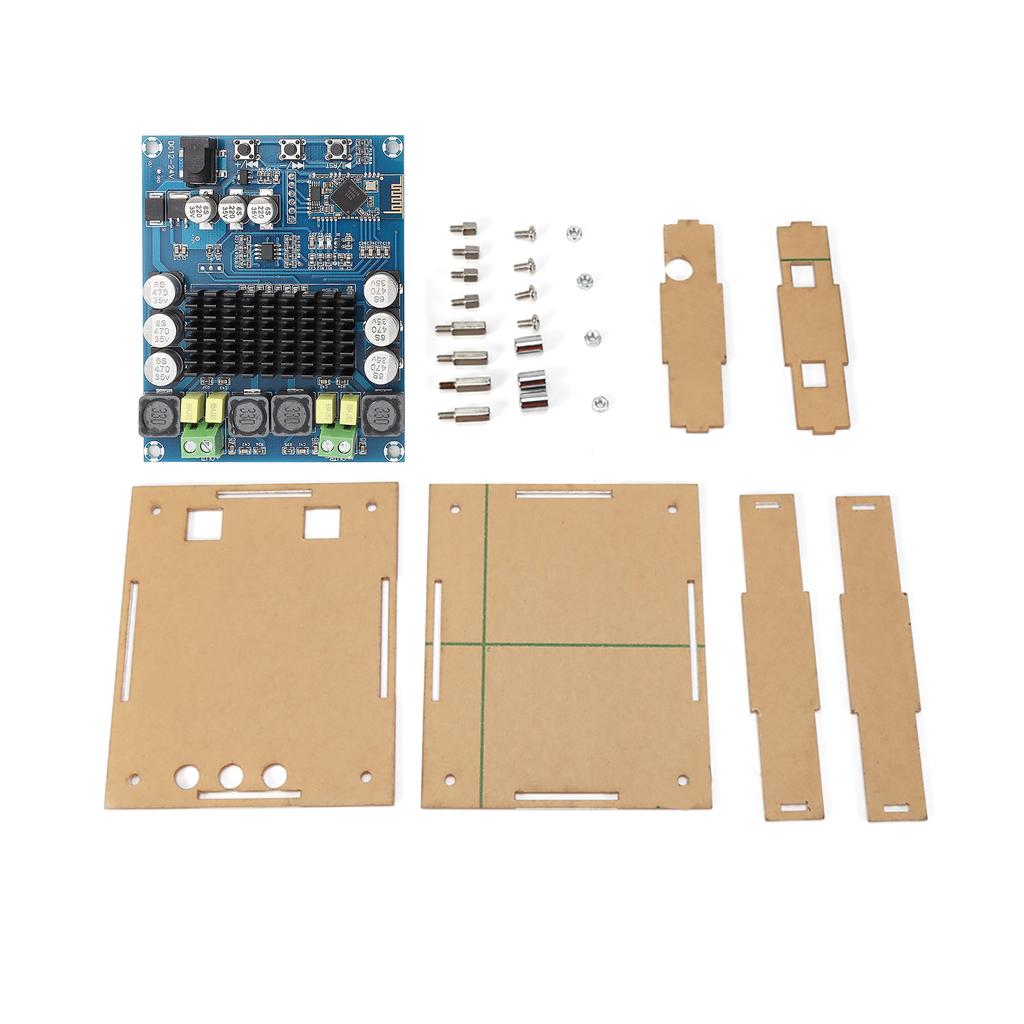

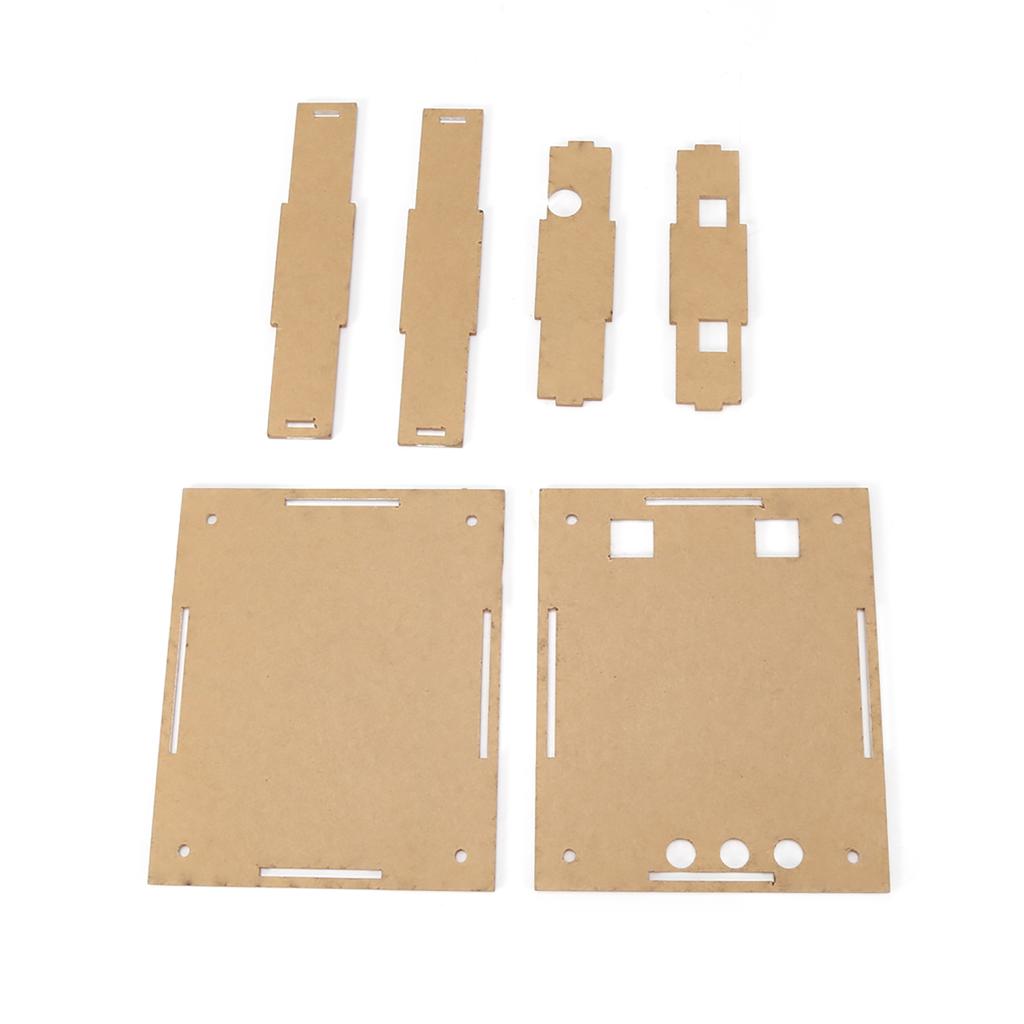

Comes with a set of disassembled acrylic case parts that you can put together and use to protect the amplifier.
Specifications:
Chip
TPA3116D2
Bluetooth
btm836 csr8635 (4.0)
Voltage
DC12V 24V
Current
>3A
Channel
Dual channel
Output Power
120Wx2
Efficiency Ratio
> 90
percent
Amplifier Size
98*79*16mm 3.95*3.11*0.63
Overall Size with Case
108*90*22mm 4.25*3.54*0.86
Bluetooth
Version
V4.0
Modulation Mode
GFSK 4 DQPSK, 8DPSK
Voltage
3.3V 4.2V
Support Bluetooth Protocol
HFP V1.6, HSP V1.2, A2DP V1.2, AVRCP V1.4,
DI V1.3
Operating Current
less than
30mA
Standby Current
<50uA
Temperature
40
celsius
+ 80
celsius
Max. Distance
10M 32.8ft
Transmission Power
Support CLASS1 CLASS2 CLASS3 8dBm Max.
Sensitivity
80dBm<0.1
percent
BER
Frequency Range
2.4GHz 2.480GHz
External Interface
PIO, Serial Peripheral Interface
, Audio Input Output, PCM, USB
Audio Support
AAC, MPA, SBC, stereo
Distortion Factor
less than
0.1
percent
Bluetooth Size
21.9*14.1*1.8mm 0.86*0.55*0.07
Package Includes:

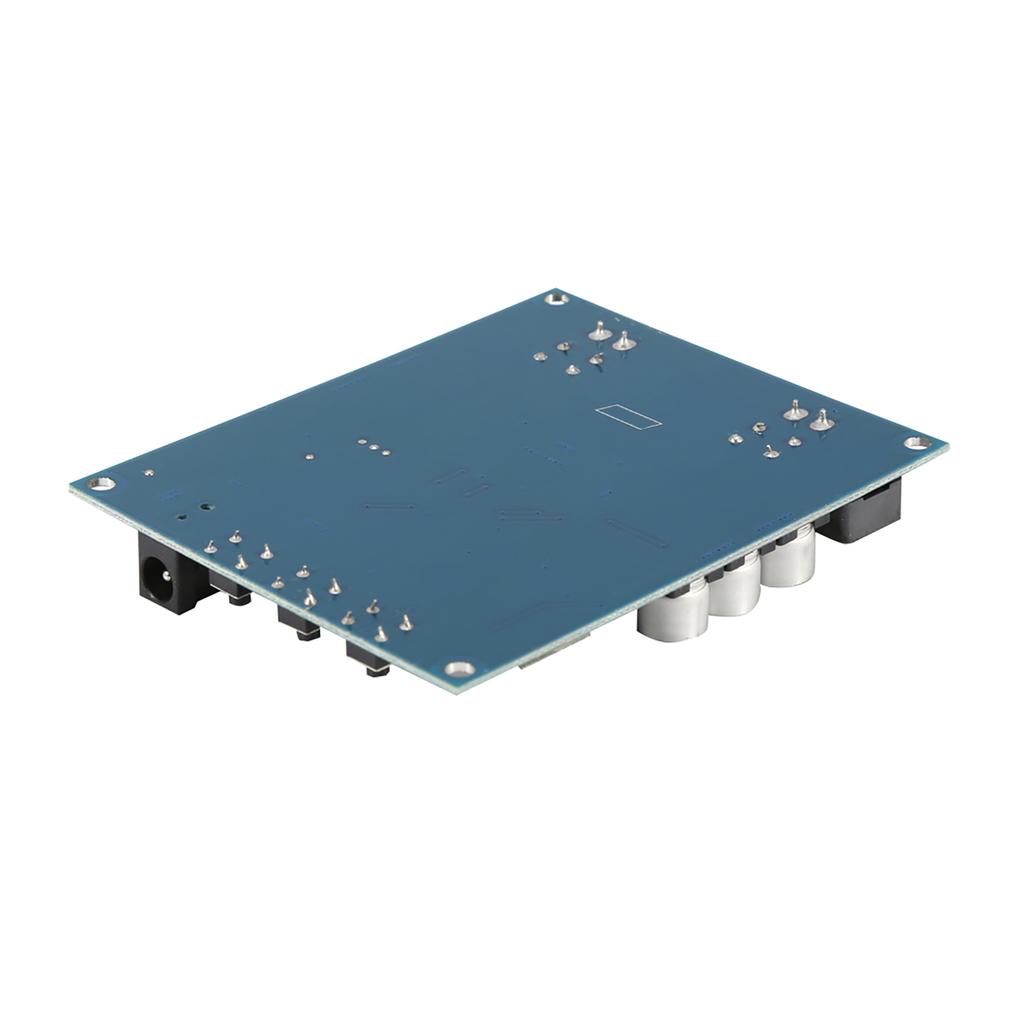

1 x Power Amplifier Board

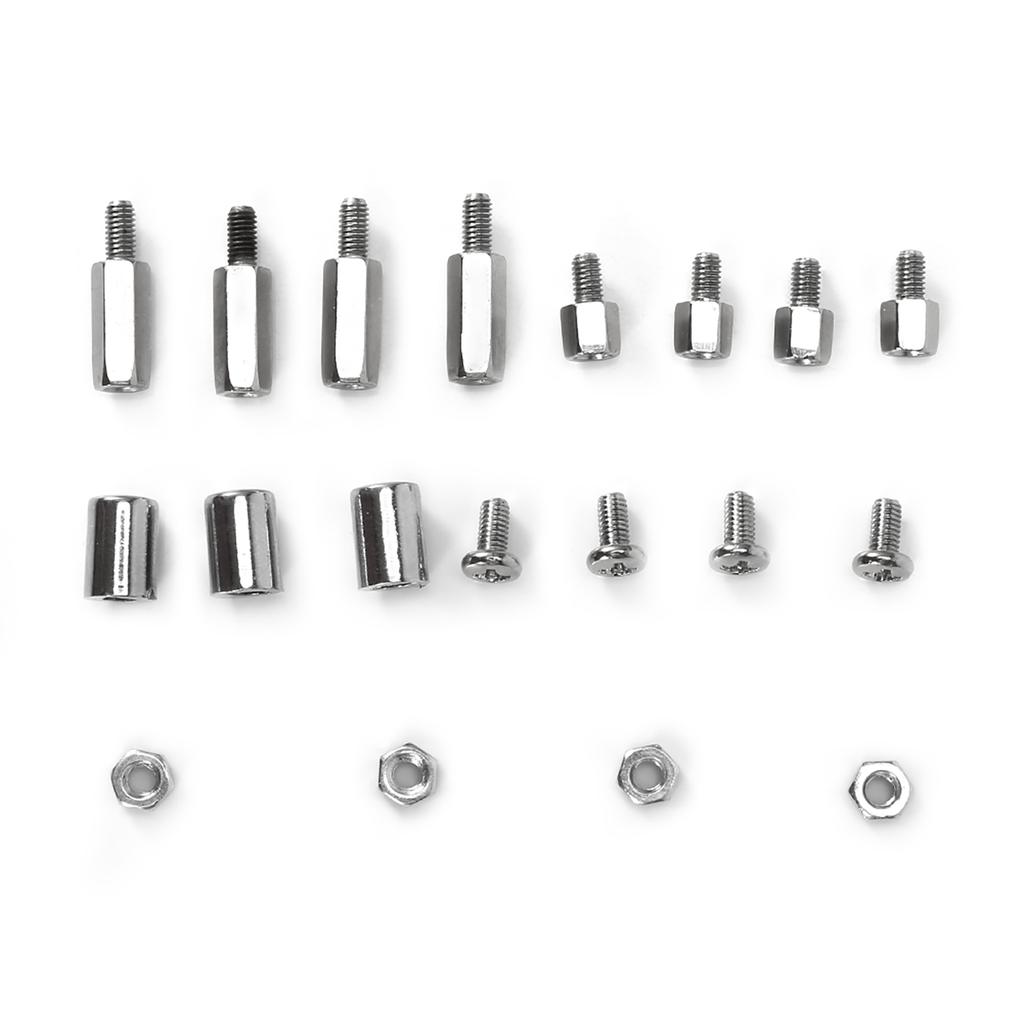

1 set x Acrylic Case Parts with other accessories
.
