Feature:
1. 9999 Counts \u0026 Multi function: Max. display value 9999 counts with true RMS and auto range to test AC DC voltage, AC DC current, resistance, capacitance, frequency, temperature, continuity, diode with lightweight and only button design.
2. Precision Circuit Board \u0026 Overload conservation With over load conservation, quickly test voltage, shielding interference \u0026 continuity test. Temperature testing, Celsius( celsius ) and Fahrenheit( Fahrenheit ) data show simultaneously.
3. More Functions Selection: With low battery indication, data hold, auto power off function and full symbol display clearly. Large LCD backlight display and data hold, convenient to read data in the dark. Automatically power off after 5 minutes of inactivity to save energy.
4. Easy to Use \u0026 Clear to Read: Easy to operate, accurate readings, low power consumption. Protected by double conservation case for drop conservation. Low power consumption, powered by 2 * AA batteries.

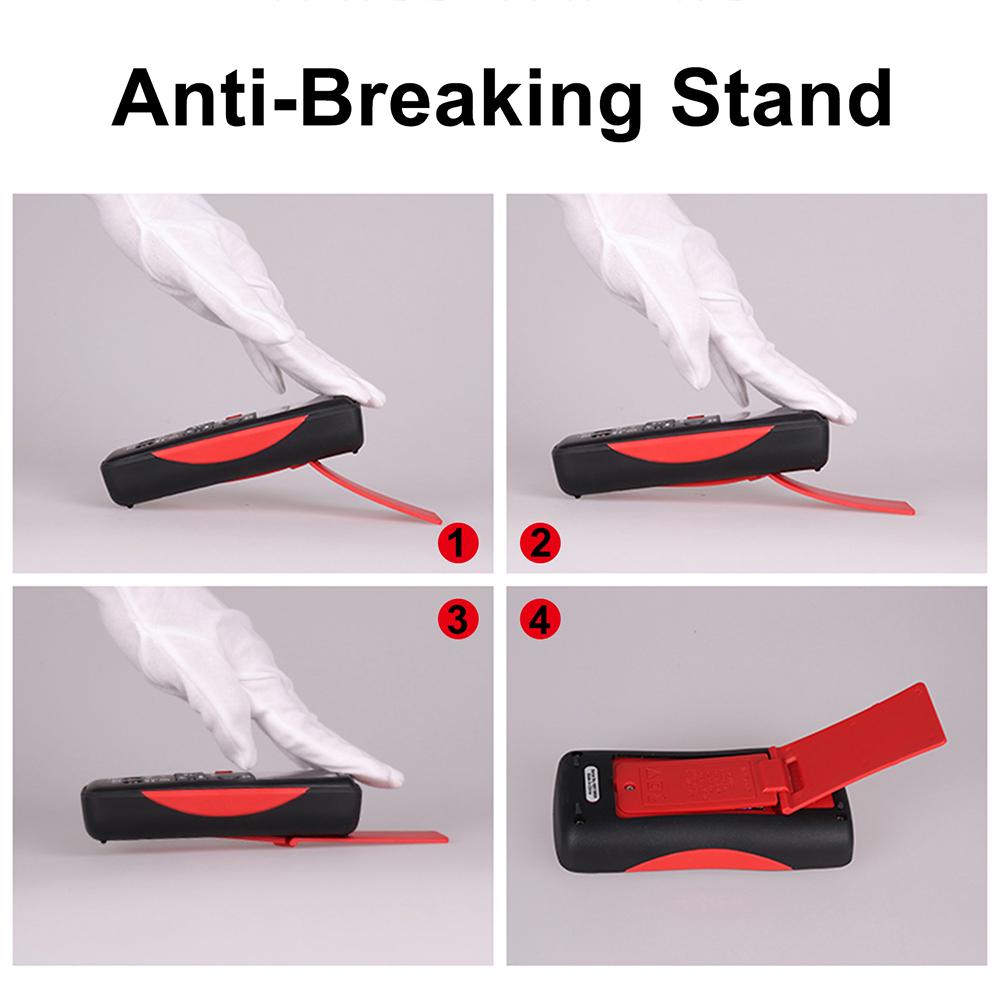

5. Portable Design: There is a back bracket with anti breaking design for supporting multimeter and your convenience. Backlight LCD for easy operation in dimly lit areas. Widely used and perfect tool for the laboratory, factory and home.
6. ▶ 9999 Counts \u0026 Multi function: Max. display value 9999 counts with true RMS and auto range to test AC DC voltage, AC DC current, resistance, capacitance, frequency, temperature, continuity, diode with lightweight and only button design.
7. ▶ Precision Circuit Board \u0026 Overload conservation With over load conservation, quickly test voltage, shielding interference \u0026 continuity test. Temperature testing, Celsius( celsius ) and Fahrenheit( Fahrenheit ) data show simultaneously.
8. ▶ More Functions Selection: With low battery indication, data hold, auto power off function and full symbol display clearly. Large LCD backlight display and data hold, convenient to read data in the dark. Automatically power off after 5 minutes of inactivity to save energy.
9. ▶ Easy to Use \u0026 Clear to Read: Easy to operate, accurate readings, low power consumption. Protected by double conservation case for drop conservation. Low power consumption, powered by 2 * AA batteries.
10. ▶ Portable Design: There is a back bracket with anti breaking design for supporting multimeter and your convenience. Backlight LCD for easy operation in dimly lit areas. Widely used and perfect tool for the laboratory, factory and home.
Specification:
Want to test electricity or solve automotive & household electrical problems with multimeter? Want more accurate range display as 9999 counts, ing top of current technology? You can choose this BSIDE multimeter. This brand new multi functional multi meter with only button design can measure DC AC voltage, AC DC current, resistance, temperature & NCV. It can also test capacitance, frequency, duty cycle, diode and continuity.
Features:
9999 Counts & Multi function: Max. display value 9999 counts with true RMS and auto range to test AC DC voltage, AC DC current, resistance, capacitance, frequency, temperature, continuity, diode with lightweight and only button design.
Precision Circuit Board & Overload conservation With over load conservation, quickly test voltage, shielding interference & continuity test. Temperature testing, Celsius( celsius ) and Fahrenheit( Fahrenheit ) data show simultaneously.
More Functions Selection: With low battery indication, data hold, auto power off function and full symbol display clearly. Large LCD backlight display and data hold, convenient to read data in the dark. Automatically power off after 5 minutes of inactivity to save energy.
Easy to Use & Clear to Read: Easy to operate, accurate readings, low power consumption. Protected by double conservation case for drop conservation. Low power consumption, powered by 2 * AA batteries.
Portable Design: There is a back bracket with anti breaking design for supporting multimeter and your convenience. Backlight LCD for easy operation in dimly lit areas. Widely used and perfect tool for the laboratory, factory and home.
Specifications:
Brand Name: BSIDE
Model: ZX T
Color: Black
Material: ABS + TPE
Display: LCD Display with Backlight, 9999 Counts
Range Control: Auto Manual Range
Sampling Time: about 3 times second
DC Voltage Range: 999.9mV 9.999V 99.99V 999.9V 9.999mV 99.99mV
DC Voltage Resolution: 0.1mV 0.001V 0.01V 0.1V 0.001mV 0.01mV
AC Voltage Range: 999.9mV 9.999V 99.99V 750.0V 9.999mV 99.99mV
AC Voltage Resolution: 0.1mV 0.001V 0.01V 0.1V 0.001mV 0.01mV
Frequency Response of AC Voltage: 40Hz 1kHz
DC Current Range: 9.999A 999.9mA 99.99mA 9999microamps
DC Current Resolution: 0.001A 0.1mA 0.01mA 1microamps
AC Current Range: 9.999A 999.9mA 99.99mA 9999microamps
AC Current Resolution: 0.001A 0.1mA 0.01mA 1microamps
Resistance Range: 99.99 Ohm 999.9 Ohm 9.999k Ohm 99.99k Ohm 999.9k Ohm 9.999M Ohm 99.99M Ohm
Resistance Resolution: 0.01 Ohm 0.1 Ohm 0.001k1 Ohm 0.01k Ohm 0.1k Ohm 0.001M Ohm 0.01M Ohm
Capacitance Range: 9.999nF 99.99nF 999.9nF 9.999microfarad 99.99microfarad 999.9microfarad 9.999mF
Capacitance Resolution: 0.001nF 0.01nF 0.1nF 0.001microfarad 0.01microfarad 0.1microfarad 0.001mF
Frequency Range: 99.99Hz 999.9Hz 9.999kHz 99.99kHz 999.9kHz 5.000MHz
Frequency Resolution: 0.01Hz 0.1Hz 0.001kHz 0.01kHz 0.1kHz 0.001MHz
Duty Cycle Range: 1 99percent
Duty Cycle Resolution: 0.1percent
Temperature Range: 20 1000 celsius 4 1832 Fahrenheit
Temperature Resolution: 1 celsius 1 Fahrenheit
Function: AC DC Voltage, AC DC Current, Resistance, Data Hold, Backlight, Auto Power off, Continuity Test with Buzzer, Diode Test, Low Battery Indication, Capacitance, Frequency, Duty Cycle, NCV, Temperature Test
Working Temperature Humidity: 0 40 celsius , <75percent RH
Storage Temperature Humidity: 20 60 celsius , <80percent RH

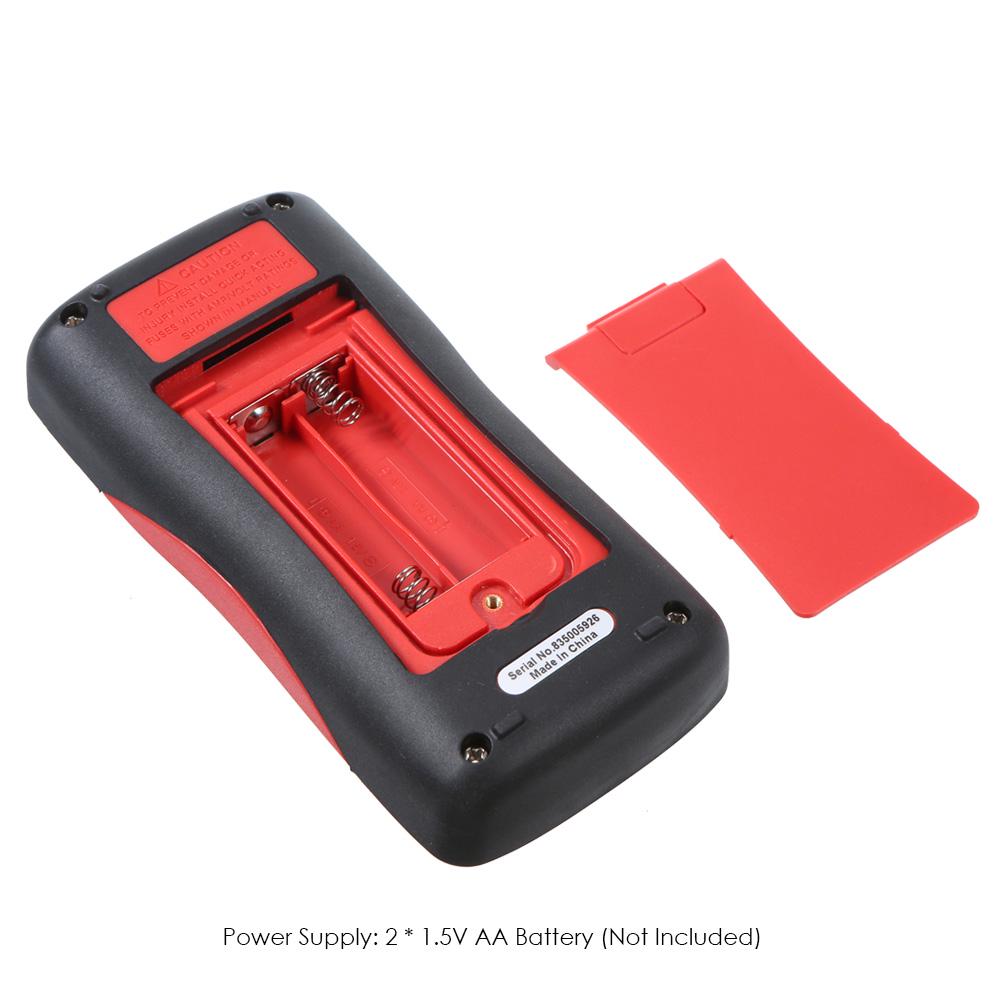

Power Supply: 2 * 1.5V AA Battery
(Not Included)

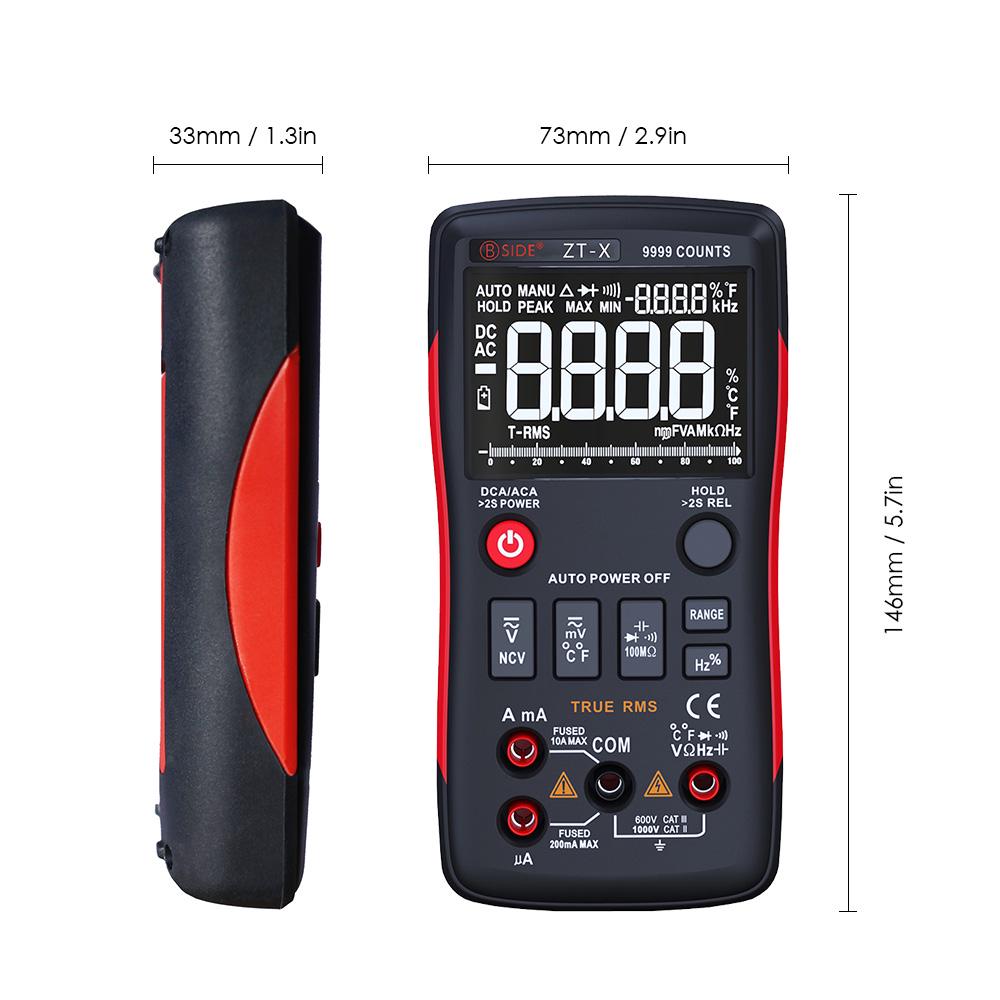

Item Size: 146 * 73 * 33mm 5.7 * 2.9 * 1.3in
Item Weight: 169g 6.0oz
Package Size: 18.5 * 11.5 * 5cm 7.3 * 4.5 * 2.0in
Package Weight: 327g 11.5oz
Package List:
1 * Digital Multimeter
1 * Pair of Test Probe
1 * Temperature Probe
1 * Pouch Bag
1 * User Manual(English)
Package List:
1 * Digital Multimeter
1 * Pair of Test Probe
1 * Temperature Probe
1 * Pouch Bag
1 * User Manual(English)
