High-concerned chemical : None
Scanning Light Source : Natural Light + LED
Novelty : New

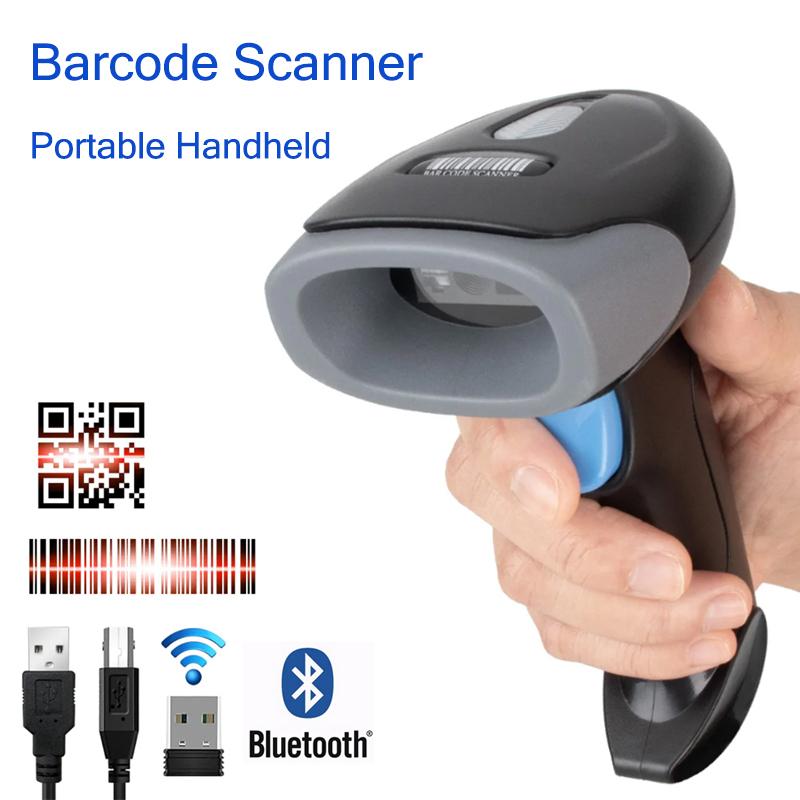

Product Type : Bar Code Scanner
Model Number : U20
Colour Depth : 32 Bit

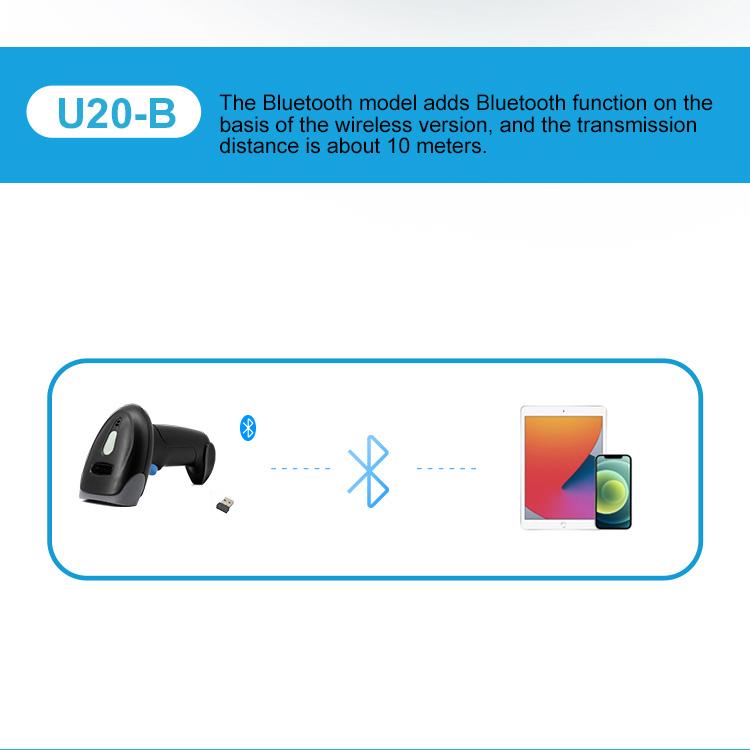

Signal Connection Type : Bluetooth,Wi-fi
Scan Breadth : A4
Type : Barcode Scanner
Interface Type : USB/Bluetooth
Scan Element Type : CMOS
Scan Speed : 200 scans/second
Optical Resolution : 600*600
Origin : Mainland China
Certification : CE,FCC,RoHS

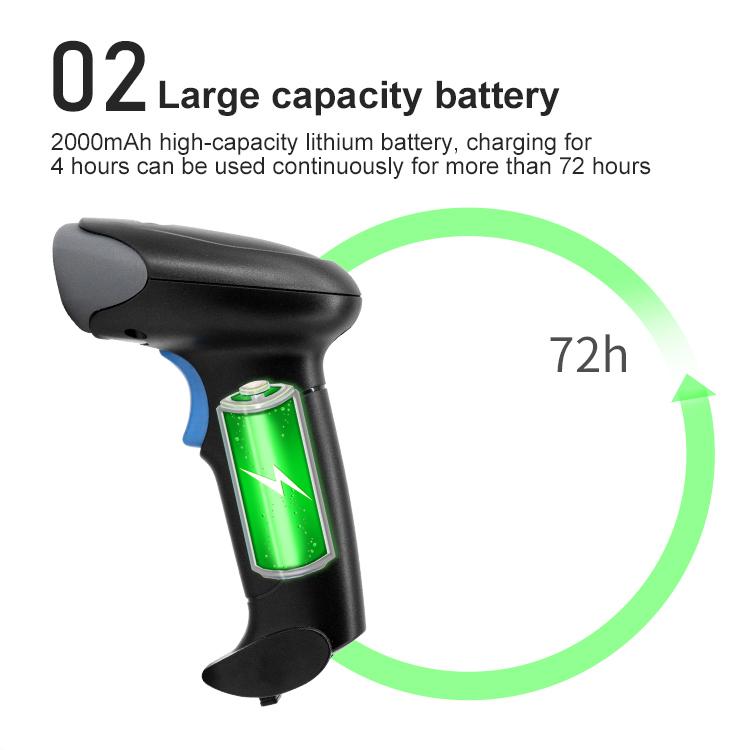

Battery : 2000 mAh
Weight : 270g

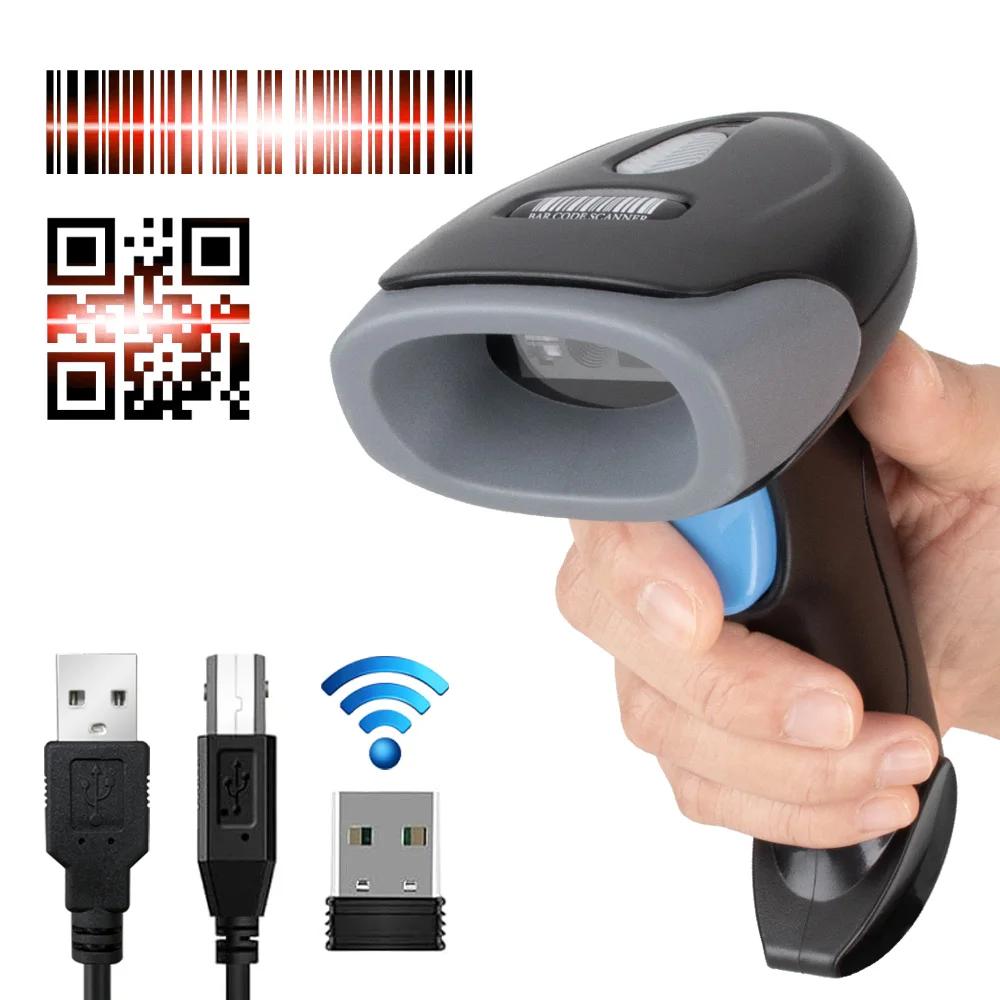

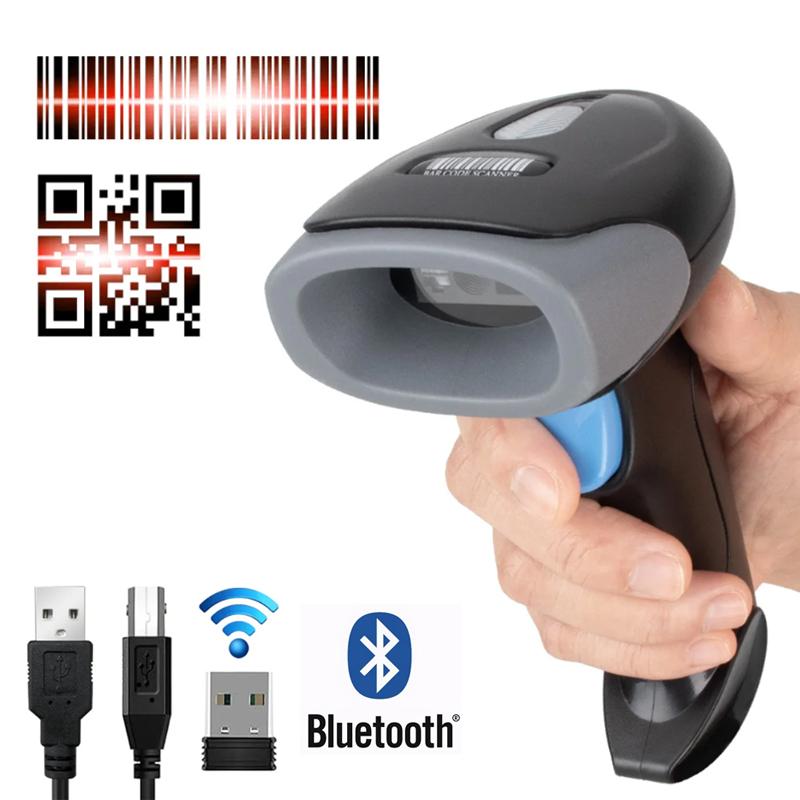

Interface : USB/2,4G WIFI/Bluetooth
Product features:

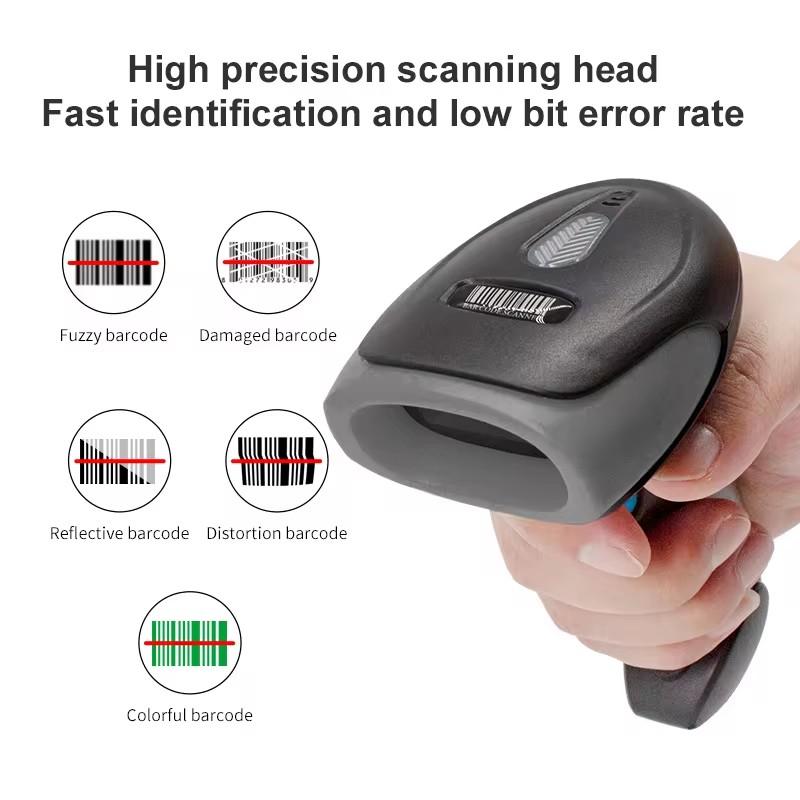

1. High-speed decoding and responsiveness
2. Compact, lightweight, ergonomic and comfortable to handle.
3. Excellent durability: Dustproof and waterproof IP54 and can withstand drops to concrete at a height of 1.5m.
Parameters:
Type:U20
Scan mode:Key trigger/auto-sensing/continuous scanning
Interface type: USB
Prompt mode: Buzzer, LED light
How it is set up: Manually scan the setup codes one after the other
Housing material : ABS + PC
Cable standard: Straight line 1.6m
Exterior dimensions: 160mm×66mm×95mm(product); 195mm×105 mm×80mm(packaging)

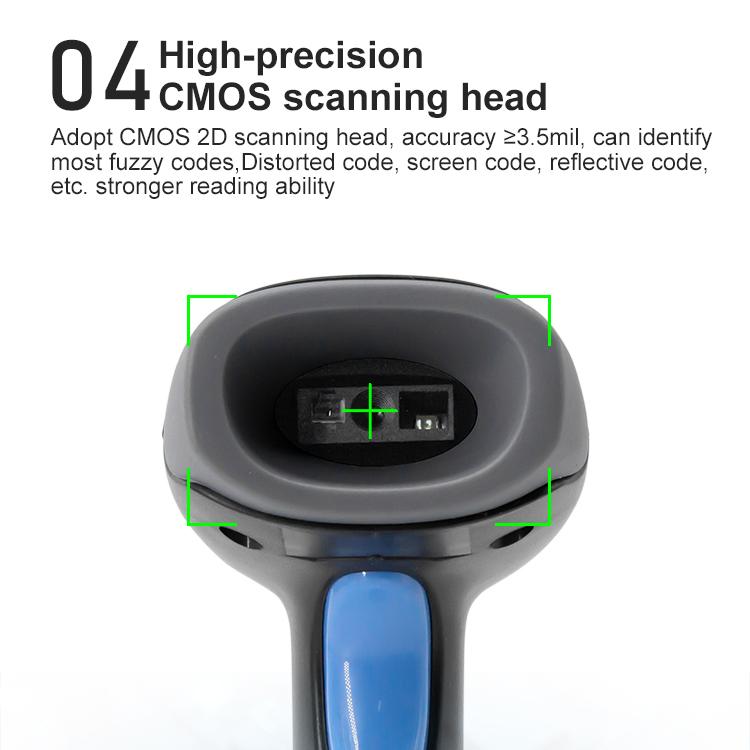

Sensors: CMOS
Resolution: 640*480
Light source: White LED
Scan angle: ± 60°, ±60°, 360° (elevation, declination, rotation).
Scan rate: 120 fps
Field of view : 48° (H) x 30° (V)
Printing contrast: Minimum 15%.
Decoding kind:
1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, GS1 Composite
2D: QR Code, Data Matrix (DM), PDF417, MaxiCode, Aztec Code, support mobile screen reading
Minimum resolution: 1D code 3.5mil; QR code 10MIL
Depth of field QR (15mil) 30~210mm
QR payment code (mobile code) 80~550mm
Data Matrix (10mil) 30- 140mm
PDF 417 (6.7mil) 50- 120mm EAN-13 (13mil) 50~280mm
Code 39 (8mil) 30- 190mm
Code 128 (15mil) 80~320mm
Input voltage: DC5V ± 10%
Current: Working: 350 mAh; Standby: 130 mAh
Environment parameters: Temperature 0°C-50°C (working); -40°C~+60°C (storage).
Humidity: 5%-95% non-condensing
Ambient brightness: Max.5,000 Lux (fluorescence)
Seismic resistance: It can withstand a drop in the air of 1.5m
Note:
2D barcode scanner,it also compatible with scanning 1D codes.
