BSIDE Profesional Fork Meter 9999 Counts USB Charge Electrical Tester Clamp meter True RMS 600A Digital DC AC Clamp Meter NCV U6

Battery Included : No High-concerned chemical : None Weight : 500g Dimensions : 21*6.4*3.3cm Operating Temperature : 0°C~40°C Measuring Inductance Range : N/A Measuring Capacitance Range : 10000uF Measuring Resistance Range : 10000KΩ Measuring Voltage Range : 620V Measuring Current Range : 600A Display Type : Analog and Digital Model Number : U6 Digital Clamp Meter DIY Supplies : Electrical

BSIDE Model : U6 Origin : Mainland China Certification : CE,FCC,RoHS

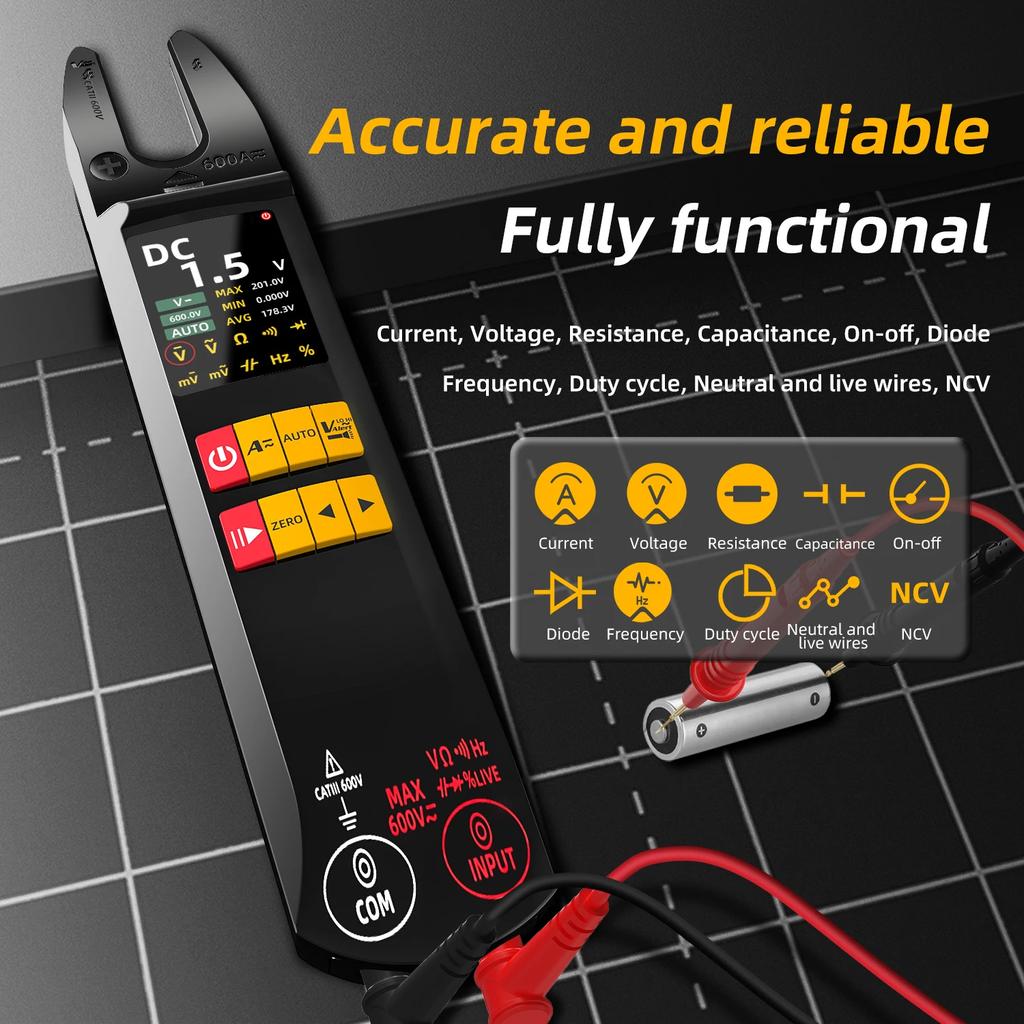

BSIDE U6 Fork Digital Clamp meter Professional OpenJaw DC/AC 600A Ammeter Pliers Automatic Multimeter VFC/VFD Voltage Current Electrical Tester With Infrared thermometer. New generation of Smart True RMS DC/AC 600A Fork Open-Jaw digital clamp meter. OpenJaw design is convenient for current testing and maintenance. Innovative dual power supply mode for longer power supply. It have intelligent and professional measurement functions, and Infrared temperature est. Full function with gear display, analog bar multiple display It is the best choice for professional electrician, engineer, electronic enthusiast or family use. Features: Professional DC/AC 600A Clamp Meter Ammeter Plier with infrared thermometer test.

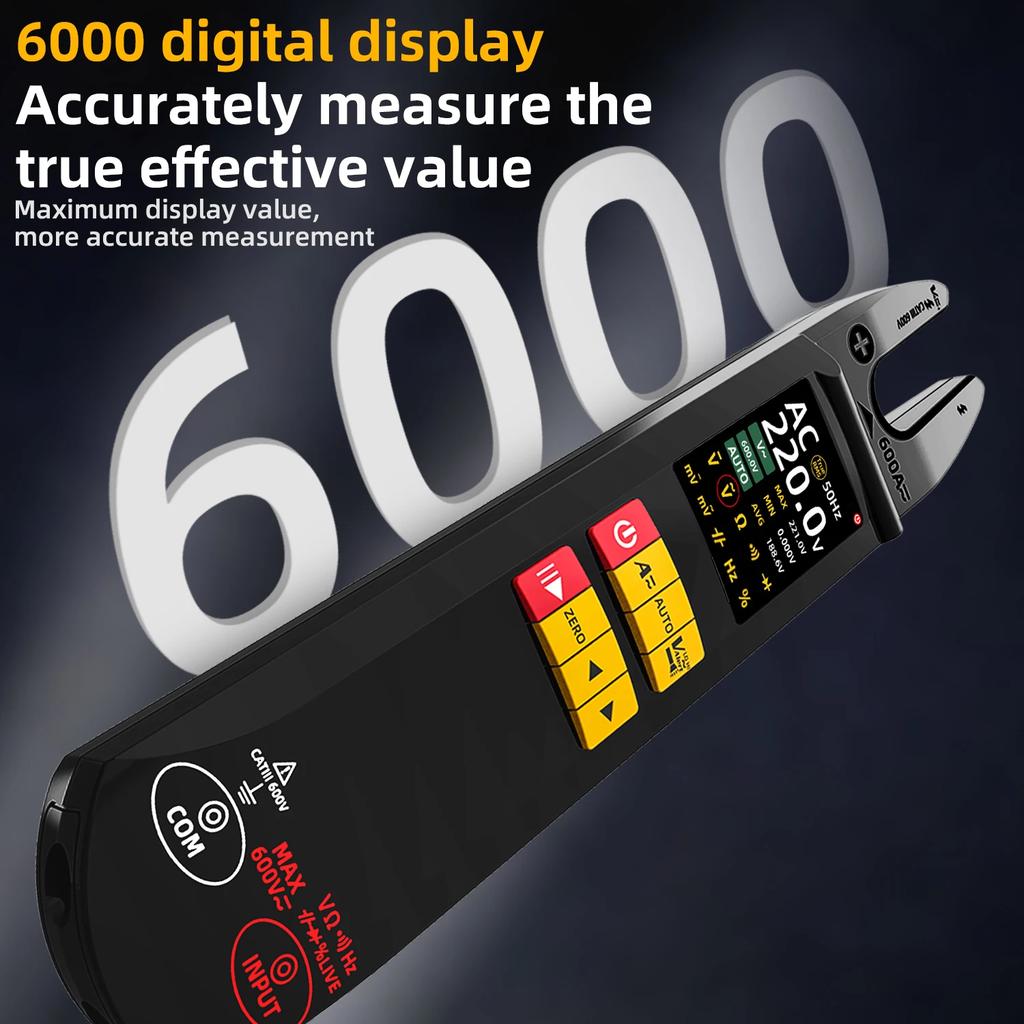

Maximum display 9999 Counts.

EBTN Color Large HD LCD display.

True RMS, Auto/Manual Range.

Support dual-mode power supply : 1. Built-in Rechargeable Battery (USB charging) 2. 1.5V AA battery*2 (Not included)

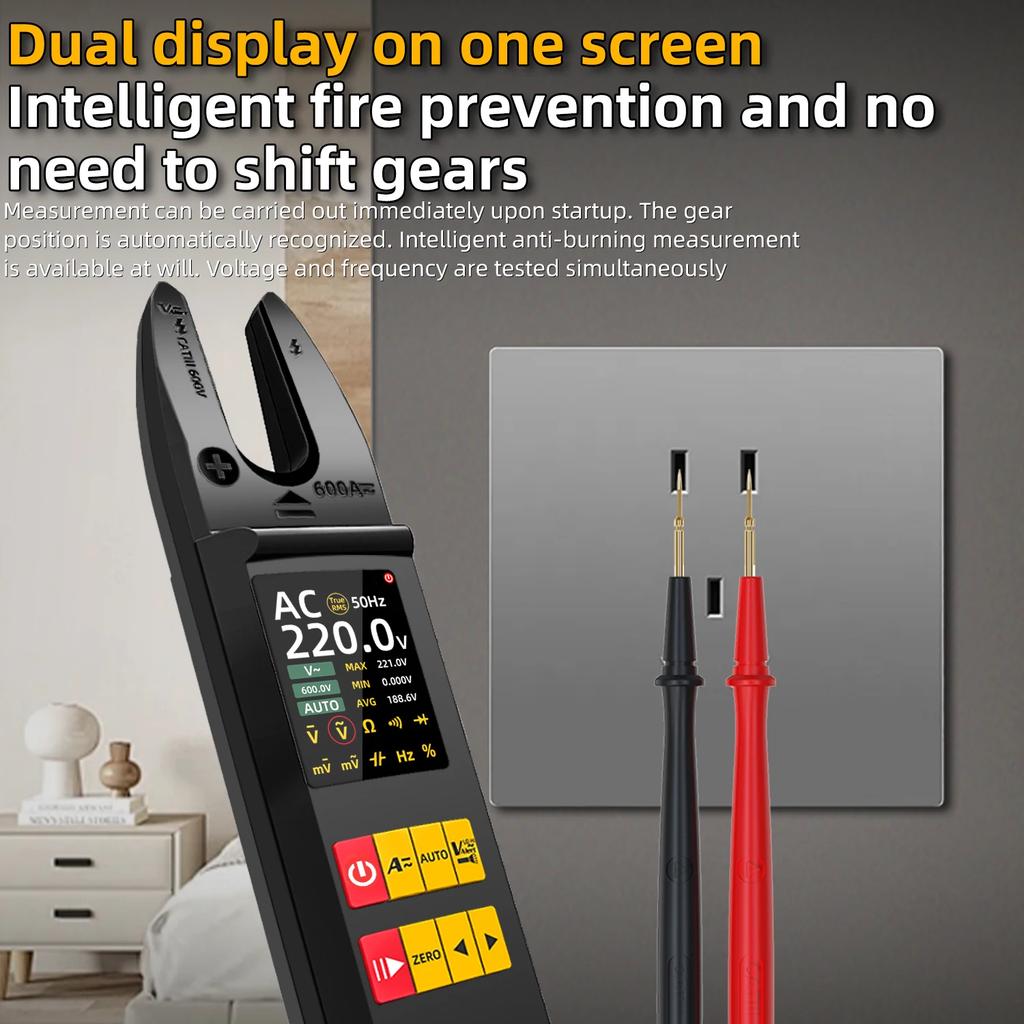

Electrical amp tester with smart mode for easy to use.

VFC/VFD frequency conversion voltage test.

Oversized body design makes testing safer.

The large pen design card is more convenient with the rear side and side of the fuselage.

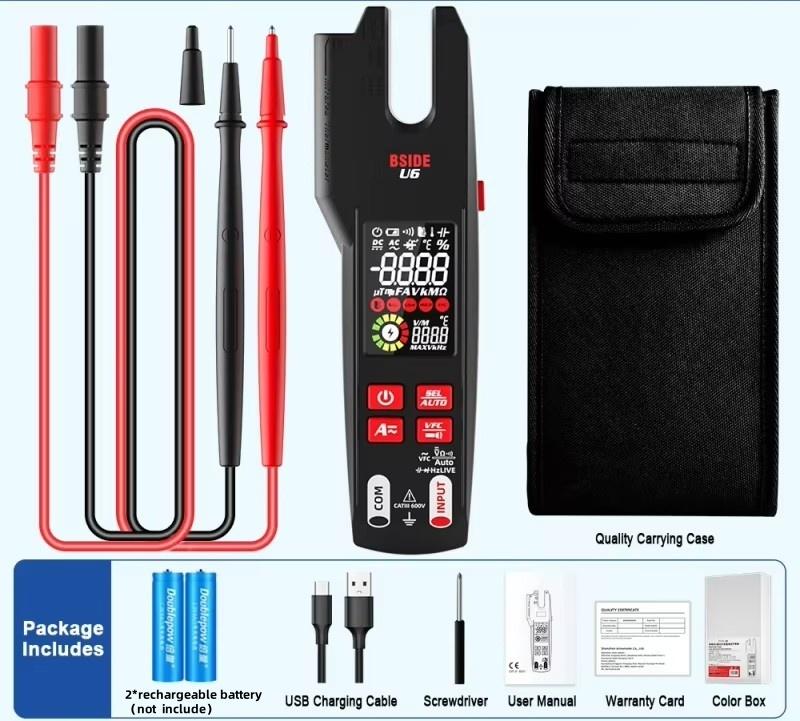

Equipped with high-quality portable cloth bag.

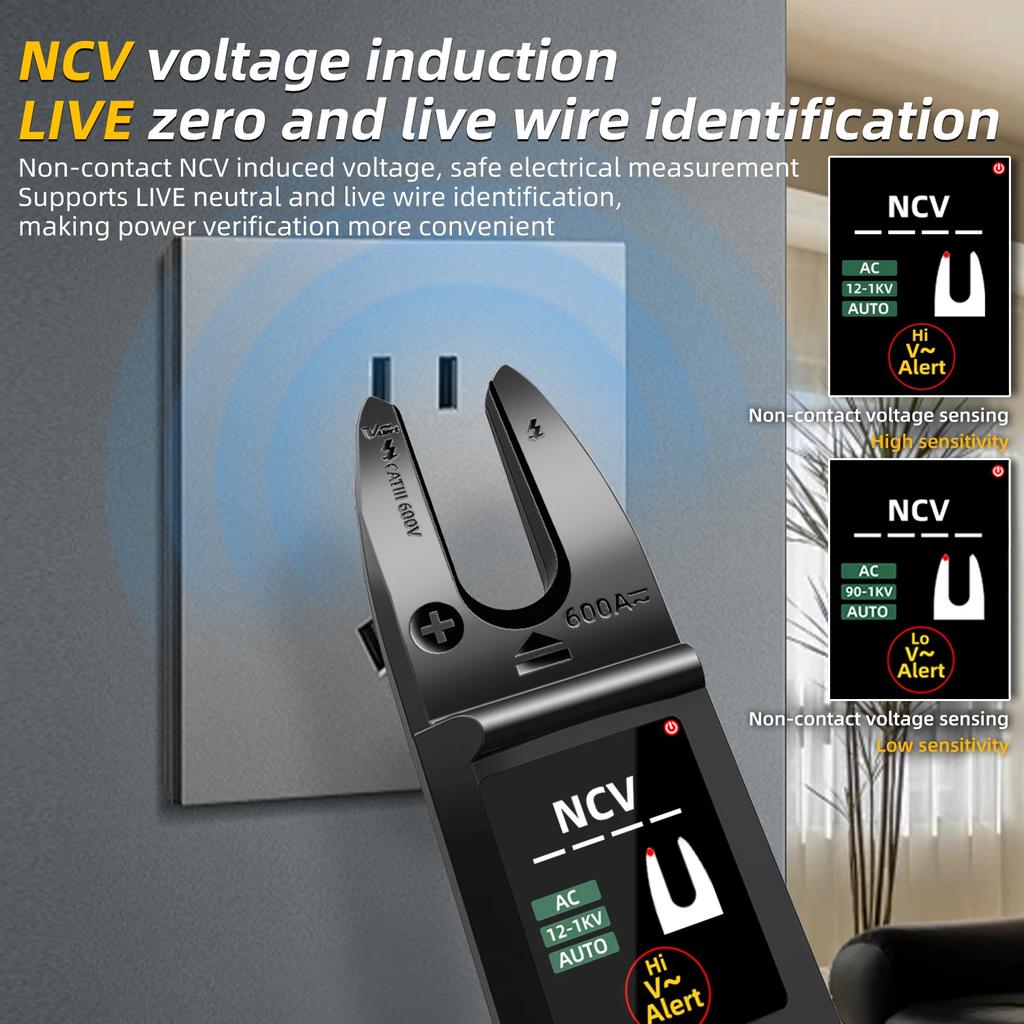

Also can be used as a professional voltage detector with adjustable sensitivity.

Auto range, Auto power off, low battery indication with flashlight.

CAT111 600 high safety gauge to meet the global test maintenance.

Specifications: Display: 9999 counts

DC current: 1-600A 0.1A ±(2.5%+5 counts)

AC current: 1-600A (AC mode, 40-200 Hz) 0.1A ±(2.5%+5 counts); 1-600A (VFC mode, 40-200 Hz) 0.1A ±(4.0%+5counts)

DC voltage: 0-620V (DC mode) 0.001 V ±(0.8%+3 counts); 0.5-620V (Auto Mode) 0.001 V ±(0.8%+3 counts)

AC voltage: 0-620V (AC mode) 0.001 V ±(1.2%+5 counts); 0.8-620V (Auto Mode) 0.001 V ±(1.2%+5 counts); 0-620 V (VFC mode) 0.1V ±(4.0%+3 counts) VFC/VFD voltage: Yes. Resistance: 0-10MΩ 0.1Ω ±(1.2%+3 counts)

Capacitance: 0.5µF-1000µF 0.1µF ±(3.5%+8 counts); 1000µF-10mF 0.1µF ±(4.5%+10 counts)

Frequency: 10-1000Hz 1Hz ±(2.0%+10 counts)

Infrared temperature: -20℃~0℃/-4℉-32℉ 0.1℃/0.1℉ ±(3.0%+2℃/℉); 0℃~400℃/32℉-752℉ 0.1℃/0.1℉ ±(2.5%+3℃/℉)

Diode: Measure diodes within 2.0V

Continuity: If the resistance is less than 30Ω, the continuity beeper sounds

Temperature: 0-50℃/32℉-122℉ ±2℃/℉

V-Alert (non contact voltage detection): Yes

Live wire check: Yes Power: 1. USB charging (built-in rechargeable battery) 2. 1.5V AA battery*2 (not included)

Size: 210 x 63.7 x 33 mm

Weight: 216 g
