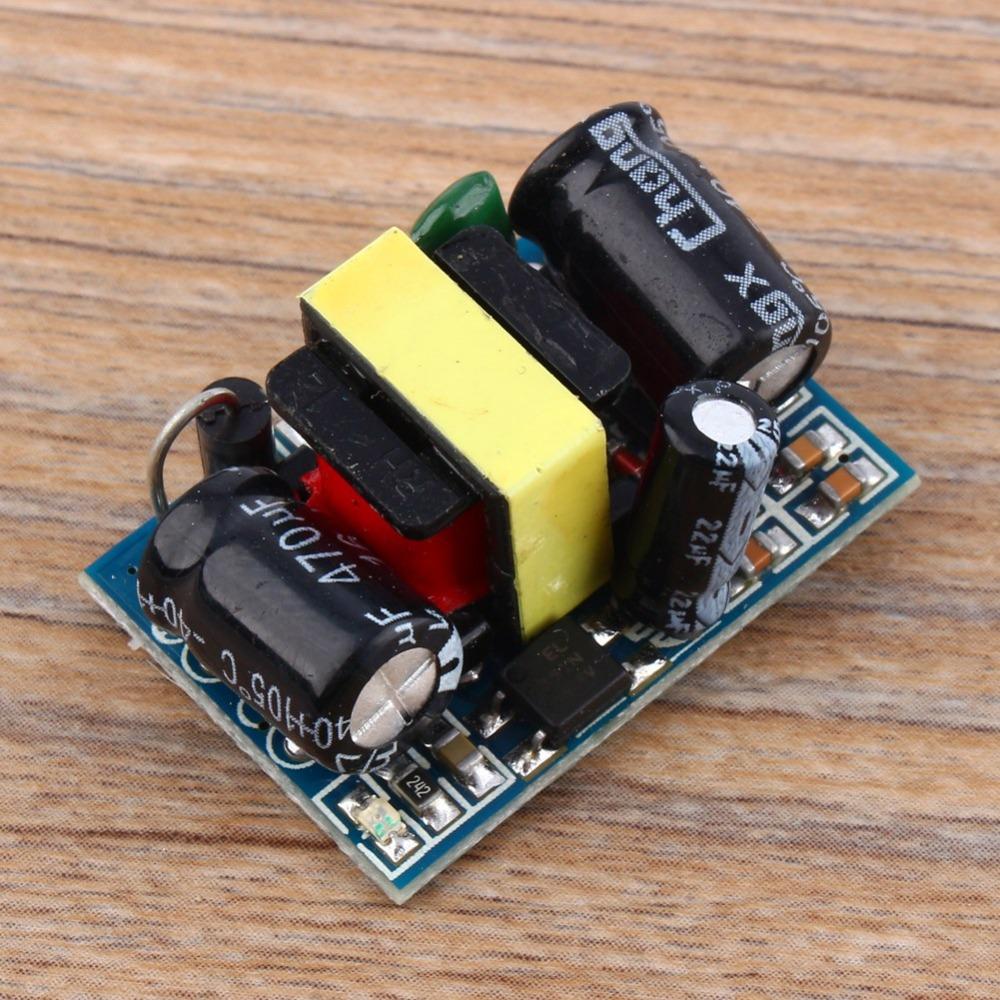

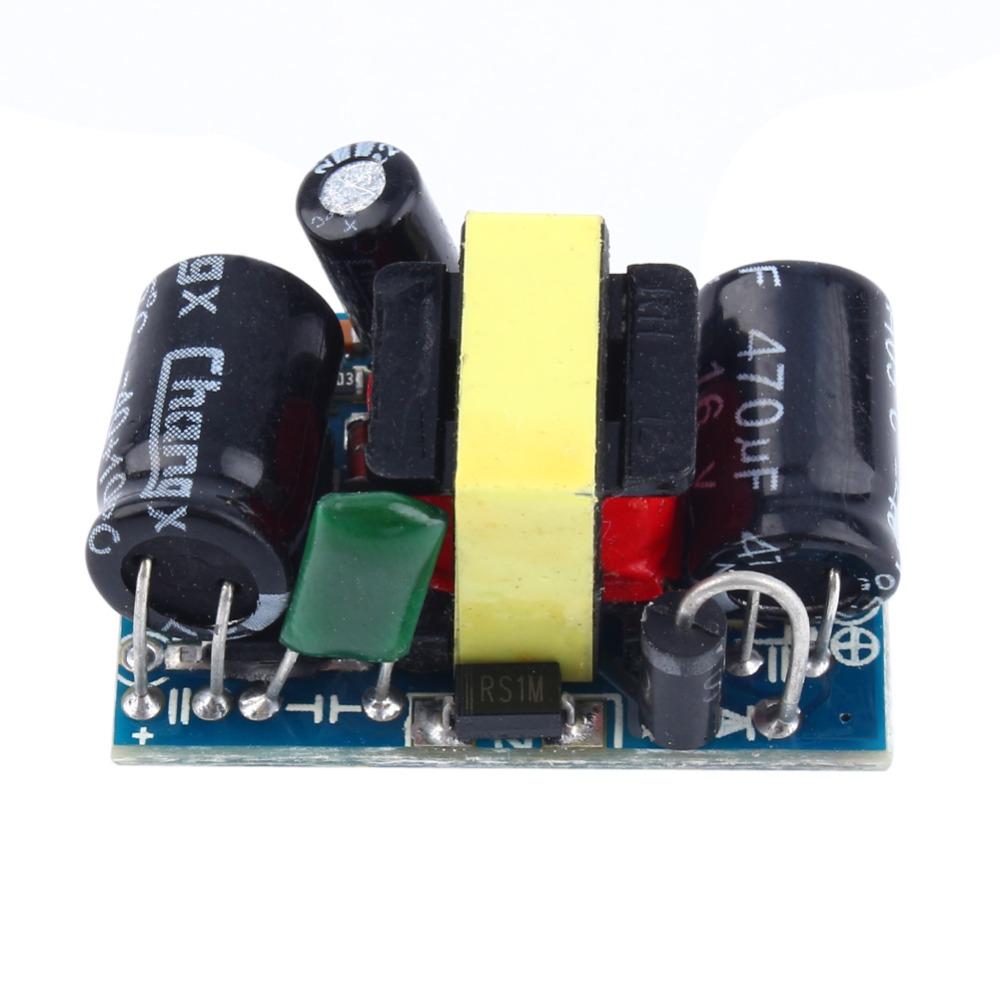

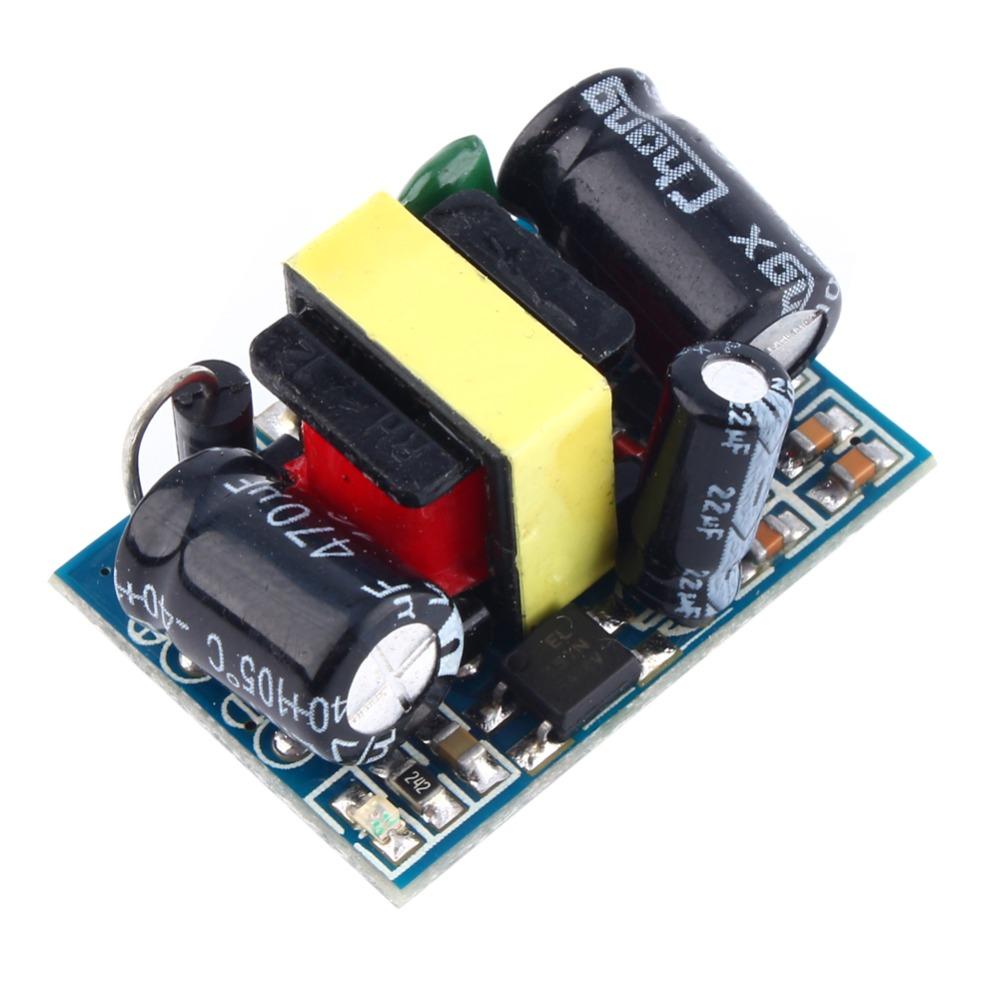

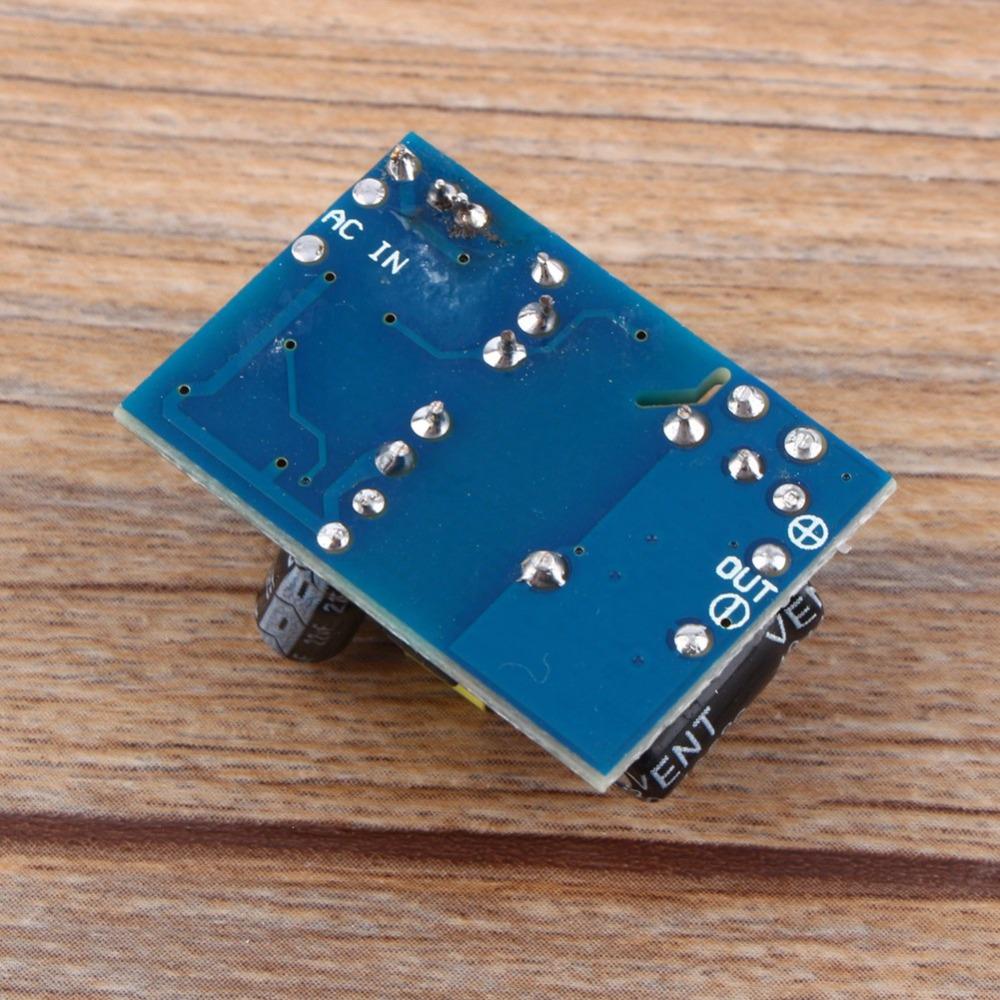

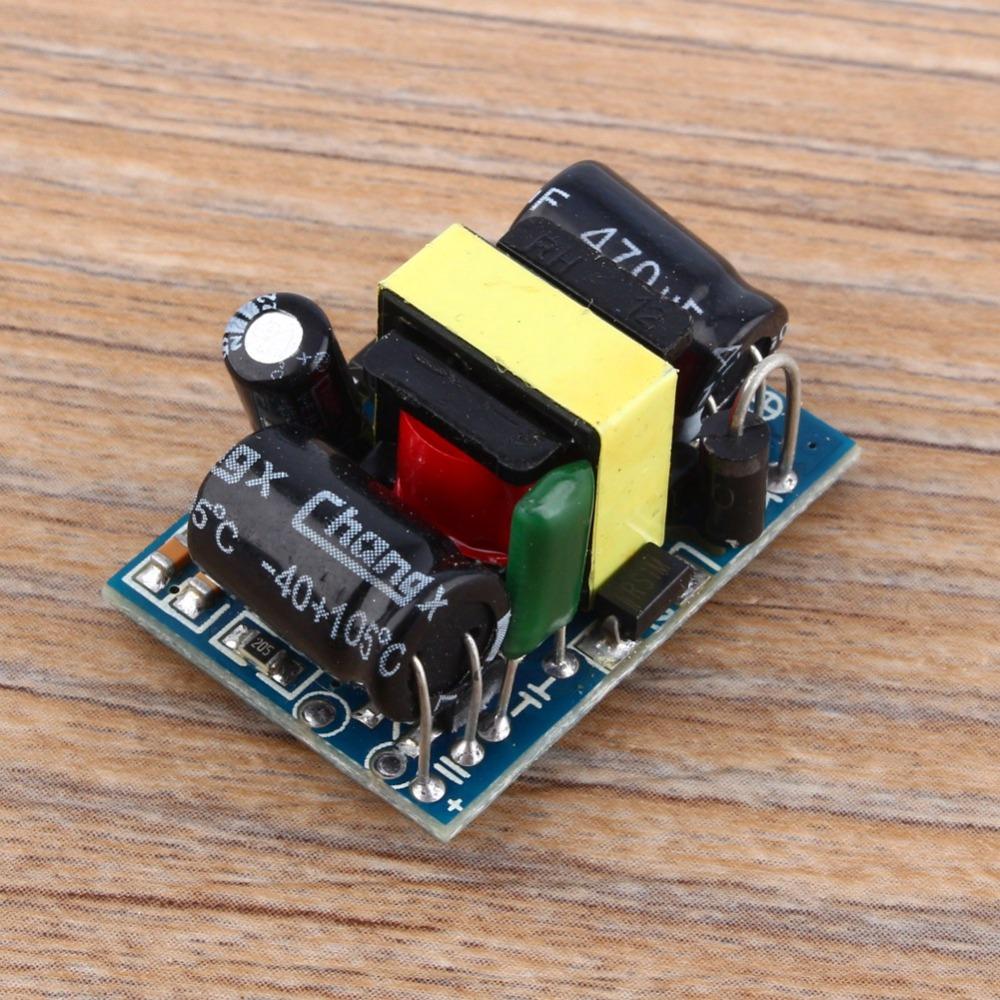

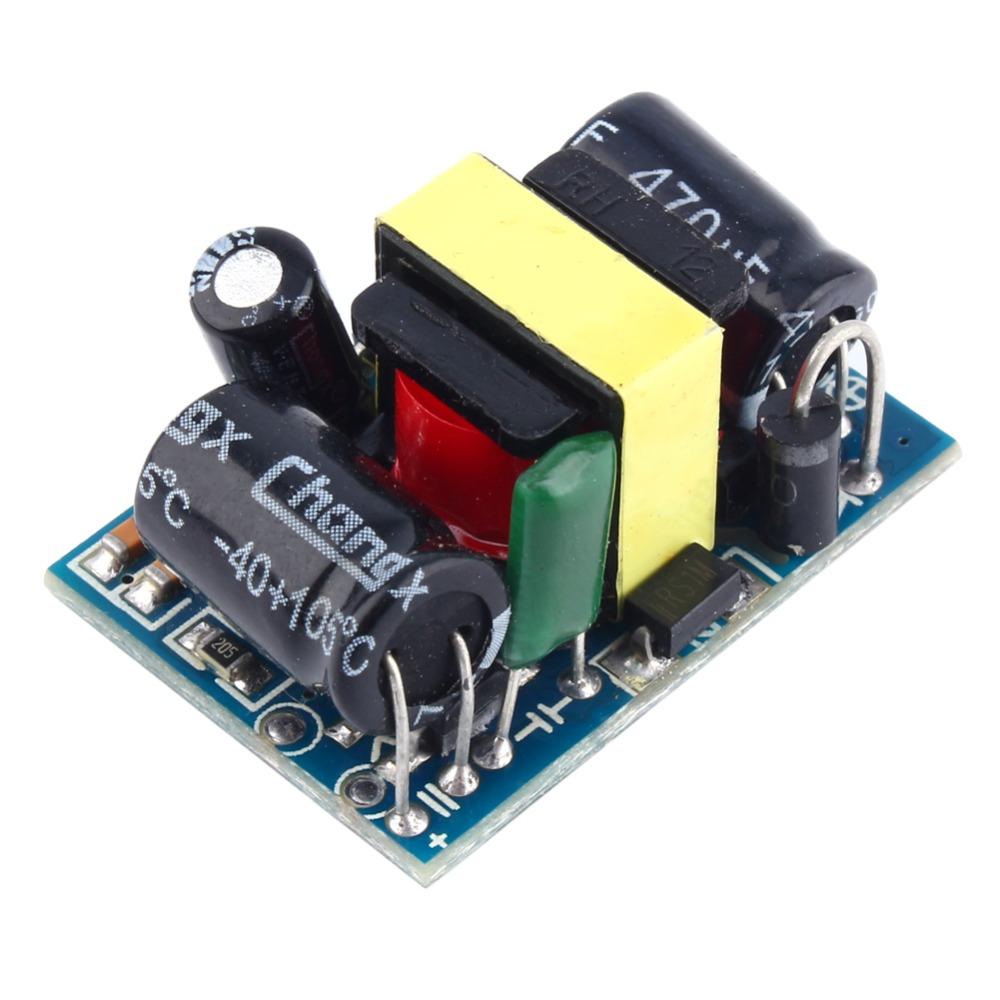

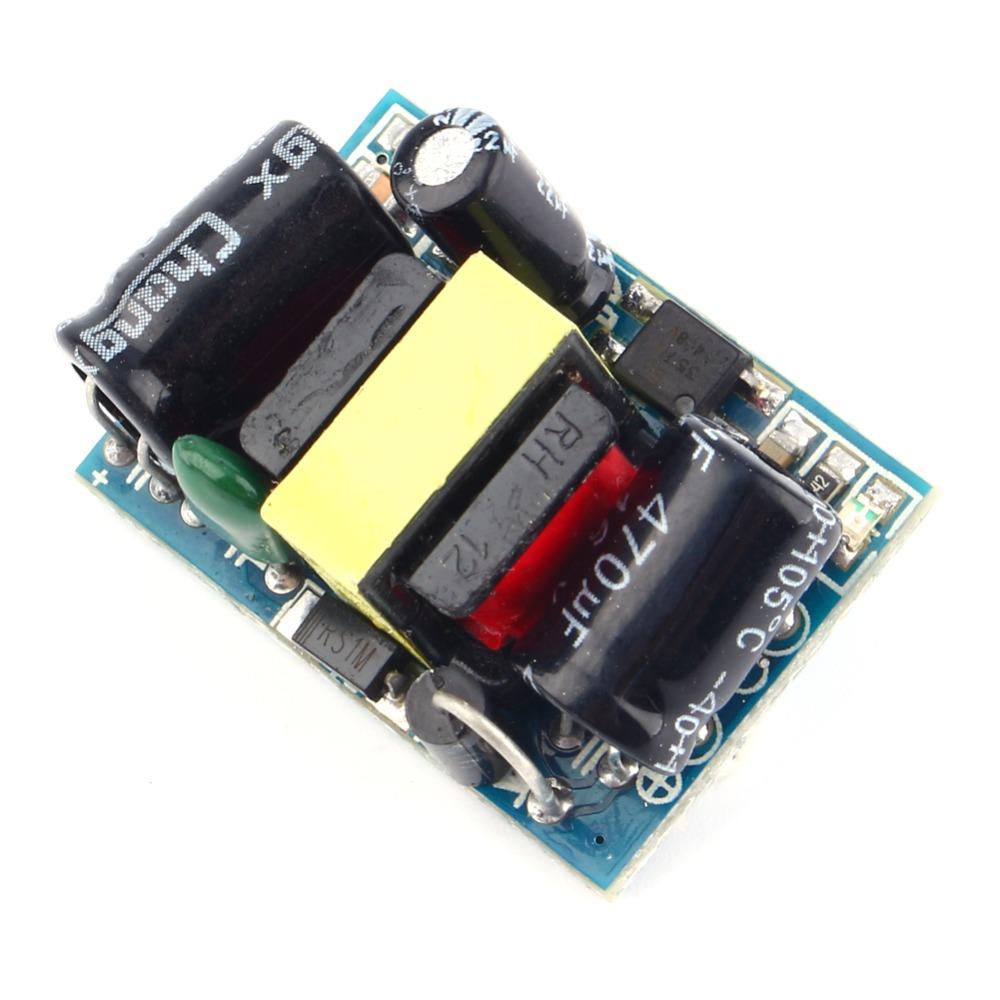

110V/220V to 3.3V 700mA Isolated Switching Power Supply Module DC Power Conversion… Ещё

Label:Yes The isolated switching power supply module has a wide voltage input, through AC 85-265 V, DC 100-370 V. This isolated module has the characteristics of high conversion rate and low heat, so it can be used with confidence. The power supply of the isolation switch module has temperature protection, overcurrent protection and short circuit protection, high and low voltage isolation. This isolated power module has 431 accurate regulated DC 5V outputs, ultra-small size, high reliability and high cost performance. The isolation switching power supply module is small in size, stable in performance and cost effective.

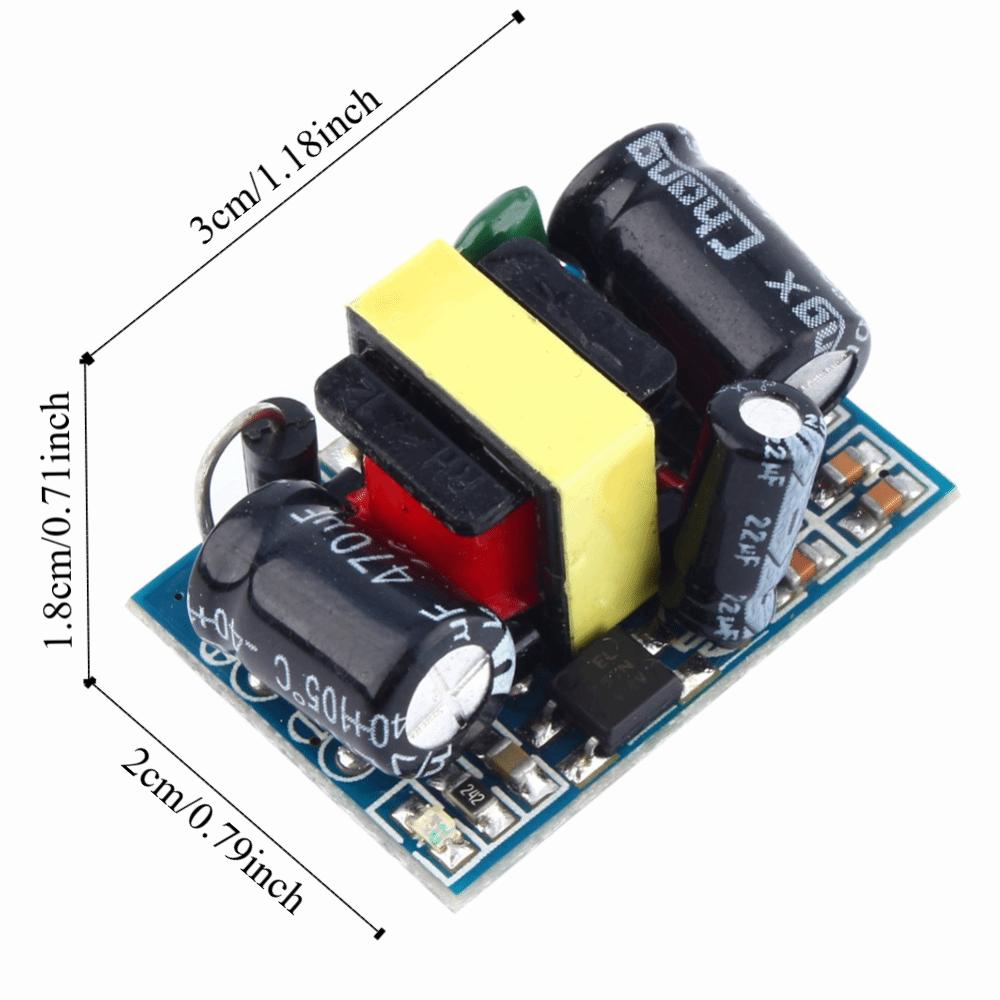

Specifications: Input Voltage: AC 85 ~ 265V 50 / 60HZ or DC100V-370V Output Voltage: DC3.3V (± 0.2V) Output Current: 700mA Power: 2.3W Volume: LWH Approx. 3 x 2 x 1.8cm Color: As picture shown Reliability requirements:Environment 25 ℃, 80% load case MTBF greater than 16,000 hours

Installation method: A, Can be installed in the input and output pins directly soldered on the PCB B, Glue fixed

Package List 1 × Isolated Switching Power Supply Module
