Good luck with your favorite purchasesRD6030-W 60V 30A DC DC Voltage Current Step-down Stabilized Lab Power Supply Module Buck Adjustable Converter Battery Charge
RD6030 series product is not only a high and stable performance power solution, but also a modern power management tool that incorporates intelligent and user-friendly design, aiming to provide users with a superior experience and efficient performance. It provides a powerful output of 60V voltage, 30A high current, and 1800W power. you can choose RD6030-W, Support firmware upgrades to ensure that the product is constantly updated and optimized to obtain new functions and enhance the usefulness of the product.
Features:

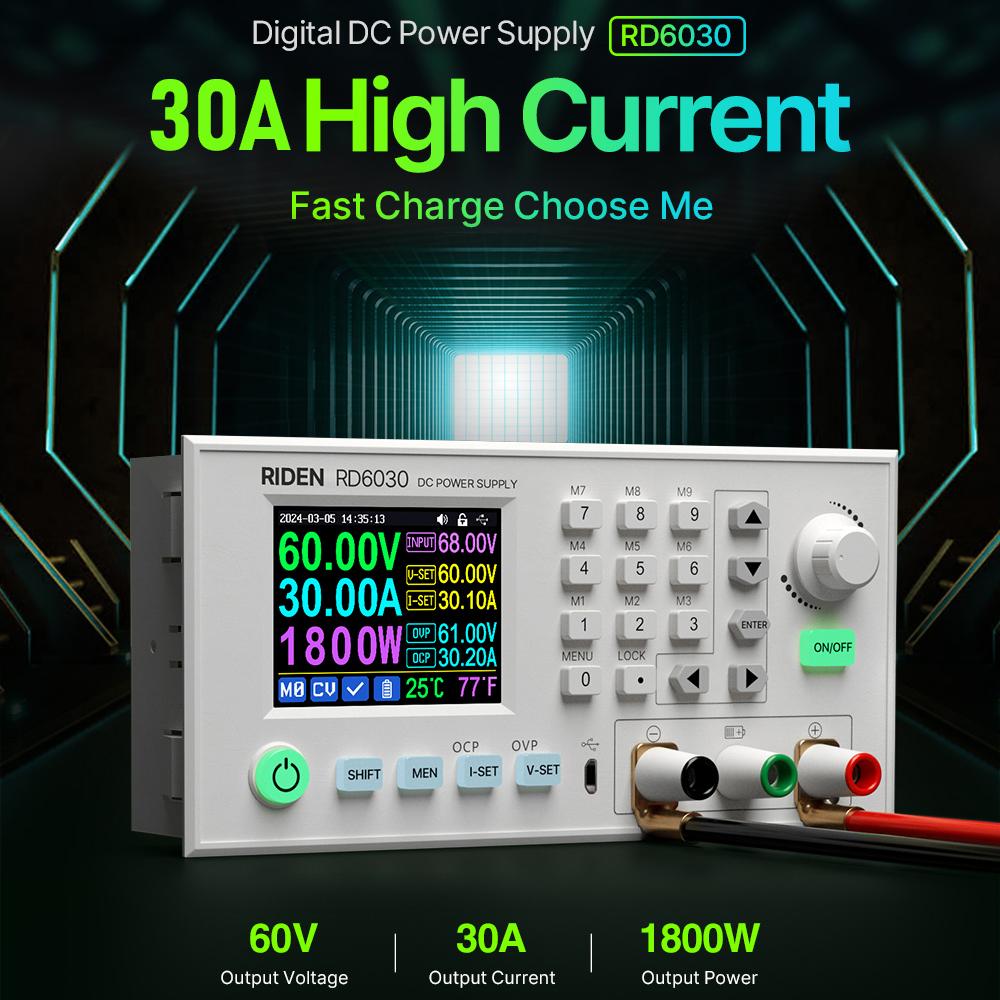

【High Output Capability】: This product provides a powerful output of 60V voltage, 30A high current, and 1800W power. Adopts pure copper terminals to enhance the current transfer efficiency, designed for fast recharging and high current applications to meet high power demand.

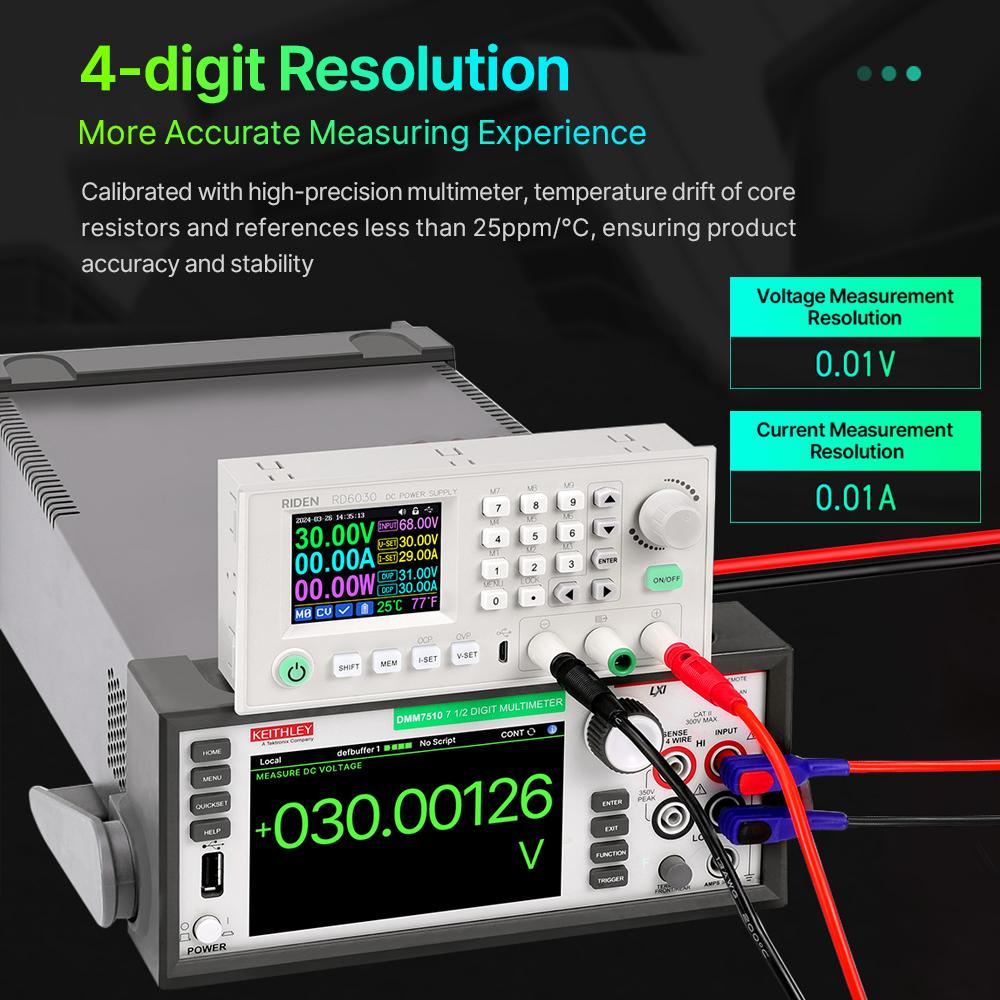

【High-precise Measurement & Convenient Calibration】: 4-digit high-precise display with 0.01V voltage resolution and 0.01A current resolution, ensuring highly accurate measurement results. Supports fine-tuning calibration function, comparing and calibrating with a multimeter to ensure the accuracy and reliability of long-term use.

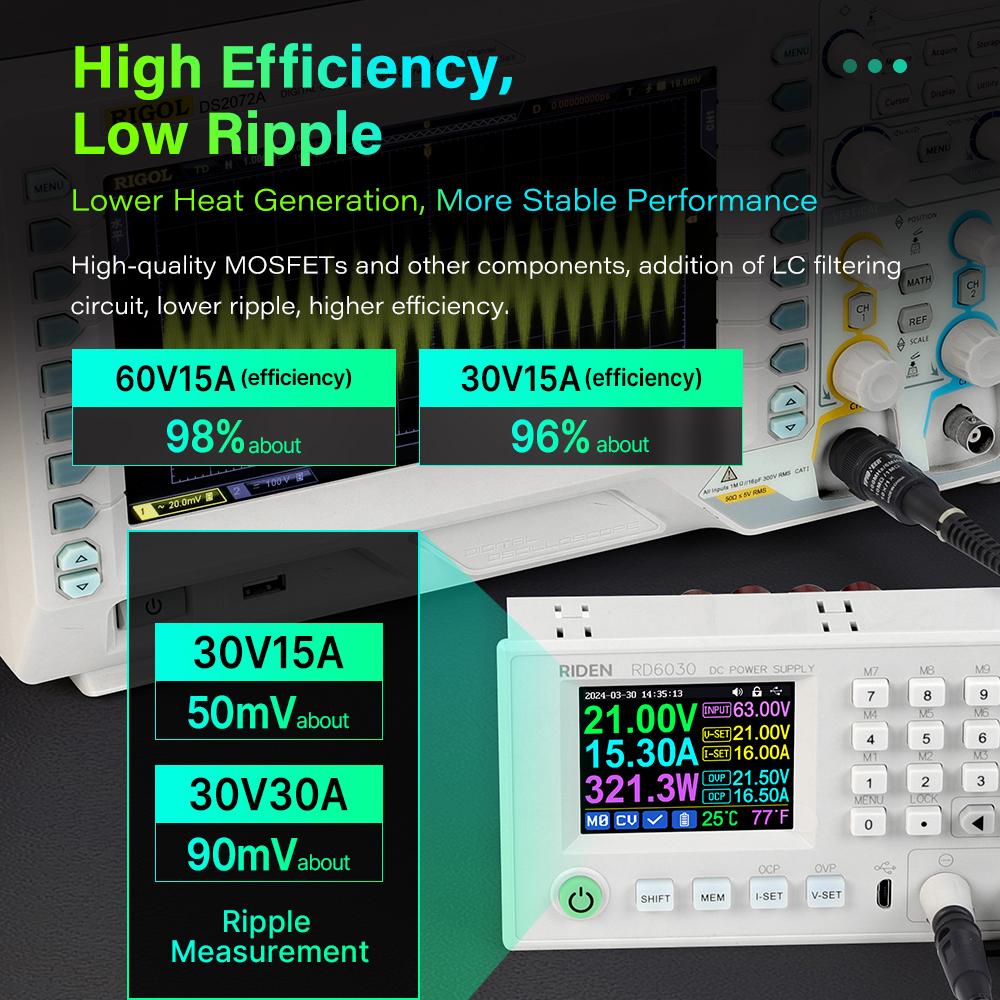

【High Efficiency &Superior Dynamic Response】: Adopting a high-grade MOS tube and an LC filter circuit, this device achieves high-efficiency conversion and low ripple output, reducing heat production and improving system stability. It offers superior dynamic response and load adjustment rates, ensuring smooth operation and strong adaptability to meet various dynamic load requirements.
【Comprehensive Protections Mechanism】: This device integrates multiple protective functions, including abnormal powerup and down protections, input reverse protections, output reverse irrigation protections, abnormal charging protections, input over-voltage protections, and output reverse protections, ensuring high safety and worry-free use. An input voltage over 72V triggers over-voltage protections, and an input voltage over 75V triggers power-off protections.
【Personalized Customization】: Equipped with a 2.4-inch LCD display and featuring 6 levels of brightness adjustment function. The display style and color can be freely switched to suit different user preferences. With three display styles (classical, detailed, and curved) and 15 colors to choose from, this enhances the personalized experience of the operating interface.
【Intelligent PC & Cellphone APP Control】: This device supports uppercomputer control, allowing you to manage and set the powersupply on your computers. It features a user-friendly interface and offers powerful, convenient control options (compatible only with Win7-Win10 systems). RD6030-W also supports BT online control for mainstream cellphones (compatible with Android 5.0-11.0 and iOS 10.0-15.0 systems, and the keys are automatically locked when communicating). Additionally, it supports a data storage function.
【Firmware Upgrade】: Continuous software upgrade , users can upgrade the firmware to get new features and optimization, keep the product functions up-to-date, and improve user experience.
【Optional 1500W PSU】: 1500W PSU is 1500W under 220VAC input, it can let RD6030 output 1440W max, but it is only 1200W under 110VAC input, it can only let RD6030 output 1140W max, please be careful when choosing PSU.
Specifications:
Name: Power Source
Material: metal
Model: RD6030-W
Input voltage ranges: 7-70.00V
Output voltage ranges: 0-60.00V
Output current ranges: 0-30.00A
Output power ranges: 0-1800W
Input voltage measurement resolution: 0.01V
Output voltage resolution: 0.01V
Output current: 0.01A
Battery voltage resolution: 0.01V
Input voltage measurement accuracy: ±(1%+5 digits)
Output voltage accuracy: ±(0.3%+3digits)
Output current accuracy: ±(0.5%+5digits)
Battery voltage measurement accuracy: ±(0.5%+3 digits)
Default cutoff current value when charging: 100mA
Output ripple typical: 50mV@15A, 90mV@30A VPP
Working temperature ranges: -10℃~40℃
External sensor Temperature detection ranges:-10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy:±3℃/±6℉
Constant voltage mode response time: 2ms（0.1A-5A Load）

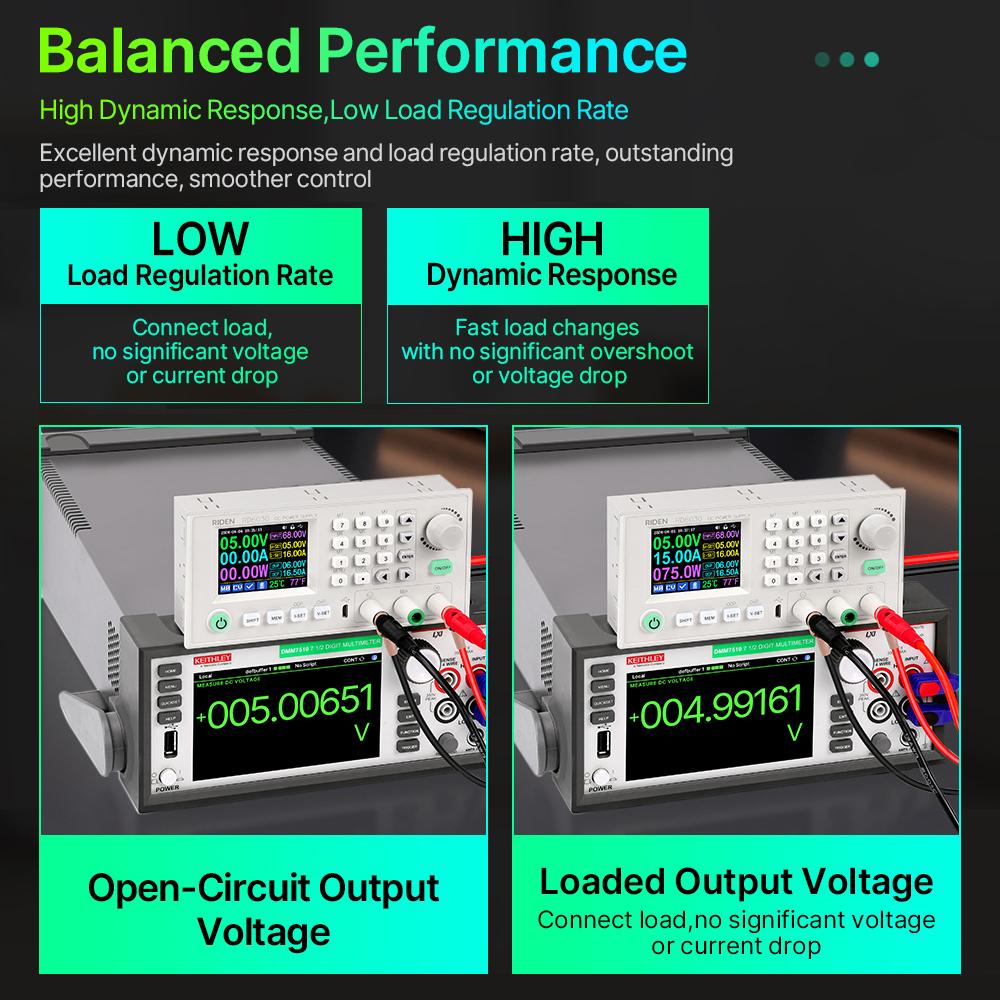

Constant voltage mode load regulation: ±(0.1%+2 digits)
Constant current mode load regulation: ±(0.1%+3 digits)
Capacity measurement ranges: 0-9999.99Ah
Energy measurement ranges: 0-9999.99Wh
Capacity and energy statistical error: ±2％
Buckworking mode: （input voltage÷1.1）-1
Over temperature protections: System temperature>80℃
Screen brightness setting: 0-5(6 level in total)
Screen: 2.4inch color LCD display
Cooling fan operation condition: Output current>8A or System temperature>45℃
Cooling fan shut down condition: Output current <7.9A and System temperature <40℃

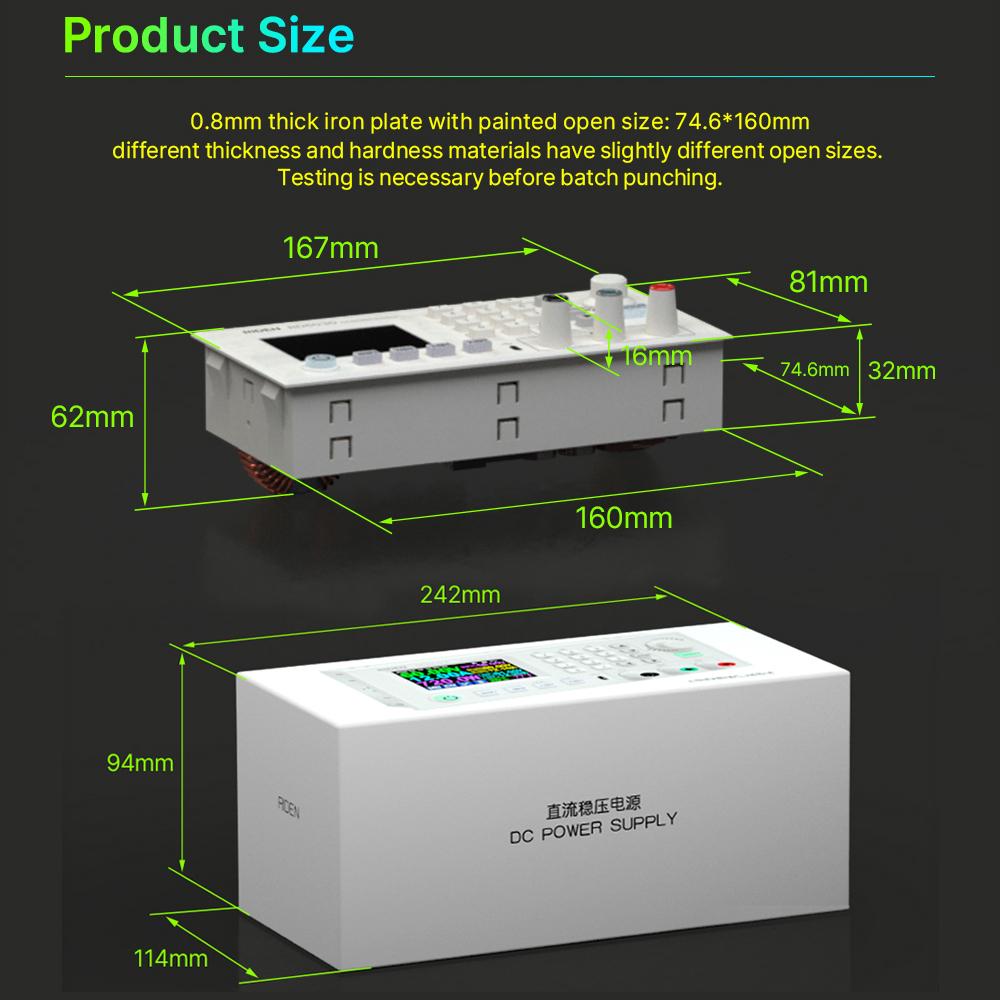

Item size: 167 * 81 * 69mm / 6.57 * 3.19 * 2.72in
Package size:
RD6030-W: 110 * 240 * 90mm / 4.33 * 9.45 * 3.54in
Package weight:
RD6030-W: 736g / 1.62lb
Packing List:
1 * Power Source
