Universal Rubber Ball Joint Boot Track End Rod Replacement with Cable Tie And Glove.
Notice: These white dots are specialized protective wax, a protective layer intentionally added to slow down the aging (hardening, brittleness, and cracking) of rubber. Do not try to wipe or wash it off as this will damage the protective layer.

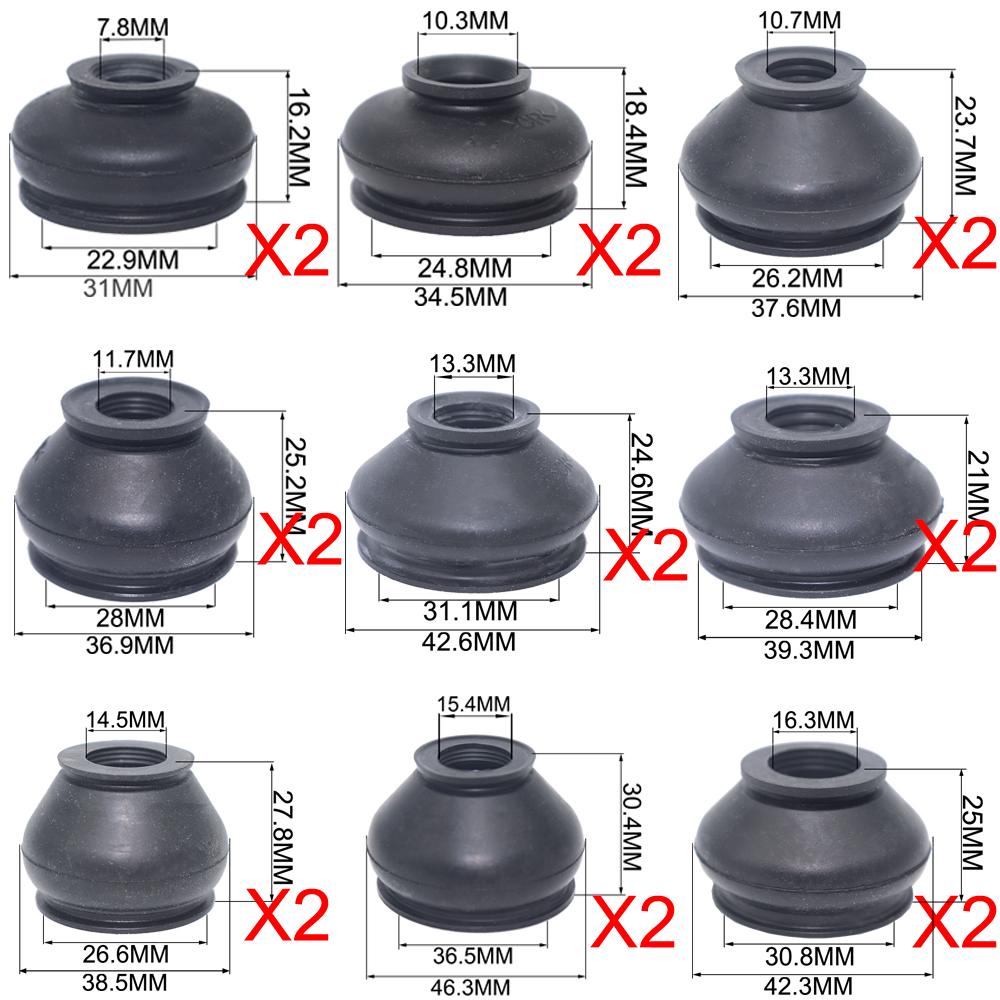

Size1: 7.8*22.9*16.2*31MM
Size2: 10.3*24.8*18.4*34.5MM
Size3: 10.7*26.2*23.7*37.6MM
Size4: 11.7*28*25.2*36.9MM
Size5: 13.3*31.1*24.6*42.6MM
Size6: 13.3*28.4*21*39.3MM
Size7: 14.5*26.6*27.8*38.5MM
Size8: 15.4*36.5*30.4*46.3MM
Size9: 16.3*30.8*25*42.3MM
Size10: 17.5*30.4*27.9*42.1MM
Size11: 19.2*32.7*26.4*43.9MM
Size12: 20.3*43.3*29.6*59.2MM
Size13: 20.6*34.7*27.8*46.1MM
Size14: 20.6*29.4*21.2*42.2MM
Size15: 21.4*34.7*22.9*45.4MM

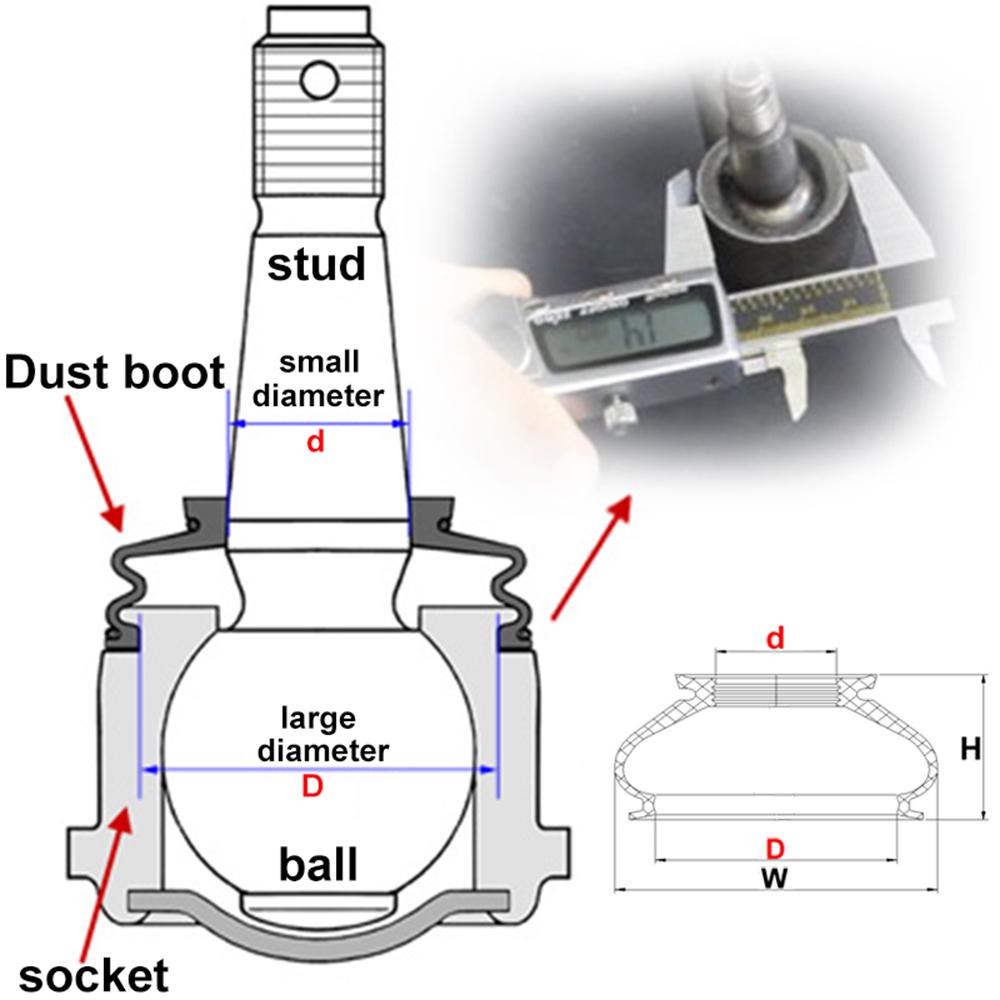

Steering rod ball joint - Connected between the steering gear and the steering knuckle (wheel bearing seat).
Control arm ball joint - Connects between the suspension control arm (control arm below) and the steering knuckle.
Consequences of damaged ball head dust cover:

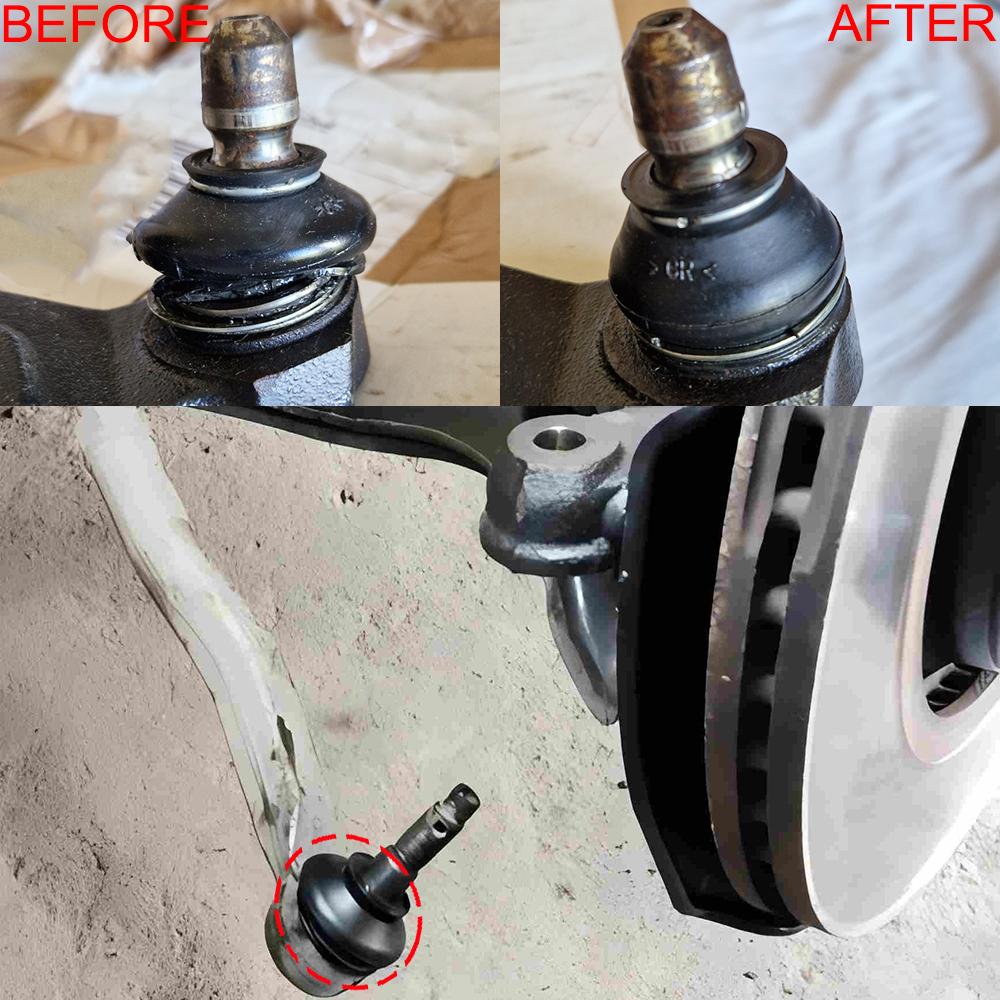

If the ball head dust cover is cracked, torn or damaged due to aging, high temperature, or impact, it will cause a series of problems:
Accelerated wear: When contaminants enter and grease leaks, the ball head will wear out quickly and create gaps.
Abnormal noise: When the vehicle passes over bumpy roads or turns, the chassis will make a metallic knocking sound of "clunking" or "clicking".
Decreased steering performance: The steering wheel feels larger, the steering is inaccurate, and the vehicle easily goes off track when driving in a straight line.
Loose chassis: When passing over hills or speed bumps, there will be a loose shaking feeling and abnormal noise from the chassis.
Extreme danger: If the ball head reaches its limit due to excessive wear, it may suddenly break when turning or bumping, causing the wheel to lose control instantly and causing a serious accident.
The function of the ball head dust cover is sealing and protection. It itself does not bear mechanical force, but it directly determines the service life and driving safety of the ball joint pin.
1. Dust-proof and anti-fouling This is the main function. The inside of the ball stud is filled with grease and needs to be kept clean. As a physical barrier, the dust cover can effectively block the entry of hard pollutants such as dust, soil, sand, and salt particles from the outside. If these impurities enter, they will act like abrasives and accelerate the wear of the ball head and bowl.
2. Keep it lubricated The dust cover seals the special high-temperature and high-pressure grease inside the ball head to prevent it from being lost due to high temperature, long-term use or leakage. Adequate lubrication is the key to ensuring smooth rotation of the ball head.
3.Prevent moisture and corrosion It can prevent rainwater, road water and car wash water from entering the inside of the ball joint and prevent rust and corrosion on the surface of the steel ball joint and ball bowl of the ball joint pin. Rust will cause rotational jamming, affect steering feel, and even cause the ball head to jam.
Material: Rubber, Plastic

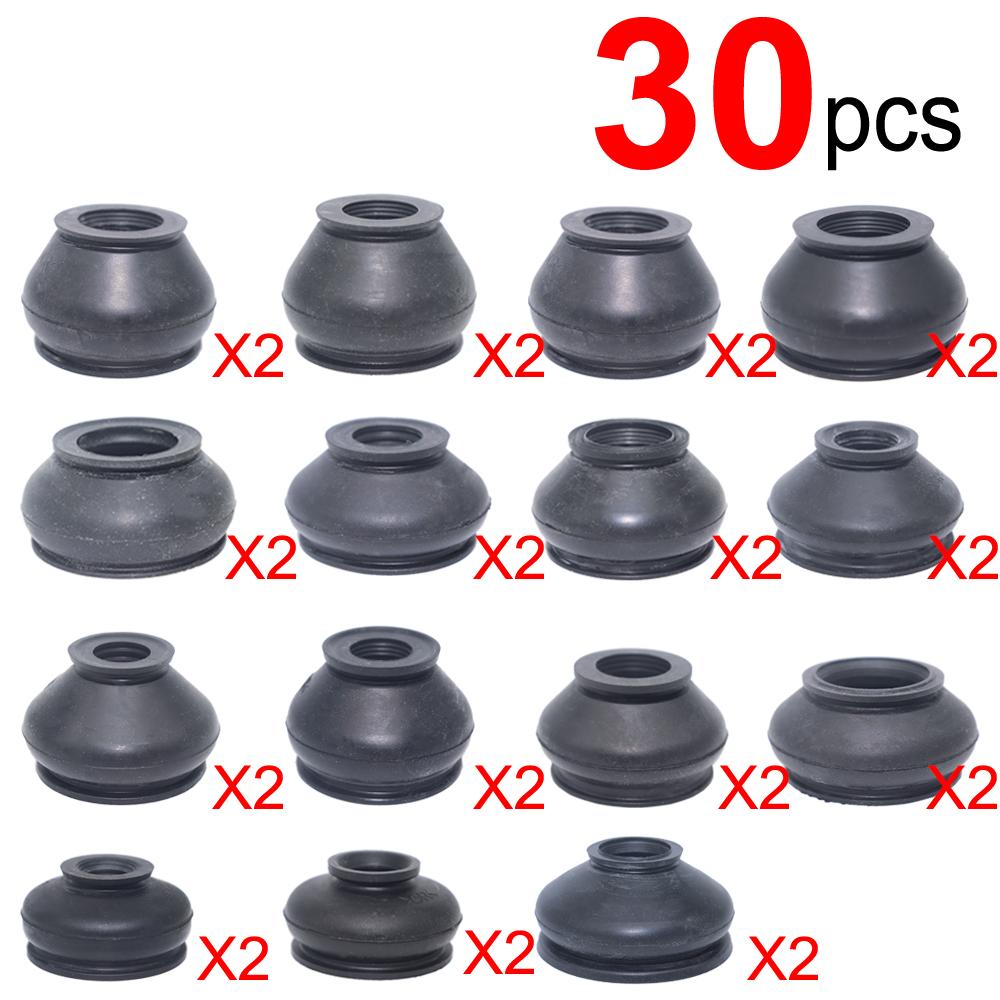

QTY: 30Pc
