Description:

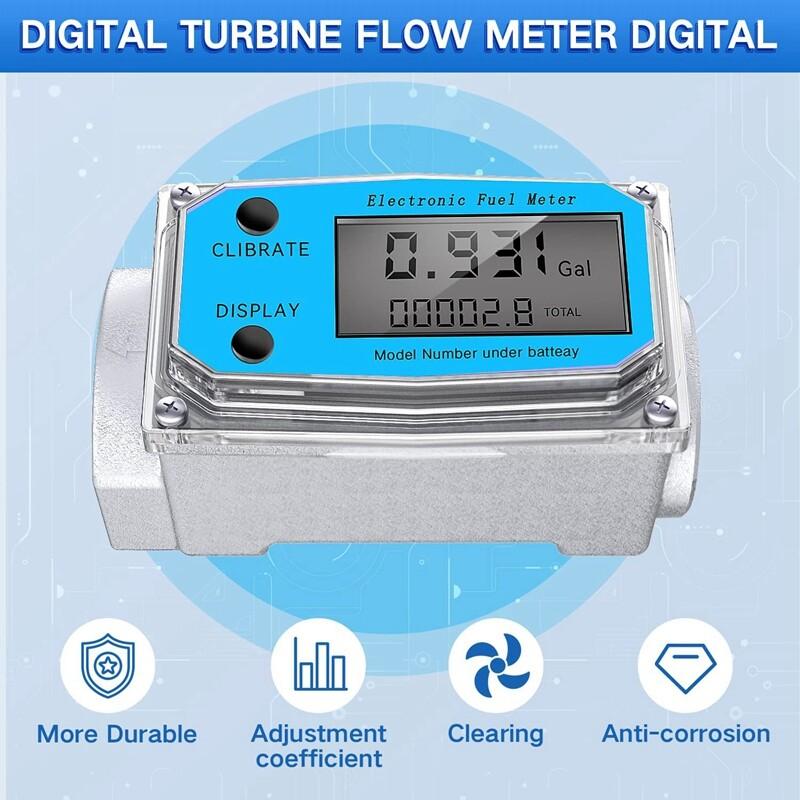

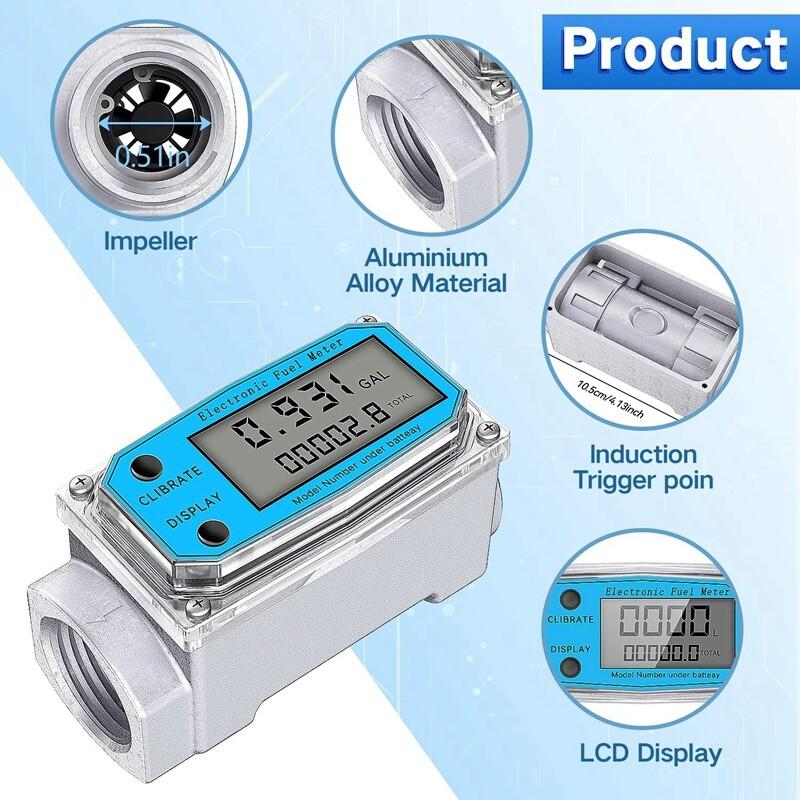

1. Robust and corrosion-resistant: The digital turbine flow meter comes in a corrosion-resistant aluminum housing, and internal fittings are made of stainless steel.
2. Plug-and-play: Compact size and stable performance. Easy replacement and maintenance of internal components; suitable for output modules, sensors, and remote transmitters. Easy to install.
3. Widely used: ±5% accuracy for diesel, kerosene, water, and light chemical industries.

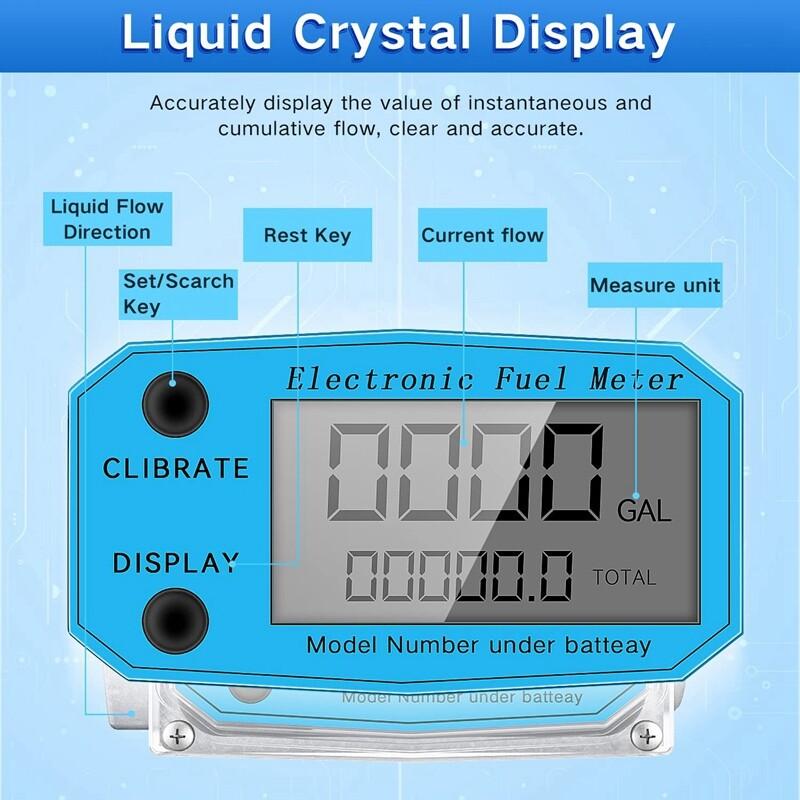

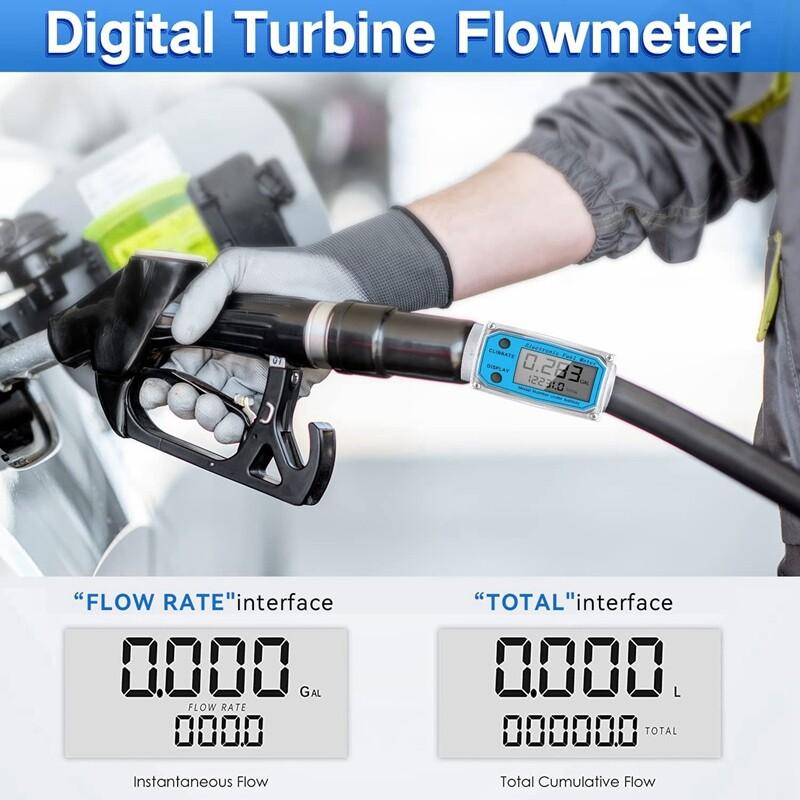

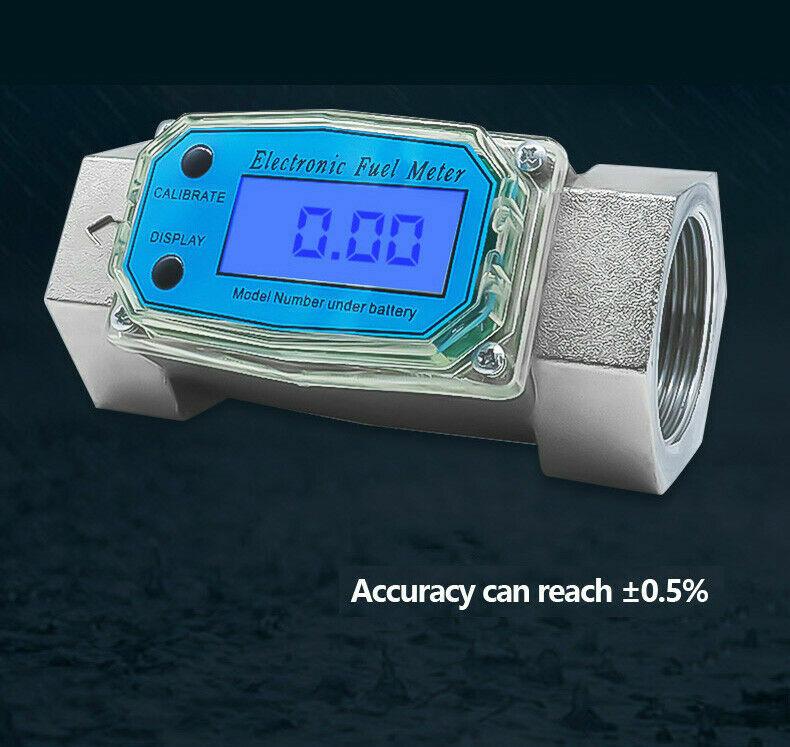

4. LCD display: The LCD screen displays instantaneous and cumulative flow.
5. The unit of measurement can be switched: The standard unit of measurement on the meter is liters, and it can be switched to L/Gal/Pts/Qts (How to change units): 1- Press and hold the Calibrate and Display buttons simultaneously for about six seconds. 2- When the units appear on the display, press Display to change the units. 3- Finally, press CALIBRATE to configure the units permanently, or wait 10 seconds for the system to adjust automatically.
Malfunction and Solution:
The flow meter is inaccurate.
1. The field calibration method was incorrect. Recalibrate.
2. The flow rate on the meter is below the minimum reading. Increase the flow rate.
3. The flow meter is blocked by dry fluid. Remove the impeller and clean it thoroughly, ensuring it rotates freely.
4. The impeller is wrapped with sealing material. Remove the meter and ensure the impeller rotates freely.
5. Too close to the impeller. Install correctly.
6. Too close to motor or electronic noise. Install correctly.
The flow rate is normal, but the meter cannot register a reading. Press the DISPLAY button to start the meter.
1. The field calibration is incorrect. Recalibrate.
2. The impeller is blocked or damaged. Remove the meter and ensure the impeller rotates freely.
3. The impeller is wrapped with sealing material. Remove the meter and ensure the impeller rotates freely.

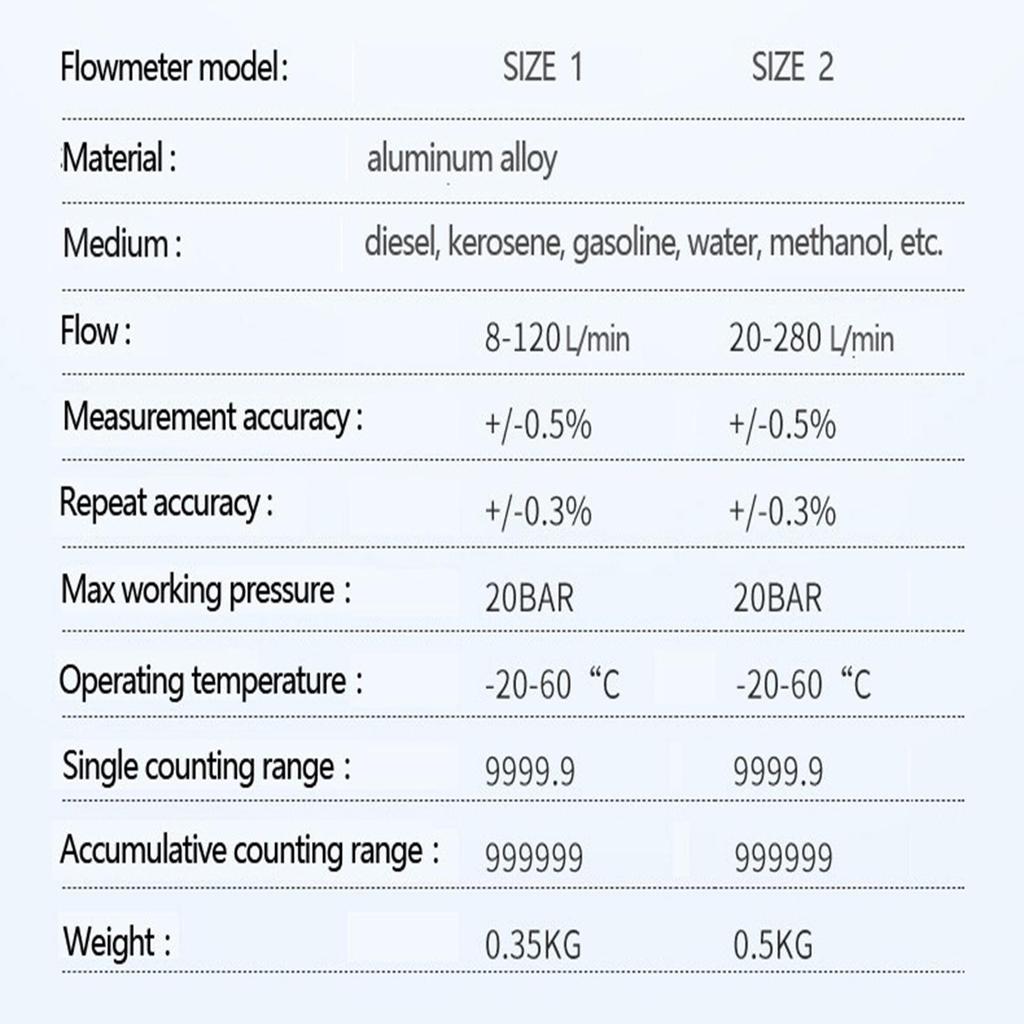

Specifications:
Operating Voltage: 2.3-3.3V

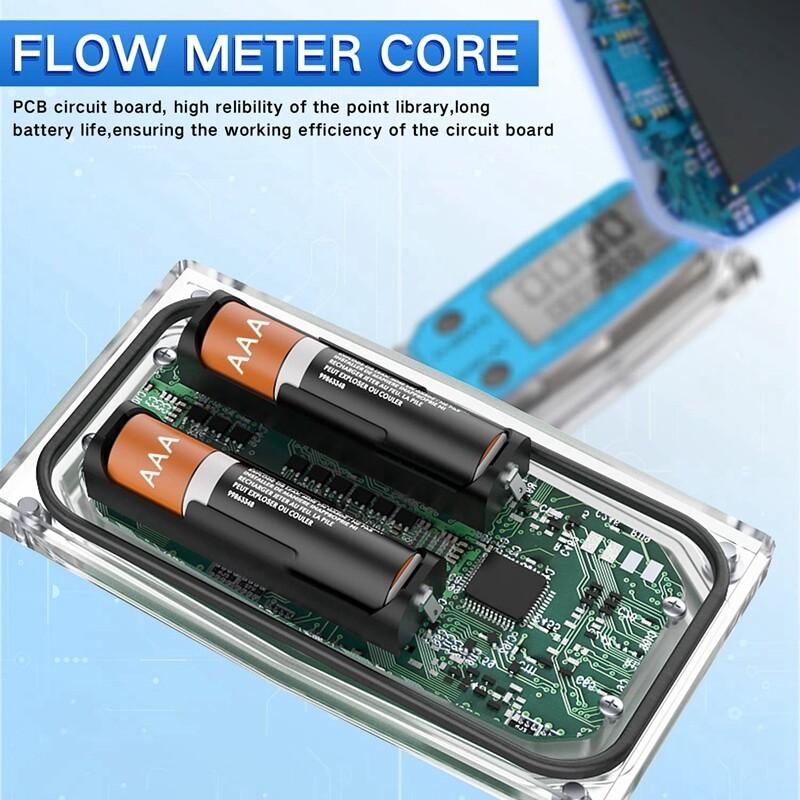

Battery Type: 2 x AAA LRO3 Batteries

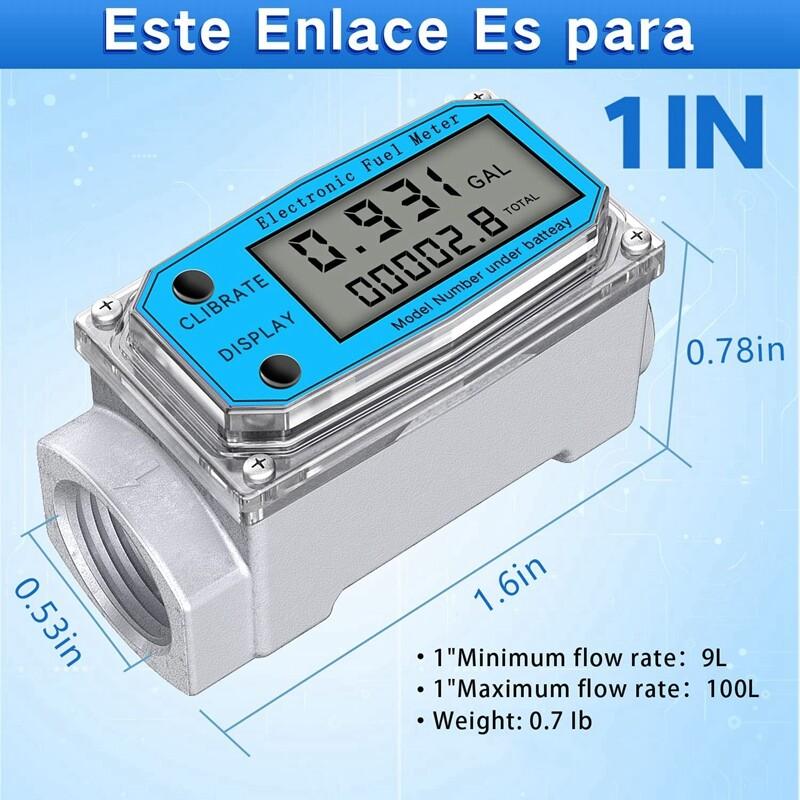

Thread Size: 1 inch NPT
Repeatability: ± 0.5%
Measurement Accuracy: ± 1%
Maximum Operating Pressure: 20 BAR
Flow Rate Range: 8-120 L/min / 20-280 L/min
Single Count: 0.00-9999.9
Total Cumulative Count: 0-99999
Count Error: 0.1000-9.9999
Operating Temperature: -10°C to +60°C (14°F to 140°F)
Standby Time: 2 Years

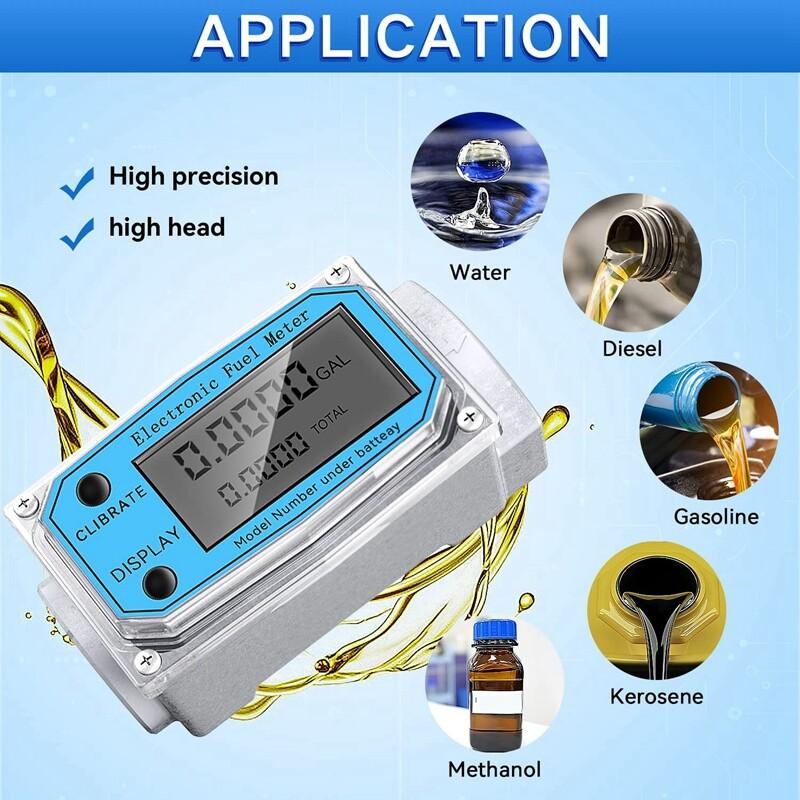

Application: Diesel, Kerosene, Gasoline
Color: Blue
Weight: 371g
Package Contents:
1 x Turbine Flow Meter.
