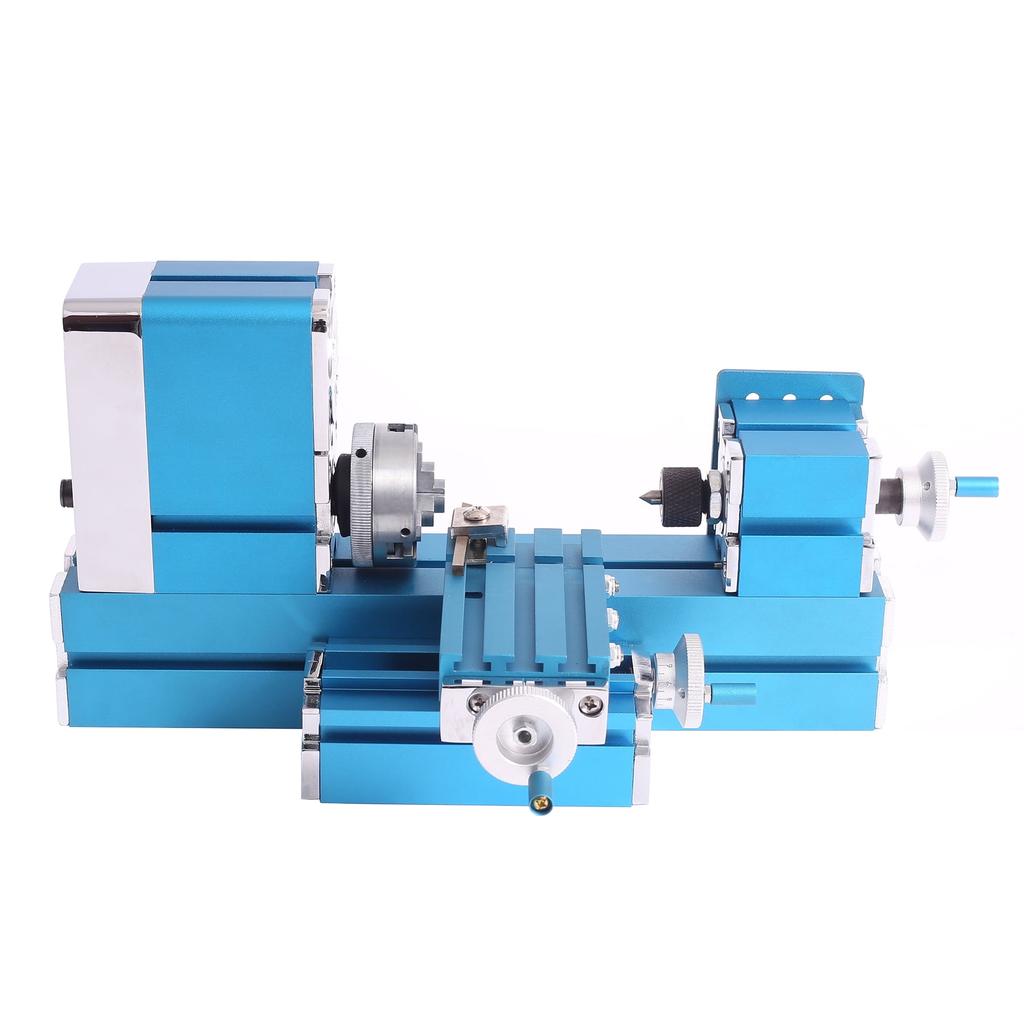

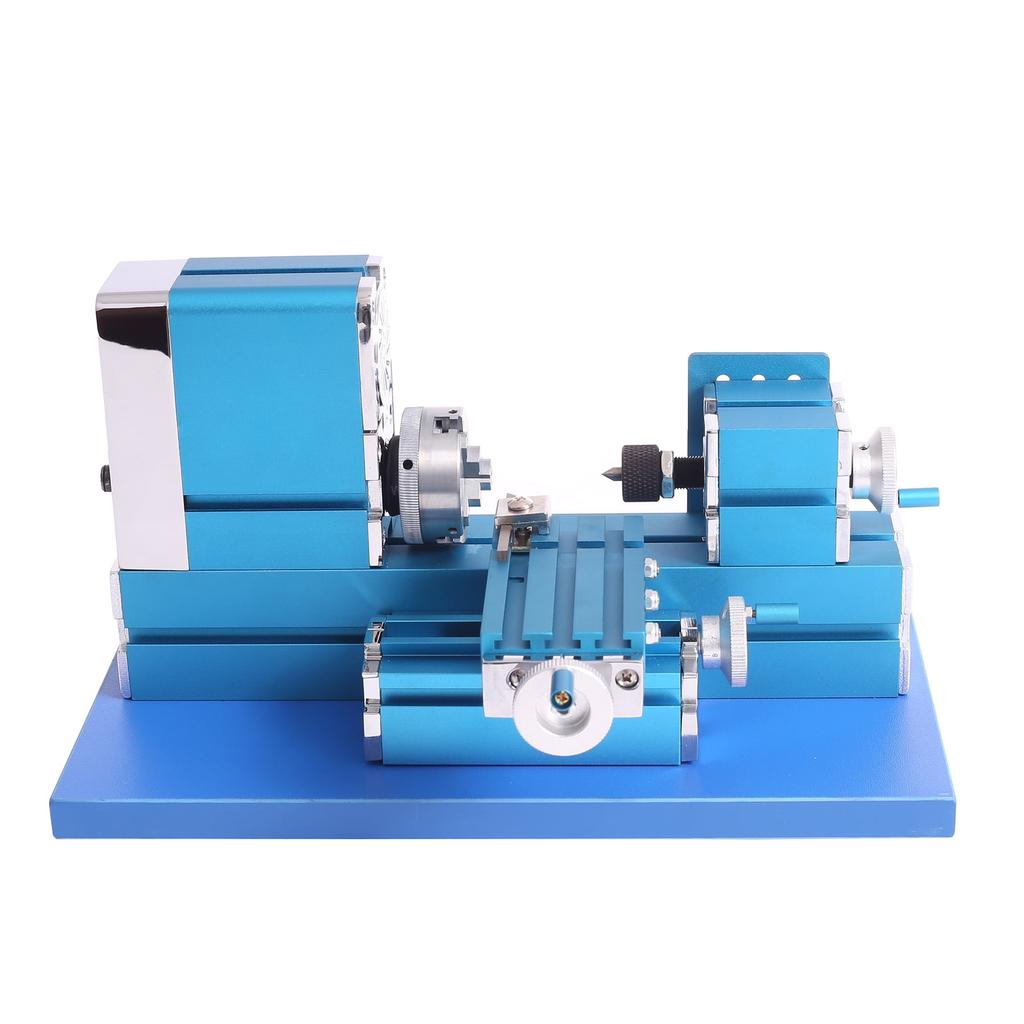

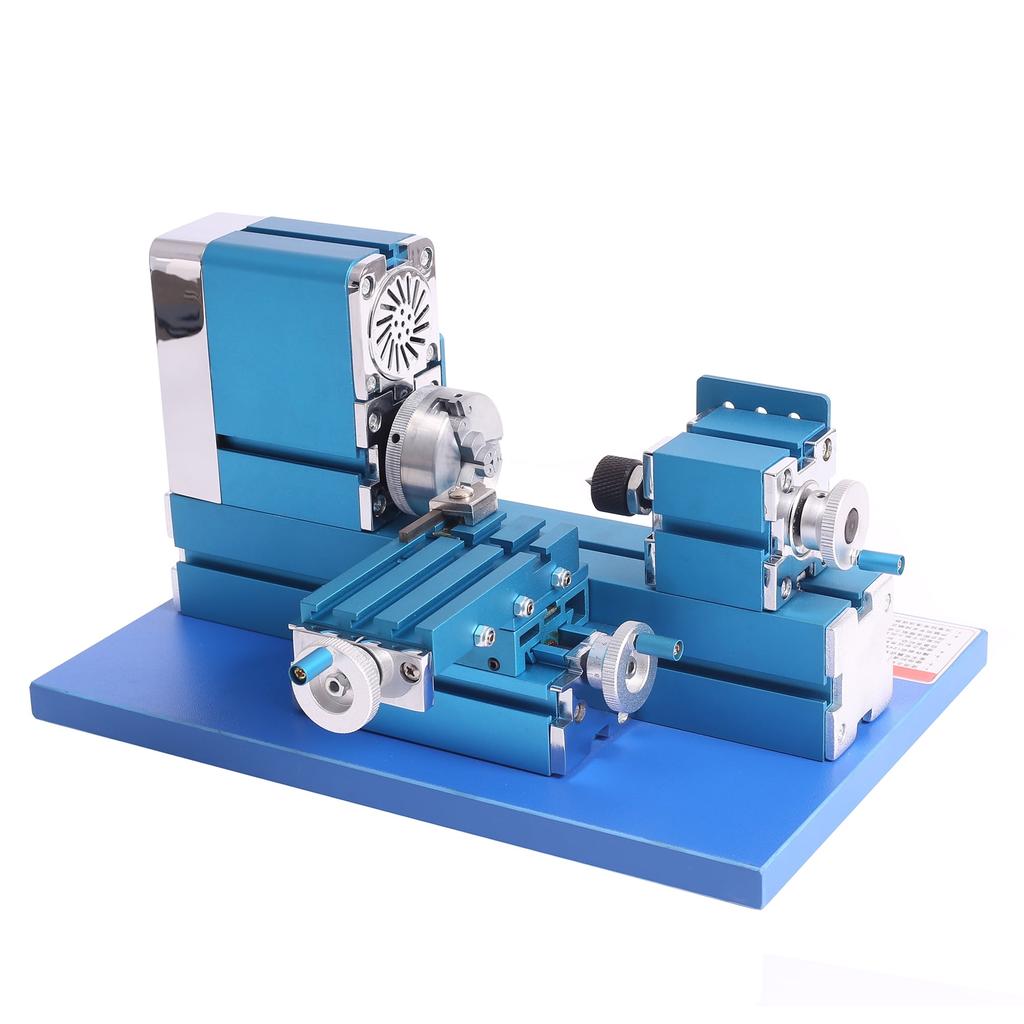

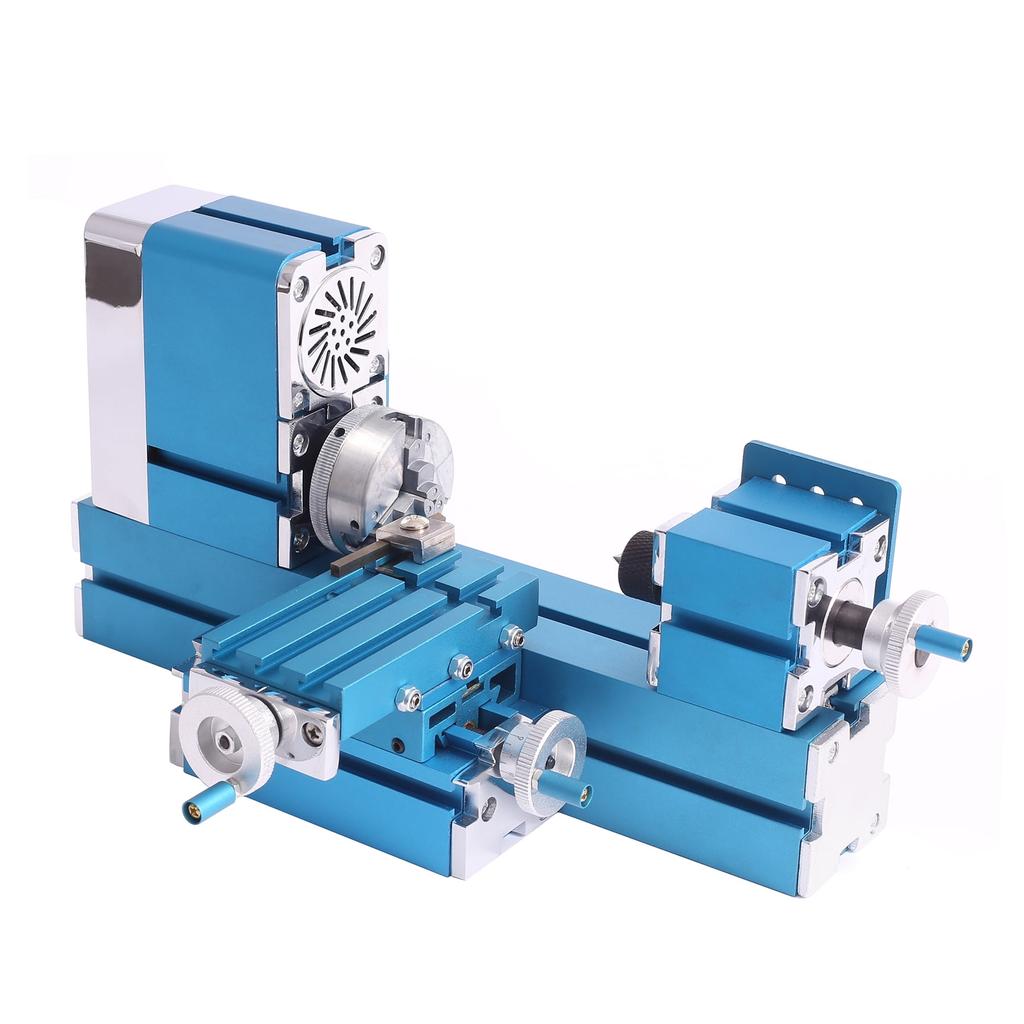

Description:
Unlock Your Creativity with the Ultimate Mini Lathe! Welcome to precision crafting! Our Professional Mini Lathe is engineered for makers who demand accuracy and reliability in small-scale projects... The 36W copper motor delivers consistent power for detailed work on diverse materials. From threading to drilling and polishing, it’s your all-in-one workshop for custom pens, scale model components, and unique gifts.
Keywords:
Mini lathe machine, benchtop lathe, mini metal lathe, wood lathe mini, lathe for metal working, DIY lathe tool, model making lathe, hobby lathe, precision lathe, lathe for beginners, home workshop lathe, small lathe for hobbyists, 36W lathe, compact lathe, micro lathe, craft lathe.
Specification:
Input voltage: AC100V~240V 50/60HZ
Output voltage : DC12V 3A/4A
Motor rated power: 36W
Motor speed: High speed motor 20000r/min±15%
Spindle speed: high speed motor 3000r/min±15%
Spindle jump: <0.1mm
Large slider stroke(Z axis): 45mm
Small slider stroke(X axis): 35mm
Center height: 25mm
Center distance: 110mm
Turning tool size: 3.5*3.5mm
Maximum processing diameter: 0-10mm positive claw, 10-45mm reverse claw
Three-jaw chuck clamping diameter: 0-10mm claw, 10-45mm reverse claw
Handle scale: 0.1mm/division

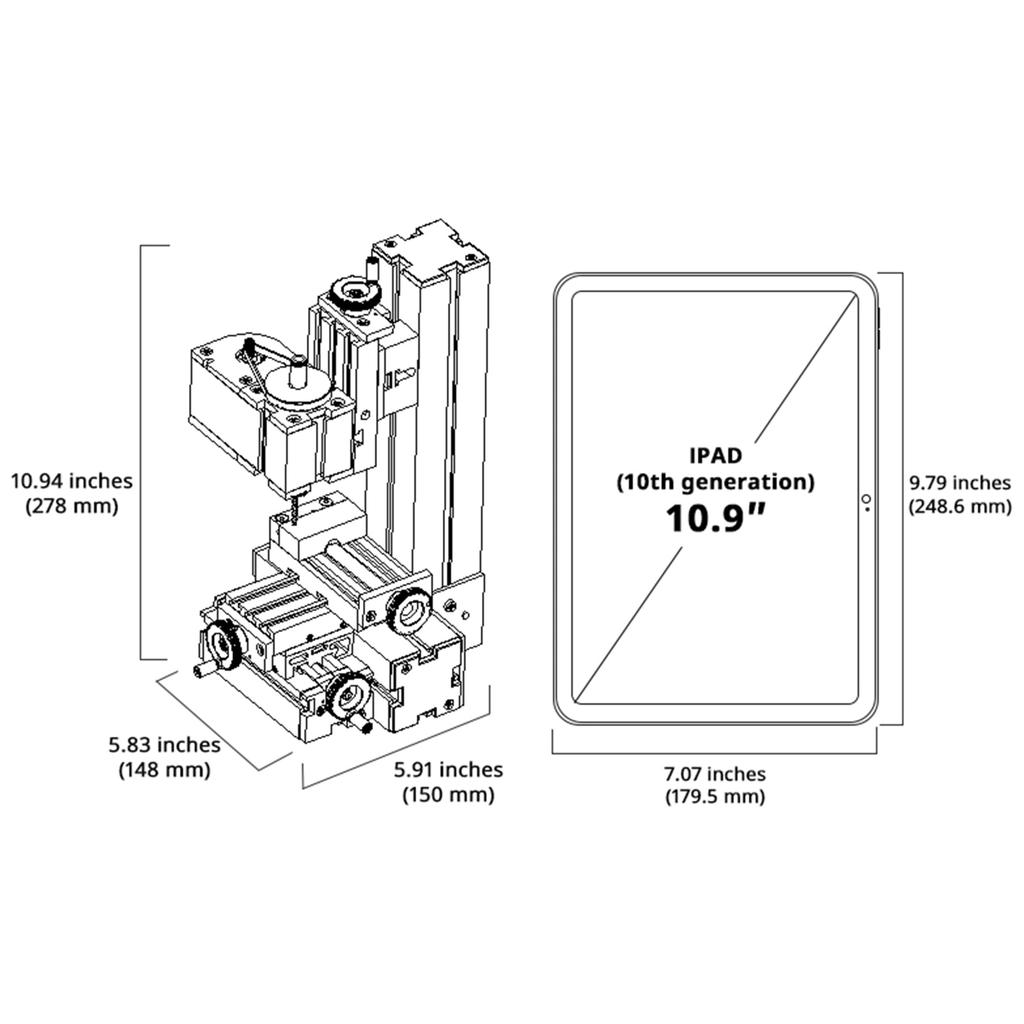

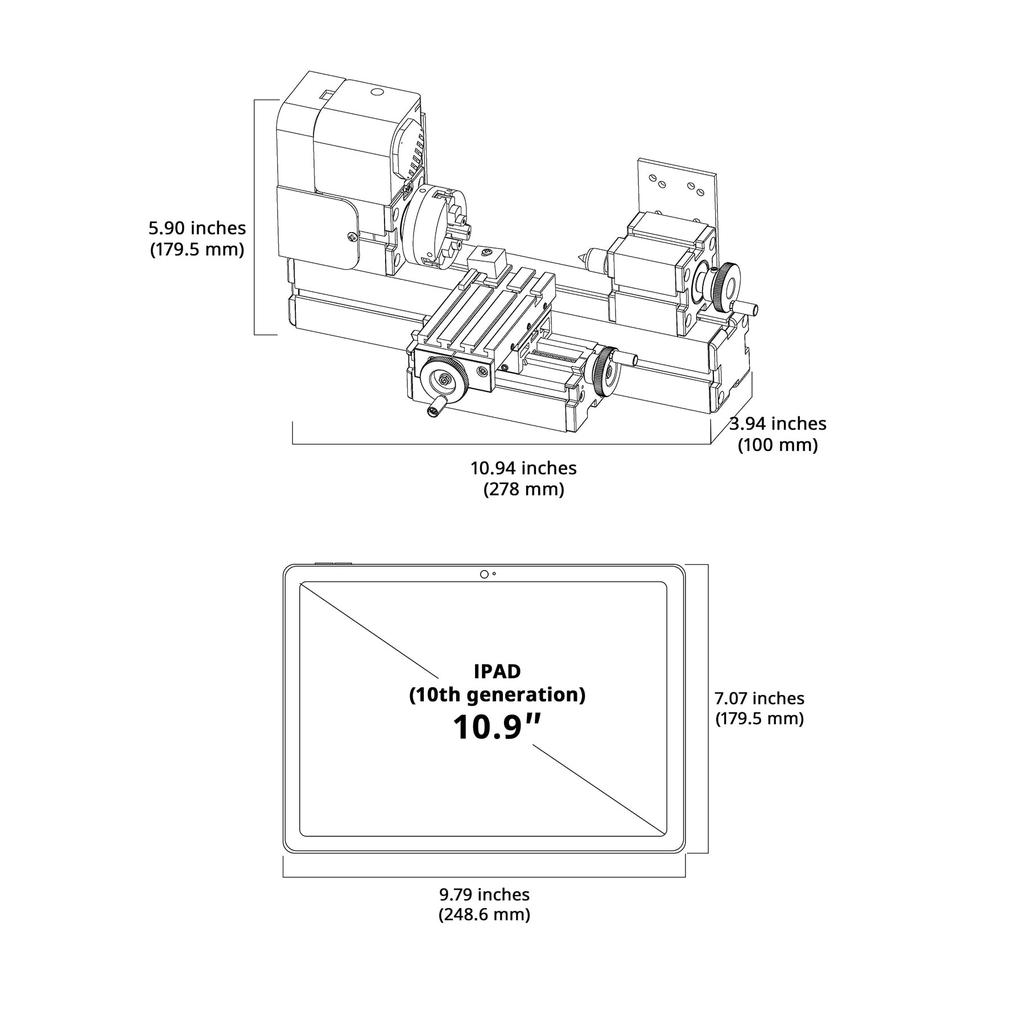

Production size:278*100*150 mm
Packing size: 325mm*200mm*240mm
Weight: 3.7KG
Processing ability: It can process wood, plastic and soft metals (pure copper and pure aluminum).
Key Feature:
- The main structure is made of high-grade aluminum alloy for small-scale work.

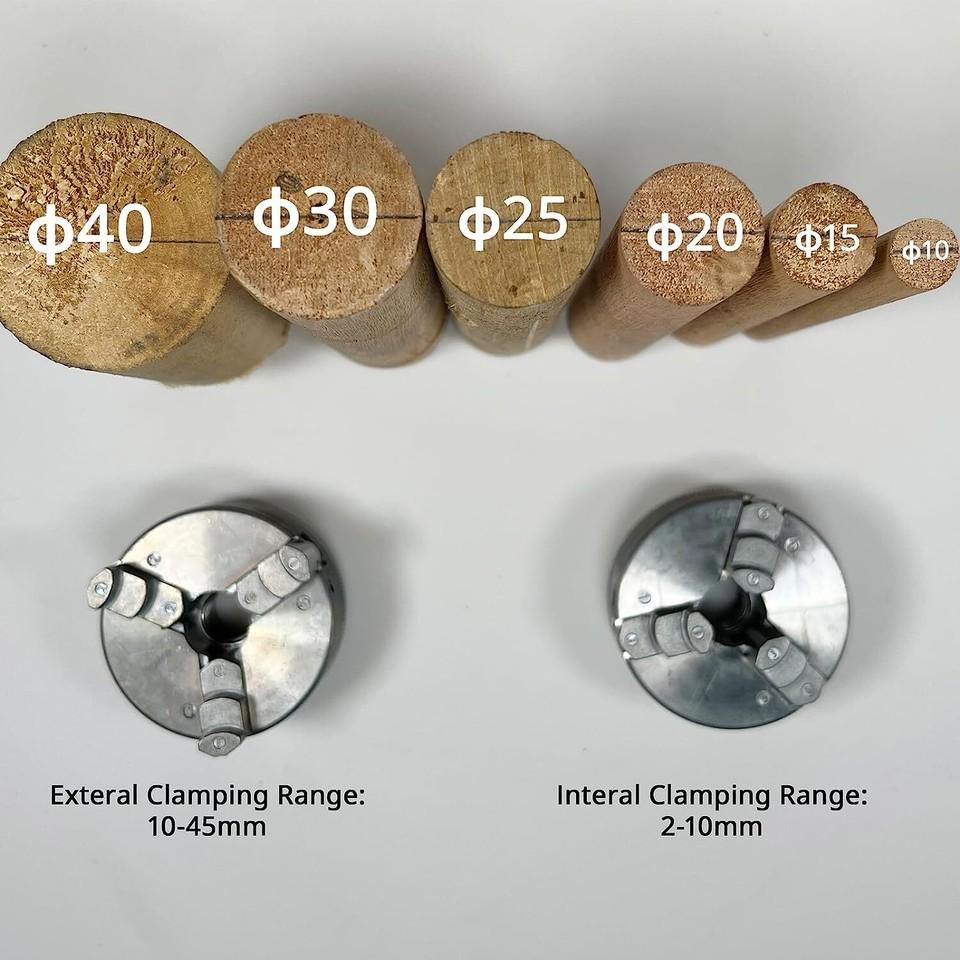

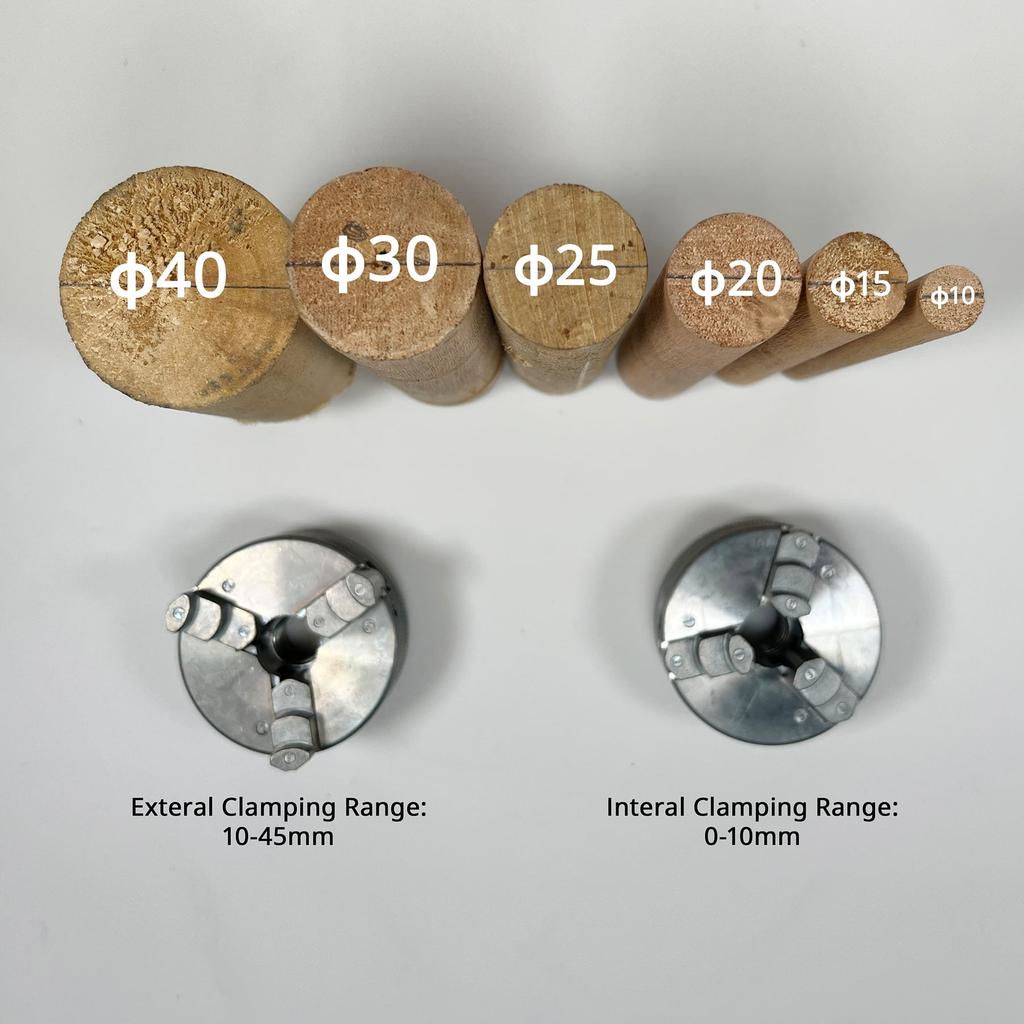

- It comes with a 3-jaw self-centering chuck. The gripping range is: Standard (Positive) Jaws: 2mm to 14mm. Reversible (Outside) Jaws: 16mm to 40mm.
- The standard maximum swing (largest diameter workpiece that can clear the bed) is 45mm.
- The included high-speed steel (HSS) turning tool has a square shank size of 3.5mm x 3.5mm. This is a standard size for miniature lathes, and a set of adjustment shims is included for precise tool height alignment.

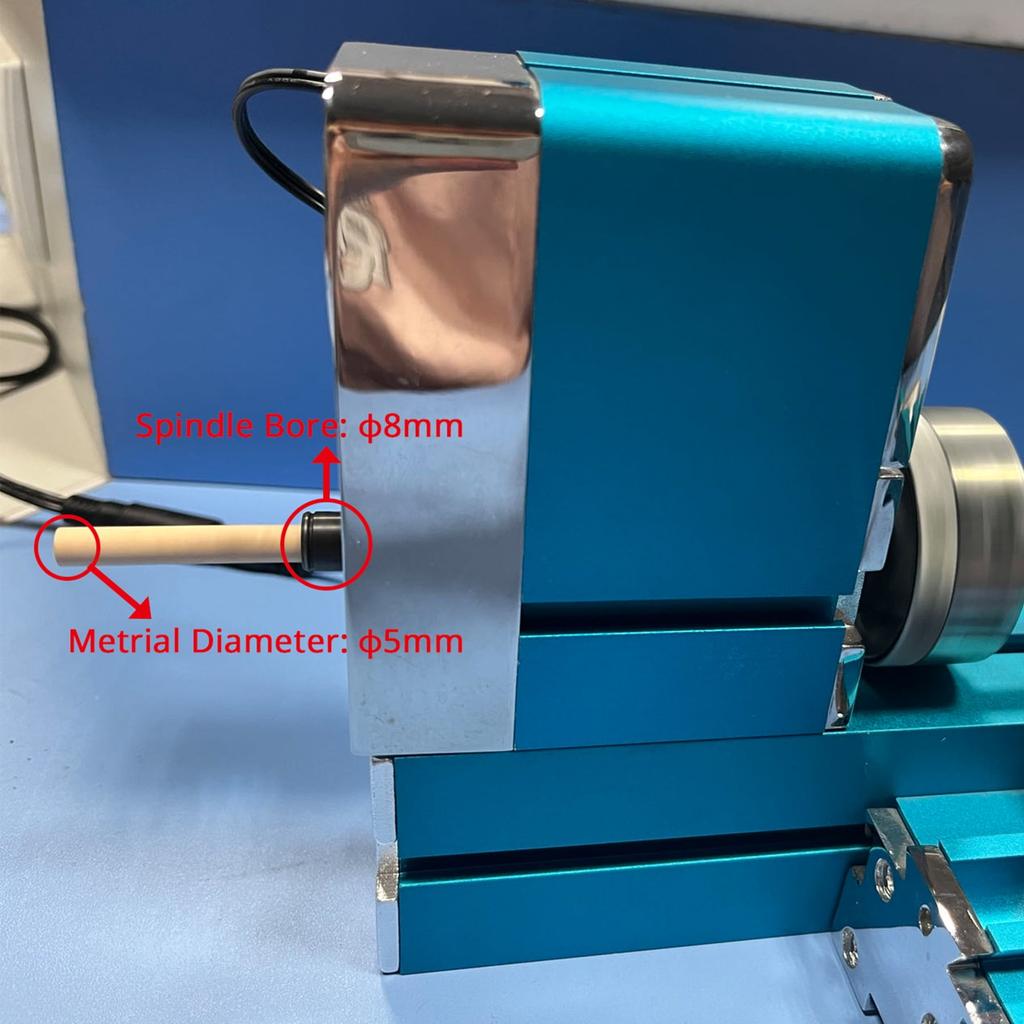

- The spindle has a through-hole of 8mm.
- This model operates at a fixed spindle speed of approximately 3000 RPM (within ±15% variance). This speed is optimally set for processing soft materials like wood, plastics, and non-ferrous metals with small diameter cutters, ensuring simplicity and reliability.
- It is perfectly suited for: Wood & Plastics; Soft Non-Ferrous Metals (e.g., pure aluminum, pure copper, brass).
- You can remove the live center and install your own. For convenience, we also offer a range of collets (sizes ф1, ф2, ф2.5, ф3, ф3.5, ф4, ф5, ф6mm) as optional accessories, perfect for holding small drill bits and end mills.
- This is a fully manual benchtop lathe. All movements (carriage, cross-slide, tailstock) are controlled by handwheels, giving you complete tactile control—an excellent way to develop fundamental machining skills and feel for the material.
- The standard maximum swing (largest diameter workpiece that can clear the bed) is 25mm.
- Regular maintenance ensures longevity. Key points include: Apply a small amount of light machine oil to the guide rails and leadscrew before each use. Keep the chuck and spindle taper clean from dust and chips. Periodically check and tighten any fasteners.

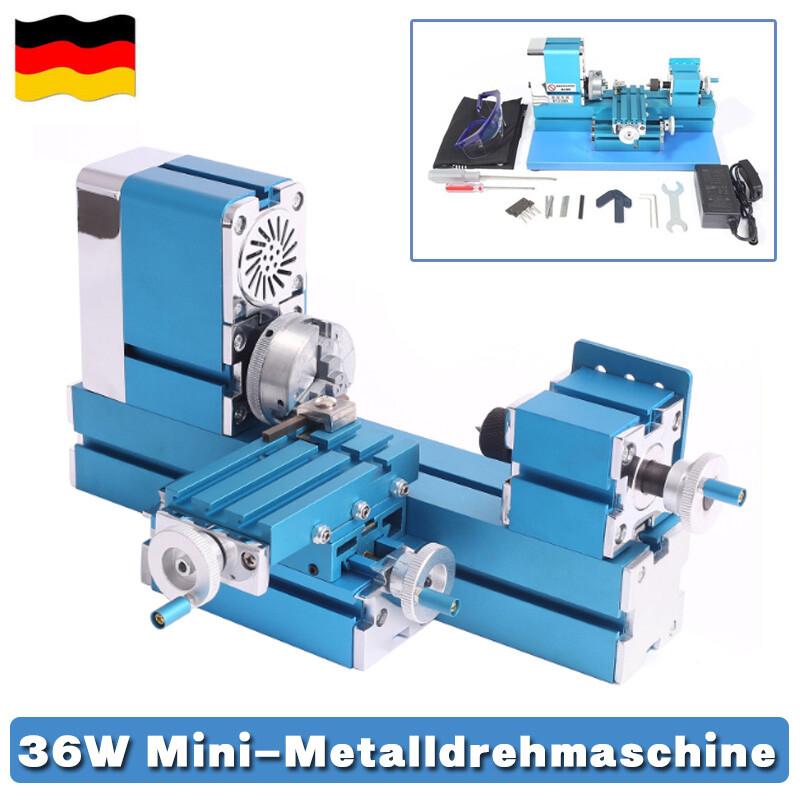

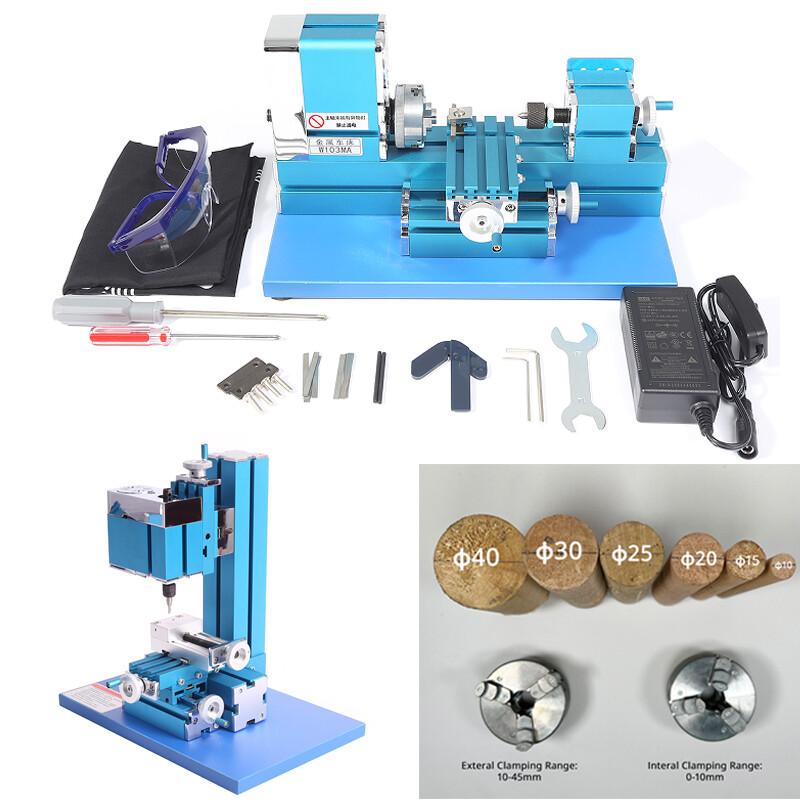

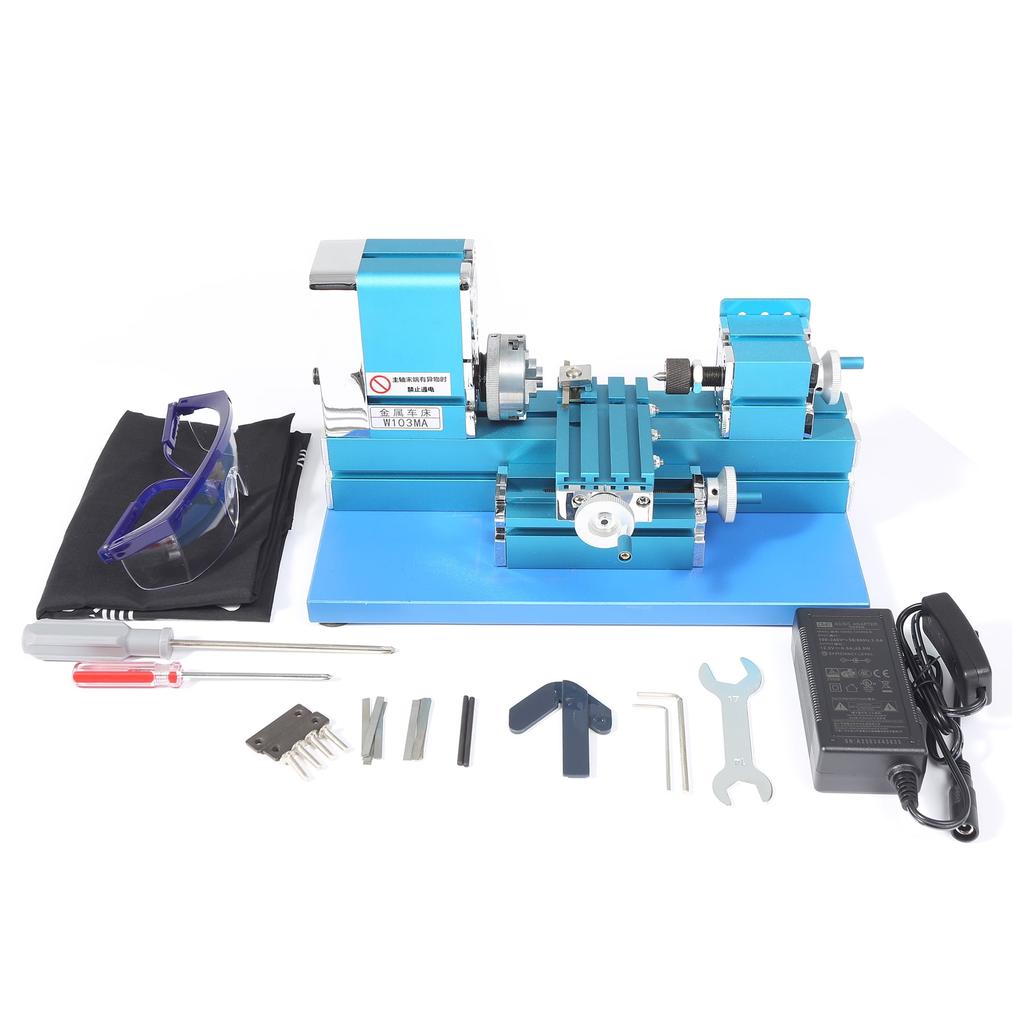

Package Included:
1 Set Of Lathe
1 Set Of Accessories:
- Inner Hexagon Spanner 2pcs(S=2、3)
- Double-Headed Wrench 1pcs(S=14、17)
- Cross Screwdriver 1pcs
- Turning Tool 1pcs(3.5*3.5mm), On Machine
- Shim 5pcs(0.3mm)
- Shim 5pcs(0.4mm)
- Center Finder 1pcs
- Three-Jaw Chuck Locking Rod 2pcs
- Two Hole Clamping Plate 2pcs
- Screw 2pcs(M4*16)
1 Set Of Apron
1 Set Of Goggles.
【Power & Precision】Features a 36W motor for smooth operation on soft metals, wood, and plastics, ideal for detailed hobby projects.
【Safe & Stable Operation】 Equipped with a sturdy aluminum base, protective shield, and emergency stop for secure, vibration-free use.
【Compact & User-Friendly】 Space-saving desktop design with an intuitive control panel. Perfect for home workshops, garages, or makerspaces.
【Versatile Applications】 Ideal for creating model parts, jewelry, pens, and custom DIY projects. A great tool for hobbyists, woodworkers, and craft enthusiasts.
【Educational & Creative Gift】A great tool for learning, adult hobbies, and crafting unique handmade gifts.
