3,Robust Construction with Good Resonance Properties:These load cells are designed with high stiffness and exhibit good resonance characteristics, contributing to reliable performance and long service life in various applications.
5,Versatile Weighing Applications:Commonly used in hopper scales, platform scales, belt weighers, and other electronic weighing systems.

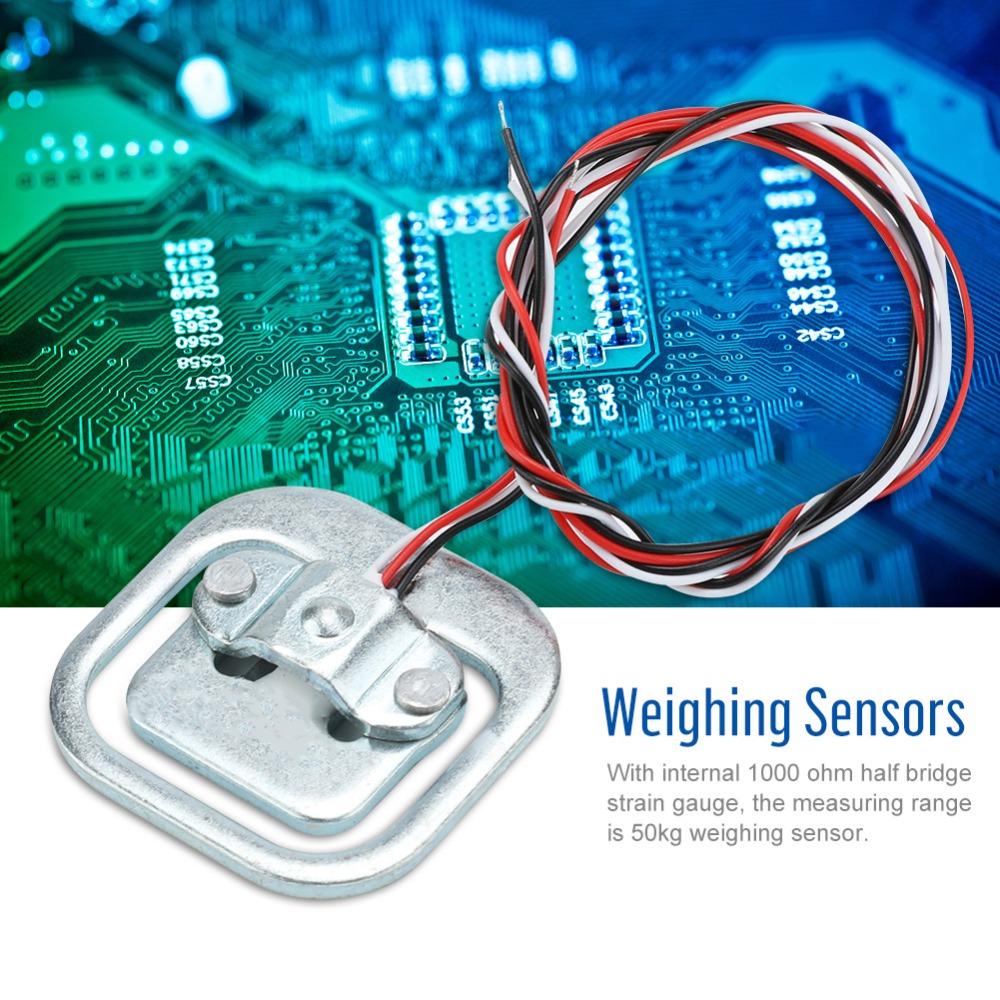

1,50kg Half-Bridge Strain Gauge Sensor:With internal 1000 ohm half bridge strain gauge, the measuring range is 50kg weighing sensor
2,Half-Bridge Structure for Combined Use:Half-bridge structure sensor, so you may need to make a combination of these sensors for target weight
4,Durable Material & Straightforward Installation:Manufactured using good quality materials for lasting durability. Simple to install and operate.

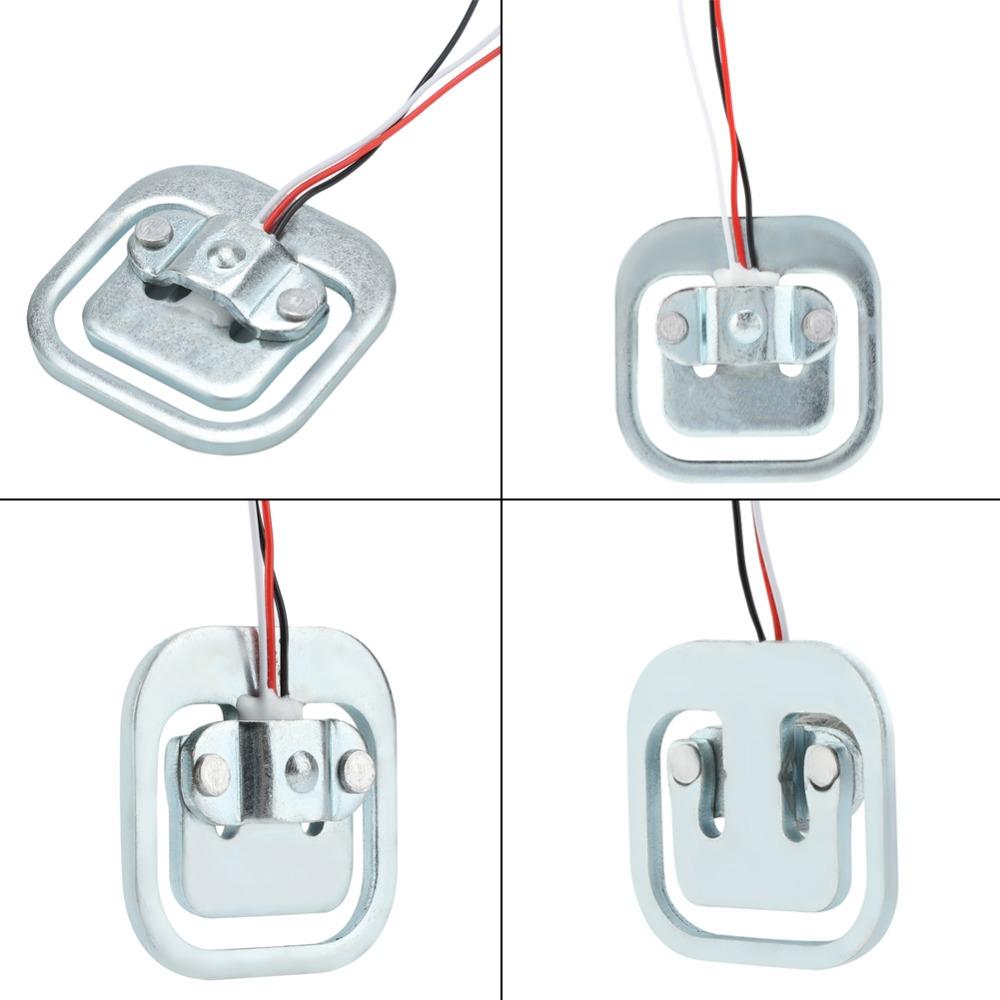

When measuring, apply external force correctly to the outer edge. The strain beam part of the E-shaped sensor (i.e. the beam arm with white adhesive and strain gauges attached in the middle) and the outer edge should form a shear force in the opposite direction, that is, the strain beam in the middle must be able to bend under force, and there should be no obstacles on the other side of the stress surface of the strain beam.
This sensor is a group of half bridge strain gauge, using the method can have the following three:
1. Using a sensor with the external resistance to form a full bridge measurement, the range of a sensor range: 50kg. External resistance requirements are higher.
2. The use of two sensors to form a full bridge measurement, measuring the range of two sensors: 50kg * 2=100kg
3. The use of four sensors to form a full bridge measurement, measuring range of four sensors and the range: 50kg * 4 =200kg
Specifications:
Material: Aluminum Alloy
Structure: Half-bridge
Interior: 1000 Ohm half-bridge strain gauge
Capacity: 50kg/110lb (each)

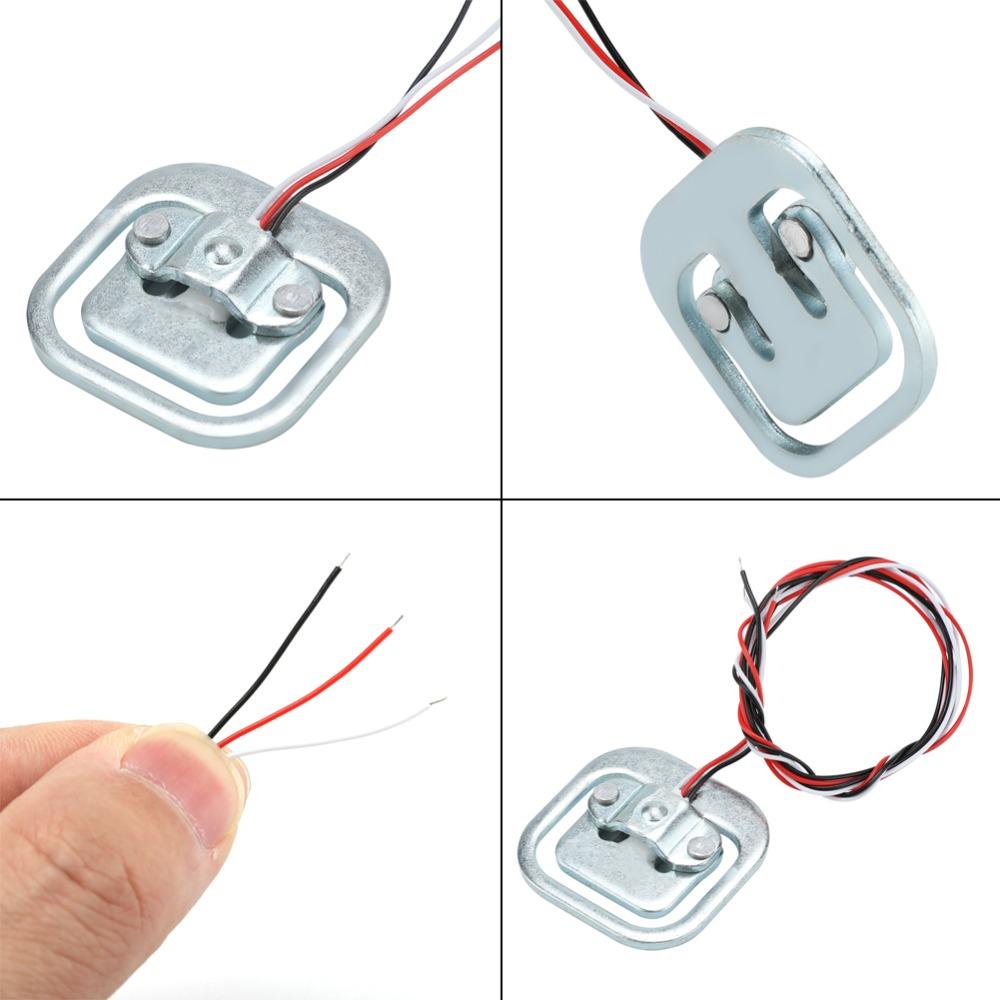

Wire Connection: Red for positive pole, black for negative pole, white for data output

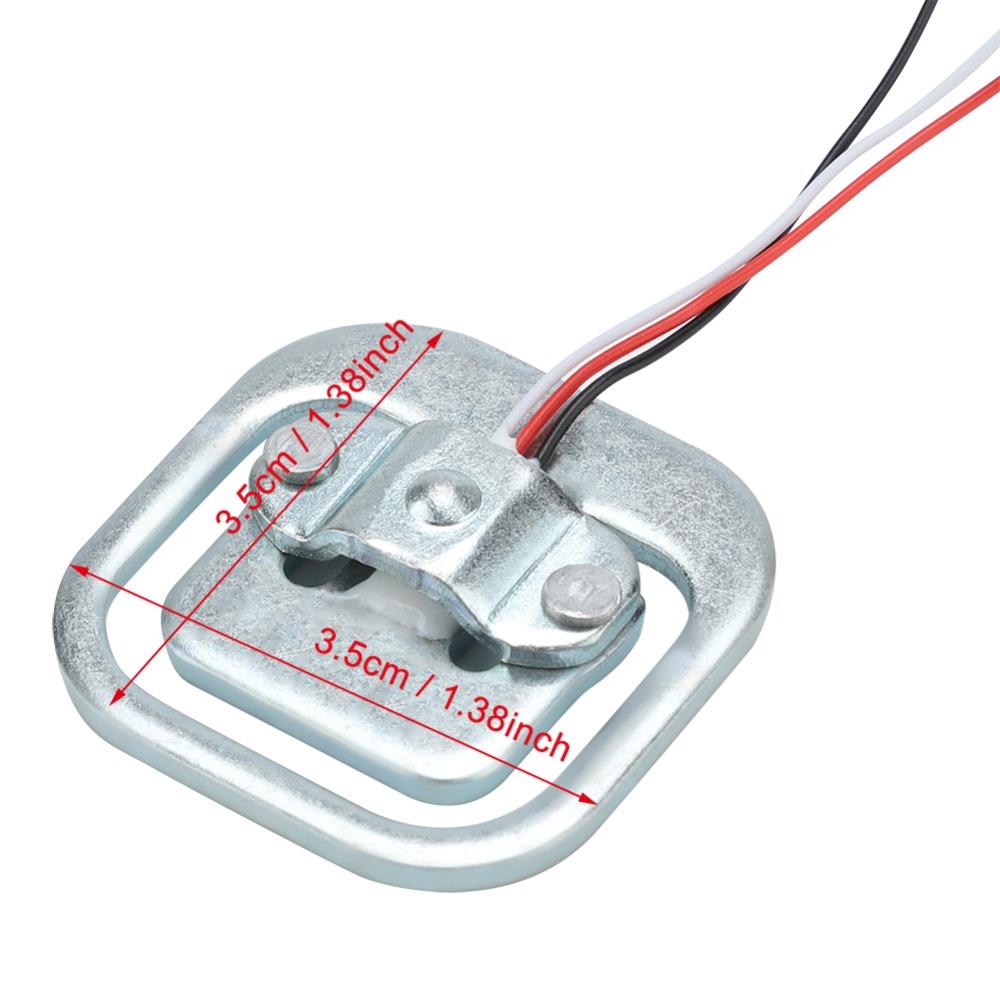

Size: Approx. 3.5*3.5cm/1.38*1.38in
Color: Silver
Weight: Approx. 21g
Package Included:

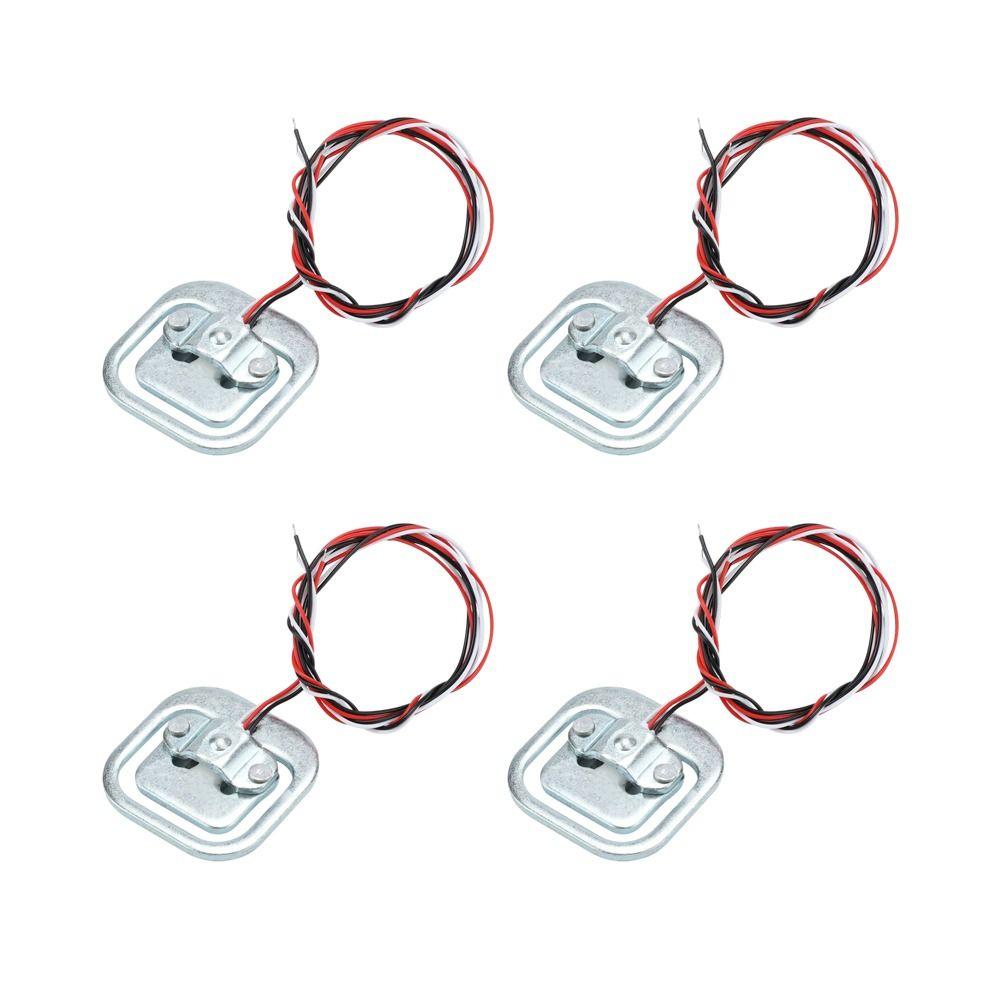

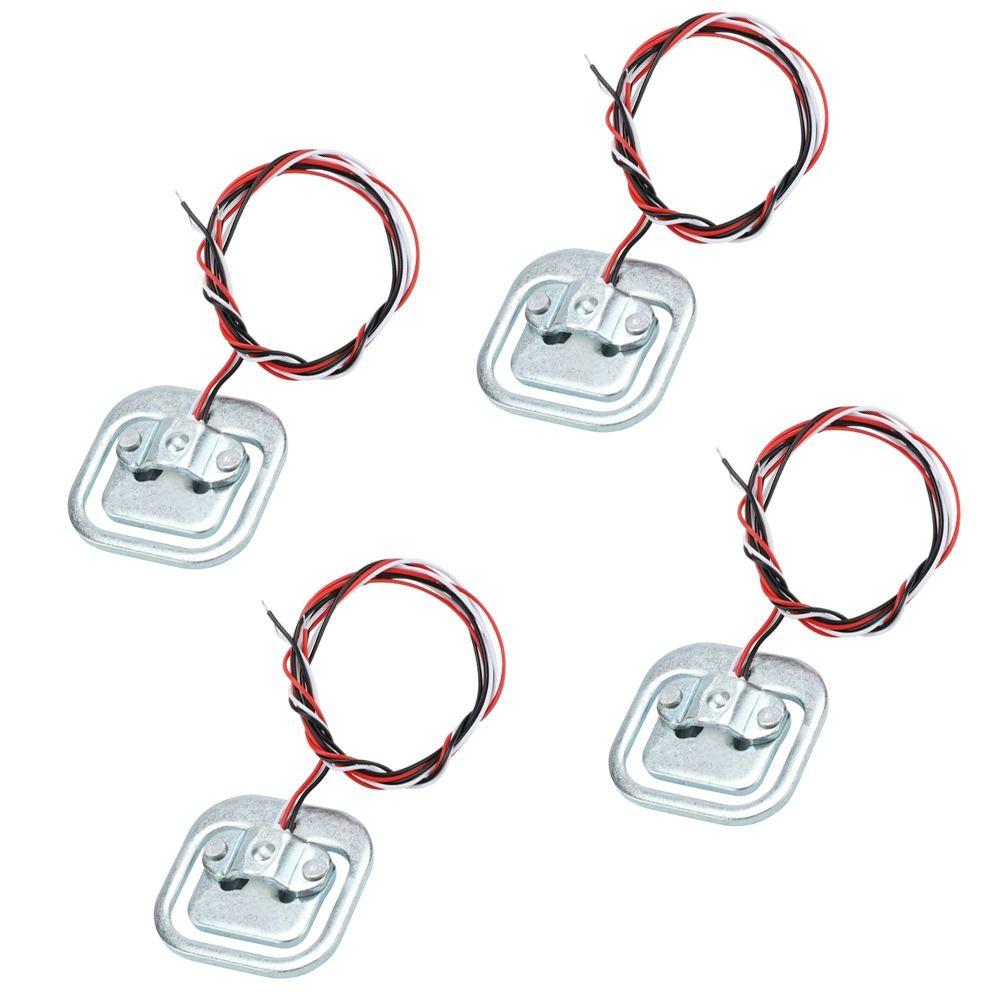

4 * Weighing Sensors
