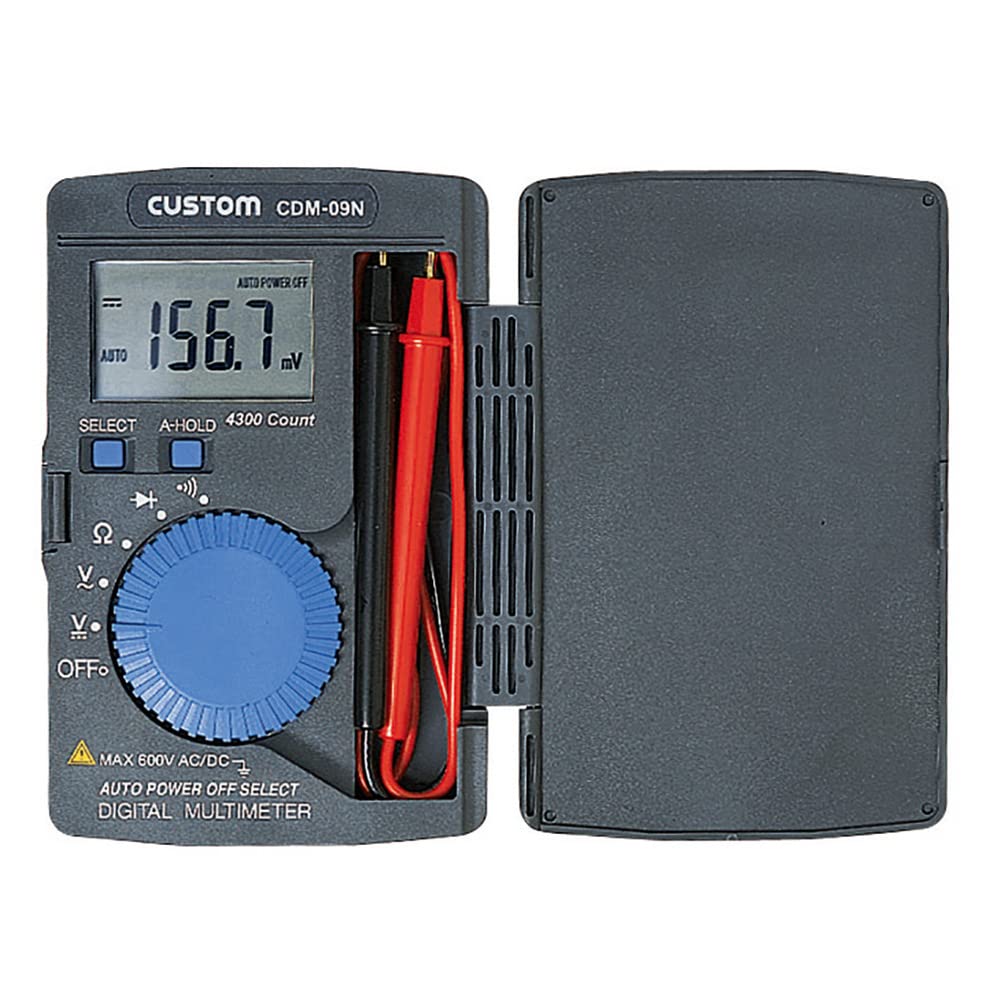

CUSTOM Digital Multimeter for AC DC and Diode Check CDM-09N Voltage, Voltage, Resistance, Continuity,

---------------------------------------------------------------------- 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ---------------------------------------------------------------------- ACV: [Range] 4V, 40V, 400V, 600V [Resolution] 0.001V (up to 4V), 0.01V (up to 40V), 0.1V (up to 400V), 1V (up to 600V), DCV: [Range] 400mV, 4V, 40V, 400V, 600V [Resolution] 0.1mV (~400mV), 0.001V (~4V), 0.01V (~40V), 0.1V (~400V), 1V (~600V) Ω: [Range] 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ [Resolution] 0.1Ω (~400Ω), 0.001kΩ (~4kΩ), 0.01kΩ (~40kΩ), 0.1kΩ (~400kΩ), 0.001MΩ (~4MΩ), 0.01MΩ (~40MΩ), Operating principle: double integral method Display: 3.5 digit LCD display, maximum 4300 counts Range switching: Fully automatic range Sampling: 2 times/second Power supply: 2 x LR44 button batteries Dimensions and weight: W76 x H117 x D18mm, approx. 120g Accessories: Instruction manual
