Feature:
1. 540 brush motor, 36mm diameter, 50mm length, 3.175mm shaft diameter. Precision balanced rotor, smoothness for best reliability, and maximum RPM.
2. Precision engineered for maximum energy conversion. Suit for 1 10 scale RC crawler car. With excellent throttle linearity and driving feel.
3. The ESC has protections of Lipo battery low voltage, cell quantity autotest, high temperature conservation, throttle signal loss conservation.
4. The ESC possesses an aluminum cooling system offering excellent heat dissipation a strong resistant current capability.
5. .
Specification:

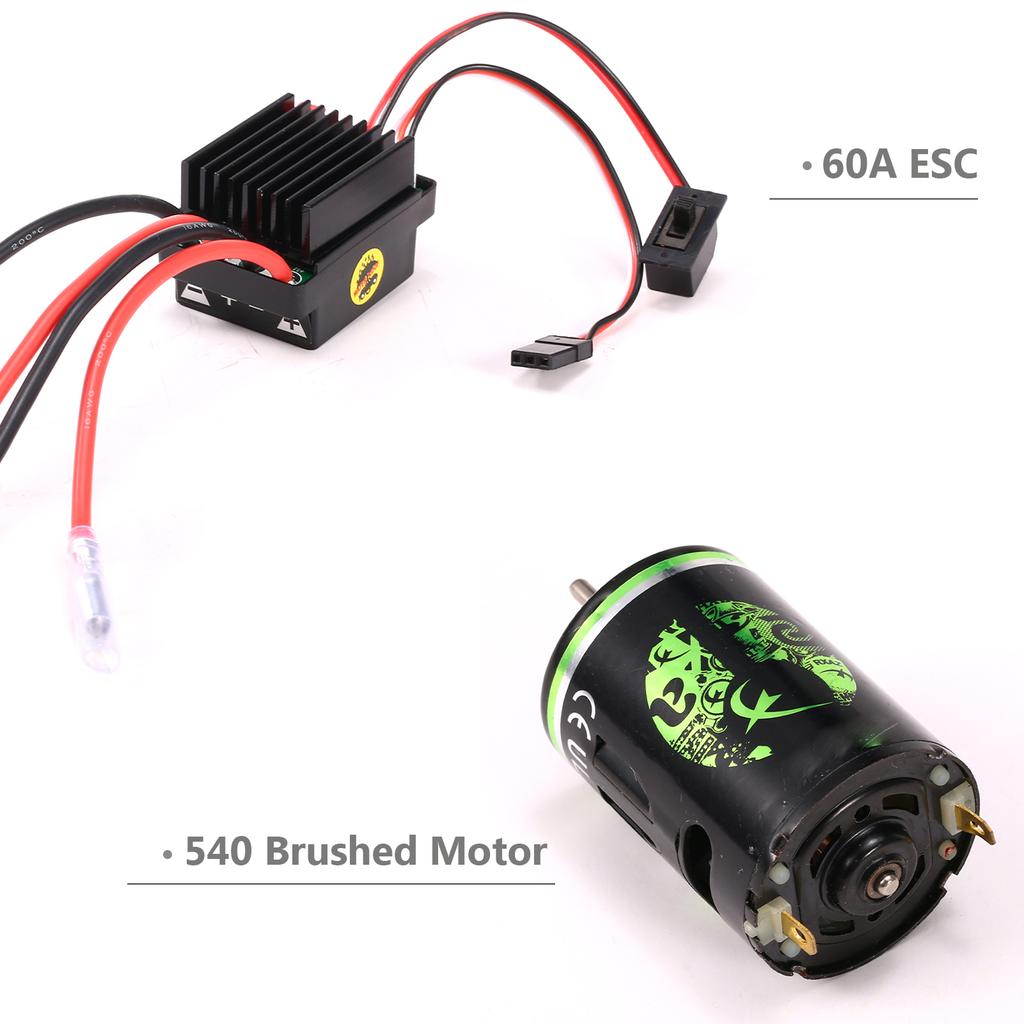

Providing both quality and performance at an affordable price, the 540 brush motor, with excellent throttle linearity and driving feel. The 60A brushed ESC perfectly fits for 1 10 RC Car. Built with the superior components features enhanced throttle response, excellent acceleration, strong breaks, and throttle linearity, it is a good choice for RC hobbyists, especially for DIY enthusiasts. Compatible with Axial SCX10 Traxxas TRX4 D90 Redcat GEN8 RC car.
Features:
540 brush motor, 36mm diameter, 50mm length, 3.175mm shaft diameter. Precision balanced rotor, smoothness for best reliability, and maximum RPM.
Precision engineered for maximum energy conversion. Suit for 1 10 scale RC crawler car. With excellent throttle linearity and driving feel.
The ESC has protections of Lipo battery low voltage, cell quantity autotest, high temperature conservation, throttle signal loss conservation.
The ESC possesses an aluminum cooling system offering excellent heat dissipation a strong resistant current capability.
.
Specifications:

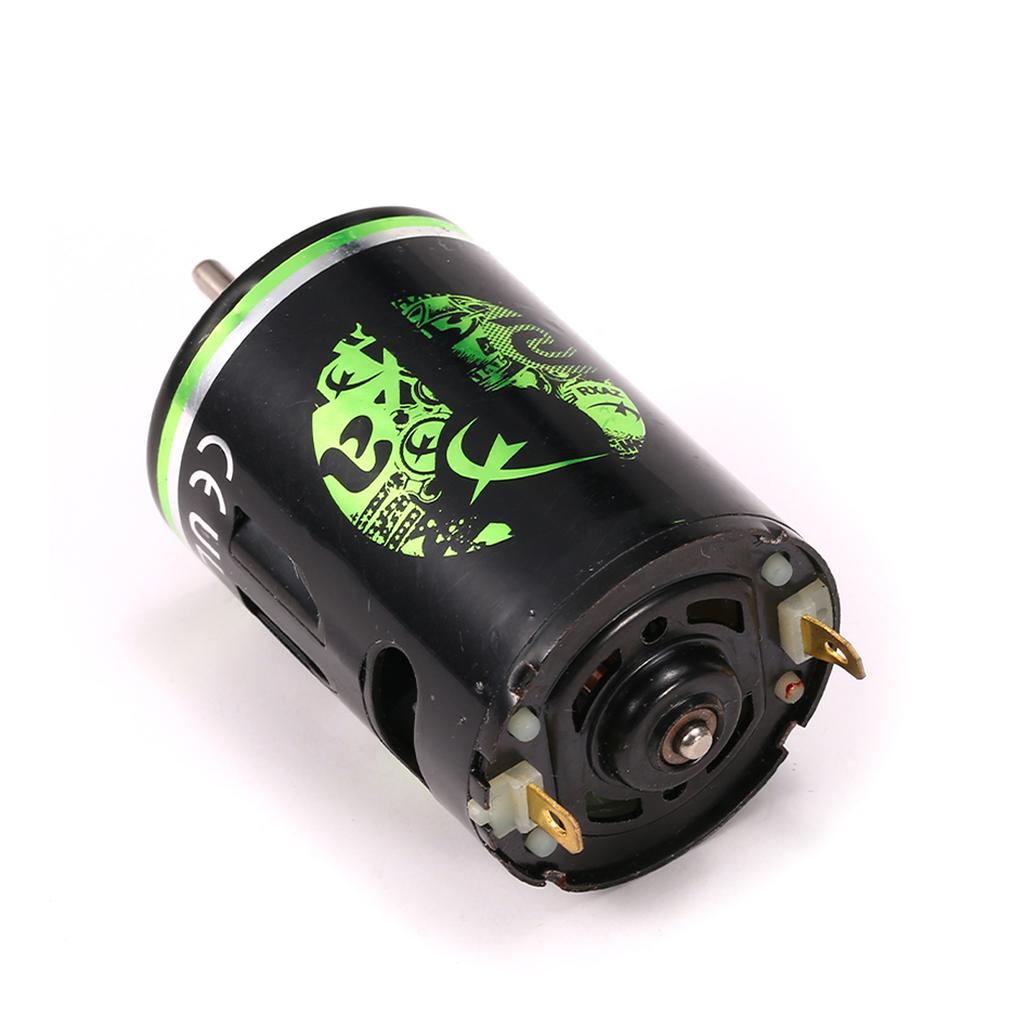

Item: 540 Brushed Motor
Turns: 27T
Motor Type: Brush Motor
(At No Load) RPM @ 7.2V ,15000 +10percent , 1.2Amp Current
(Rated load) RPM @ 7.2V : 13600 +10percent , 5.02Amp Current
Diameter: 36mm
Length: 50mm
Shaft Length: 15mm
Shaft Diameter: 3.175mm
Suitable for: 1 10 Crawler Cars

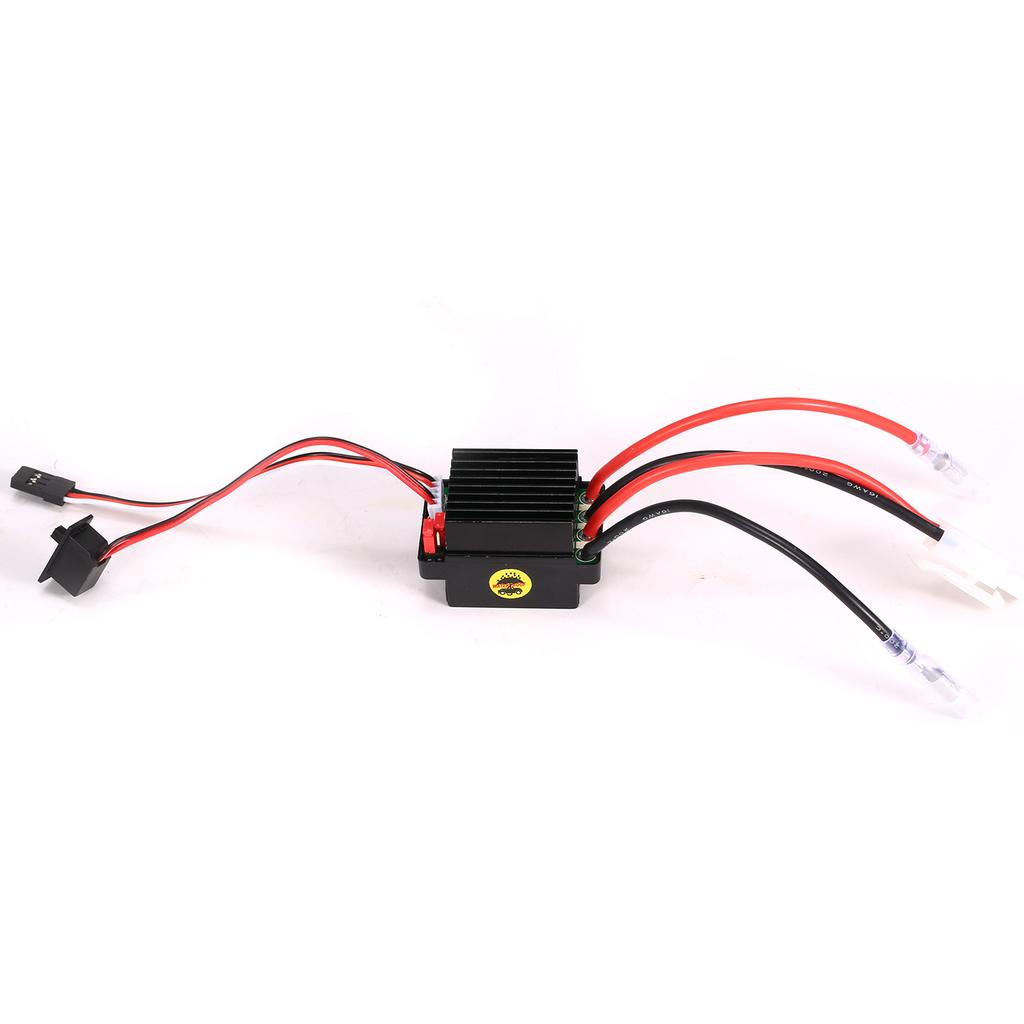

Item: 60A ESC
Type: Brushed
Voltage: 2 3S Lipo
BEC Output: 5V 2A
Size: 4.3*3*2.8cm
Package Information:
Package Size: 13*9*4.5cm
Package Weight: 220g
Plastic Package
Packing List:
1* 540 Brushed Motor
1* 60A ESC
Package List:
1* 540 Brushed Motor
1* 60A ESC
